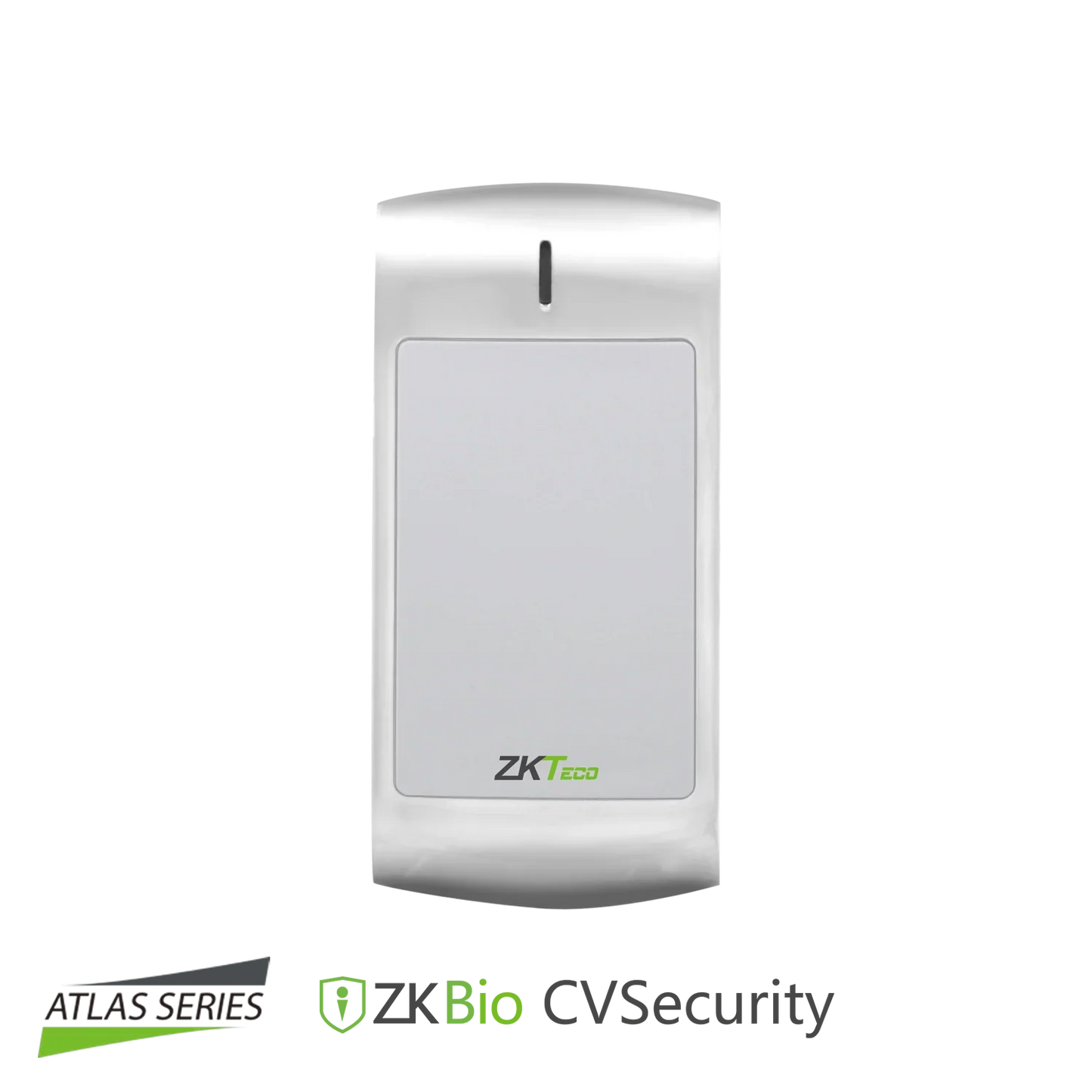

ZKTeco MR1010 – Outdoor Metal RFID Reader (13.56MHz)

The ZKTeco MR1010 is a rugged, vandal-proof, and weather-resistant RFID reader designed for high-security outdoor access control applications. With an IK10 impact resistance rating and IP66 waterproof/dust-proof protection, the MR1010 ensures reliable operation even in harsh environments.

Operating at 13.56MHz, the MR1010 supports Mifare card credentials with a fast reading distance of 2–6cm. Its metal casing not only enhances durability but also delivers a sleek, professional appearance suitable for commercial, industrial, and government facilities.

The reader outputs Wiegand 26/34 bits for seamless integration with most standard access control panels, making it a dependable choice for both retrofit and new installations.

What’s in the Box

• 1 × ZKTeco MR1010 RFID Reader

• Mounting screws & fittings

• Wiring harness

• Installation guide

Main Features

• Rugged & Secure Design – IK10 vandal-proof rating for impact resistance

• Weatherproof Construction – IP66-rated for outdoor use in extreme conditions

• Optimised RFID Performance – 13.56MHz operating frequency for secure card reading

• Flexible Integration – Supports Wiegand 26/34-bit output for broad compatibility

• Wide Temperature Range – Operates from -40°C to +60°C

Detailed Specifications

Warranty Information

3-Year Manufacturer Warranty – Covers manufacturing defects under normal operational conditions.

Excellence for the Australian and New Zealand Market

• Designed to withstand ANZ’s harsh weather conditions

• Distributed by authorised ZKTeco partners for genuine product assurance

• Backed by local technical and warranty support

• Compliant with ANZ access control integration standards

Datasheet & Resources

📄 Download ZKTeco MR1010 Datasheet

FAQs – ZKTeco MR1010

Q1: What is the operating frequency of the MR1010?
A1: The MR1010 operates at 13.56MHz for Mifare card reading.

Q2: Can the MR1010 be installed outdoors?
A2: Yes, it has an IP66 waterproof/dust-proof rating and operates from -40°C to +60°C.

Q3: Is the MR1010 vandal-proof?
A3: Yes, it carries an IK10 rating, offering high impact resistance.

Q4: What card types are supported?
A4: The MR1010 is compatible with Mifare RFID cards.

Q5: What output formats does it support?
A5: The reader supports Wiegand 26 and 34-bit output for integration with most access control panels.
