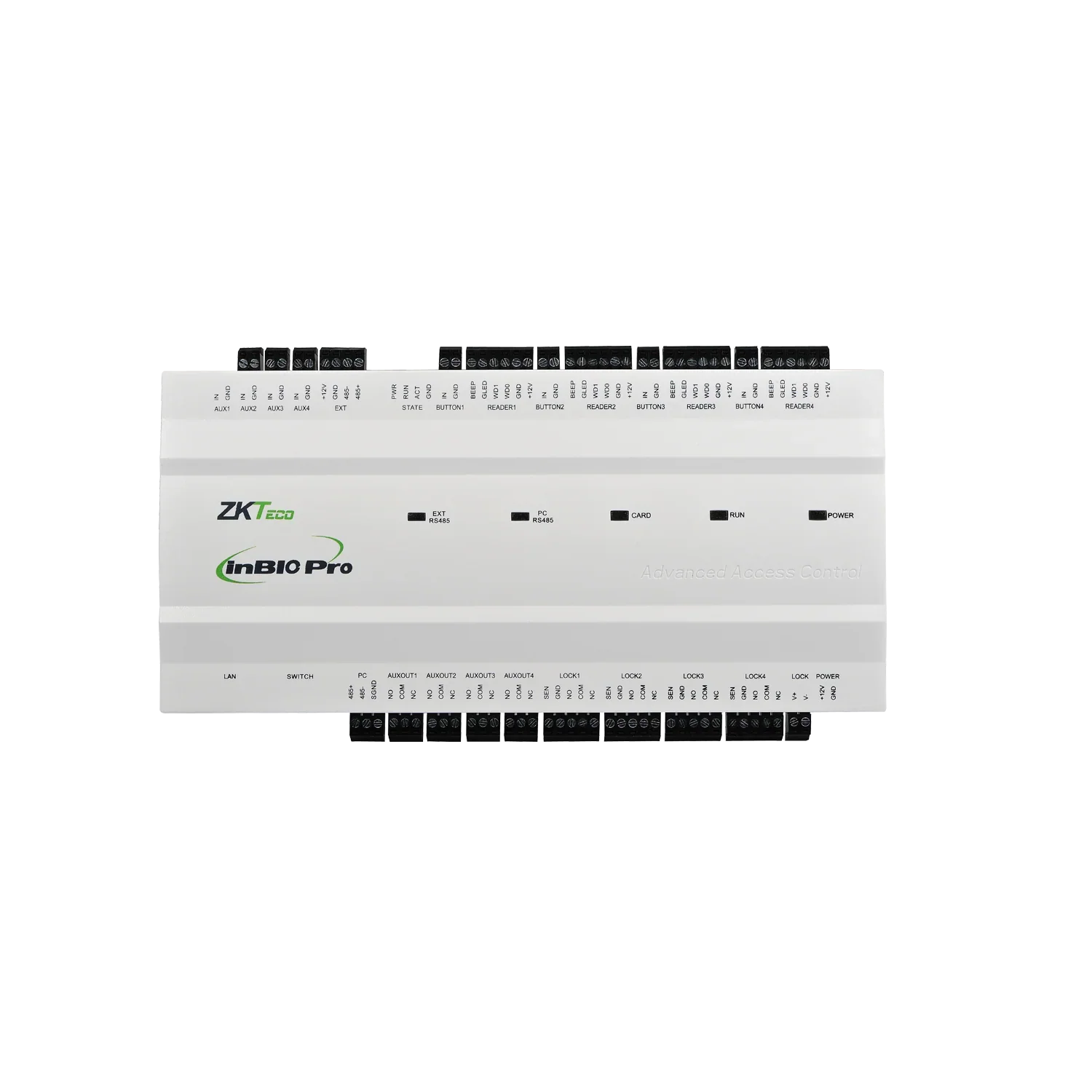

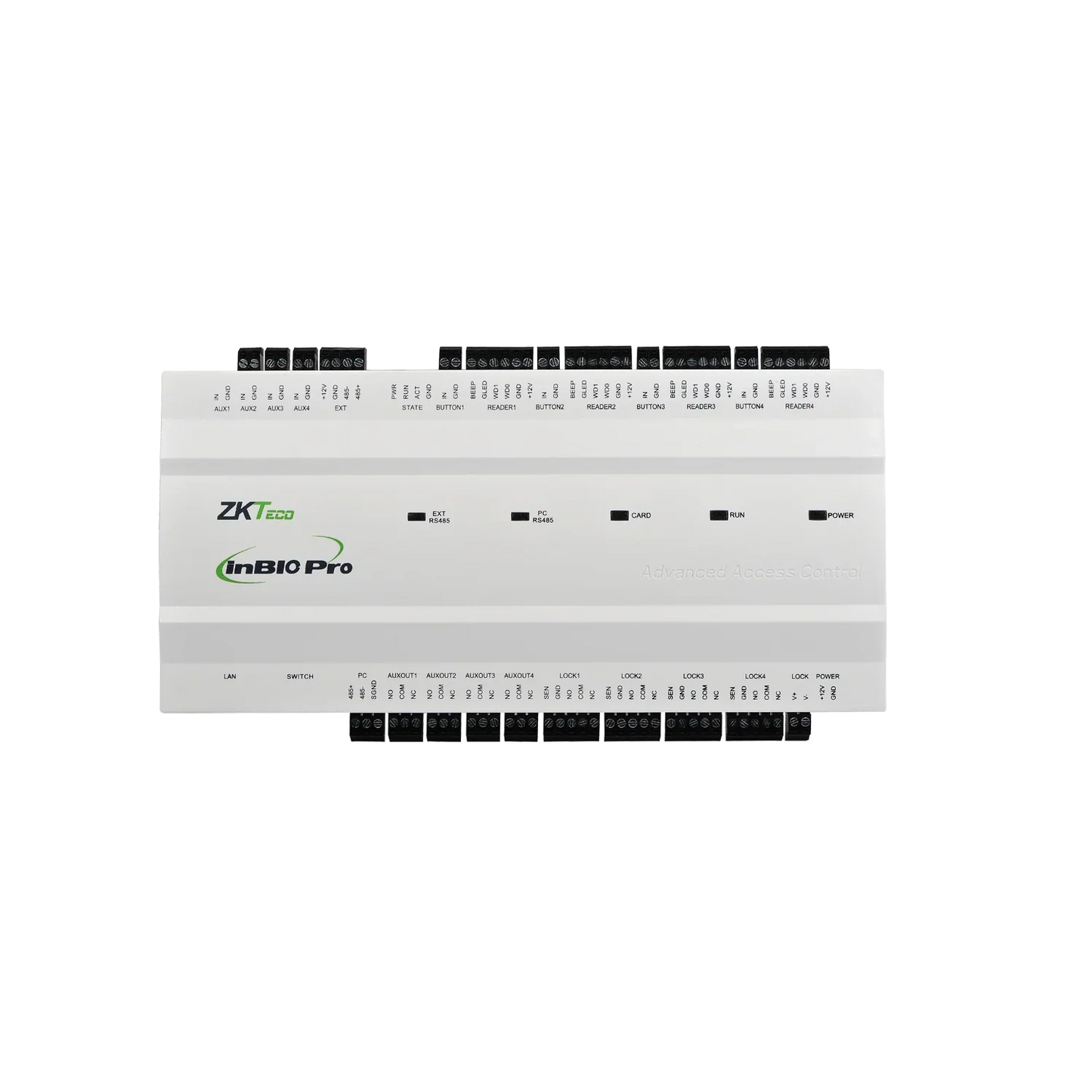

ZKTeco InBio‑460 Pro | 4‑Door IP Biometric Access Control Panel – 20,000 Fingerprints / 60,000 Cards / 100,000 Events

ZKTeco InBio‑460 Pro | 4‑Door IP Biometric Access Control Panel – 20,000 Fingerprints / 60,000 Cards / 100,000 Events

$1,055.70 AUD
$1,722.78 AUD $1,055.70 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The ZKTeco InBio‑460 Pro is a top-tier, 4-door access control panel designed for enterprise-grade security environments requiring scalable and intelligent access management. This IP-based controller performs fingerprint matching directly on the panel, integrates seamlessly with biometric and RFID readers, and supports encrypted communication protocols such as HTTPS and SSH.

Ideal for corporate campuses, critical infrastructure, and government facilities, the InBio‑460 Pro supports multiple authentication modes, event logging, and dynamic QR code access—all while ensuring continuous operation even in offline or power-down scenarios.

What’s Included in the Box

  • 1 × ZKTeco InBio‑460 Pro 4-Door Control Panel

  • 1 × Case01 Metal Enclosure

  • 1 × ZKPSM03ЗОВ Power Supply (DC12V/3A with battery backup capability)

  • 1 × FR107 Lock Protection Diode

  • 2 × Keys for Enclosure

  • 1 × Installation Guide

Main Features

  • 4-Door Control: Manages up to 4 doors with support for 8 RS‑485 biometric readers and 4 Wiegand RFID readers.

  • Built-in Fingerprint Matching: Performs fingerprint authentication on the controller using RS‑485 FR series readers.

  • Comprehensive Access Logic: Built-in features include Anti‑Passback, First-Card Opening, Multi-Card Unlocking, Duress Password Entry, and I/O linkages.

  • Smart Communication: Supports TCP/IP with HTTP/HTTPS for secure, flexible remote management.

  • High Capacity: Stores 20,000 fingerprint templates, 60,000 cardholders, and logs 100,000 events.

  • Fail-Safe Operation: Data and access functionality remain intact during power or network outages.

  • QR Code Integration: Compatible with RS‑485 QR readers (QR50/QR500/QR600) and the ZKBioSecurity app for mobile-based dynamic QR code access.

  • Flexible Deployment: Can be combined with InBio‑160 and InBio‑260 controllers in multi-door systems for project-specific configurations.

  • Secure Architecture: Supports encrypted data transmission and advanced security protocols like AES256 and SSH.

Detailed Specifications

Specification Details
Model ZKTeco InBio‑460 Pro
Doors Controlled 4
Readers Supported 12 (8 RS‑485 biometric readers + 4 Wiegand readers)
Reader Types 26-bit Wiegand, RS‑485 FR series
Inputs 12 (4 Exit Button, 4 Door Status, 4 Auxiliary Inputs)
Outputs 8 (4 Form C Relays for Locks, 4 Form C for Aux Outputs)
Fingerprint Capacity 20,000 templates
Cardholder Capacity 60,000 users
Event Storage 100,000 transactions
Communication TCP/IP (HTTP/HTTPS, SSH)
CPU 32-bit 400 MHz
Memory 32 MB RAM, 128 MB Flash
Power Input 9.6–14.4 V DC
Operating Temperature 0–45 °C
Operating Humidity 20% to 80% RH
Controller Dimensions 226 × 106 × 36 mm
Package Dimensions 350 × 90 × 300 mm
Package Weight ~4.47 kg

Warranty Information

manufactures warranty applied

Brand Description

ZKTeco is a global leader in advanced biometric and access control technology. Known for innovation, reliability, and integration flexibility, ZKTeco solutions are trusted worldwide in sectors ranging from government and enterprise to education and logistics. The InBio Pro Series represents ZKTeco's commitment to intelligent access control, offering robust features and versatile configuration options.

SKU

INBIO‑460‑PRO

Practical Use Scenarios

  • Enterprise Headquarters: Manage secure access across multiple floors or departments from a central location.

  • Government Buildings: Deploy layered access control for sensitive areas with duress and anti-passback protection.

  • University Campuses: Coordinate multi-building access with cardholder logs and biometric ID verification.

  • Healthcare Facilities: Control access to high-security areas like labs, pharmacies, and surgical wings.

  • Industrial Complexes: Protect production areas, warehouses, and logistics hubs with biometric or QR code verification.

Datasheets & Downloadable Resources

datasheet

Excellence for the Australian and New Zealand Market

The ZKTeco InBio‑460 Pro is tailored to meet the performance and compliance needs of customers in Australia and New Zealand:

  • Built for Compliance: Supports HTTPS and secure data protocols aligned with regional privacy standards.

  • NDSS Compatibility: Suitable for environments requiring security alignment with government-supported schemes.

  • Authorized Supply Chains: Devices are sourced exclusively from authorized distributors for authenticity and full support.

  • Local Service & Warranty: Warranty claims and technical assistance are managed via trusted ZKTeco partners in the region.

  • Installation Versatility: Perfect for deployments in commercial, industrial, and institutional facilities throughout the ANZ market.

FAQs (Product Code: INBIO‑460‑PRO)

  1. How many doors can the INBIO‑460‑PRO manage?
    The INBIO‑460‑PRO manages up to 4 doors simultaneously, with support for both entry and exit readers.

  2. What kind of readers are compatible with the INBIO‑460‑PRO?
    It supports 8 RS‑485 biometric readers and 4 Wiegand readers, making it compatible with both modern and legacy access methods.

  3. What storage capabilities does the INBIO‑460‑PRO offer?
    It supports up to 20,000 fingerprint templates, 60,000 cardholders, and logs 100,000 access events.

  4. Is the INBIO‑460‑PRO suitable for mobile-based QR code access?
    Yes, it works with compatible RS‑485 QR readers and the ZKBioSecurity app to support dynamic QR code access.

  5. Does the INBIO‑460‑PRO work offline during power or network outages?
    Absolutely. The controller retains all data and continues local access control operations, syncing when reconnected.

    please contact CCTV TRADIE for stock availability
