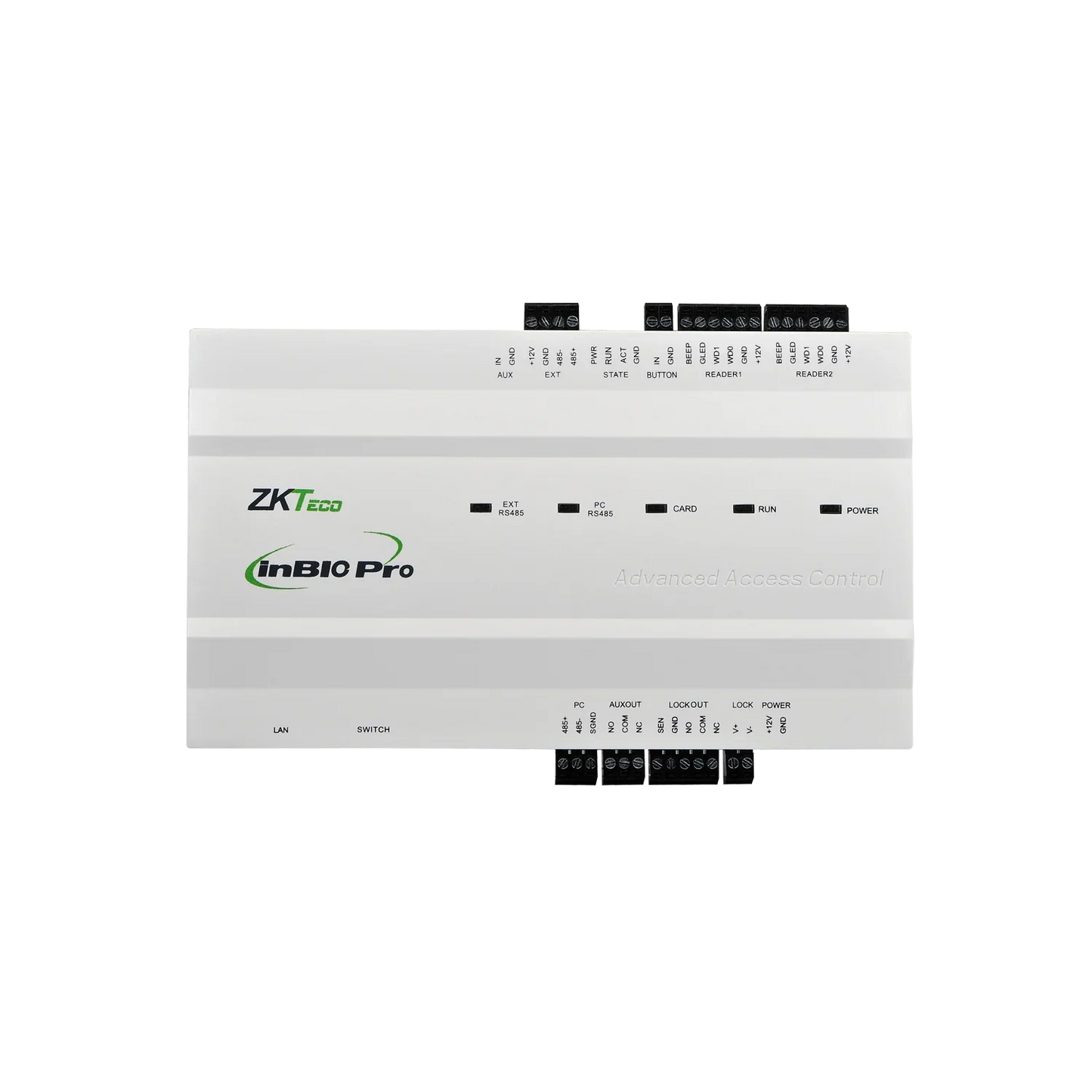

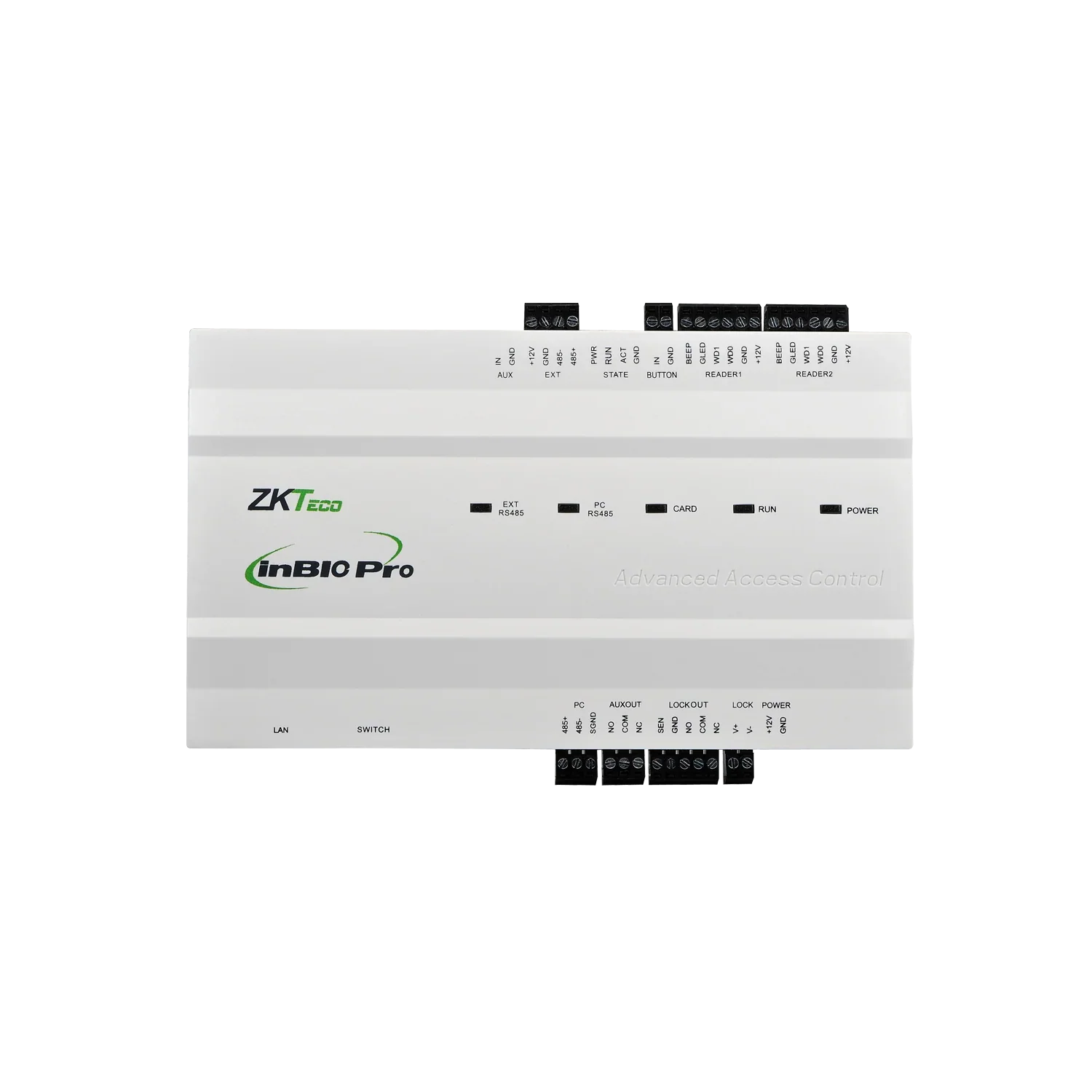

ZKTeco InBio‑160 Pro | 1‑Door IP Biometric Access Control Panel – 20,000 Fingerprint / 60,000 Cards / 100,000 Events

ZKTeco InBio‑160 Pro | 1‑Door IP Biometric Access Control Panel – 20,000 Fingerprint / 60,000 Cards / 100,000 Events

$467.16 AUD
$610.98 AUD $467.16 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The ZKTeco InBio‑160 Pro is a high-performance, IP‑based access control panel tailored for biometric security projects. Engineered for seamless LAN/WAN deployment, it delivers on-board fingerprint matching, flexible reader integration, and advanced control capabilities, all within a compact and reliable design. Perfect for small to medium facilities, this solution ensures robust security with minimal infrastructure complexity.

What’s Included in the Box

  • ZKTeco InBio‑160 Pro Control Panel (1‑Door)

  • Metal enclosure (Case01)

  • Power Supply DC12 V/3 A with battery backup capability (ZKPSM03ЗОВ)

  • FR107 diode for lock protection

  • Two keys for metal case access

  • Installation guide

Main Features

  • On‑board Biometric Matching: Executes fingerprint matching internally via RS‑485 FR series readers; supports Wiegand for legacy RFID systems.

  • Advanced Access Control: Built‑in functions include Anti‑Passback, First‑Card Opening, Multi‑Card Opening, Duress Password Entry, and auxiliary I/O linkages.

  • Network-Ready Deployment: Easily configured over HTTP/HTTPS, with web‑server interface for effortless setup.

  • High Storage Capacity: Stores up to 20,000 fingerprints, 60,000 card holders, and logs 100,000 events—even offline or during power loss.

  • Firmware Upgradeable: Supports in-field firmware updates without needing special tools, helping lower TCO.

  • Auxiliary Control Support: Programmable relays can manage alarms, lighting, gate controllers, or additional locking mechanisms.

Detailed Specifications

Specification Details
Doors Controlled 1 Door
Readers Supported 4 Readers (2 RS‑485 + 2 × 26‑bit Wiegand)
Reader Types RS‑485 FR series, 26‑bit Wiegand
Inputs 3 (Exit Button, Door Status, Aux)
Outputs 2 (Form C Relay: Lock + Aux Output)
User Capacities 20,000 Fingerprints / 60,000 Card Holders
Log Capacity 100,000 Events
Communication TCP/IP (HTTP/HTTPS)
Physical Size 350 × 90 × 300 mm
Weight (Package) ~3.6 kg
Power 9.6–14.4 V DC
Operating Conditions 0–45 °C / 20–80 % RH
Hardware 32-bit 400 MHz CPU, 32 MB RAM, 128 MB Flash

Warranty Information

manufactures warranty applied

Brand Description

ZKTeco is a global leader in biometric and security solutions, renowned for its commitment to innovation, reliability, and integration flexibility. The InBio Pro Series embodies this legacy, providing scalable and robust access control platforms optimized for modern security infrastructures.

SKU

INBIO‑160‑PRO

Practical Use Scenarios

  • Corporate Access Management: Secure individual entry points in offices and server rooms, with full audit trails.

  • Residential Security: Ideal for gated communities, villas, or apartment blocks requiring secure single-door control.

  • Sensitive Areas: Optimal for labs or records centers needing dual authentication (biometric + card/PIN).

  • Remote Branch Operations: Operates autonomously during network outages (local access continues with later syncing).

Datasheets & Downloadable Resources

 datasheet

Excellence for the Australian and New Zealand Market

The InBio‑160 Pro meets high reliability standards expected in Australia and New Zealand. When sourced through authorized distributors:

  • Quality Assurance: Complies with regional reliability and performance expectations.

  • NDSS & Certification: May align with National Disability Insurance Scheme (NDIS) requirements and other industry certifications.

  • Authorized Sourcing: Ensures access to genuine components and approved firmware.

  • Warranty Handling: Streamlined service via local representatives of ZKTeco.

FAQs (Product Code: INBIO‑160‑PRO)

  1. What is the storage capacity of the INBIO‑160‑PRO?
    The INBIO‑160‑PRO stores up to 20,000 fingerprint templates, 60,000 cardholders, and logs 100,000 access events.

  2. Can I connect both biometric and RFID readers to the INBIO‑160‑PRO?
    Yes—connect up to 2 RS‑485 fingerprint readers (FR series) and 2 × 26-bit Wiegand RFID readers to the INBIO‑160‑PRO.

  3. What are the advanced access control features supported by the INBIO‑160‑PRO?
    The INBIO‑160‑PRO natively supports Anti‑Passback, First‑Card Opening, Multi‑Card Opening, Duress Password Entry, and Aux‑I/O linkages.

  4. Does the INBIO‑160‑PRO continue functioning during a network or power outage?
    Yes. The INBIO‑160‑PRO retains all data and continues access operations even if the network drops or power is temporarily lost.

  5. How do I update the firmware on the INBIO‑160‑PRO?
    Firmware on the INBIO‑160‑PRO can be upgraded in the field easily, with no need for specialized tools—via its network interface.
