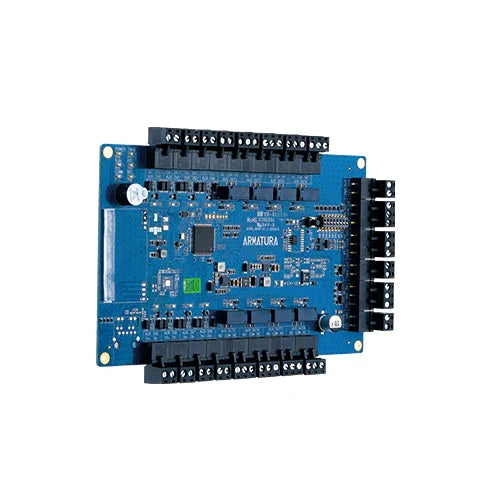

ZKTeco AHEB-0808 Expansion Board for Atlas Panels – 8 Inputs / 8 Outputs, OSDP v2.2

The ZKTeco AHEB-0808 Expansion Board is a high-performance I/O expansion module designed to extend the capabilities of AHSC-1000 and AHDU series controllers. Using OSDP V2.2 over RS-485 with AES128 encryption and an EAL6+ certified crypto chip, it ensures secure, reliable communication for critical access control and building automation applications.

Engineered for Advanced Security, the AHEB-0808 features 4 state-supervised inputs capable of detecting even minor resistance changes, providing robust protection against short-circuit attacks. Inputs can be configured as Active, Inactive, Short, or Open, with time zone management for precise control.

With 8 configurable relay ports (8 inputs / 8 outputs), the AHEB-0808 offers versatile deployment options in door control, alarm integration, and device automation. It supports universal 12–24VDC power input, making it adaptable to a wide range of installations.

When paired with Armatura controllers, the AHEB-0808 enables large-scale scalability—supporting up to 388 inputs or 196 outputs on a single AHDU controller, and up to 12,801 inputs/outputs in combined systems. Integration with Armatura One security software provides full configuration, monitoring, and firmware updates via encrypted communication, with upcoming Cielo365 compatibility.

What’s in the Box

• 1 × ZKTeco AHEB-0808 Expansion Board

• Mounting Hardware

• Connection Terminals

• Installation Guide

Main Features

• 8 Inputs / 8 Outputs – Fully configurable for flexible building control

• Advanced Security – AES128 encryption with EAL6+ certified crypto chip

• 4 State-Supervised Inputs – Detects resistance changes as low as 5% Ohms

• Scalable – Supports up to 12,801 inputs/outputs in combined systems

• Universal Voltage – Operates on 12–24VDC without extra adaptors

• Time Zone Management – Programmable input states with scheduling

• OSDP V2.2 Certified Communication – Reliable and secure RS-485 data transfer

• 3rd Party Integration – Compatible via RESTful API in Armatura One

• Easy Management – Remote monitoring and updates through controller webserver

Detailed Specifications

Warranty Information

3-Year Manufacturer Warranty – Covers defects in materials and workmanship under standard conditions.

Excellence for the Australian and New Zealand Market

• Compatible with Australian and NZ voltage standards (12–24VDC)

• Supplied via authorised ZKTeco distribution channels in ANZ

• Meets OSDP compliance for secure data transfer in local building security systems

• Backed by local warranty handling and technical support

Datasheet & Resources

📄 Download ZKTeco AHEB-0808 Datasheet

FAQs – ZKTeco AHEB-0808

Q1: How many inputs and outputs does the AHEB-0808 provide?
A1: It has 8 inputs (4 state-supervised) and 8 outputs, all fully configurable.

Q2: Does the AHEB-0808 require a specific voltage?
A2: No, it supports a universal 12–24VDC input range.

Q3: Can I use it for elevator control?
A3: While elevator control functions are exclusive to the AHEB-1616 model, the AHEB-0808 can be used for other access control and automation applications.

Q4: Is communication between the board and controller secure?
A4: Yes, it uses OSDP V2.2 over RS-485 with AES128 encryption and an EAL6+ certified crypto chip.

Q5: What software platforms does it work with?
A5: It integrates with Armatura One and supports 3rd party software via RESTful API.
