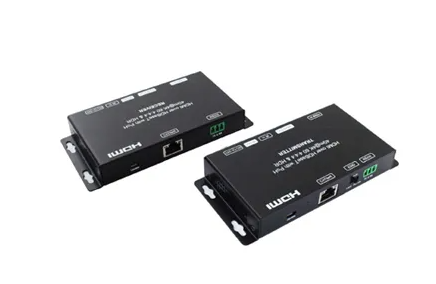

XTENDR HDMI Extender 4K @70m / 1080P @100m over Cat6 – Dual HDMI Out + Loop Out | NDAHD-C6-4KPRO

Experience seamless high-definition transmission with the XTENDR NDAHD-C6-4KPRO HDMI Extender. Designed to meet the demands of both residential and commercial AV installations, this high-performance extender supports stunning 4K video at 70 metres and Full HD 1080P at 100 metres via a single Cat6 cable. Featuring an HDMI loop-out on the transmitter and dual HDMI outputs on the receiver, it provides flexible display options for any setup.

Engineered for premium AV clarity, the NDAHD-C6-4KPRO offers an impressive 18Gbps bandwidth and supports HDR10 for vibrant visuals. Built-in dual Power over Cable (PoC) technology allows for streamlined, clutter-free installation without the need for separate power adapters on both ends. Enjoy smooth control with bi-directional IR functionality, making it ideal for home theatres, digital signage, and conferencing systems.

What's Included in the Box

• 1 x HDMI Transmitter Unit (TX)

• 1 x HDMI Receiver Unit (RX)

• 2 x 5V DC Power Adapters

• 1 x IR Transmitter Cable

• 1 x IR Receiver Cable

• 1 x User Manual

Main Features

• Video Resolution: 4K @ 70 metres, 1080P @ 100 metres over a single Cat6 cable

• HDMI Loop Out (TX): Enables local display from the transmitter side

• Dual HDMI Output (RX): Split output for multiple displays

• Bandwidth: High-speed 18Gbps for uncompressed 4K content

• HDR10 Support: Vivid colours and contrast for dynamic image rendering

• HDCP Compliance: Compatible with HDCP 2.2 and 1.4 protected content

• Dual Power over Cable (PoC): Power either side of the system using a single adapter

• Bi-Directional IR Pass-Through: Remote control from either transmitter or receiver side

• Build: Compact design ideal for AV rack, wall mounting, or behind-screen installations

Detailed Specifications

Warranty Information

This product includes a 2-Year Manufacturer Warranty, covering defects in materials and workmanship under standard usage conditions. For warranty service, contact your reseller or the authorized distributor.

Brand Description

XTENDR is a specialist brand focused on advanced video extension solutions, known for engineering reliable AV transmission hardware that delivers high-quality performance in demanding environments. XTENDR products are trusted in both residential and commercial sectors across Australia and beyond.

Practical Use Scenarios

• Multi-room residential AV systems

• Digital signage displays in shopping centres or lobbies

• Boardroom or classroom AV distribution

• Exhibition and event setups

• Home theatre setups requiring long-range video feed

• Retail display systems with control from central point

Datasheets & Downloads

• Product Datasheet – NDAHD-C6-4KPRO (PDF)

Excellence for the Australian and New Zealand Market

The XTENDR NDAHD-C6-4KPRO is optimized for deployment across Australian and New Zealand infrastructure. It is compliant with local safety and performance standards, and is backed by a locally supported warranty through authorized distribution channels. Designed to perform reliably in high-temperature and long-cable environments, it is a trusted solution for AV professionals across both countries.

Frequently Asked Questions (FAQs)

Q1: What is the maximum transmission distance of NDAHD-C6-4KPRO?
A: The NDAHD-C6-4KPRO supports 4K video up to 70 metres and 1080P up to 100 metres over a single Cat6 cable.

Q2: Does the NDAHD-C6-4KPRO support HDR video?
A: Yes, it supports HDR10 for vibrant, true-to-life colour rendering.

Q3: Can I use my existing Cat5e cables with NDAHD-C6-4KPRO?
A: It’s highly recommended to use Cat6 or higher cables for optimal performance and to achieve full 4K transmission range.

Q4: How does Dual PoC work in NDAHD-C6-4KPRO?
A: With Dual PoC, only one power adapter is required, and the system powers both the TX and RX units through the Cat6 cable.

Q5: Does the NDAHD-C6-4KPRO support IR remote control pass-through?
A: Yes, bi-directional IR pass-through is supported, allowing remote control from either end of the system.

Q6: What HDMI versions are supported by NDAHD-C6-4KPRO?
A: The extender supports HDMI 2.0b standards with HDCP 2.2/1.4 compatibility.
