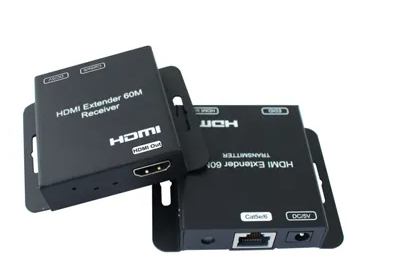

XTENDR HDMI Extender 1080p60Hz | 60m Over Single Cat5e/6 | EDID Copy | POC to Receiver – XTR-C5PROPOC-SX

The XTENDR XTR-C5PROPOC-SX is a compact and efficient HDMI extender that transmits full 1080p @ 60Hz (YUV 4:4:4) signals over distances up to 60 metres using a single Cat5e or Cat6 cable. Engineered for seamless AV extension, this device supports Power Over Cable (POC), providing power directly to the receiver and eliminating the need for additional power supplies at the receiving end.

With integrated EDID copy, HDMI v1.3, and DVI 1.0 support, this extender ensures plug-and-play compatibility with a wide range of HDMI and DVI devices. It also supports LPCM audio up to 7.1 channels, delivering rich sound quality alongside pristine video.

What’s Included in the Box

• 1 × HDMI Extender Transmitter

• 1 × HDMI Extender Receiver

• 1 × Power Adapter

• 1 × User Manual

Main Features

• Transmits 1080p@60Hz, YUV 4:4:4 over 60m

• Power Over Cable (POC) – no receiver power supply needed

• Uses a single Cat5e/Cat6 UTP/STP cable

• EDID Copy function for optimal compatibility

• HDMI Version 1.3 / DVI Version 1.0 compliant

• Supports LPCM audio up to 7.1 channels

• Plug-and-play installation with no configuration required

Detailed Specifications

Warranty Information

Backed by XTENDR’s standard manufacturer’s warranty. Covers hardware defects under normal usage conditions. Local service support available through official distributors.

Brand Description

XTENDR is known for reliable and cost-effective AV signal distribution products tailored for both residential and commercial applications. Their HDMI extenders are favored for simplicity, robustness, and consistent performance across AV installations.

Practical Use Scenarios

• Extending HDMI signals to remote TVs in homes and offices

• Conference room and digital signage deployments

• Kiosk and AV hub to monitor interconnects

• Surveillance monitor station setups

Datasheets & Downloads

• Download Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The XTR-C5PROPOC-SX is fully compliant with Australian and New Zealand electrical and AV performance standards, and is supplied through authorized ANZ distributors for assured authenticity. With local warranty handling and seamless compatibility with regional AV hardware and cabling, it's an ideal choice for professional-grade installations throughout the region.

Frequently Asked Questions (FAQs)

Q1: What resolution does the XTR-C5PROPOC-SX support?
A: The unit supports full HD 1080p @ 60Hz in YUV 4:4:4 color space.

Q2: What is the maximum cable length supported?
A: Up to 60 metres using Cat5e or Cat6 cable.

Q3: Does the receiver require its own power source?
A: No, Power Over Cable (POC) is provided to the receiver from the transmitter.

Q4: What audio formats are supported?
A: Supports LPCM audio up to 7.1 channels.

Q5: Is the XTR-C5PROPOC-SX suitable for ANZ commercial AV projects?
A: Yes, it is fully compliant with Australian and New Zealand standards and recommended for local commercial AV applications.
