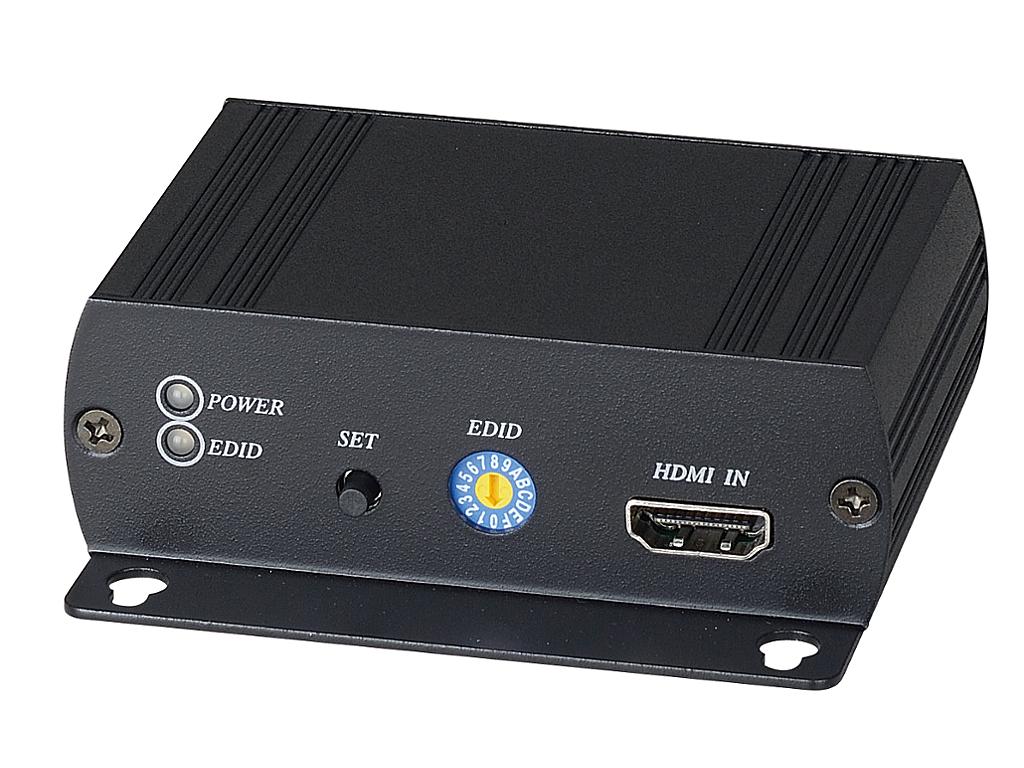

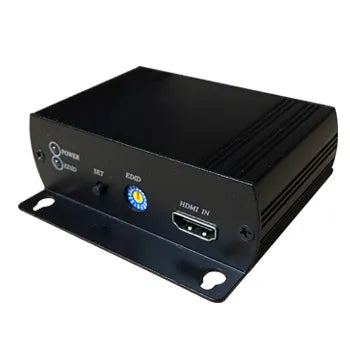

XTENDR HDMI EDID Emulator | 4K2K@30Hz | HDMI 1.4a | HDCP Compliant | NDAHD-EDIDEM

The XTENDR HDMI EDID Emulator is a powerful tool designed to resolve EDID handshake issues and optimize signal communication between HDMI sources and displays. Featuring comprehensive EDID control, this device supports read, write, emulate, and bypass modes. Ideal for AV installers and integrators, it ensures maximum compatibility and signal quality across 1080P and 4K@30Hz setups.

Product Description

The NDAHD-EDIDEM enables seamless communication between HDMI sources and displays by emulating or managing Extended Display Identification Data (EDID). With 12 built-in EDID profiles and 3 customizable memory banks, users can fine-tune HDMI signals for the best performance across various devices.

Installation is quick with built-in micro USB power, rotary switch control, and support for HDMI 1.4a with HDCP compliance. It’s a vital tool for eliminating display mismatches, resolution errors, or compatibility issues in AV setups.

What’s Included in the Box

• 1 x NDAHD-EDIDEM HDMI EDID Emulator

• 1 x Micro USB to DC Power Cable

• 1 x Installation CD with EDID Loader Software

• 1 x Quick Setup Guide

Main Features

• EDID Modes: Supports Read, Write, Emulate, and Bypass.

• 12 Default EDID Profiles: Includes various resolutions and LPCM audio channels.

• 3 Custom EDID Banks: Easily store and recall learned EDID profiles.

• Software Support: Comes with EDID Loader for PC (supports .dat and .bin files).

• Rotary Switch: Allows fast selection of EDID profiles (0–F).

• Built-in Equalizer: Ensures high-quality HDMI signal transmission.

• Signal Compatibility: Supports 4K2K@30Hz, 3D, and 1080P formats.

• Power Options: USB-powered or external 5V adapter.

• Compact & Lightweight: Ideal for field use or permanent installation.

Detailed Specifications

Warranty Information

The XTENDR NDAHD-EDIDEM includes a 12-month manufacturer warranty covering faults due to defects in materials or workmanship under normal usage conditions.

Brand Description

XTENDR is known for reliable, high-performance AV signal distribution and conversion solutions. Designed for installers, integrators, and technicians, XTENDR products offer flexible, standards-compliant technology that simplifies AV infrastructure in both residential and commercial environments.

Practical Use Scenarios

• Eliminating HDMI handshake issues in AV systems

• Forcing compatibility between source devices and displays

• Fine-tuning 4K content delivery in digital signage or control rooms

• Extending the functionality of HDMI matrix switchers and extenders

• Ensuring reliable EDID transmission in AV over IP setups

Datasheets & Downloads

• Download XTENDR NDAHD-EDIDEM Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The NDAHD-EDIDEM HDMI EDID Emulator by XTENDR meets the rigorous quality standards of the Australian and New Zealand AV industries. It is sourced exclusively through authorized distributors and includes full local support and warranty handling. Designed to integrate with region-specific AV systems, it ensures compatibility, stability, and long-term reliability across a variety of installations.

Frequently Asked Questions (FAQs)

Q1: Can the NDAHD-EDIDEM support 4K video?
A: Yes, NDAHD-EDIDEM supports resolutions up to 3840x2160@30Hz and 4096x2160@24Hz.

Q2: What EDID functions are supported by NDAHD-EDIDEM?
A: It supports Read, Write, Emulate, and Bypass modes for full EDID control.

Q3: How do I power the NDAHD-EDIDEM (Part Number: NDAHD-EDIDEM)?
A: It can be powered via HDMI source or using the included micro USB to DC cable with a 5V DC adapter.

Q4: Does NDAHD-EDIDEM support audio formats?
A: Yes, the included EDID profiles support LPCM 2.0, 5.1, and 7.1 channels depending on the selected mode.

Q5: Is the NDAHD-EDIDEM compliant with HDCP?
A: Yes, it is fully HDCP compliant for secure video transmission.
