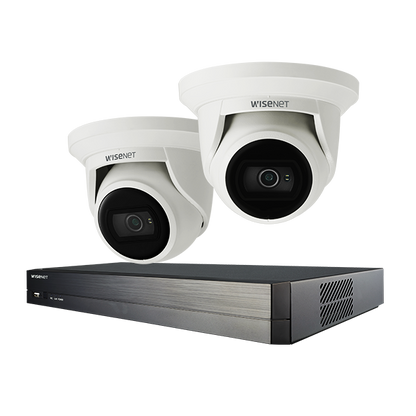

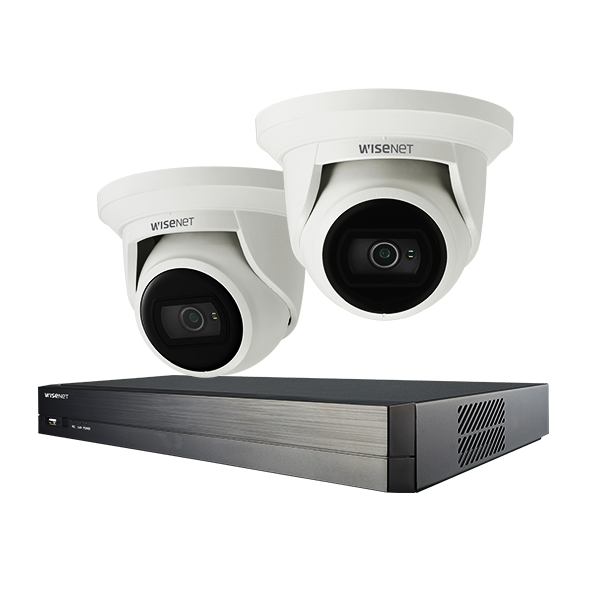

Wisenet Q Surveillance Kit 2x 5MP IR Cameras + 4CH 8MP PoE NVR with 2TB HDD – CT-QNE-KIT-4CH2CAM

The Wisenet Q Surveillance Kit CT-QNE-KIT-4CH2CAM is a compact, high-performance IP CCTV system featuring 2x 5MP H.265 IR Flateye Cameras and a 4 Channel 8MP PoE NVR with pre-installed 2TB HDD storage. Designed for small businesses and residential installations, this plug-and-play surveillance solution delivers crystal-clear 5MP recording, efficient H.265 compression, built-in PoE connectivity, and reliable night vision up to 20 metres—ideal for Australian and New Zealand security applications.

What’s Included in the Box

• 2 × Wisenet CT-QNE-8011R 5MP Q Series IR Flateye Cameras

• 1 × Wisenet CT-QRN-430S 4CH 8MP H.265 NVR with 4-Port PoE Switch

• 1 × 2TB Surveillance HDD (Pre-installed)

• Power supply and accessories

• Quick installation guide

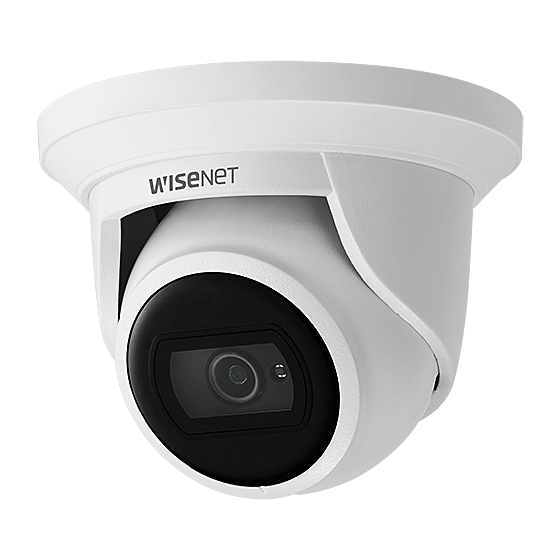

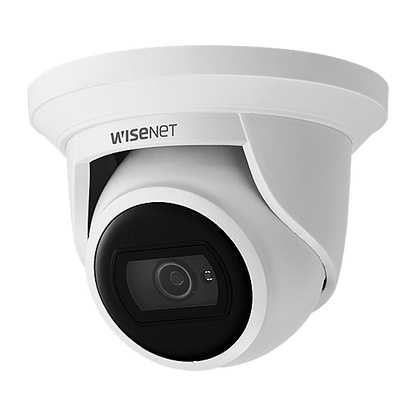

Camera – CT-QNE-8011R 5MP H.265 IR Flateye

The CT-QNE-8011R delivers professional-grade 5MP clarity with advanced compression and intelligent monitoring features.

Key Features

• Max. 5MP resolution (2592 × 1944)

• 2.8mm or 4mm fixed lens options

• 0.15Lux (Colour), 0Lux (B/W with IR on)

• Max. 30fps @ 5MP

• H.265 / H.264 / MJPEG codec support

• Multiple streaming capability

• 120dB Wide Dynamic Range (WDR)

• Day & Night (ICR)

• Motion, Tampering & Defocus detection

• Micro SD slot (Max. 128GB)

• Hallway View support

• WiseStream II compression

• IR viewable distance up to 20m

• LDC (Lens Distortion Correction)

• PoE powered

These cameras are ideal for entrances, offices, corridors, retail counters, and small warehouse areas requiring high-resolution detail.

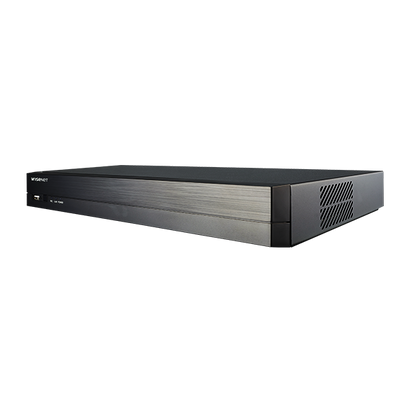

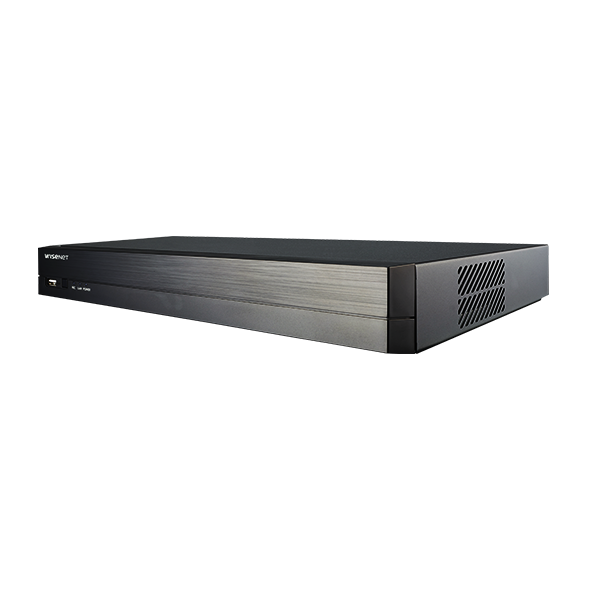

NVR – CT-QRN-430S 4CH 8MP PoE Network Video Recorder

The CT-QRN-430S is a compact yet powerful NVR engineered for reliable 24/7 recording.

Key Features

• Up to 4 channels supported

• Up to 8MP resolution recording

• H.265 / H.264 / MJPEG codecs

• WiseStream support

• 40Mbps network camera recording bandwidth

• Built-in 4 PoE ports (Plug & Play setup)

• Supports 1 HDD (Up to 6TB)

• HDMI & VGA video outputs

• P2P remote access via QR code connection

The integrated PoE switch simplifies installation by powering and connecting cameras through a single Ethernet cable.

Technical Specifications

Cameras – CT-QNE-8011R

• Resolution: 5MP (2592 × 1944)

• Lens: 2.8mm / 4mm fixed

• IR Distance: 20m

• WDR: 120dB

• Compression: H.265 / H.264 / MJPEG

• Storage: Micro SD up to 128GB

• Power: PoE

NVR – CT-QRN-430S

• Channels: 4CH

• Max Resolution: 8MP

• Recording Bandwidth: 40Mbps

• HDD Support: 1 Bay (Up to 6TB)

• PoE Ports: 4

• Video Output: HDMI / VGA

Practical Use Scenarios

• Small retail shops

• Cafés and restaurants

• Home security systems

• Medical clinics

• Professional offices

• Small warehouses or storage units

The 2-camera configuration is ideal for covering key entry and exit points while allowing future expansion up to four cameras.

SKU

CT-QNE-KIT-4CH2CAM

Warranty Information

This Wisenet surveillance kit includes manufacturer-backed warranty support. All products are supplied through authorized distribution channels with full warranty coverage and local technical assistance.

Data sheet

About Wisenet

Wisenet is a trusted global brand delivering advanced video surveillance solutions with intelligent compression technologies and durable hardware design. The Q Series range is engineered for professional-grade reliability, making it suitable for both commercial and residential applications.

Excellence for the Australian and New Zealand Market

The CT-QNE-KIT-4CH2CAM is optimized for deployment across Australia and New Zealand.

• Designed for Australian electrical and environmental standards

• Suitable for commercial and residential installations

• Supplied through authorized local distribution partners

• Manufacturer-backed warranty support

• Optimized for stable performance in ANZ network environments

Frequently Asked Questions (FAQs)

1. Does the CT-QNE-KIT-4CH2CAM support future camera expansion?

Yes, the CT-QNE-KIT-4CH2CAM includes a 4-channel NVR, allowing you to expand from 2 cameras up to 4 cameras.

2. What storage capacity comes with the CT-QNE-KIT-4CH2CAM?

The CT-QNE-KIT-4CH2CAM includes a pre-installed 2TB surveillance HDD and supports up to 6TB if upgraded.

3. Is the CT-QNE-KIT-4CH2CAM suitable for night monitoring?

Yes, each CT-QNE-KIT-4CH2CAM camera supports IR night vision up to 20 metres.

4. Can I remotely view the CT-QNE-KIT-4CH2CAM system?

Yes, the CT-QNE-KIT-4CH2CAM supports P2P remote access via QR code connection for mobile and desktop viewing.

5. Does the CT-QNE-KIT-4CH2CAM use PoE for installation?

Yes, the NVR includes 4 built-in PoE ports, allowing simple plug-and-play installation for the CT-QNE-KIT-4CH2CAM.

6. Is the CT-QNE-KIT-4CH2CAM suitable for Australian businesses?

Yes, the CT-QNE-KIT-4CH2CAM is ideal for small Australian businesses and residential properties requiring professional-grade surveillance.
