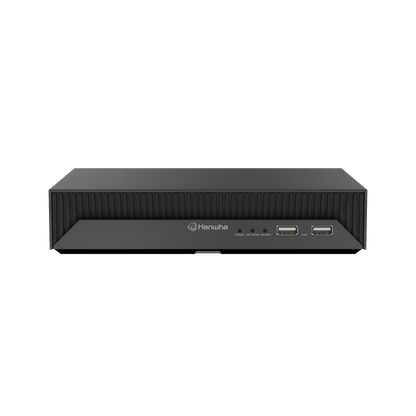

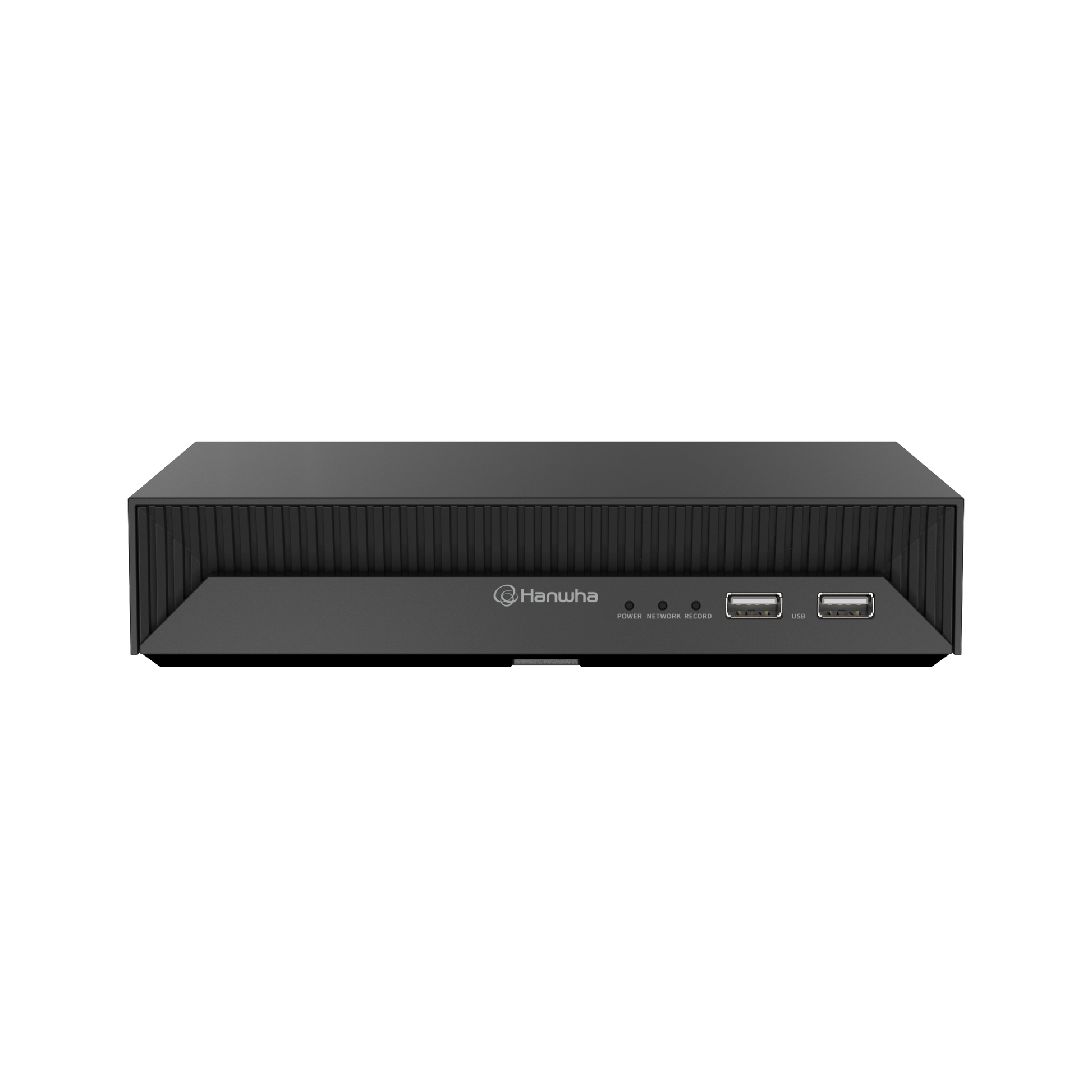

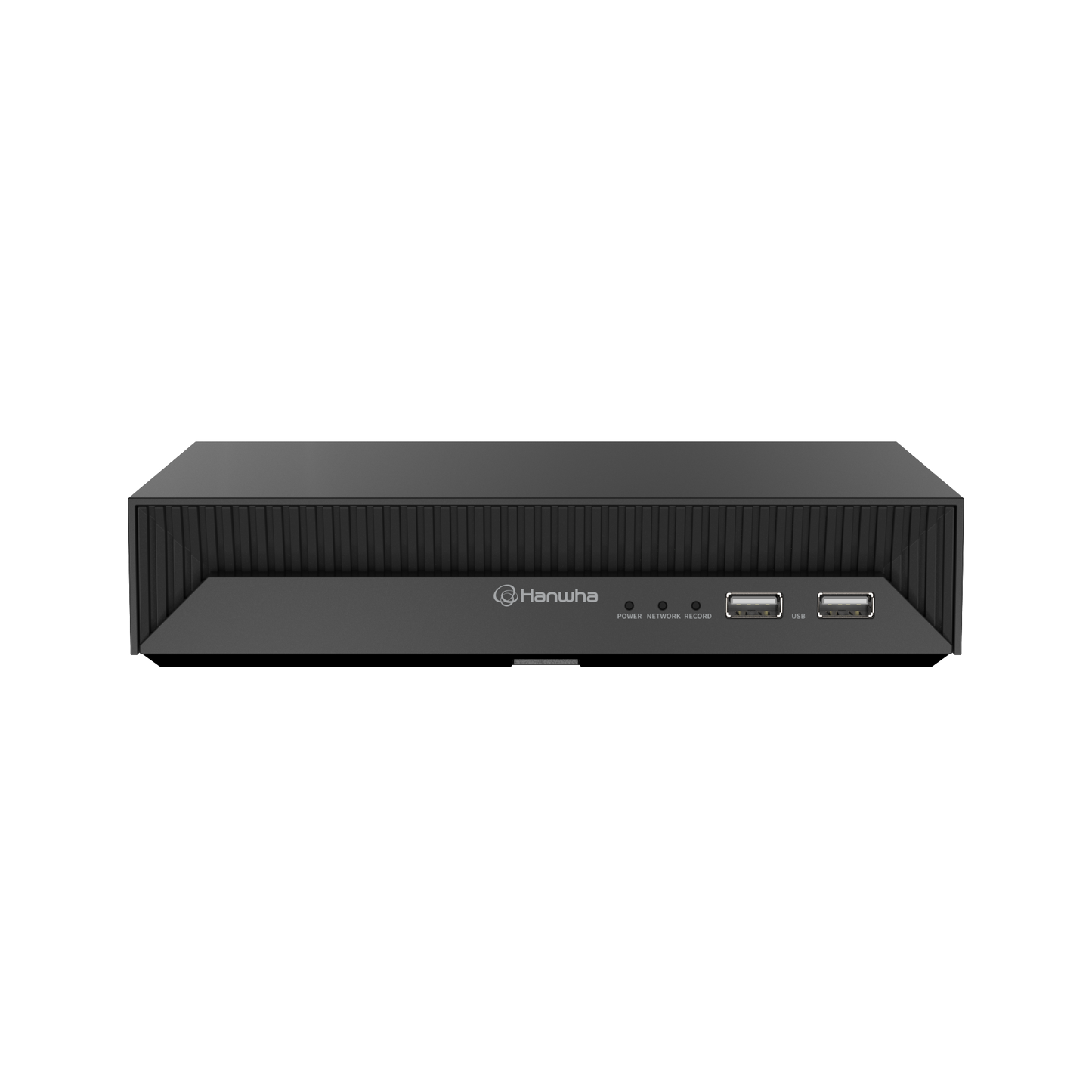

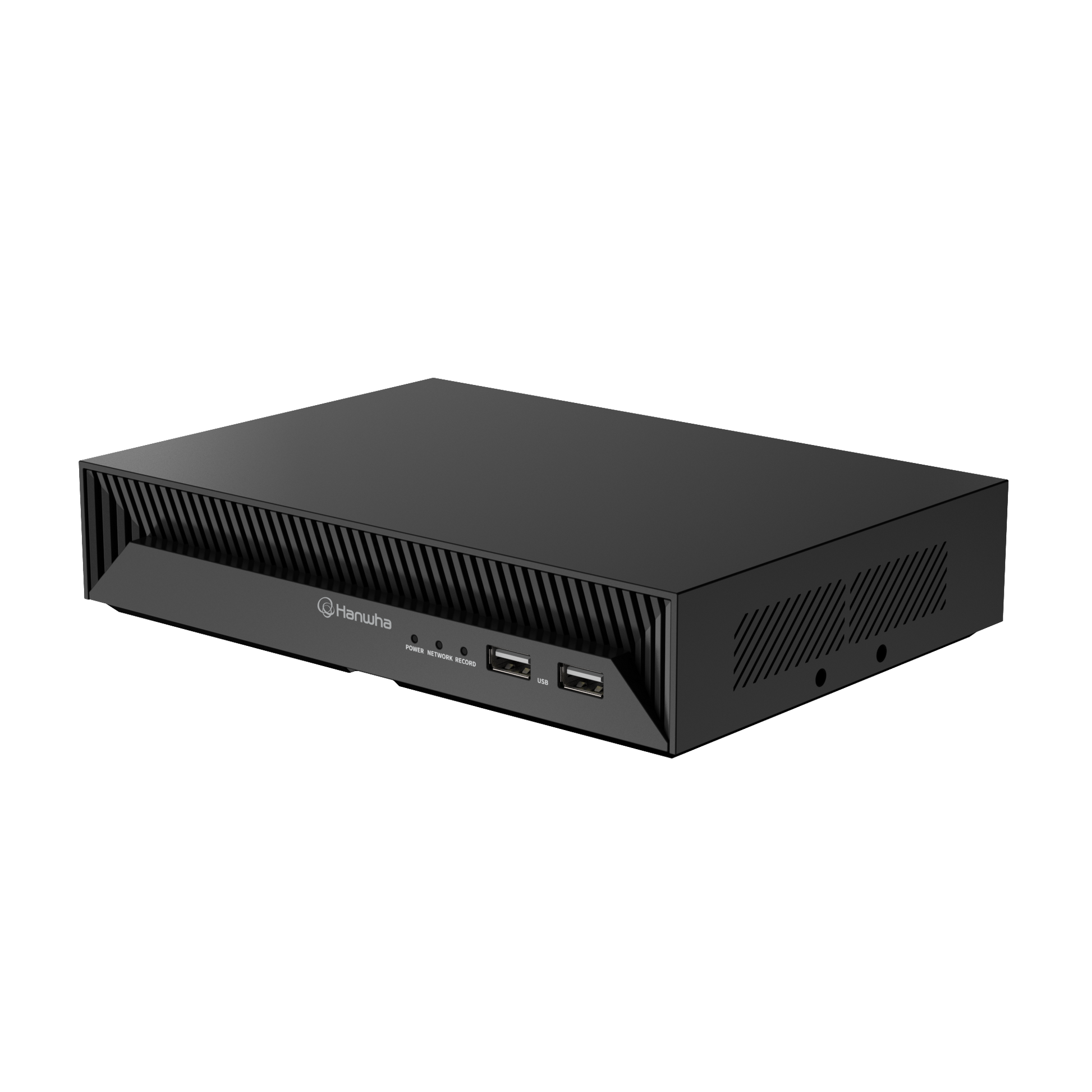

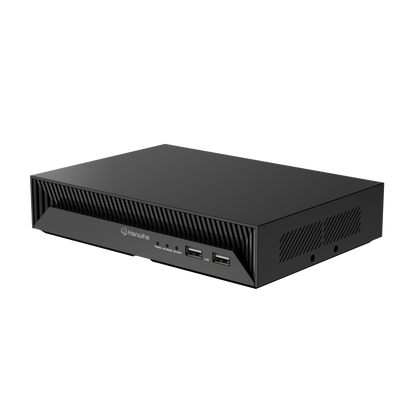

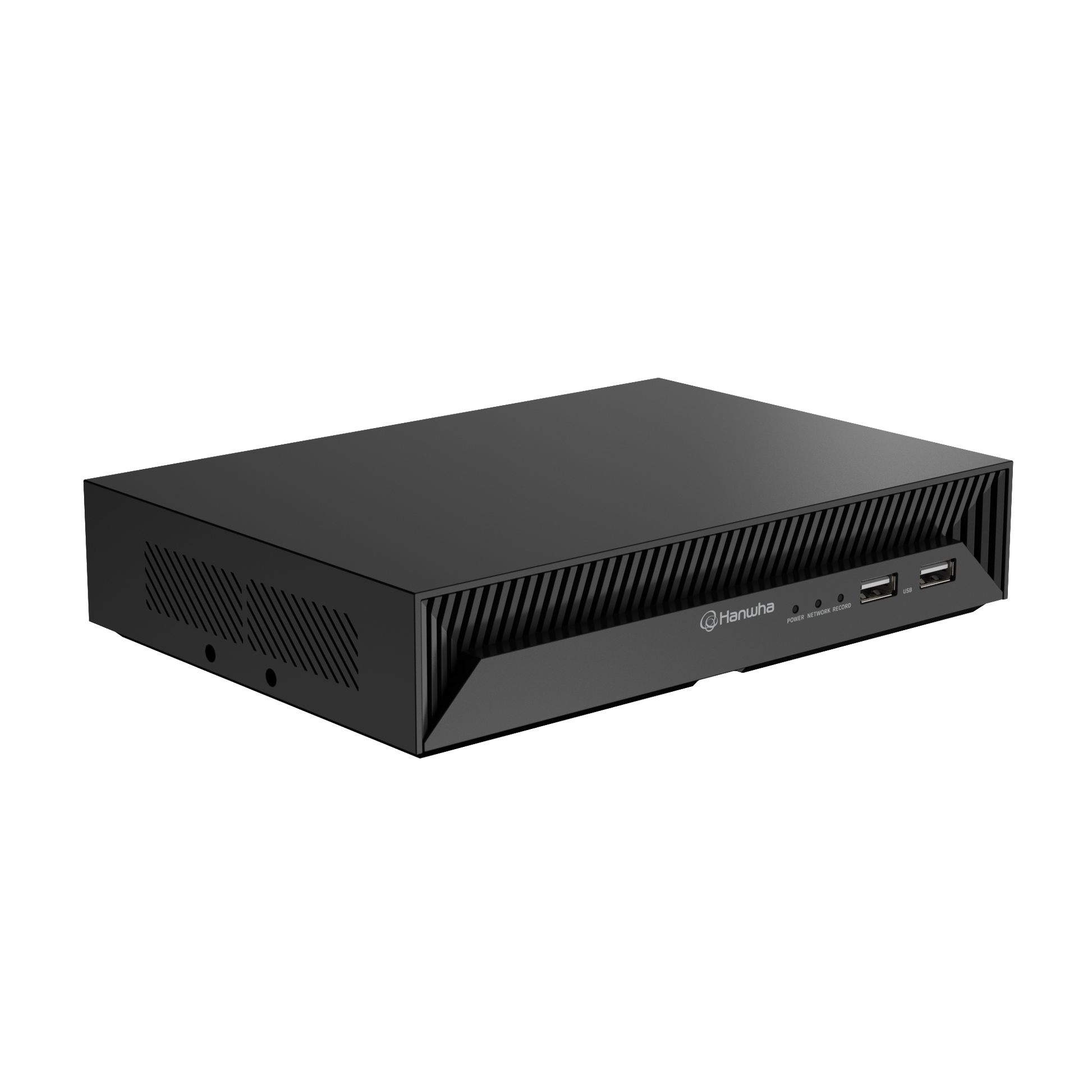

Wisenet HV-XRN-426S-1T 4CH AI Network Video Recorder (NVR) with 1TB SSD

Enhance your security surveillance with the Wisenet HV-XRN-426S-1T, a high-performance 4-channel AI network video recorder (NVR) from Hanwha Vision. Designed for superior security monitoring, this lightweight yet powerful NVR supports up to 8MP cameras and includes a pre-installed 1TB solid-state drive (SSD) for reliable storage. With advanced cybersecurity features, seamless integration with Wisenet Viewer and Wisenet Mobile, and AI-driven search capabilities, this NVR is the ultimate solution for both small and mid-sized security systems.

Key Features:

• Supports up to 4 cameras with resolutions up to 8MP

• H.265, H.264, and MJPEG compression for efficient recording

• AI Search functionality for object attribute detection (when used with Hanwha AI cameras)

• 40Mbps network camera recording capacity

• Plug & Play installation with 4 PoE ports

• Pre-installed 1TB SSD for enhanced speed and reliability

• Local HDMI monitor output with 4K resolution support

• Advanced security features, including IP filtering, encryption, and TLS authentication

• P2P service with QR code support for easy remote access

• Compatible with Hanwha DDNS for seamless remote monitoring

Specifications:

Display & Video

• Inputs: Up to 4 channels

• Resolution: Supports 8MP to CIF

• Local Display: HDMI 4K output (3840x2160 at 30Hz)

• Multi-Screen Display: Dynamic layouts up to 4-channel viewing

Recording & Playback

• Video Compression: H.265, H.264, MJPEG

• Max Recording Bandwidth: 40Mbps

• Recording Modes: Normal, Dual Stream, Schedule, Event (Pre/Post), Bookmark

• Playback Bandwidth: Max 32Mbps

• Simultaneous Playback: Up to 16 channels (4 locally, 4 per remote user)

• Search Mode: Time, Event, Smart Search, Bookmark

Storage & Backup

• Pre-installed Storage: 1TB SSD

• HDD Slot: M.2 SSD (1 slot)

• Backup Methods: Recorder, SEC, AVI, JPG (Local), AVI, PNG (Network)

Network & Connectivity

• Protocols: IPv4, IPv6, TCP/IP, UDP/IP, RTSP, HTTP, DHCP, DNS, DDNS, HTTPS, ONVIF

• Transmission Bandwidth: Max 80Mbps

• PoE Support: 4 ports (LAN, 10/100)

Audio & Security

• Audio Input/Output: 4-channel network input, RCA output

• Compression: G.711, G.726, AAC

• Two-Way Audio Communication

• Security Features: IP filtering, user access logs, encryption, signed firmware

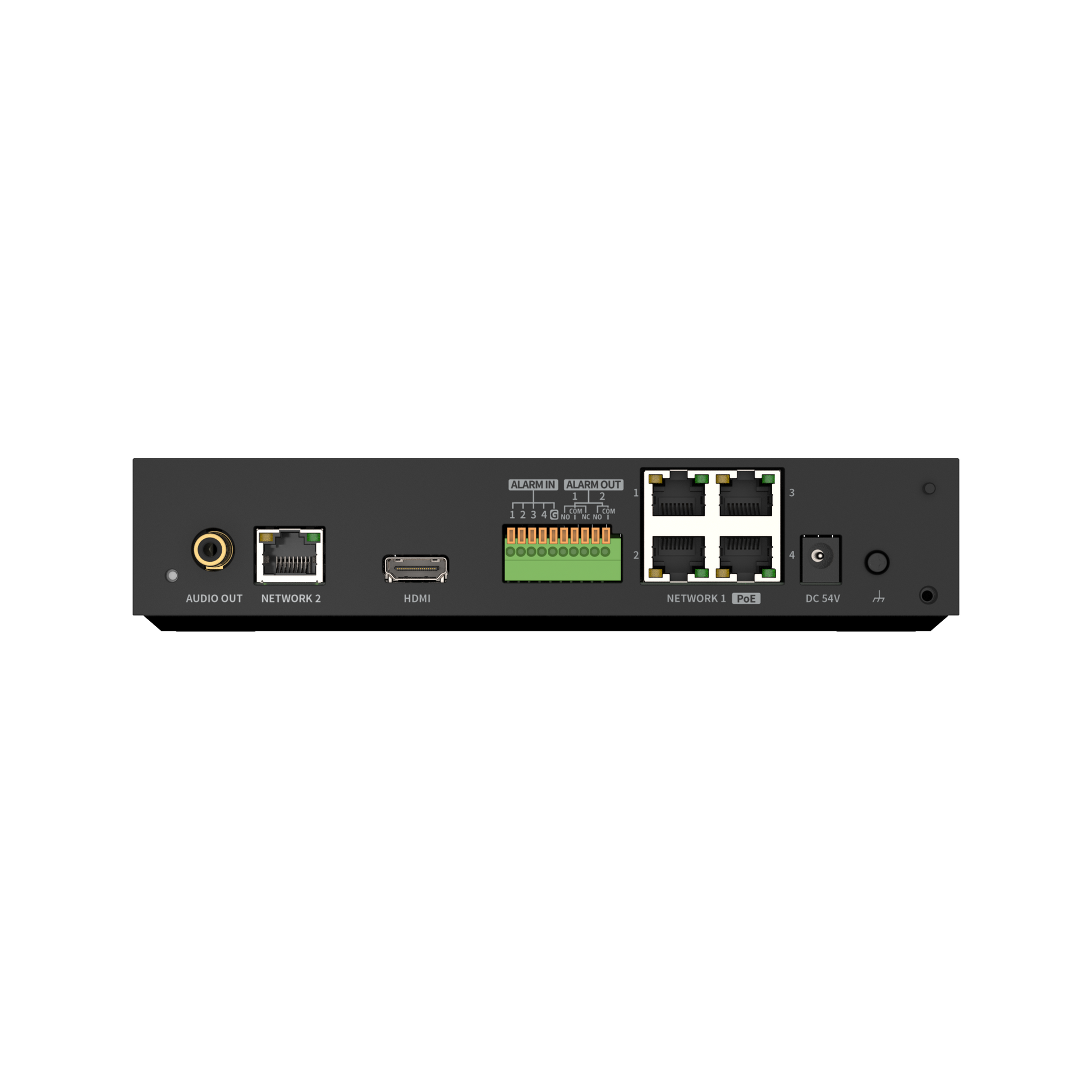

Interface & Accessibility

• USB Ports: 2 (USB 2.0, front-facing)

• Alarm Inputs/Outputs: 4 in, 2 out

• Reset Switch: Yes (for power clear)

• User Access: Supports up to 4 users simultaneously (local and remote)

• Supported Browsers: Google Chrome, Microsoft Edge, macOS Safari

• Mobile Support: iOS, Android (Live Multi-Profile, Multi-Channel Playback)

Environmental & Power

• Operating Temperature: 0°C to 40°C

• Power Input: 54VDC/1.67A

• PoE Budget: 50W

• Max Power Consumption: 68W

Physical Design

• Material: Metal

• Color: Black

• Dimensions: 200 x 140 x 42 mm (7.8 x 5.5 x 1.7 inches)

• Weight: 660g (1.45 lb)

What's in the Box?

• 1x Wisenet HV-XRN-426S-1T NVR (with pre-installed 1TB SSD)

• 1x Power Adapter

• 1x Ethernet Cable

• 1x USB Mouse

• 1x Quick Start Guide

Excellence for the Australian and New Zealand Market

The Wisenet HV-XRN-426S-1T is fully optimized for Australia and New Zealand, meeting stringent quality and cybersecurity standards. Sourced directly from authorized Hanwha Vision representatives, this product ensures genuine support and warranty services within the region.

Frequently Asked Questions (FAQs)

Q: How many cameras can I connect to this NVR?
A: The Wisenet HV-XRN-426S-1T supports up to 4 network cameras with resolutions up to 8MP.

Q: Can I access the NVR remotely?
A: Yes! You can use Wisenet Mobile, Wisenet Viewer, and web browsers for remote monitoring.

Q: Does this NVR support AI-based analytics?
A: Yes, when paired with Hanwha AI cameras, it provides AI-powered search with object attribute detection.

Q: What is the power consumption of this NVR?
A: The maximum power consumption is 68W, with a PoE budget of 50W.

Q: Is the SSD upgradeable?
A: Yes, the NVR features an M.2 SSD slot, allowing for potential upgrades.

Datasheets & Resources

Product Short Info	Hanwha Vision X-Series 4CH AI NVR with 1TB M.2 SSD
Channels	4 Channels
Plug & Play by PoE	Yes
Resolution Supported	Up to 8 Megapixel
MAX Internal HDDs	1 HDDs
RAID Supported	No
Manual
Data Sheet
Brochure
