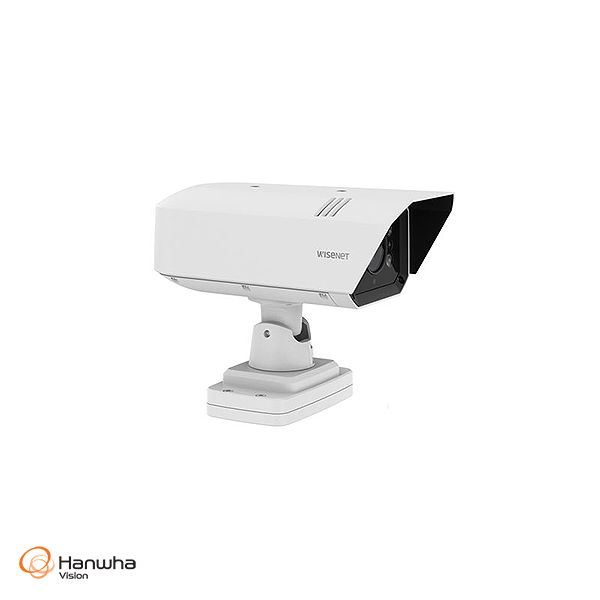

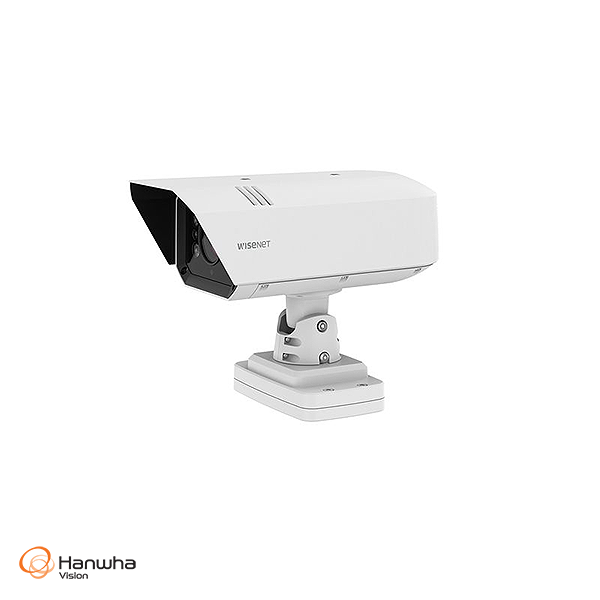

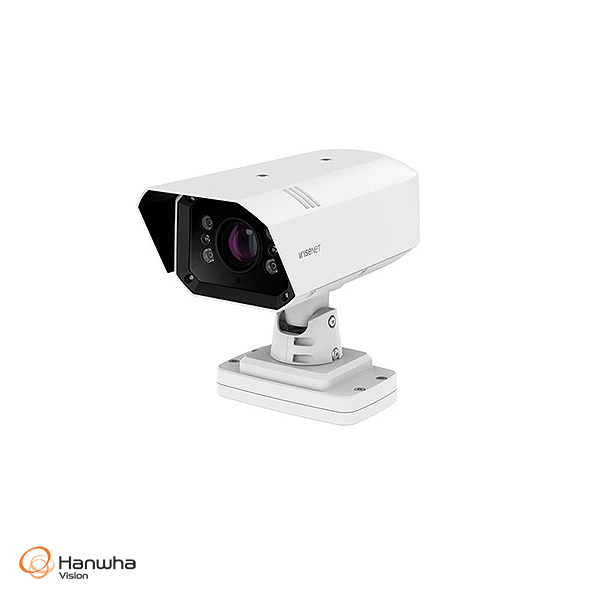

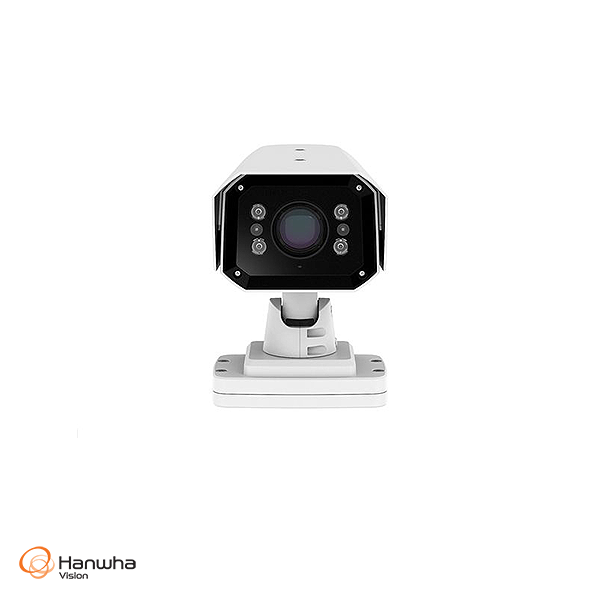

WISENET HV-TNO-7180RLP Hanwha Vision TNO-7180RLP is a high-speed License Plate Capture Camera T Series

The Hanwha Vision T-Series AI 3MP High-Speed Global Shutter Camera is designed for highway surveillance and advanced traffic monitoring. Equipped with cutting-edge AI-powered analytics, this camera provides exceptional image clarity at high speeds, making it an ideal choice for ANPR (Automatic Number Plate Recognition) and vehicle classification. With a global shutter sensor, it ensures accurate capture of fast-moving objects, offering seamless integration with leading VMS platforms.

Key Features:

• All-in-One AI Solution: ANPR, MMCR, and vehicle classification analytics pre-installed.

• Edge-Based Processing: Web-based user-friendly interface for easy setup and management.

• High-Speed Capture: Covers up to 2 lanes at vehicle speeds of up to 200km/h.

• 3MP Global Shutter Technology: Ensures clear image capture at high speeds.

• Versatile Installation: Multiple accessory options to suit various mounting requirements.

• Advanced Search Capabilities: Smart search functionality with multiple inputs for quicker investigations.

• Vehicle Insights: Capture vehicle type, make, and model for enhanced road usage analytics.

• Seamless Integration: Compatible with VMS platforms such as Genetec, Milestone, and WAVE.

• High Frame Rate: Maximum 55fps @3MP and 50fps @2MP across all resolutions.

• Powerful IR Capabilities: WiseIR distance coverage up to 55m.

• Multiple Power Options: Supports PoE++ or 12VDC.

• Durable and Weatherproof: IP66, IK10, NEMA 4X, NEMA TS 2 (2.2.8, 2.2.9) certified.

Specifications:

• Imaging Sensor: 1/1.8" 3MP CMOS, Global Shutter

• Resolution: Up to 3MP (2048x1536)

• Max. Frame Rate: 60fps @3MP (H.265, H.264, MJPEG)

• Lens: 6.8~120mm (18x) motorized varifocal

• Video Compression: H.265, H.264, MJPEG

• Edge Storage: 32GB MicroSD (pre-installed) supporting 10,000 LPR images

• IR Viewable Distance: Up to 50m

• Analytics: License Plate Recognition (LPR), Make/Model/Color Recognition (MMCR), Black/White list notification, Smart Search (LP/NP, Country, brand, model, color)

• Alarm & Event Triggers: Analytics, network disconnect, alarm input/output, email notifications, NAS recording

• Network Interface: RJ-45 (10/100/1000BASE-T)

• Environmental Ratings: IP66, IK10, NEMA 4X, NEMA TS 2 (2.2.8, 2.2.9)

• Operating Temperature: -40°C to +55°C (-40°F to +131°F)

• Power Input: HPoE or 12VDC

• Power Consumption: Max. 50W (PoE), Max. 47.5W (12VDC)

• Dimensions: W186.9 x D293.7 x H259.3 mm

• Weight: 4.8kg

What’s Included:

• 1 x Hanwha Vision TNO-7180RLP AI 3MP High-Speed Global Shutter Camera

• 1 x Pre-installed 32GB MicroSD card

• Mounting accessories (as per selected model)

• Quick installation guide

Warranty Information:

Manual
Data Sheet

Brand Information:
Hanwha Vision, formerly known as Hanwha Techwin, is a global leader in security and surveillance solutions, offering innovative and high-performance cameras designed for various security applications.

Excellence for the Australian and New Zealand Market:

• Certified to meet Australian and New Zealand industry standards.

• Designed to optimize high-speed vehicle monitoring and law enforcement applications.

• Sourced from authorized Hanwha Vision distributors to guarantee authenticity.

• Local warranty support available through Hanwha Vision’s official representatives.

Practical Use Scenarios:

• Traffic Enforcement: High-speed vehicle monitoring for law enforcement agencies.

• Toll Management: Automatic Number Plate Recognition (ANPR) for tolling systems.

• Parking Management: Vehicle tracking and access control for secured parking facilities.

• City Surveillance: Monitoring road usage patterns for urban planning.

FAQs:
Q: What is the maximum speed the camera can capture license plates at?
A: The Hanwha TNO-7180RLP can capture license plates at speeds of up to 200km/h across two lanes.

Q: Is this camera suitable for night-time surveillance?
A: Yes, it features WiseIR technology with up to 55m IR distance, ensuring clear images in low-light conditions.

Q: Does this camera require additional software for analytics?
A: No, it comes with pre-installed AI-powered analytics, including ANPR, MMCR, and vehicle classification.

Q: Can this camera integrate with third-party VMS?
A: Yes, it is compatible with Genetec, Milestone, and WAVE VMS platforms.

Q: What power supply does this camera require?
A: The camera supports PoE++ or 12VDC, but PoE power supply is not included and must be purchased separately if required.

For high-speed traffic surveillance and AI-powered vehicle analytics, the Hanwha Vision TNO-7180RLP is the ultimate choice in intelligent security solutions.
