WISENET A Series 6X Camera Kit WISENET Hanwha Vision CT-ARN-810S 8CH CT-ANE-L7012R Hanwha Vision 4MP H.265 NW IR Flateye Camera CCTV Kit

WISENET A Series 6 Camera 4MP IP CCTV Kit – CT-ARN-810S 8CH AI NVR + 6x CT-ANE-L7012R IR Flateye Cameras – PoE Security System (Optional WD Purple HDD)

🔐 Professional 4MP IP Surveillance System with AI NVR & PoE – Built for Australian & NZ Conditions

The WISENET A Series CCTV Kit combines the powerful CT-ARN-810S 8 Channel AI NVR with 6x CT-ANE-L7012R 4MP IR Flateye Cameras, delivering enterprise-grade security performance for homes, retail stores, offices, warehouses, schools, and commercial properties. Featuring H.265 compression, intelligent analytics, 20m IR night vision, IP67 weatherproofing, IK10 vandal resistance, and plug-and-play PoE connectivity, this complete IP surveillance solution ensures reliable 24/7 monitoring.

Optional Western Digital Purple Surveillance HDD provides optimised storage for continuous recording environments.

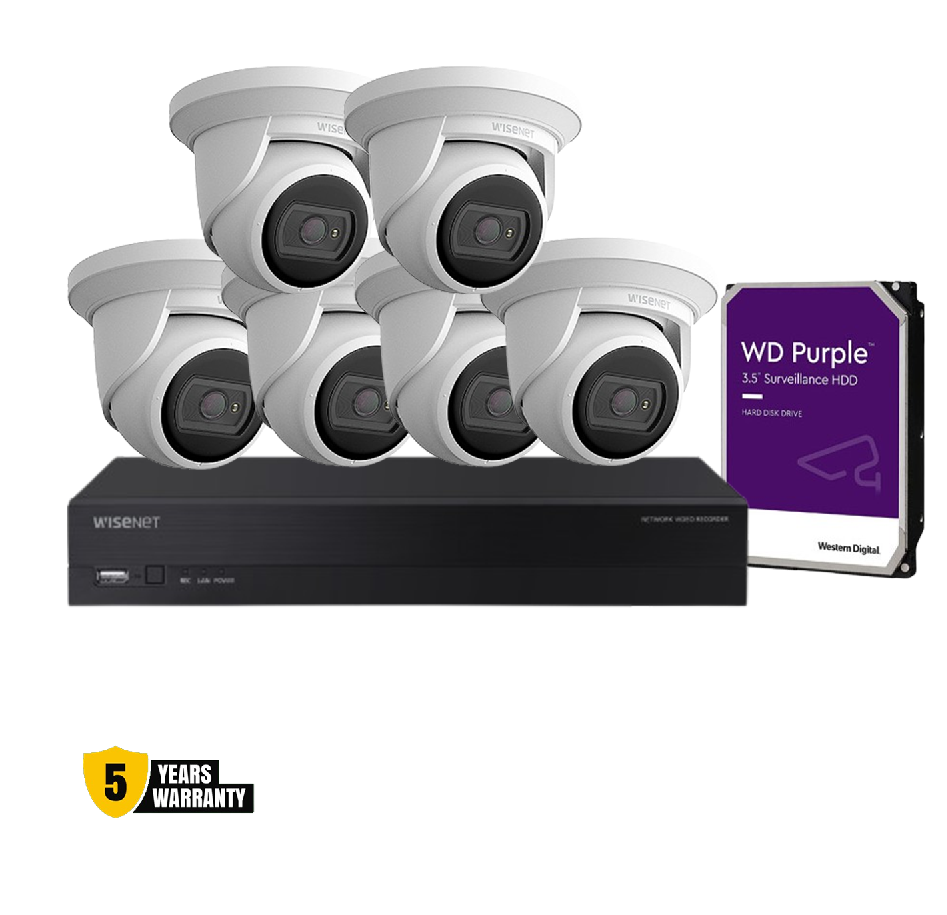

📦 What’s Included in the Box

• 6 × WISENET CT-ANE-L7012R 4MP H.265 IR Flateye Cameras

• 1 × WISENET CT-ARN-810S 8CH 8MP AI NVR with 8 PoE Ports

• Power adaptor (NVR)

• USB Mouse

• Quick installation guide

• Optional: WD Purple Surveillance Hard Drive (capacity selectable)

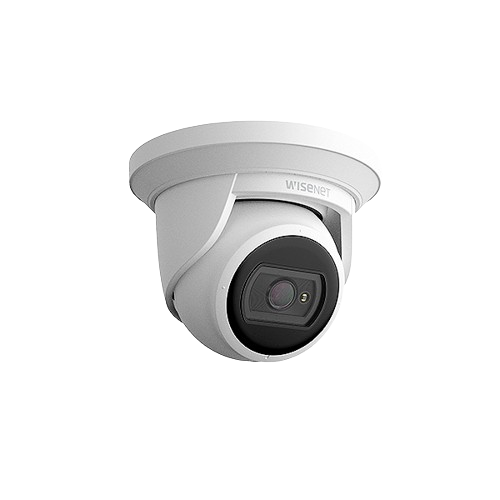

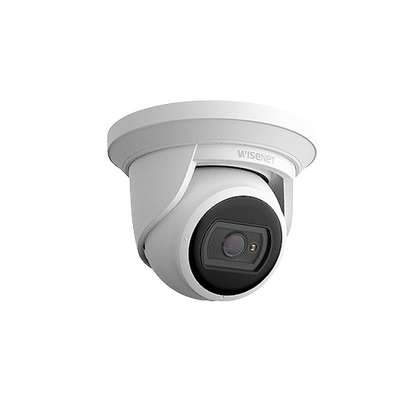

🎥 Camera – CT-ANE-L7012R 4MP IR Flateye

Key Features

• 4MP (2560 × 1440) resolution

• 3mm fixed lens (98.3° horizontal field of view)

• 30fps at all resolutions (H.265/H.264)

• H.265 / H.264 / MJPEG compression

• 120dB Wide Dynamic Range (WDR)

• IR night vision up to 20 metres

• Intelligent analytics: Motion, Defocus, Tampering, Virtual Line & Area Detection

• MicroSD/SDHC/SDXC support up to 128GB

• Hallway View & WiseStream II support

• IP67 Weatherproof & IK10 Vandal Resistant

• PoE powered (IEEE802.3af)

Technical Specifications

• Imaging Device: 1/2.8" CMOS

• Minimum Illumination: 0.13 Lux (Colour), 0 Lux (IR On)

• Operating Temperature: -30°C to +55°C

• Power Consumption: Max 7.5W

• Dimensions: Ø125 × 87.4mm

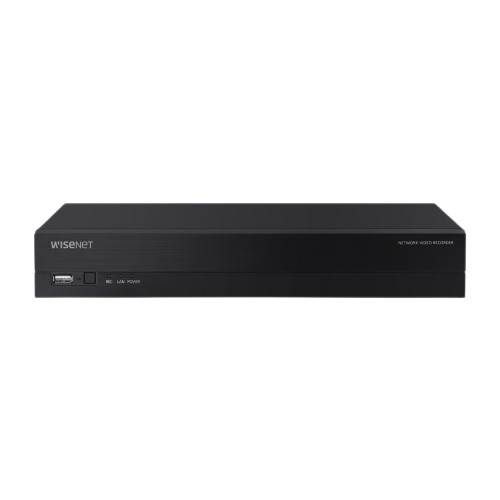

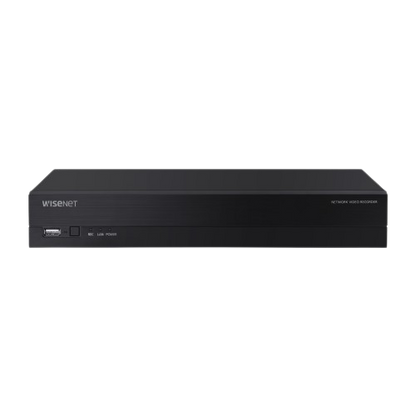

🖥 NVR – CT-ARN-810S 8 Channel AI Recorder

Key Features

• Supports up to 8CH / 8MP cameras

• H.265 / H.264 / MJPEG compression

• 60Mbps recording bandwidth

• 8 Built-in PoE ports (65W budget)

• 4K HDMI output (3840 × 2160 @ 30Hz)

• Supports 1 SATA HDD (up to 6TB)

• P2P QR code remote access

• ONVIF & SUNAPI support

• 2-way audio support

Technical Specifications

• Operating System: Embedded Linux

• WAN Port: 1 × RJ45 (1Gbps)

• PoE Ports: 8 × RJ45 (10/100)

• Operating Temperature: 0°C to 40°C

• Power Input: 54VDC / 1.67A

• Dimensions: 300 × 47 × 208.7mm

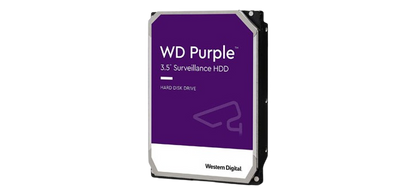

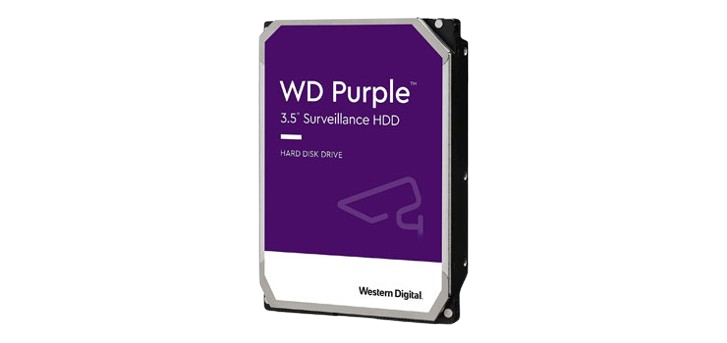

💾 Optional Storage – WD Purple Surveillance HDD

• Designed specifically for 24/7 surveillance systems

• Supports high workload rates

• Engineered for AI-enabled NVRs

• Compatible with CT-ARN-810S (up to 6TB supported)

• 5-Year Manufacturer Warranty

📂 Datasheets & Downloads

• CT-ANE-L7012R Datasheet

• CT-ARN-810S Datasheet

🚚 Shipping Information

🇦🇺 Australia Wide Shipping

• FREE SHIPPING on all orders over $200

• Flat rate $12 shipping for orders under $200

• Dispatched via Australia Post

• Delivery timeframe: 3–5 business days (including Tasmania)

🇳🇿 New Zealand Shipping

• Delivery timeframe: 10–15 business days

Tracking details provided upon dispatch.

🛡 Warranty Information

• Manufacturer Warranty on Cameras & NVR

• WD Purple HDD – 5 Year Manufacturer Warranty

• Warranty handled through authorised distribution channels

• Direct brand support & genuine product guarantee

🏷 SKU

CT-ARN-810S-6X-ANE-L7012R-KIT

🌏 Excellence for the Australian & New Zealand Market

This WISENET A Series CCTV Kit is optimised for Australian and New Zealand environments, supporting wide temperature ranges and harsh outdoor conditions. The IP67 and IK10 ratings ensure long-term durability in coastal and high-impact environments.

Products are sourced exclusively through authorised brand representatives, guaranteeing genuine hardware, firmware integrity, and manufacturer-backed warranty support. Designed to integrate seamlessly with Australian network infrastructure and electrical standards.

❓ Frequently Asked Questions (FAQs)

1. Does CT-ARN-810S-6X-ANE-L7012R-KIT support remote viewing?

Yes, CT-ARN-810S-6X-ANE-L7012R-KIT supports P2P QR code connection for remote viewing via Wisenet Viewer and mobile apps.

2. What resolution is supported in CT-ARN-810S-6X-ANE-L7012R-KIT?

The CT-ARN-810S-6X-ANE-L7012R-KIT NVR supports up to 8MP cameras.

3. What is the night vision range of CT-ARN-810S-6X-ANE-L7012R-KIT?

Each CT-ANE-L7012R camera in CT-ARN-810S-6X-ANE-L7012R-KIT provides up to 20m IR night vision.

4. Is CT-ARN-810S-6X-ANE-L7012R-KIT suitable for outdoor use?

Yes, CT-ANE-L7012R cameras included in CT-ARN-810S-6X-ANE-L7012R-KIT are IP67 rated and IK10 vandal resistant.

5. What hard drive size can be installed in CT-ARN-810S-6X-ANE-L7012R-KIT?

CT-ARN-810S-6X-ANE-L7012R-KIT supports 1 SATA HDD up to 6TB.

6. Does CT-ARN-810S-6X-ANE-L7012R-KIT use PoE?

Yes, CT-ARN-810S-6X-ANE-L7012R-KIT includes 8 built-in PoE ports for plug-and-play installation.
