Wisenet 10x 5MP IP Camera Kit with CT-QNE-8011R IR Cameras & CT-ARN-1610S 16CH 8MP AI NVR – Complete PoE CCTV System with Optional HDD

Upgrade your security with the Wisenet 10x 5MP IP Camera Kit featuring CT-QNE-8011R IR Flateye Cameras and the CT-ARN-1610S 16 Channel 8MP AI NVR with PoE. Designed for high-performance surveillance, this professional-grade CCTV system delivers crystal-clear 5MP recording, advanced H.265 compression, built-in PoE for simple installation, intelligent video analytics, and scalable storage options up to 12TB. Ideal for commercial, industrial, and residential applications across Australia and New Zealand.

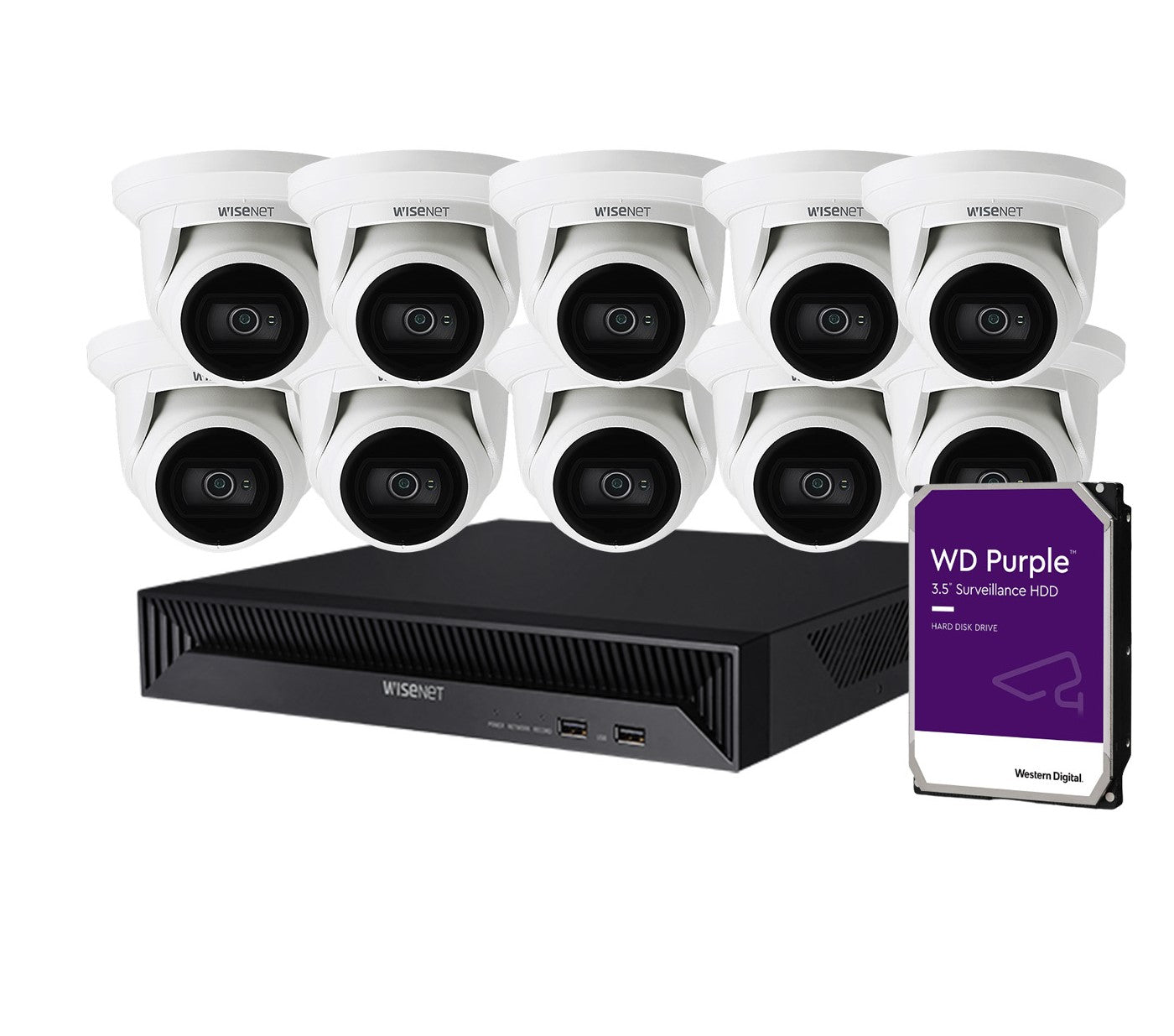

📦 What’s Included in the Box

• 10 × Wisenet CT-QNE-8011R 5MP Q Series IR Flateye Network Cameras

• 1 × Hanwha Vision CT-ARN-1610S 16CH 8MP H.265 AI NVR with Built-in 16-Port PoE Switch

• HDD (Choose your HDD below)

• Power supply and mounting accessories

• Quick installation guide

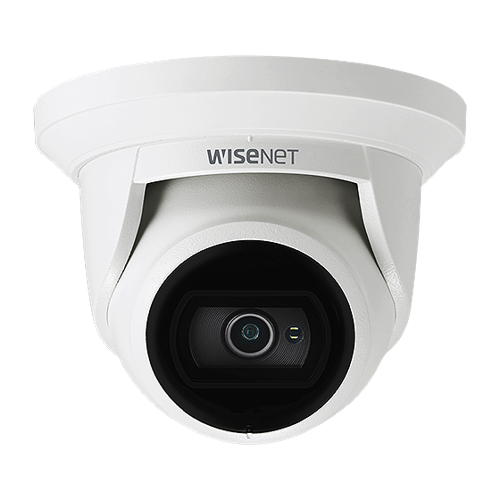

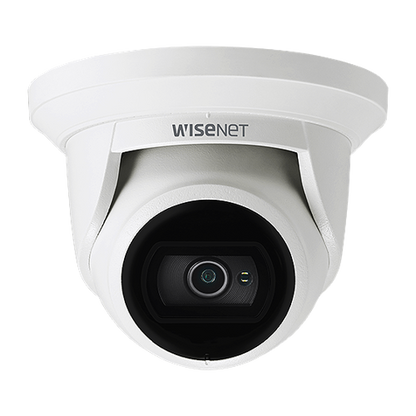

🎥 CT-QNE-8011R 5MP Q Series IR Flateye Camera

The CT-QNE-8011R delivers outstanding 5MP clarity and reliable performance for day and night surveillance.

Key Features

• Max. 5MP resolution (2592 × 1944)

• 2.8mm fixed lens

• 0.15 Lux (Color), 0 Lux (B/W with IR)

• IR range up to 20 metres

• H.265 / H.264 / MJPEG codec support

• Max. 30fps @ 5MP

• Wide Dynamic Range (120dB WDR)

• Day & Night (ICR)

• Motion, Tampering & Defocus detection

• Micro SD slot (up to 128GB)

• Hallway View support

• WiseStream II compression

• PoE powered

Designed for high-contrast environments, the 120dB WDR ensures clear images even in challenging lighting conditions such as entrances, warehouses, and retail storefronts.

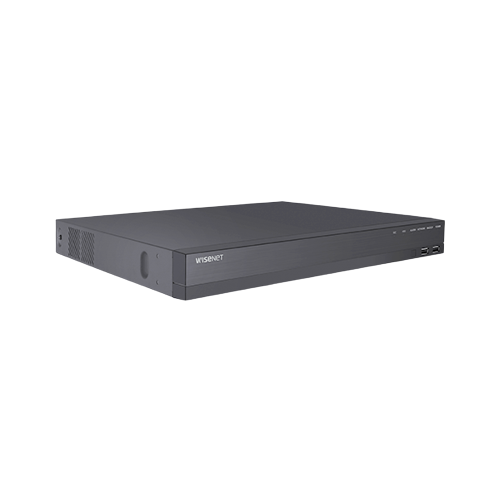

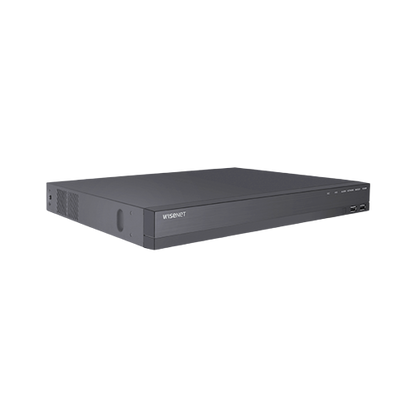

🖥️ CT-ARN-1610S 16CH 8MP AI NVR with PoE

The CT-ARN-1610S Network Video Recorder is built for scalable, high-performance recording with plug-and-play simplicity.

Key Features

• Up to 16 channels supported

• Up to 8MP camera compatibility

• 80Mbps recording bandwidth

• H.265, H.264, MJPEG codec support

• 16 built-in PoE ports (Plug & Play installation)

• Supports 2 × HDD (up to 6TB each, 12TB total)

• HDMI & VGA monitor output

• P2P remote access via Wisenet Viewer & Wisenet Mobile

• AI-supported event management

This NVR ensures efficient storage management while maintaining high-resolution recording quality, making it ideal for medium to large-scale installations.

⚙️ Technical Specifications

Camera – CT-QNE-8011R

• Resolution: 5MP (2592 × 1944)

• Lens: 2.8mm fixed

• Minimum Illumination: 0.15 Lux (Color), 0 Lux (IR On)

• IR Distance: 20m

• WDR: 120dB

• Video Compression: H.265 / H.264 / MJPEG

• Storage: Micro SD (Max 128GB)

• Power: PoE

NVR – CT-ARN-1610S

• Channels: 16CH

• Max Resolution: 8MP

• Recording Bandwidth: 80Mbps

• Compression: H.265 / H.264 / MJPEG

• HDD Bays: 2 (Up to 6TB each)

• PoE Ports: 16

• Video Output: HDMI / VGA

🛠 Practical Use Scenarios

• Retail stores & shopping centres

• Warehouses & logistics facilities

• Office buildings

• Schools & educational institutions

• Apartment complexes

• Residential estates

The 10-camera configuration provides comprehensive coverage for mid-to-large properties, ensuring minimal blind spots and strong perimeter security.

🏷 SKU

WLK-CTQNE8011R-10-ARN1610S

🛡 Warranty Information

This Wisenet surveillance kit includes manufacturer-backed warranty support. Warranty claims and technical assistance are handled directly through authorized supply channels to ensure fast resolution and genuine product support.

Data sheet

ℹ️ About the Brand – Wisenet by Hanwha Vision

Wisenet is the global security brand of Hanwha Vision, known for delivering high-quality video surveillance solutions trusted worldwide. With advanced compression technologies, AI-powered analytics, and durable hardware design, Wisenet systems are engineered for professional reliability and long-term performance.

🇦🇺 Excellence for the Australian and New Zealand Market

This Wisenet CCTV kit is optimized for deployment across Australia and New Zealand.

• Fully compliant with Australian electrical and safety standards

• Designed for local environmental conditions

• Suitable for commercial and residential installations

• Supplied through authorized distribution channels

• Direct manufacturer-backed warranty support

• Professional-grade reliability for Australian businesses

❓ Frequently Asked Questions (FAQs)

1. Does the CT-ARN-1610S support 5MP cameras like the CT-QNE-8011R in this kit (WLK-CTQNE8011R-10-ARN1610S)?

Yes, the CT-ARN-1610S supports up to 8MP cameras and fully supports the included 5MP CT-QNE-8011R cameras.

2. How much storage can the CT-ARN-1610S provide for the WLK-CTQNE8011R-10-ARN1610S kit?

The NVR supports up to 2 HDDs with a maximum of 6TB each, allowing up to 12TB total storage.

3. Is the WLK-CTQNE8011R-10-ARN1610S kit suitable for night surveillance?

Yes, each CT-QNE-8011R camera includes IR LEDs with up to 20m night vision capability.

4. Can I remotely view the WLK-CTQNE8011R-10-ARN1610S system?

Yes, remote viewing is available via Wisenet Viewer and Wisenet Mobile using the built-in P2P service.

5. Does the WLK-CTQNE8011R-10-ARN1610S require additional PoE switches?

No, the CT-ARN-1610S includes 16 built-in PoE ports for direct camera connection.

6. Is the WLK-CTQNE8011R-10-ARN1610S suitable for commercial installations in Australia?

Yes, this kit is ideal for Australian commercial and industrial environments and meets relevant local standards.
