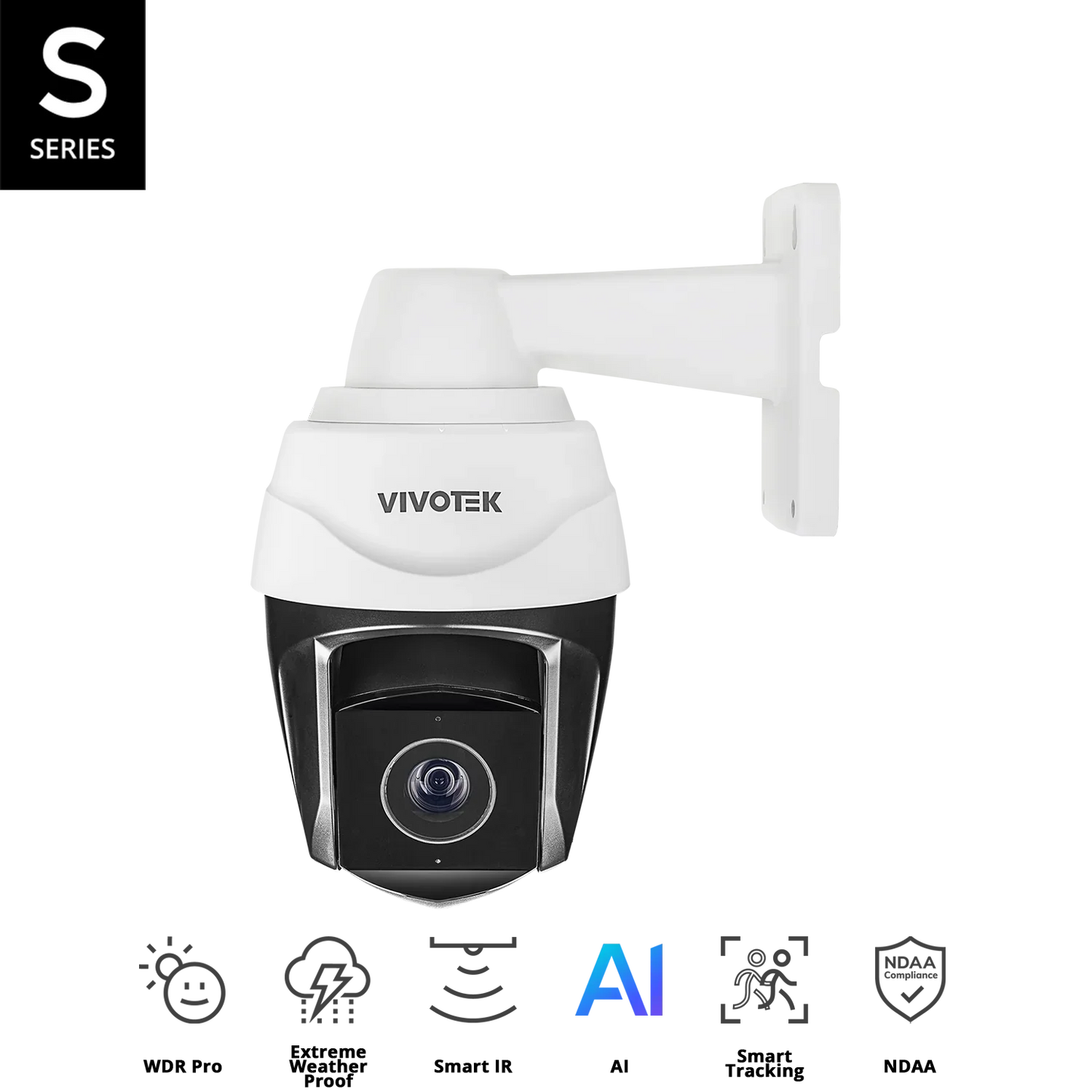

VIVOTEK SD9384-EHL 5MP Speed Dome Network Camera – 30× Optical Zoom, 200 m IR, WDR Pro, H.265, Smart Tracking AI, IP66/IK10, Up to 60fps

The VIVOTEK SD9384-EHL Speed Dome Network Camera is a professional-grade, AI-powered PTZ surveillance solution ideal for wide-area monitoring in critical infrastructure, city surveillance, and large-scale commercial sites. Equipped with a powerful 30x optical zoom lens and 5MP CMOS sensor, it delivers razor-sharp imagery up to 2560×1920 resolution and captures details even at long distances.

With Smart IR LEDs illuminating up to 200 meters and WDR Pro (120 dB) technology, this camera performs flawlessly in low-light and high-contrast environments. It supports H.265 compression with Smart Stream III, significantly reducing bandwidth and storage usage without compromising quality.

The SD9384-EHL features built-in AI video analytics, including people and vehicle detection, facial attributes, intrusion, loitering, and line crossing—powered by an onboard deep learning engine. Smart Tracking Advanced ensures automatic PTZ movement to follow moving targets intelligently.

Robustly built with IP66, IK10, and NEMA 4X-rated housing, this speed dome withstands harsh outdoor conditions. Support for PoE++ (IEEE 802.3bt) and dual power redundancy ensures fail-safe operation.

What's Included in the Box

• VIVOTEK SD9384-EHL PTZ Network Camera

• Wall Mount Bracket

• Screw Pack

• Waterproof Round Cap

• Terminal Blocks for DI/DO, Audio, AC/DC/GND, RS485

• Ground Wire

• T10 and T25 L-Wrench

• Quick Installation Guide

Main Features

✅ 5MP CMOS Sensor with maximum resolution of 2560x1920
✅ 30x Optical Zoom & Auto Focus for extreme detail at long range
✅ 200m Smart IR Night Vision with 8 IR LEDs
✅ WDR Pro 120 dB for superior image quality in high-contrast scenes
✅ H.265, H.264, MJPEG Compression with Smart Stream III for bandwidth optimization
✅ AI-Based Video Analytics: People/Vehicle Detection, Attribute Extraction, Smart Motion, Facial Detection
✅ Smart Tracking Advanced for auto-follow target tracking
✅ IP66, IK10, NEMA 4X Rated for all-weather, vandal-resistant durability
✅ Pan/Tilt Speeds of 450°/s with 360° endless pan and -20° to 90° tilt
✅ ONVIF Profile G/S/T Supported
✅ PoE++, DC48V & AC24V Power Input with Redundancy

Detailed Specifications

Camera

• Image Sensor: 1/2.8” Progressive CMOS

• Lens: 30x optical zoom, f = 4.94 ~ 148.24 mm, F1.3 ~ F4.6

• Minimum Illumination:

  • 0.03 lux (Color)

  • 0.005 lux (B/W)

  • 0 lux with IR on

• IR Range: Up to 200m

• WDR: WDR Pro (120 dB)

• Shutter Time: 1 sec to 1/100,000 sec

Pan/Tilt/Zoom

• Pan: 360° endless

• Tilt: -20° to 90° (auto flip)

• Speed: Up to 450°/s

• Presets: 256 locations

• Digital Zoom: 32x

Video

• Compression: H.265, H.264, MJPEG

• Max Resolution: 2560x1920 @30fps

• Streams: 3 simultaneous streams (up to 8 configurable profiles)

• S/N Ratio: 74 dB

• Image Settings: Defog, BLC, HLC, Smart Stream III, 3DNR, Privacy Masking, Scene Modes, Pixel Calculator

AI Analytics

• Object Detection: People, 2-wheeled & 4-wheeled vehicles

• Attribute Recognition: Gender, clothing color, bag, hat, vehicle color

• Event Detection: Intrusion, Line Crossing, Loitering, Missing/Unattended Object

• Smart Tracking Advanced: Intelligent PTZ response to triggers

Audio

• 2-Way Audio: Full duplex

• Compression: G.711, G.726

• Interfaces: External line in/out

Network & Security

• Protocols: IPv4/IPv6, HTTPS, SNMP, RTSP, FTP, 802.1X, NTCIP, TLS 1.2, and more

• Security: Trend Micro IoT Protection (brute force, quarantine, cyberattack detection)

• Users: Live view for up to 10 clients

• Storage: MicroSD/SDHC/SDXC & NAS support

Power & Build

• Power Inputs:

  • IEEE 802.3bt PoE++

  • DC 48V

  • AC 24V

  • Supports simultaneous redundancy

• Power Consumption: Max 51W (IR on), 26W (IR off)

• Operating Temp: -40°C to 60°C

• Humidity: 98% RH non-condensing

• Dimensions: 256 x 336 mm

• Weight: 7.1 kg

Warranty Information

manufactures warranty applied

Brand Description

VIVOTEK is a global leader in intelligent IP surveillance solutions. Known for its high-quality hardware, robust cybersecurity integrations, and cutting-edge AI analytics, VIVOTEK offers trusted solutions for critical surveillance deployments around the world.

Practical Use Scenarios

• City Surveillance — monitor intersections, parks, and highways with long-range zoom and 200m IR

• Airport or Transportation Hubs — detailed zoom and smart tracking across large terminals

• Perimeter Security — for warehouses, data centers, and critical infrastructure

• Parking Lot Management — detect vehicle attributes, license plates, and movement paths

• Industrial Sites — harsh environment monitoring with IP66/NEMA 4X weatherproofing

Datasheets / Downloadable Resources

• VIVOTEK SD9384-EHL Official Product Page

Excellence for the Australian and New Zealand Market

The SD9384-EHL is fully certified for use in Australia and New Zealand, meeting RCM and AS/NZS CISPR 32 Class A compliance. It is sourced exclusively via authorised local distributors, ensuring warranty support is provided directly through VIVOTEK or its certified partners. Its IP66, IK10, and NEMA Type 4X ratings make it ideal for harsh ANZ environmental conditions, from coastal regions to industrial sites.

 FAQs (Including Product Code SD9384-EHL)

Q1: What zoom capability does the SD9384-EHL camera offer?
A1: The SD9384-EHL features 30x optical zoom with autofocus and 32x digital zoom for extreme long-range detail.

Q2: Can the SD9384-EHL (SKU: SD9384-EHL) be used in extreme outdoor conditions?
A2: Yes, it supports -40°C to 60°C operation, has IP66/IK10/NEMA 4X ratings, and resists harsh weather and vandalism.

Q3: Does the VIVOTEK SD9384-EHL support AI features?
A3: Absolutely. It includes deep learning-based analytics for people/vehicle detection, facial features, line crossing, and Smart Tracking Advanced.

Q4: What power options does the SD9384-EHL offer?
A4: The SD9384-EHL supports PoE++ (IEEE 802.3bt), DC 48V, and AC 24V inputs with power redundancy.

Q5: How far can the SD9384-EHL (SKU: SD9384-EHL) see at night?
A5: With built-in Smart IR, the SD9384-EHL offers visibility up to 200 meters in complete darkness.
