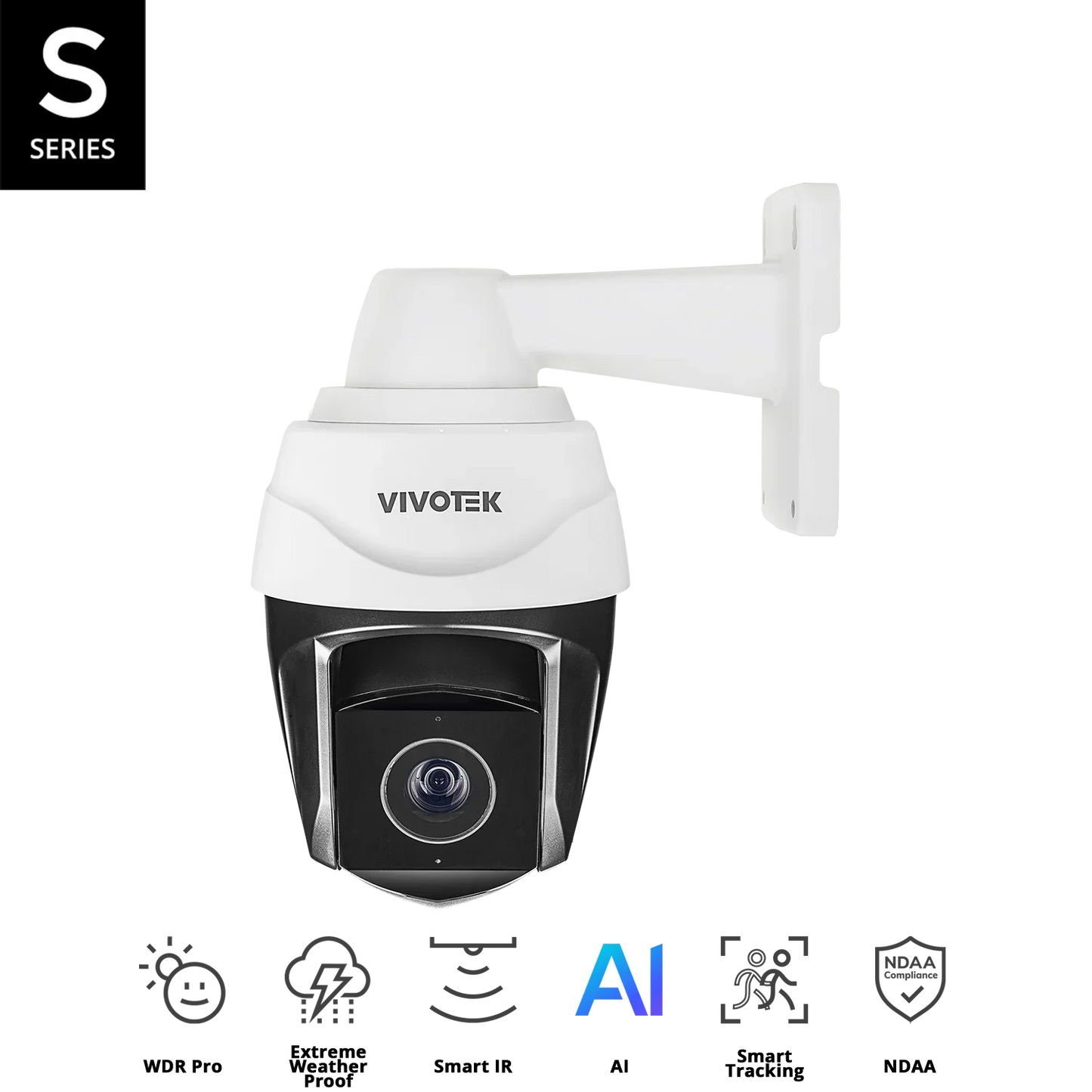

VIVOTEK SD9368‑EHL 2 MP H.265 Speed Dome Network Camera with 40× Optical Zoom, WDR Pro, Smart Stream III, SNV – Outdoor PTZ Surveillance

The VIVOTEK SD9368‑EHL is a professional-grade 2 MP PTZ (pan-tilt-zoom) network camera designed for extensive outdoor surveillance. With 40× optical zoom, 60 fps full HD capture, Smart IR up to 250 meters, WDR Pro, Smart Stream III bandwidth optimization, SNV low-light enhancement, and advanced AI‑powered Smart Tracking all built into a rugged IP66/IK10/NEMA 4X housing, this camera delivers top-tier performance even in the most challenging environments. It’s ideal for citywide monitoring, industrial sites, transportation hubs, and government facilities, offering deep learning detection of people and vehicles plus cyber protection via Trend Micro IoT Security.

What’s Included in the Box

• SD9368‑EHL Speed Dome Camera unit

• Wall mount bracket

• Screw pack with anchors

• Quick installation guide and alignment sticker

• Waterproof accessory bag and conduit ring

• Phoenix‑style terminal block (for DI/DO, audio, AC/DC wiring)

• T10 and T25 L‑wrenches

• Grounding wire

• Desiccant bag

• 3-year manufacturer limited warranty

Main Features

• 2 MP 1080p Full HD video at up to 60 fps

• 40× optical zoom (4.25‑170 mm AF lens), with digital zoom up to 32×

• Smart IR with 8 IR LEDs for night vision up to ~250 m, automatically adjusting illumination to prevent hotspots

• WDR Pro and SNV for excellent performance in high-contrast and low-light scenes

• Smart Stream III technology to reduce bitrate with customizable video profiles Smart Tracking Advanced: AI-powered deep learning for people/vehicle detection and behavior analysis governed by flexible event rules (intrusion, line‑crossing, loitering, face detection, unattended/missing object)

• Trend Micro IoT Security: integrated cybersecurity with brute‑force, attack detection & quarantine features across firmware and user access management

• Robust PTZ mechanics: continuous 360° panning, tilt range –20° to 90° with auto‑flip, preset speeds up to 450°/sec, 256 preset locations and patrol modes

• Durable all‑weather design: IP66, IK10 vandal-proof, and NEMA 4X-rated housing

• Wide operating range: –40 °C to 60 °C (–40 °F to 140 °F), up to 98 % non‑condensing humidity

• Multiple power options: PoE (IEEE 802.3bt Class 6), 24 VAC, or 48 VDC with power redundancy

• Storage flexibility: microSD/SDHC/SDXC card support plus NAS storage and seamless recording

• Audio support: full‑duplex two-way audio with G.711/G.726 codecs, line‑in/out ports

• ONVIF Profiles G/S/T, HTTPS, 802.1x, secure boot, signed firmware—ensuring open interoperability and security

Detailed Specifications

• CPU: Multimedia System‑on‑Chip with 8 GB Flash, 2 GB RAM

Lens & Imaging

• Sensor: 1/2.8″ progressive CMOS

• Resolution: 1920×1080 (2 MP)

• Lens: 4.25–170 mm, F1.6–4.95, DC‑iris, AF

• Field of View: Horizontal 65.7°–1.9°, Vertical 39.4°–1.1°, Diagonal 73°–2.1°

• Shutter: 1 sec to 1/100,000 sec

Lighting & Video

• WDR Pro (120 dB dynamic range), SNV, defog, 3DNR, EIS, HLM, pixel calculator

• Video: H.265, H.264, MJPEG; 3 streams, up to 8 profiles, 60 fps max

• Smart Stream III, 60 dB S/N ratio

PTZ & Storage

• PTZ: 360° continuous pan, –20° to 90° tilt with auto flip, 256 presets, auto-patrol, digital zoom up to 32×

• Storage: microSD up to 1 TB, NAS support

Network & Security

• Protocols: HTTP/S, TCP/IP, RTSP, SSL/TLS 1.2, IGMPv3, SNMP, QoS, NTCIP, IPv4/6, DHCP, DDNS, FTP/SFTP, Bonjour, more

• Security: HTTPS, IEEE 802.1x, access lists, Trend Micro IoT Security, user access log

Connectivity

• RJ-45 10/100 Mbps PoE, audio in/out, DI ×2, DO ×1, RS-485, power input (AC/DC)

Physical & Environmental

• Dimensions: Ø256 × 336 mm; Weight: ~7.1 kg

• Operating Temp: –40 °C to 60 °C; Humidity up to 98% non‑condensing

• Certifications: CE, UKCA, FCC, IC, RCM, VCCI; UL/CB safety; IP66, IK10, NEMA 4X; BIS, BSMI regulatory

Warranty Information

• manufactures warranty applied

Brand Description

VIVOTEK is a Taiwanese leader in IP surveillance solutions, known for delivering advanced camera technologies with high reliability and strong cybersecurity foundations. Their S‑Series (including SD9368‑EHL) integrates deep learning analytics, rugged design, and compliance with global standards, backed by responsive after-sales support and authorized distribution.

Practical Use Scenarios

• City surveillance or public safety: monitor wide urban areas with long-range auto-tracking of incidents.

• Transport hubs (airports, seaports, stations): pan and zoom to track vehicles and pedestrians in transit zones.

• Critical infrastructure & industrial sites: robust performance under extreme conditions with vandal and weather resistance.

• Large campuses or warehouses: schedule patrols, preset patrol tours and real-time tracking for activity zones.

• Border or perimeter control: detect and identify intruders over large distances using DORI performance.

Datasheets / Downloadable Resources

• VIVOTEK SD9368‑EHL page

Excellence for the Australian and New Zealand Market

This product fully meets Australian and New Zealand standards, including NDSS approval and is sourced exclusively through authorized VIVOTEK distributors in ANZ. Warranty support is handled directly by the brand in market, ensuring compliance with local regulations and service expectations. The SD9368‑EHL’s certifications (IP66, IK10, NEMA 4X, CE, RCM, BIS) make it ideal for harsh ANZ environments.

Frequently Asked Questions (FAQs)

Q1: What is the night vision range of the SD9368‑EHL?
A1: The SD9368‑EHL supports IR illumination up to approximately 250 m (~820 ft) via 8 IR LEDs with Smart IR, ensuring evenly lit scenes without hotspots.

Q2: What detection capabilities does SD9368‑EHL offer?
A2: SD9368‑EHL includes Smart Tracking Advanced, enabling people and vehicle detection, intrusion/loitering/line‑crossing alerts, face detection, unattended/missing object detection, with automatic biography extraction and re‑search.

Q3: How does the SD9368‑EHL perform in extreme weather conditions?
A3: SD9368‑EHL operates reliably from –40 °C to 60 °C (–40 °F to 140 °F), is rated IP66 for water/dust ingress, IK10 for vandal resistance, and NEMA 4X for corrosion protection—making it tough enough for harsh climates.

Q4: Does SD9368‑EHL support on‑camera analytics without a VMS?
A4: Yes. SD9368‑EHL features embedded deep‑learning analytics (Smart Tracking Advanced and VCA) and can trigger tracking or preset zooming based on events—no external VMS required. It also supports Camera Link coordination with other VIVOTEK PTZs.

Q5: What is the warranty for SD9368‑EHL?
A5: The SD9368‑EHL includes a 36‑month (3‑year) limited manufacturer warranty through authorized distribution channels.
