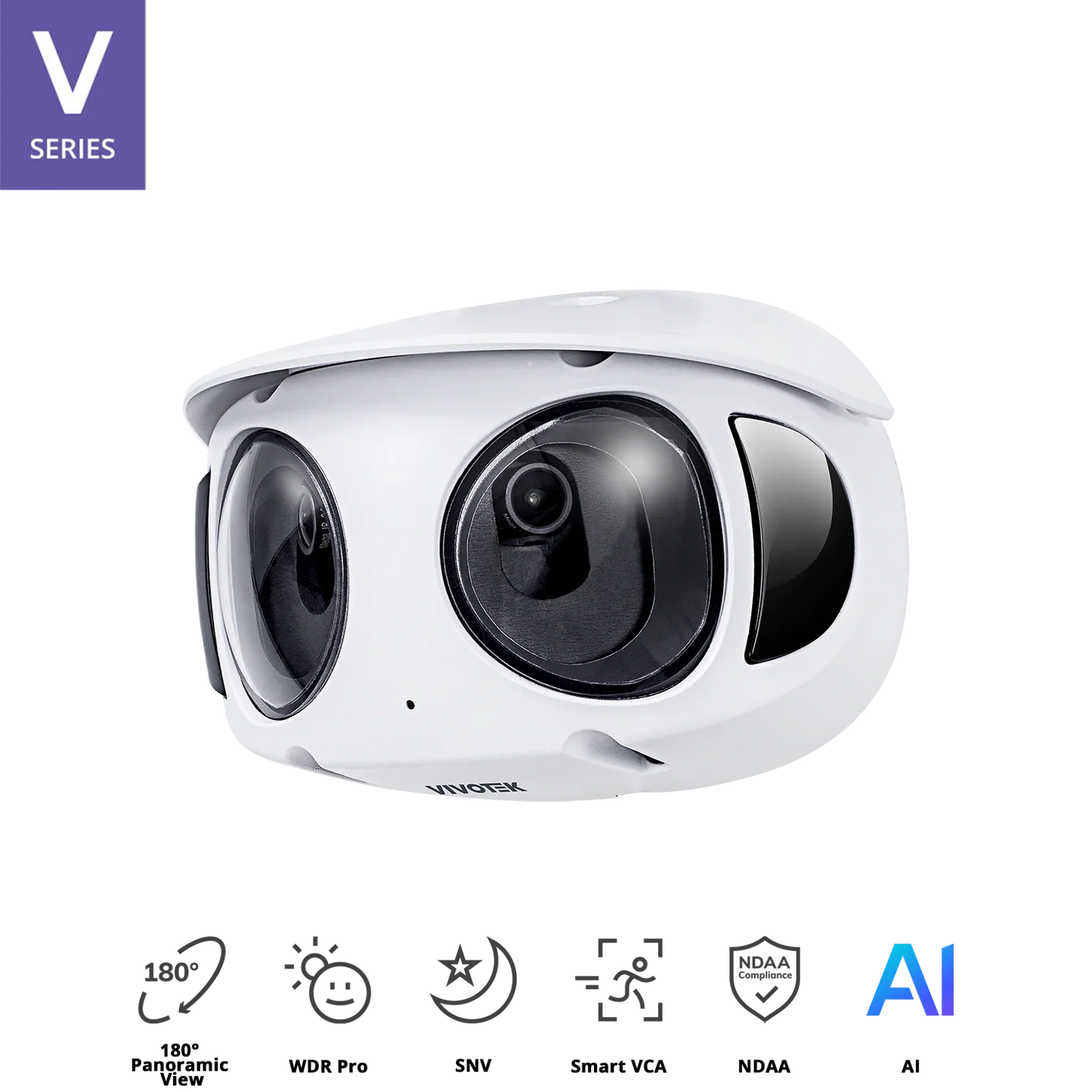

VIVOTEK MS9390-EHV-v2 8MP Multi-Sensor 180° Panoramic Network Camera with IR, WDR Pro, SNV & AI Analytics

The VIVOTEK MS9390-EHV-v2 is a premium multi-sensor panoramic network camera designed to deliver ultra-wide 180° horizontal views with 8MP resolution at 30 fps, providing superior situational awareness with minimal blind spots. Built with two 4MP sensors, this camera merges the streams into a seamless 180° field of view ideal for wide-area surveillance such as parking lots, stadiums, campuses, and public areas.

Equipped with WDR Pro, Smart Stream III, and Supreme Night Visibility (SNV), the MS9390-EHV-v2 ensures consistently high image quality, even in complex lighting or complete darkness, with built-in Smart IR LEDs effective up to 20 meters.

Engineered for intelligence, this camera includes AI-powered deep learning analytics for people and vehicle detection, facial recognition, crowd detection, and more. Its rugged IK10 and IP66-rated housing ensures it’s ready for the demanding climates of Australia and New Zealand.

What's Included in the Box:

• 1 × VIVOTEK MS9390-EHV-v2 Panoramic Network Camera

• 1 × Quick Installation Guide

• 1 × Alignment Sticker

• 1 × Sunshield

• 1 × Desiccant Bag

• 1 × Screwdriver

• 1 × Screw Pack

Key Features:

• 8MP Total Resolution (4864 × 1632) @ 30 fps

• Dual-Sensor 180° Panoramic Coverage

• Smart IR LEDs with 20M Night Vision Range

• WDR Pro (120 dB) for High Contrast Environments

• H.265 + Smart Stream III for Bandwidth Efficiency

• Built-in AI Analytics: People, Vehicle & Attribute Detection

• IP66 & IK10-Rated Housing for Outdoor Protection

• IEEE 802.3at PoE+ Power Input

• One-Way Audio with Built-in Microphone

• Compact Size with Rugged Build for Versatile Installations

Detailed Specifications:

Camera:

• Image Sensor: 1/2.7" Progressive CMOS × 2

• Max Resolution: 4864 × 1632 (8MP)

• Lens Type: Fixed-focal 2.8mm

• Aperture: F1.2

• Field of View:

  • Horizontal: 180°

  • Vertical: 50°

  • Diagonal: 180°

• Shutter Speed: 1/30 sec to 1/32,000 sec

• IR Range: Up to 20 meters with Smart IR (8 IR LEDs)

• Min. Illumination:

  • Color: 0.018 lux @ F1.2

  • B/W: <0.01 lux

  • 0 lux with IR On

• WDR Technology: WDR Pro (120 dB)

Video:

• Compression: H.265, H.264, MJPEG

• Max Frame Rate: 30 fps @ 4864 × 1632

• Streams: 3 Video Streams (Up to 8 profiles)

• S/N Ratio: 57.9 dB

• Smart Stream III: Yes

• Image Enhancements:

  • Anti-overexposure

  • White Balance (Auto, Panorama, Snow)

  • Brightness, Sharpness, Contrast, Gamma, 3DNR, HLM, Defog

  • Scene Modes (Auto, Deblur)

  • Lens Alignment & Pixel Calculator

  • Exposure Control, BLC, HLC

  • Privacy Masking & Scheduled Profiles

Audio:

• One-Way Audio

• Built-in Microphone

• Compression: G.711, G.726, MPEG-2 AAC-LC

• Range: Up to 5 meters

AI Analytics:

• SoC with Deep Learning Accelerator

• Smart Motion Detection:

  • Five-window motion zones

  • People/Vehicle Detection

  • Time Filters

• Smart VCA:

  • Intrusion, Loitering, Line Crossing

  • Face Detection, Crowd Detection

  • Unattended & Missing Object Detection

• Attribute Extraction:

  • People: Gender, Color, Bag, Hat

  • Vehicle: Type, Color

• Advanced Features (with License):

  • Restricted Zone, Running Detection, Parking Violation

• Explore More at VIVOTEK Video Analytics

Storage & Integration:

• Edge Storage: MicroSD/SDHC/SDXC (up to 1TB)

• NAS Recording: Supported

• Applications: Trend Micro IoT Security (3-year free)

• Alarms: Motion, Audio, Cyberattack, Camera Tamper, Shock, System Boot

• Actions: Email, HTTP, FTP, NAS Uploads, Push Notifications

Network & Security:

• Protocols: HTTPS, RTSP, TCP/IP, IPv4/6, TLS 1.2, SNMP, and more

• Security:

  • Secure Boot, Signed Firmware, Password Protection

  • Trend Micro IoT Security Suite

  • User Logs, CSRF Protection

• ONVIF: Profiles G, S, T Compliant

• Users: Live viewing for up to 10 clients

• Interface: RJ-45 Ethernet 10/100 Mbps

• Recommended Cabling: CAT5e / CAT6 (3P/ETL standard)

Power & Environmental:

• Input: IEEE 802.3at PoE+ (Class 4)

• Consumption: Max 20W (IR on), 13.5W (IR off)

• Operating Temperature:

  • IR Off: -40°C to +55°C

  • IR On: -40°C to +50°C

• Startup Temp: -30°C

• Humidity: Up to 90% RH

• Enclosure: IK10, IP66, Compact Rugged Housing

Dimensions & Weight:

• W/O Sunshield: 165 × 112 × 97 mm

• W/ Sunshield: 165 × 100 × 119 mm

• Weight: 1.2 kg

Certifications:

• EMC: CE, FCC, RCM, VCCI, IC, UKCA

• Safety: UL, CB, IEC 62368-1 / 60950-22

• Environmental: IP66, IK10

• IA Compliance: BIS, BSMI

DORI Ranges (Based on EN 62676-4):

• Detect: 80.5 m

• Observe: 32.2 m

• Recognize: 16.1 m

• Identify: 7.8 m

Warranty Information:

The VIVOTEK MS9390-EHV-v2 comes with a 3-Year Manufacturer Warranty and local support via authorized distributors in Australia and New Zealand.

Brand Description:

VIVOTEK is a global leader in advanced IP surveillance technologies, delivering smart imaging, analytics, and security features built into rugged, high-performance cameras trusted by enterprise, government, and industrial clients worldwide.

SKU: MS9390-EHV-v2

Practical Use Scenarios:

• Retail & Supermarkets: Ultra-wide panoramic coverage eliminates the need for multiple cameras.

• School Campuses & Parks: Wide-area monitoring of walkways, fields, and perimeters.

• Stadiums & Public Events: Effective crowd detection and safety analytics.

• Parking Lots & Car Dealerships: Vehicle detection with AI and seamless DORI classification.

• City Surveillance: Weather-resistant panoramic coverage with intelligent analytics.

Datasheets or Downloadable Resources:

• VIVOTEK MS9390-EHV-v2 Product Page


Excellence for the Australian and New Zealand Market:

The MS9390-EHV-v2 has been optimized for professional surveillance requirements across Australia and New Zealand, offering:

• RCM and AS/NZS certified compliance for local legal standards

• Rugged IP66 and IK10 environmental protection to handle extreme weather and public installation

• AI-driven analytics tuned for dynamic urban and industrial environments

• Power-efficient PoE+ support, reducing infrastructure complexity

• Warranty handling and service support through authorized local VIVOTEK representatives

 FAQs – VIVOTEK MS9390-EHV-v2

Q1: What makes the VIVOTEK MS9390-EHV-v2 ideal for wide-area surveillance?
A1: The MS9390-EHV-v2 uses dual 4MP sensors to deliver a 180° panoramic view in 8MP resolution, covering large areas with a single camera.

Q2: How far can the MS9390-EHV-v2 see at night?
A2: It includes Smart IR LEDs with a 20-meter range, ensuring clear night footage without overexposure.

Q3: Is the MS9390-EHV-v2 suitable for Australian outdoor environments?
A3: Yes, it’s IP66 & IK10 certified, RCM compliant, and rated for operation from -40°C to +55°C, perfect for harsh ANZ conditions.

Q4: What AI analytics are included with the MS9390-EHV-v2?
A4: This model features onboard deep learning capabilities like people and vehicle detection, attribute extraction, intrusion alerts, and crowd detection.

Q5: What power input does the MS9390-EHV-v2 require?
A5: It supports IEEE 802.3at PoE+ (Class 4), offering simplified cabling and installation.
