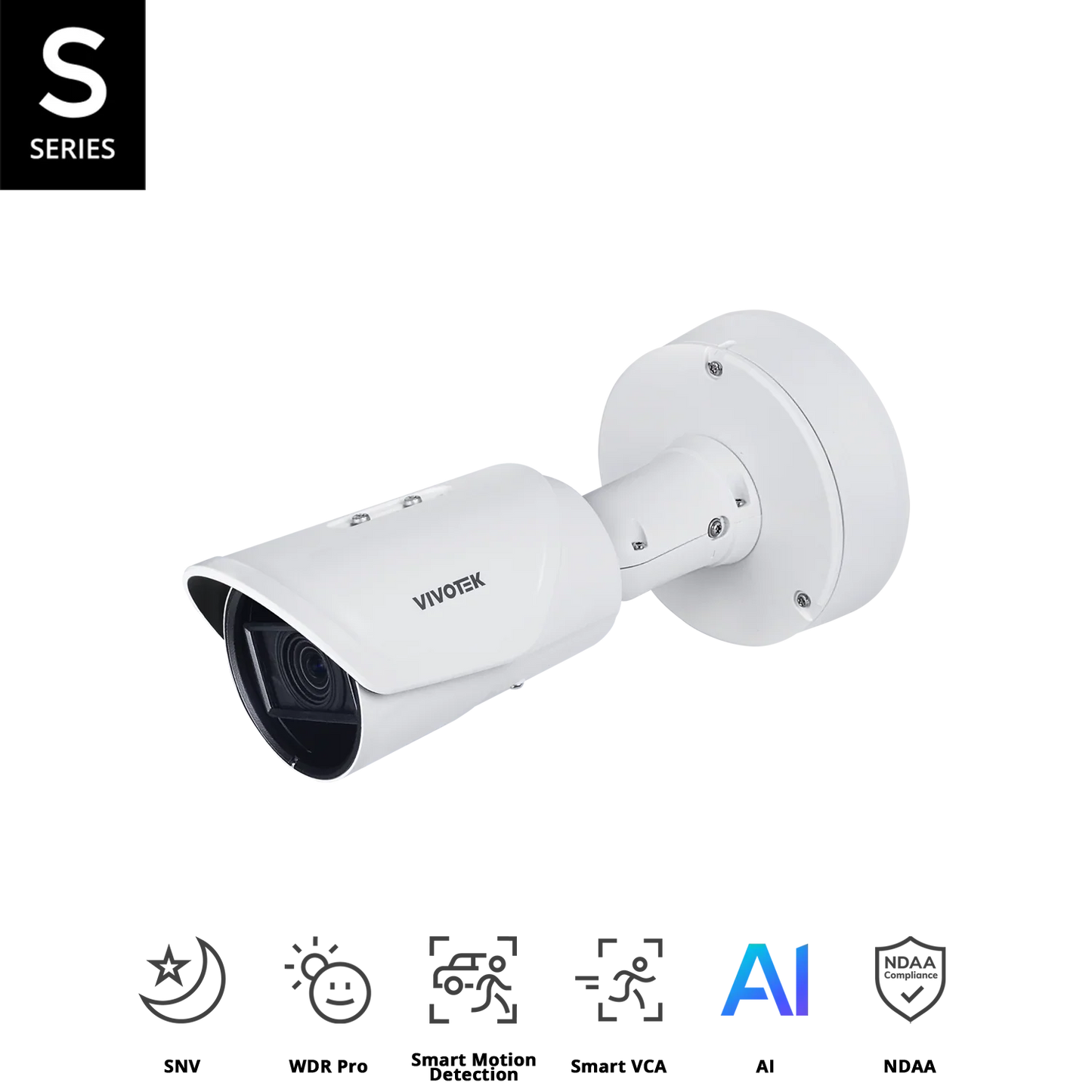

VIVOTEK IB9391-EHTV-v2 8MP 4K Bullet Network Camera – WDR Pro, SNV, Smart IR III, Vision AI Analytics, IP66/IK10/NEMA 4X Rated

Engineered for next-generation perimeter surveillance and high-resolution monitoring, the VIVOTEK IB9391-EHTV-v2 is a robust 4K bullet network camera designed to deliver ultra-clear 3840x2160 imagery at 30fps. Ideal for critical infrastructure, industrial facilities, and large-scale outdoor deployments, this camera excels in harsh environmental conditions, thanks to its NEMA 4X rating, IK10 vandal-proof housing, and IP66/67 weather resistance.

Powered by a 1/1.8" CMOS sensor, Smart IR III (50m), and WDR Pro (120dB), it performs exceptionally in challenging light environments—day or night. Integrated AI Vision Object Analytics enables advanced detection, classification, and behavior analysis for people and vehicles.

Capable of operation down to -50°C, the IB9391-EHTV-v2 ensures reliable protection in Australia's hottest and coldest climates—ideal for outdoor industrial sites, ports, correctional facilities, and public infrastructure.

What's Included in the Box:

• 1 × VIVOTEK IB9391-EHTV-v2 Bullet Network Camera

• Quick Installation Guide

• Product Labels

• Alignment Sticker

• L-Shaped Wrench

• Screw Pack

• Waterproof Accessory Pack

• Sunshield

• I/O Cable

• Adapter Plate

• Conduit Bracket

Key Features:

• 4K UHD Resolution (8MP, 3840x2160 @ 30fps)

• 1/1.8" Progressive CMOS Sensor for High Sensitivity

• Smart IR III with 50m Infrared Range

• WDR Pro (120 dB) for Backlit Scenes

• Vision Object Analytics (People, Vehicle, Behavior)

• Wide FOV: Horizontal 100° ~ 43°, Vertical 50° ~ 24°

• Smart Stream III for Bandwidth Optimization

• Rugged Design: NEMA 4X, IK10, IP66/67

• -50°C to 60°C Operating Range

• ONVIF Profile G, S, T Compatible

• Built-In Trend Micro IoT Security (3-Year License)

• ePTZ with 48x Digital Zoom

Detailed Specifications:

Camera:

• Image Sensor: 1/1.8" Progressive CMOS

• Max Resolution: 3840x2160 (4K UHD)

• Lens: Motorized Vari-Focal (f = 4.4 ~ 10.2 mm), P-Iris

• Aperture: F1.38 ~ F2.24

• Field of View (FOV):

  • Horizontal: 100° ~ 43°

  • Vertical: 50° ~ 24°

  • Diagonal: 110° ~ 49°

• Minimum Illumination:

  • 0.01 lux @ F1.38 (Color)

  • <0.005 lux @ F1.38 (B/W)

  • 0 lux with IR on

• IR Range: Up to 50m (Smart IR III, 4 LEDs)

• WDR: WDR Pro (120 dB)

• Pan/Tilt/Zoom: ±180° Pan, 90° Tilt, ±180° Rotation, 48x ePTZ

AI Vision Analytics:

• Object Detection: People, vehicles (2- & 4-wheeled)

• Attribute Extraction: Gender, clothing, color, bags, hats, vehicle type

• Behavior Detection: Line crossing, loitering, intrusion, crowd detection

• Advanced Features: Re-search and path extraction

• Analytics Engine: Built-in deep learning accelerator (AI SoC)

Video:

• Compression: H.265, H.264, MJPEG

• Streaming: 3 simultaneous streams (8 configurable profiles)

• Frame Rate: 30fps @ 4K

• Enhancements: 3DNR, Smart Stream III, LDC, EIS, defog

Audio:

• Two-Way Audio (Full Duplex)

• Compression: G.711, G.726, MPEG-2 AAC-LC

• Interface: External mic input and line output

Storage:

• MicroSD/SDHC/SDXC (Seamless Recording), NAS-compatible

Network & Security:

• Protocols: IPv4/6, HTTPS, TLS 1.2, FTP/SFTP, RTSP, QoS, SNMP, etc.

• Security Features:

  • Trend Micro IoT Security (3-year free)

  • Secure boot, signed firmware, password enforcement, HTTPS

  • Brute force and cyberattack detection, access control

• Simultaneous Clients: Up to 10

Connectivity & Power:

• Ethernet: 10/100 Mbps RJ-45

• Power Inputs:

  • PoE IEEE 802.3at Class 4

  • DC 12V

  • AC 24V

• Power Consumption:

  • PoE: 19.38W (IR ON), 15.8W (IR OFF)

  • DC 12V: 15.84W (IR ON)

  • AC 24V: 16.52W (IR ON)

Physical Specifications:

• Dimensions: Ø 153 x 283 mm

• Weight: 1.87 kg

• Operating Temp:

  • Start: -30°C to 60°C

  • Working: -50°C to 60°C (IR OFF), -50°C to 50°C (IR ON)

• Humidity: 98% RH (non-condensing)

• Certifications: RCM, CE, FCC, UL, IK10, IP66/67, NEMA 4X

• DORI Ranges (Detect / Observe / Recognize / Identify):

  • Wide: 100.1m / 40m / 20m / 10m

  • Tele: 204.5m / 81.8m / 40.9m / 20.4m

Warranty Information:

manufactures warranty applied

Brand Description:

VIVOTEK is a global leader in professional-grade IP surveillance systems, specializing in AI-powered security cameras, advanced analytics, and secure IoT integration. With a focus on durability and precision, VIVOTEK cameras are trusted across industries and government projects worldwide.

SKU: IB9391-EHTV-v2

Practical Use Scenarios:

• Critical Infrastructure: Protect perimeters of energy, mining, or transport hubs

• Industrial Facilities: Durable surveillance for manufacturing, logistics yards, and warehouses

• Public Infrastructure: High-resolution monitoring for airports, railways, ports, or smart cities

• Commercial Buildings: Enhanced visitor and vehicle tracking with AI-driven analytics

• Remote Sites: Operates reliably in harsh or sub-zero Australian outback conditions

Datasheets or Downloadable Resources:

• VIVOTEK Product Page – IB9391-EHTV-v2

Excellence for the Australian and New Zealand Market:

• RCM Certified for full compliance with Australian & New Zealand electrical standards

• Weatherproof for coastal, desert, and alpine conditions – from -50°C to +60°C

• Enhanced cybersecurity protection with Trend Micro IoT Security Suite (3 years free)

• Built tough with NEMA 4X and IK10 vandal resistance for harsh industrial deployments

• Locally supported via authorized VIVOTEK partners for warranty, setup, and integration

• ONVIF-compliant for seamless integration with existing VMS platforms used across ANZ

 FAQs – VIVOTEK IB9391-EHTV-v2

Q1: What resolution and frame rate does the VIVOTEK IB9391-EHTV-v2 support?
A1: The IB9391-EHTV-v2 delivers 4K UHD video (3840x2160) at 30fps, providing ultra-clear surveillance footage.

Q2: Is the VIVOTEK IB9391-EHTV-v2 suitable for extreme outdoor environments in Australia?
A2: Yes, with NEMA 4X, IP66/67, and IK10 ratings, plus an operating range down to -50°C, it’s built for Australia's harshest climates.

Q3: What analytics are included in the IB9391-EHTV-v2 camera?
A3: It includes AI Vision Object Analytics, capable of people and vehicle detection, behavioral tracking, and attribute extraction.

Q4: Does the IB9391-EHTV-v2 support PoE and redundancy power?
A4: Yes, it supports PoE+ (IEEE 802.3at) and also accepts DC 12V and AC 24V for power redundancy.

Q5: Is the VIVOTEK IB9391-EHTV-v2 compatible with my existing VMS?
A5: Absolutely. It supports ONVIF Profiles G, S, and T, making it compatible with most modern video management systems.
