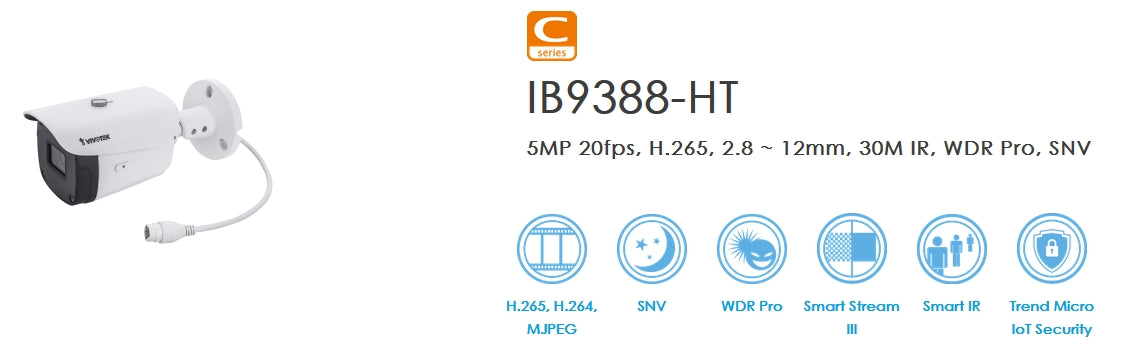

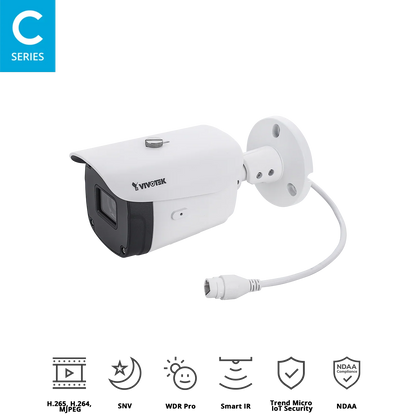

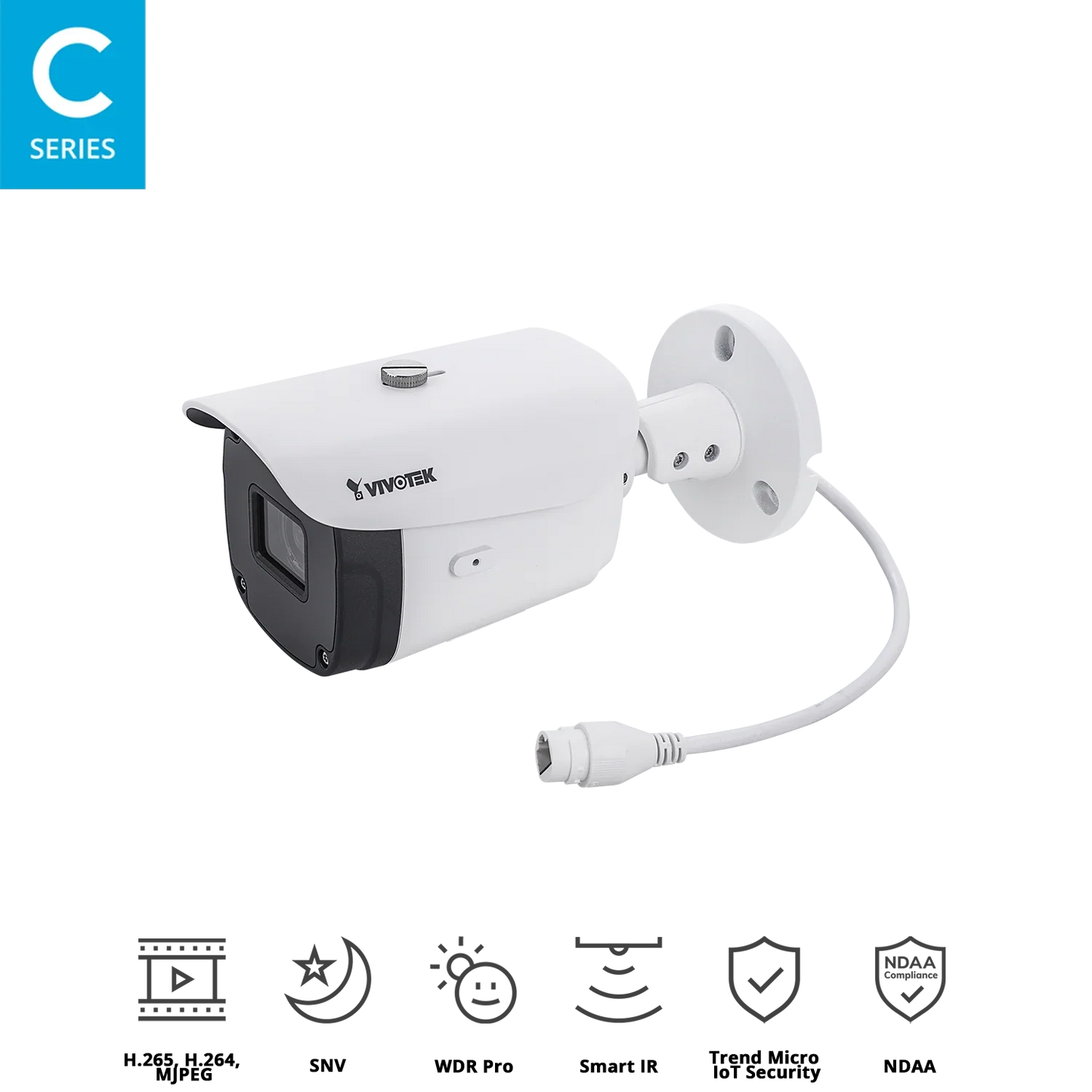

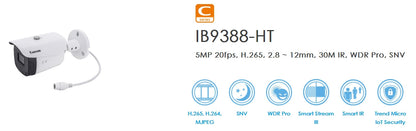

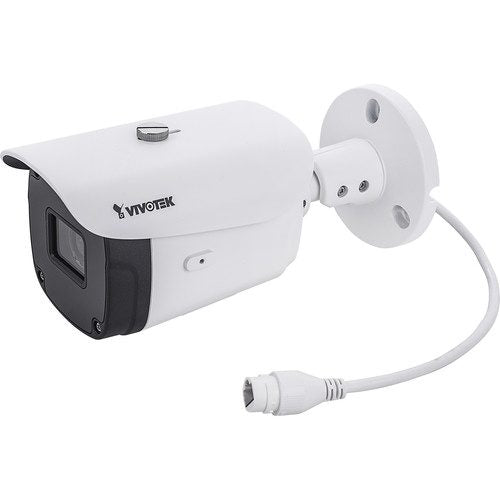

VIVOTEK IB9388‑HT 5MP Outdoor Bullet Camera with Motorised 2.8–12 mm Lens, H.265 & Smart Stream III, SNV & WDR Pro, PoE, IP66/IK10

The VIVOTEK IB9388‑HT is a high‑performance 5‑megapixel bullet camera designed to deliver outstanding video surveillance in outdoor environments. It features a motorised remote focus lens (2.8–12 mm), cutting-edge WDR Pro (120 dB) technology for optimal image quality in high-contrast scenes, and Supreme Night Visibility (SNV) for low-light environments.

With advanced H.265 compression and Smart Stream III technology, the IB9388‑HT dramatically reduces bandwidth and storage needs without compromising image clarity. Its robust IP66 weatherproof and IK10 vandal-resistant housing ensures durability in the harshest conditions. Equipped with Smart IR LEDs providing illumination up to 30 metres, this camera ensures visibility around the clock.

Enhanced cybersecurity is provided through Trend Micro IoT Security, protecting the system from brute-force attacks and cyber intrusions. The camera supports on-board recording via MicroSD/SDHC/SDXC (up to 1 TB) and features PoE (Power over Ethernet) for simplified installation.

What’s in the Box

• VIVOTEK IB9388‑HT Bullet Camera

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Cable Gland

• Compatible with optional mounts: AM‑312 (Pole Mount), AM‑412 (Corner Mount), AM‑523 (Adapting Plate), AM‑71C (Outdoor Junction Box)

Main Features

• 5MP resolution (2560 × 1920) at 20 fps with WDR Pro

• Motorised varifocal lens (2.8–12 mm) with remote focus

• Supreme Night Visibility for low-light environments

• Built-in Smart IR LEDs, effective up to 30 metres

• Smart Stream III and H.265 for optimized bandwidth usage

• Advanced Trend Micro IoT Security integration

• IP66 weatherproof & IK10 vandal-resistant casing

• Onboard MicroSD/SDHC/SDXC card slot (up to 1TB supported)

• PoE powered (IEEE 802.3af)

• Supports ONVIF Profiles G, S, T

Detailed Specifications

Warranty Information

VIVOTEK products are typically covered by a limited manufacturer's warranty. Warranty handling is provided through VIVOTEK or authorized distributors within the region.

Datasheets

Brand Description

VIVOTEK Inc. is a globally recognized manufacturer of IP surveillance solutions, known for innovation in video technology, network reliability, and cybersecurity integration.

Practical Use Scenarios

• Commercial Security: Ideal for retail shops, warehouses, and office exteriors

• Public Infrastructure: Reliable surveillance for transport hubs, government sites

• Construction & Industrial Sites: Built for durability and night coverage

• Educational Campuses: Enhanced security with intelligent analytics and remote focus

• Perimeter Protection: Long-range IR and high-resolution video for parking lots and boundaries

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian and New Zealand standards, including RCM (AS/NZS CISPR 32)

• Built with IP66 and IK10 ratings, making it resilient to regional climate and vandal risks

• Exclusively sourced via authorized distributors to ensure authenticity and full support

• Warranty and post-sale service are directly managed through official local VIVOTEK representatives

• Tailored for temperature extremes and high-humidity environments, commonly found in Australian and New Zealand installations

FAQs (Product Code: IB9388‑HT)

Q1: What is the field of view range for the IB9388‑HT?
A1: The IB9388‑HT offers a flexible field of view: 90°–30° horizontally, 65°–23° vertically, and 115°–38° diagonally.

Q2: Does the IB9388‑HT support onboard recording?
A2: Yes, the IB9388‑HT supports MicroSD/SDHC/SDXC cards up to 1 TB for seamless onboard video storage.

Q3: How far can the IB9388‑HT see at night?
A3: This model features built-in IR LEDs with Smart IR technology, providing up to 30 m of night vision range.

Q4: Is the IB9388‑HT suitable for very dark environments?
A4: Absolutely. The camera is equipped with Supreme Night Visibility (SNV) and WDR Pro for exceptional performance in low light and high contrast.

Q5: What power source does the IB9388‑HT use?
A5: The IB9388‑HT operates via Power over Ethernet (PoE) under IEEE 802.3af Class 0 and consumes up to 12.95 W with IR on.
