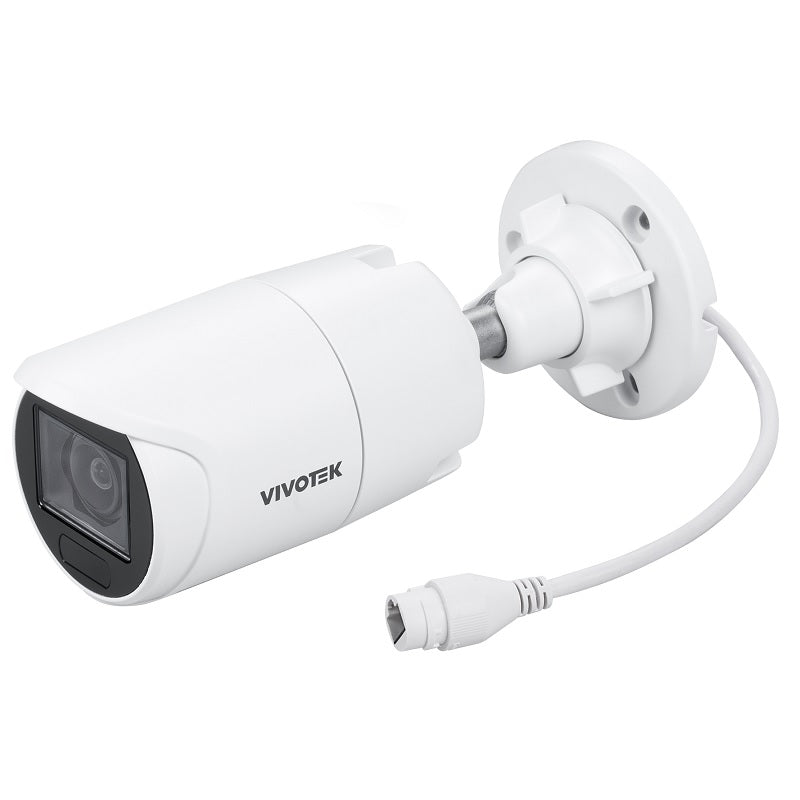

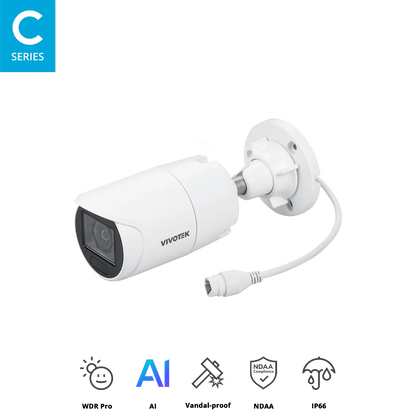

VIVOTEK IB9383-HTV 5MP Bullet Network Camera – SNV, WDR Pro, 30M Smart IR, AI VCA, Motorized Varifocal Lens

The VIVOTEK IB9383-HTV is a high-performance 5MP bullet network camera equipped with a motorized varifocal lens, Supreme Night Visibility (SNV), and advanced Deep Learning AI-powered video analytics. Designed for precision surveillance in diverse lighting and weather conditions, it delivers crystal-clear 30fps at 2560x1920 resolution and features Smart IR up to 30 meters for superior night vision.

With WDR Pro (120 dB) for excellent performance in high-contrast scenes and rugged IP66/IK10 housing, the IB9383-HTV is ideal for challenging outdoor applications including transportation hubs, commercial properties, critical infrastructure, schools, and city surveillance projects. The integrated Trend Micro cybersecurity suite and support for Smart VCA analytics further enhance real-time threat detection and response.

What's in the Box

• VIVOTEK IB9383-HTV Bullet Network Camera

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Cable Gland

Main Features

• 5MP CMOS Sensor at 30fps – Ultra-clear video recording

• Motorized Varifocal Lens (2.8~12mm) – Remote focus and zoom

• Supreme Night Visibility (SNV) – Excellent low-light performance

• Smart IR with 30M Range – Enhanced clarity in total darkness

• WDR Pro (120 dB) – Sharp images in backlit conditions

• H.265 + Smart Stream III – Maximized bandwidth efficiency

• AI-Powered Smart VCA – Intrusion, line crossing, face detection & more

• IP66 Weatherproof & IK10 Vandal Resistant – Built for the outdoors

• Built-in Microphone – One-way audio capture

• Pixel Calculator & Remote Installation Tools

Technical Specifications

Camera:

• Sensor: 1/2.8" Progressive CMOS

• Max Resolution: 2560 x 1920 (5MP)

• Lens: Motorized Varifocal, 2.8 ~ 12mm, F1.6 ~ F3.3, DC iris

• FOV:

  • Horizontal: 95.4° ~ 28.7°

  • Vertical: 68.8° ~ 21.5°

  • Diagonal: 129.6° ~ 35.9°

• Minimum Illumination:

  • 0.04 lux (Color)

  • 0.005 lux (B/W)

  • 0 lux with IR

• IR Illuminators: 30 meters with Smart IR, IR LED × 2

• WDR Pro: 120 dB

• Pan/Tilt/Rotation: 353° / 90° / 180°

• ePTZ Zoom: 48x digital

Video:

• Compression: H.265, H.264, MJPEG

• Frame Rate: 30fps @ 5MP; 60fps @ 1080p

• Streams: 3 video streams, 8 configurable profiles

• Smart Stream III: Bandwidth savings

• S/N Ratio: 59 dB

Image Enhancements:

• Flip/mirror, image adjustment (brightness, contrast, saturation, sharpness)

• Defog, 3DNR, motion blur sharpener, gamma curve adjustment

• Exposure control, privacy masks, pixel calculator

Audio:

• Audio Input: Built-in microphone

• Compression: MPEG-2 AAC-LC, G.711, G.726

• Effective Range: 5 meters

AI Analytics:

• Smart VCA:

  • Intrusion, loitering, line crossing, face detection

  • Smart Motion Detection (people/vehicle), time-filtered

  • Object classification (person, gender, bag, hat; vehicle type, color)

  • Advanced functions: Crowd, missing object, parking violation, restricted zone (license required)

Network & Security:

• Users: Up to 10 simultaneous clients

• Security:

  • HTTPS, IEEE 802.1x, CSRF, signed firmware, secure boot

  • Trend Micro IoT Security: brute-force, cyberattack, quarantine events

• Protocols: FTP/SFTP, SNMP, TLS 1.3, RTSP, UPnP, NTP, DHCP, IPv4/IPv6, etc.

• ONVIF Profiles: G, S, T

Storage:

• Local: MicroSD/SDHC/SDXC (up to 1TB)

• Remote: NAS support

Environmental & Mechanical:

• PoE: IEEE 802.3af Class 3

• Power Consumption: Max. 12.4W (IR on), 8.0W (IR off)

• Operating Temperature:

  • Start: -10°C to 50°C

  • Operating: -30°C to 55°C (IR off), -30°C to 50°C (IR on)

• Humidity: 90%

• Dimensions: Ø 91.0 x 226.6 mm

• Weight: 940 g

Certifications:

• EMC: CE, FCC, RCM, VCCI, IC

• Safety: UL, CB, LVD

• Environmental: IP66, IK10, BIS, BSMI

DORI (EN 62676-4):

• Detect: 67.0m (wide) / 205.7m (tele)

• Observe: 26.7m / 81.6m

• Recognize: 13.3m / 41.0m

• Identify: 6.6m / 20.5m

Warranty Information

The IB9383-HTV comes with a full manufacturer-backed warranty, managed through authorized VIVOTEK distributors and support channels for seamless service.

Brand Description

VIVOTEK Inc. is a leading Taiwanese manufacturer of IP surveillance solutions, renowned for its innovations in AI video analytics, cybersecurity integration, and superior image quality. With a global reach and deep R&D expertise, VIVOTEK ensures premium performance for professional security environments.

SKU: IB9383-HTV

Practical Use Scenarios

• School & Campus Security – Track movement and detect intrusions with Smart VCA

• Critical Infrastructure – Real-time monitoring with high DORI range

• Retail & Commercial Premises – Deter vandalism with IK10 protection

• Public Transit Areas & Parking Lots – Night clarity with SNV and 30M IR

• Construction & Industrial Sites – Remote focus & zoom for versatile installations

Downloadable Resources

• Datasheet – IB9383-HTV (PDF)

Excellence for the Australian and New Zealand Market

The VIVOTEK IB9383-HTV is built to comply with Australia and New Zealand’s rigorous standards, including RCM certification (AS/NZS CISPR 32 Class A), IP66 waterproof, and IK10 impact resistance. All units are sourced through authorized ANZ distributors, ensuring genuine local support, warranty coverage, and compatibility with infrastructure standards in both countries. Its design withstands the harshest local conditions—urban, coastal, or remote—and supports secure installations across commercial and government projects.

FAQs – VIVOTEK IB9383-HTV

Q1: Is the IB9383-HTV suitable for outdoor installation in extreme weather?
Yes, with IP66 and IK10 certification, and operating temperature range down to -30°C, it’s ideal for harsh outdoor environments. (Product Code: IB9383-HTV)

Q2: What is Supreme Night Visibility (SNV) in the IB9383-HTV?
SNV allows the camera to capture high-quality color footage even in very low-light conditions, enhancing 24/7 surveillance. (Product Code: IB9383-HTV)

Q3: Can I remotely adjust the zoom and focus?
Yes, the camera features a motorized varifocal lens with remote zoom and focus, simplifying installation and scene adjustment. (Product Code: IB9383-HTV)

Q4: What analytics are available on the IB9383-HTV?
It includes AI-based Smart VCA like intrusion, loitering, face detection, object classification, and more (some features may require a license). (Product Code: IB9383-HTV)

Q5: How is video stored on the camera?
The IB9383-HTV supports local recording to MicroSD cards (up to 1TB) and can also record to network-attached storage (NAS). (Product Code: IB9383-HTV)
