VIVOTEK FE9380-HV 5MP 360° Outdoor Fisheye Network Camera with Smart IR, WDR Pro, Local Dewarping, IP66/IK10, H.265, and Built-in Microphone

VIVOTEK FE9380-HV 5MP 360° Outdoor Fisheye Network Camera with Smart IR, WDR Pro, Local Dewarping, IP66/IK10, H.265, and Built-in Microphone

$1,212.95 AUD
$3,321.12 AUD $1,212.95 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The VIVOTEK FE9380-HV is a powerful 5MP outdoor fisheye network camera offering a 360° panoramic view with advanced local dewarping and client-side display modes. Featuring WDR Pro (120 dB) and Supreme Night Visibility (SNV), this camera ensures sharp and balanced images under high contrast and low-light conditions.

With Smart IR LEDs effective up to 10 metres, and advanced video compression via H.265 and Smart Stream III, it ensures maximum image quality with minimal bandwidth and storage usage. The built-in microphone adds audio surveillance capabilities, while PoE support, IP66 weatherproofing, and IK10 vandal resistance make it a robust solution for any demanding environment.

Its wide 180° field of view and extensive dewarping display options (including ceiling and wall mount modes) make the FE9380-HV ideal for large open areas like lobbies, public spaces, and intersections—minimizing blind spots with a single device.

What’s in the Box

  • VIVOTEK FE9380-HV Fisheye Network Camera

  • Quick Installation Guide

  • Alignment Sticker

  • Screw Pack

  • Desiccant Bag

  • Compatible Accessory: AM-525 Mounting Adapter

Main Features

  • 5MP 360° fisheye lens with 1920×1920 resolution

  • Local and client-side dewarping with multiple viewing modes

  • Supreme Night Visibility and WDR Pro for clear images in all lighting

  • Built-in IR LEDs with Smart IR, effective up to 10 metres

  • Smart Stream III with H.265/H.264/MJPEG support

  • IP66 weatherproof and IK10 vandal-resistant housing

  • Built-in Microphone for one-way audio monitoring

  • MicroSD/SDHC/SDXC card slot for onboard storage

  • PoE powered (IEEE 802.3af Class 0)

  • Trend Micro IoT Security integration

  • Supports ONVIF Profiles G, S, T

Detailed Specifications

Specification Details
Model FE9380-HV
Sensor 1/2.7″ Progressive CMOS (2688×1944)
Resolution 1920×1920
Lens 1.16 mm fixed focal lens, F2.25
Field of View 180° Horizontal / Vertical / Diagonal
Shutter Speed 1/5 sec – 1/32,000 sec
Min. Illumination 0.05 lux (Color), <0.005 lux (B/W), 0 lux with IR
IR Range Up to 10 m, 4× Smart IR LEDs
Zoom ePTZ, 12× digital zoom
Audio Built-in microphone, one-way audio, G.711/G.726 codecs
Compression H.265, H.264, MJPEG
Streams 4 streams, up to 9 profiles
Dynamic Range WDR Pro, 120 dB
S/N Ratio 63 dB
Storage MicroSD/SDHC/SDXC slot (up to 1TB), NAS support
Display Modes Local dewarping: 1O, 1P, 2P, 1R, 4R; Client dewarping: multiple fisheye/region views
Power Input IEEE 802.3af PoE Class 0
Power Consumption Max. 12 W (IR on), 3.8 W (IR off)

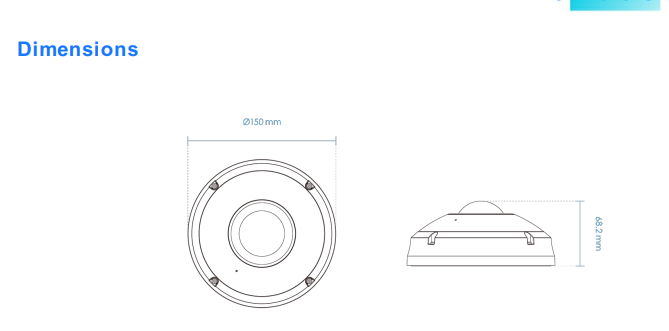

Dimensions Ø 150 × 68.2 mm
Weight 695 g
Certifications CE, FCC, RCM (AS/NZS), VCCI, UL, CB, IP66, IK10
Operating Temp. -30°C to 60°C
Humidity 90% RH
Users Live viewing for up to 10 clients
Protocols IPv4/IPv6, HTTPS, RTSP, SNMP, TLS 1.2, and more
Security HTTPS, Digest Auth, 802.1X, Trend Micro IoT Security

Warranty Information

Backed by VIVOTEK’s standard manufacturer warranty. Full support and warranty servicing are available through VIVOTEK's official distribution network.



Datasheets

Brand Description

VIVOTEK Inc. is a globally recognised leader in intelligent IP surveillance solutions, offering top-tier imaging technology, cybersecurity integration, and smart streaming capabilities. Trusted across industries worldwide, VIVOTEK delivers quality, reliability, and innovation.

Practical Use Scenarios

  • Retail Stores & Shopping Centres: 360° visibility with local dewarping helps monitor large open areas efficiently

  • Public Buildings & Lobbies: Fisheye coverage minimizes blind spots and reduces camera count

  • Train Stations & Transport Hubs: Weatherproof and vandal-resistant for outdoor installation

  • Banks & Government Facilities: High-resolution video with audio monitoring for critical security areas

  • Educational Campuses: Wide-area coverage at building entrances and halls

Excellence for the Australian and New Zealand Market

  • Certified under RCM (AS/NZS CISPR 32) for full compliance with local electrical standards

  • Designed with IP66 and IK10 protection, ideal for local climate conditions and public areas

  • Locally sourced through authorised VIVOTEK distributors, ensuring genuine product and eligible warranty

  • Built to perform in extreme temperatures (-30°C to 60°C), suitable for urban and remote locations

  • All warranty and support managed through official ANZ service channels

FAQs (Product Code: FE9380-HV)

Q1: What is the field of view of the FE9380-HV?
A1: The FE9380-HV (product code FE9380-HV) offers a full 180° horizontal, vertical, and diagonal field of view for complete 360° fisheye coverage.

Q2: Does the FE9380-HV support onboard video recording?
A2: Yes, the FE9380-HV (product code FE9380-HV) includes a MicroSD/SDHC/SDXC card slot for local storage up to 1TB and NAS support.

Q3: How far does the IR night vision extend on the FE9380-HV?
A3: The FE9380-HV (product code FE9380-HV) is equipped with 4 Smart IR LEDs, providing effective night vision up to 10 metres.

Q4: What audio capabilities does the FE9380-HV support?
A4: The FE9380-HV (product code FE9380-HV) features a built-in microphone for one-way audio surveillance, with a 5-metre effective range.

Q5: Is the FE9380-HV suitable for outdoor use in Australia and New Zealand?
A5: Yes, the FE9380-HV (product code FE9380-HV) is rated IP66 for weather resistance and IK10 for vandal protection, making it ideal for both urban and remote outdoor applications in ANZ regions.
