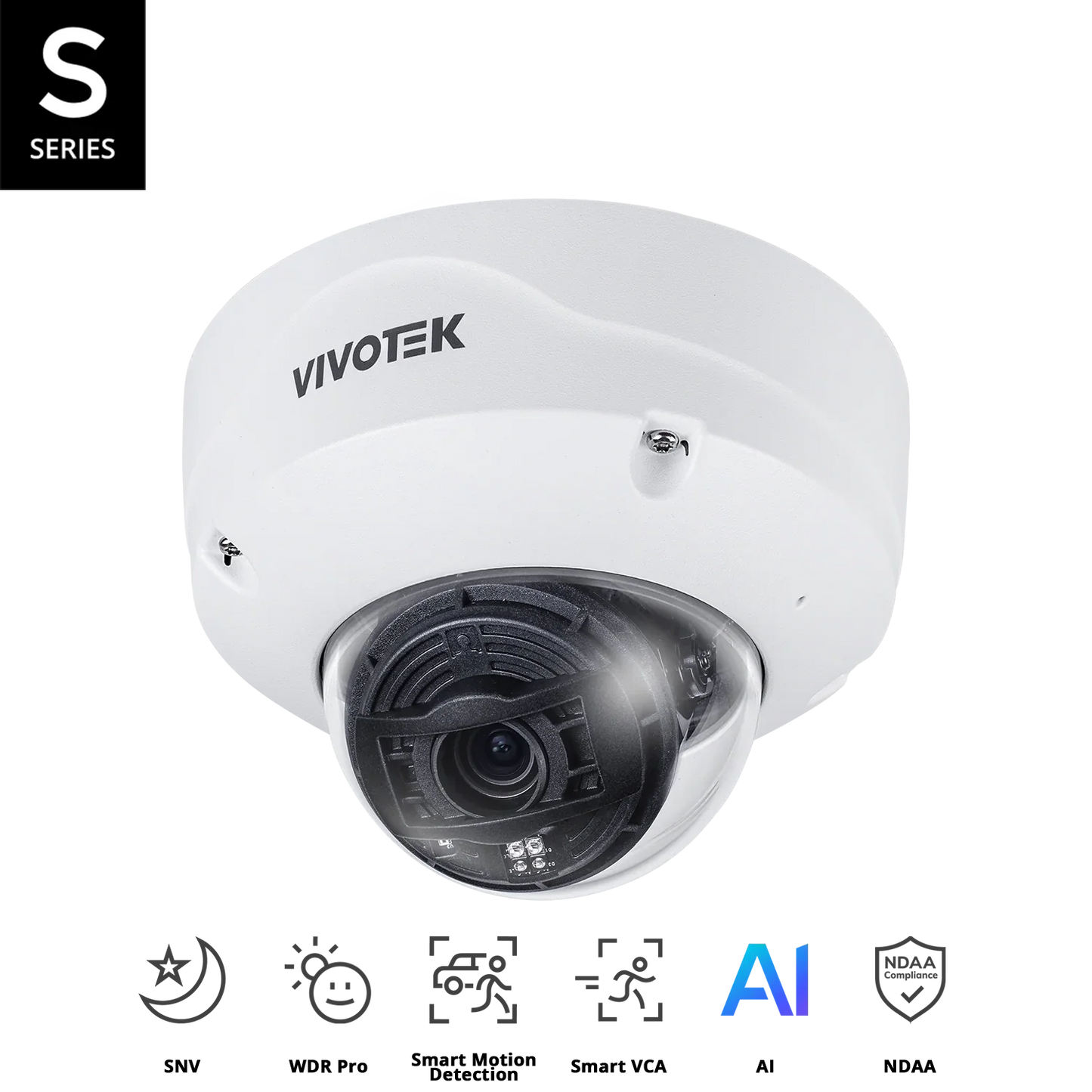

VIVOTEK FD9391-EHTV-v2 4K Fixed Dome Network Camera – AI Object Analytics, WDR Pro, Smart IR III, IP66/IP67/NEMA 4X, IK10+ Rated

Designed for advanced outdoor surveillance, the VIVOTEK FD9391-EHTV-v2 is a premium 4K fixed dome camera featuring Vision Object Analytics, Smart IR III (50m), and a rugged weatherproof dome housing. Whether you need to monitor city infrastructure, critical assets, or large commercial premises, this camera delivers crystal-clear 8MP video at 30fps and performs flawlessly under extreme weather and lighting conditions, down to -50°C.

With a powerful 1/1.8" Progressive CMOS sensor, WDR Pro, and deep learning AI, the FD9391-EHTV-v2 intelligently distinguishes between people, vehicles, and other objects, providing actionable insights for smarter surveillance. Built with industrial-grade protection including IP66/IP67, NEMA 4X, and IK10+ vandal resistance, it's ideal for public safety,

What's Included in the Box:

• 1 × VIVOTEK FD9391-EHTV-v2 Fixed Dome Camera

• Quick Installation Guide

• Product Labels

• Alignment Sticker

• L-Shaped Wrench

• Screw Pack

• Waterproof Accessory Pack

• Sunshield

• I/O Cable

• Conduit Bracket

Key Features:

• 4K Ultra HD Video (3840x2160) at 30fps

• 1/1.8" CMOS Sensor with WDR Pro (120dB)

• Smart IR III with 50m Infrared Range

• Motorized Vari-Focal Lens with Remote Focus (4.4 – 10.2mm)

• AI Object Detection & Attribute Analytics

• Smart Motion Detection & Behavioral Analysis

• Weatherproof & Vandal-Resistant (IP66/IP67, IK10+)

• Extreme Temperature Operation: -50°C to 60°C

• Built-in & External Microphone Support for Two-Way Audio

• ONVIF Profiles G, S, T Compatible

• Trend Micro IoT Security (3-Year Free License)

Detailed Specifications:

Camera:

• Image Sensor: 1/1.8" Progressive CMOS

• Max Resolution: 3840x2160 (4K)

• Lens: Motorized Vari-Focal (f = 4.4 ~ 10.2 mm), P-Iris

• Aperture: F1.38 ~ F2.24

• FOV (Field of View):

  • Horizontal: 110° ~ 43°

  • Vertical: 57° ~ 24°

  • Diagonal: 133° ~ 49°

• Minimum Illumination:

  • 0.01 lux @ F1.38 (Color)

  • <0.005 lux @ F1.38 (B/W)

  • 0 lux with IR on

• IR Range: Up to 50 meters with Smart IR III (4 LEDs)

• Shutter Time: 1 sec to 1/100,000 sec

• WDR Pro: Yes (120 dB)

• ePTZ: 48x Digital Zoom

AI Vision Analytics:

• Object Detection: People, Vehicles (4-wheeled & 2-wheeled)

• Attribute Extraction: Gender, clothing color, bag, hat, vehicle type & color

• Behavior Detection: Intrusion, Line Crossing, Crowd Detection, Face Detection

• Additional AI Functions:

  • Path Extraction

  • Smart Motion Detection (people/vehicle with time filters)

  • Parking Violation Detection

  • Running Detection

  • Restricted Zone Monitoring

Video:

• Compression: H.265, H.264, MJPEG

• Streams: 3 simultaneous (8 configurable profiles)

• Max Frame Rate: 30 fps @ 3840x2160

• Enhancements: 3DNR, Smart Stream III, LDC, Defog, EIS, Scene Modes

Audio:

• Two-Way Audio (Full Duplex)

• Built-in Microphone + External Mic Input

• Audio Compression: G.711, G.726, MPEG-2 AAC-LC

• Effective Range: 5 meters

Storage & Integration:

• MicroSD/SDHC/SDXC Card Slot (NAS Compatible)

• ONVIF Profiles: G, S, T

• AI Software Platform: Compatible with VIVOTEK’s Video Analytics Platform

• Solution Integration: VAST 2, Stratocast, Trend Micro IoT Security

Network & Security:

• Protocols: IPv4/6, HTTPS, TLS 1.2, FTP/SFTP, SNMP, RTSP/RTP, etc.

• Simultaneous Clients: Up to 10

• Security Suite:

  • Trend Micro IoT Cyber Protection

  • Secure Boot, Signed Firmware, User Access Logs

  • Account Blocking, Session Timeout, CSRF & Digest Authentication

Connectivity & Power:

• Interface: RJ-45 (10/100 Mbps Ethernet)

• Power Input:

  • IEEE 802.3at PoE Class 4

  • DC 12V / AC 24V (Power Redundancy)

• Power Consumption:

  • PoE: 14.25W (IR ON), 10.81W (IR OFF)

  • DC: 14.4W / 10.96W

  • AC: 11.64W / 8.2W

Environmental & Physical:

• Operating Temperature:

  • Start: -30°C to 60°C

  • Working: -50°C to 60°C (IR OFF), -50°C to 50°C (IR ON)

• Humidity: 98% RH (non-condensing)

• Dimensions: Ø 174 x 123 mm

• Weight: 1.39 kg

• Certifications:

  • EMC: RCM, CE, FCC, VCCI

  • Safety: UL, CB, LVD

  • Environment: IP66/67, IK10+, NEMA 4X, IP6K9K

DORI Ranges (EN 62676-4):

• Detect (25PPM): 88.7 m (Wide), 204.5 m (Tele)

• Observe (63PPM): 35.5 m (Wide), 81.8 m (Tele)

• Recognize (125PPM): 17.7 m (Wide), 40.9 m (Tele)

• Identify (250PPM): 8.8 m (Wide), 20.4 m (Tele)

Warranty Information:

manufactures warranty applied

Brand Description:

VIVOTEK is globally recognized for developing robust, AI-enhanced IP surveillance cameras. With deep integrations across security ecosystems and commitment to cyber protection, VIVOTEK empowers security professionals with future-ready surveillance solutions optimized for mission-critical applications.

SKU: FD9391-EHTV-v2

Practical Use Scenarios:

• Transport Infrastructure: Monitor stations, bus depots, tunnels, and terminals

• Industrial Facilities: Durable surveillance for mines, warehouses, factories

• Urban Surveillance: Secure city intersections, council property, and smart cities

• Utility and Energy Sites: Monitor substations, solar farms, and oil & gas installations

• Commercial & Retail Buildings: Detect behaviors and track activity with object analytics

Datasheets & Downloadable Resources:

• FD9391-EHTV-v2 Product Page

Excellence for the Australian and New Zealand Market:

• RCM Certified for Australia and New Zealand compliance

• Operates from -50°C to +60°C, ideal for harsh ANZ environments

• IP66/IP67 and NEMA 4X rated against dust, rain, sea spray, and corrosion

• Designed for vandal-prone areas with IK10+ impact protection

• Local support and service provided via authorized VIVOTEK distributors

• ONVIF compatibility ensures seamless deployment with ANZ VMS systems

 FAQs – VIVOTEK FD9391-EHTV-v2

Q1: What is the resolution and frame rate of the VIVOTEK FD9391-EHTV-v2?
A1: The FD9391-EHTV-v2 records in stunning 4K Ultra HD (3840x2160) resolution at 30 frames per second, delivering crystal-clear footage.

Q2: Is the FD9391-EHTV-v2 camera suitable for use in extreme Australian climates?
A2: Yes, it is rated for -50°C to 60°C, and built with NEMA 4X, IK10+, IP66/IP67, and IP6K9K standards to withstand dust, water, vandalism, and corrosive environments.

Q3: What kind of AI analytics does the FD9391-EHTV-v2 support?
A3: It features Vision Object Analytics for people and vehicles, behavior detection, attribute analysis, and supports advanced VCA functions like intrusion, crowd, and face detection.

Q4: Does the FD9391-EHTV-v2 support two-way audio?
A4: Yes, it includes built-in and external mic inputs, line out, and full-duplex two-way audio for real-time communication and alerts.

Q5: What VMS platforms and integrations does the FD9391-EHTV-v2 support?
A5: It supports ONVIF Profiles G, S, T and is fully compatible with VAST, Stratocast, and third-party VMS platforms widely used across ANZ.
