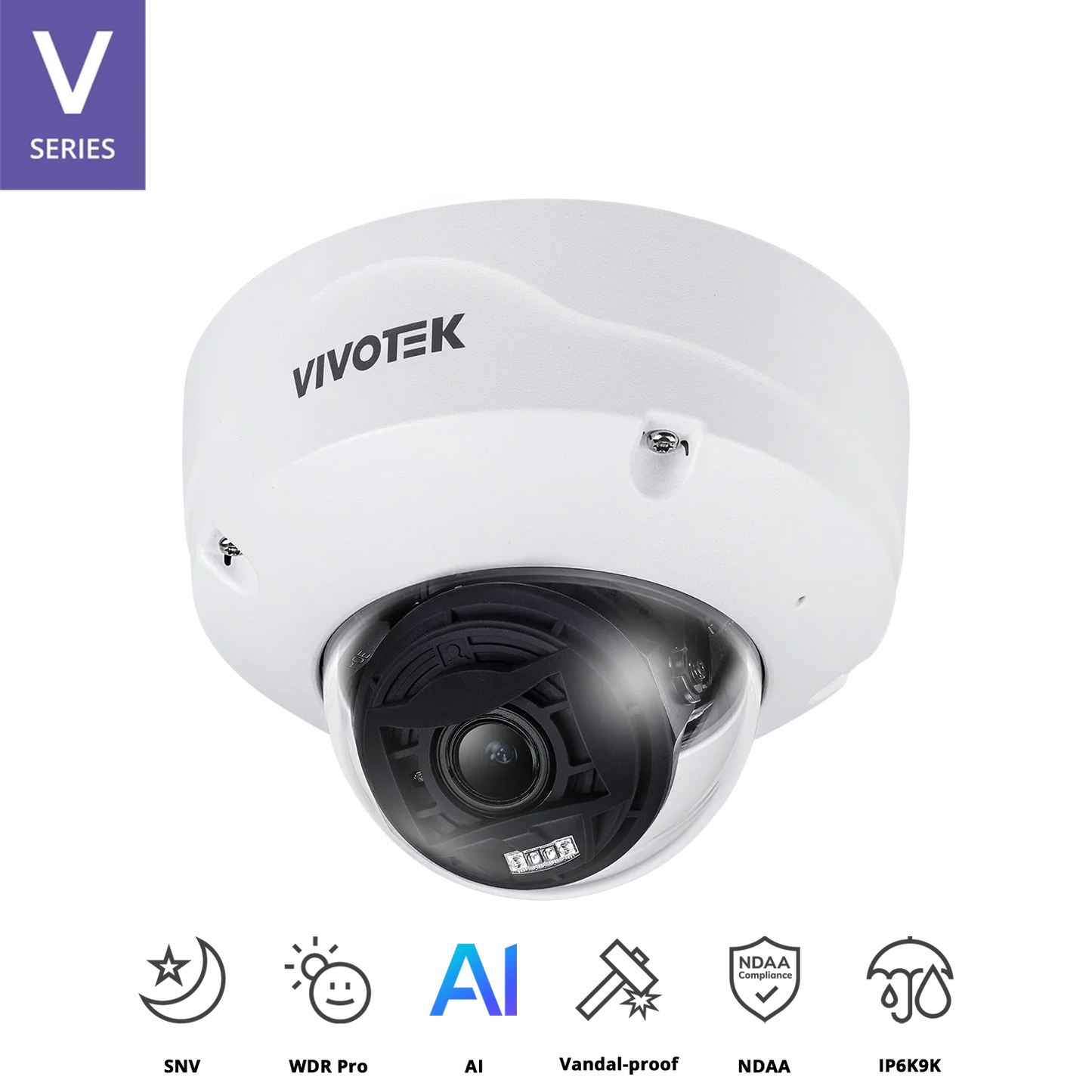

VIVOTEK FD9387-EHTV-V3 5MP Outdoor Fixed Dome Camera with Smart IR III, WDR Pro, AI Analytics & IP66/IK10+ Protection

The VIVOTEK FD9387-EHTV-V3 is a next-generation outdoor fixed dome network camera built to deliver exceptional surveillance performance in demanding environments. Equipped with a 5MP progressive CMOS sensor, advanced WDR Pro (120 dB), and Smart IR III, this camera captures high-detail video in low-light, bright, or backlit conditions—day or night.

Designed for high-security outdoor deployments, the FD9387-EHTV-V3 supports Smart Stream III and H.265 compression for bandwidth-efficient streaming without sacrificing image quality. The camera’s motorized vari-focal lens, remote focus/zoom, and robust analytics powered by onboard deep learning AI make it perfect for large-scale monitoring across commercial, industrial, government, or transport applications.

With IK10+ impact resistance, IP66/IP67/NEMA 4X housing, and 50-meter IR range, the FD9387-EHTV-V3 provides professional-grade protection and image clarity, even in Australia and New Zealand’s toughest outdoor conditions.

What's Included in the Box:

• 1 × VIVOTEK FD9387-EHTV-V3 Fixed Dome Network Camera

• 1 × Quick Installation Guide

• 1 × Product Label Sheet

• 1 × Alignment Sticker

• 1 × Screw Pack

• 1 × Waterproof Accessory Pack

• 1 × Sunshield

• 1 × Conduit Bracket

• 1 × I/O Cable

Key Features:

• 5MP Resolution (2560 × 1920) at 30 fps; 1080p at 60 fps

• Motorized Vari-focal Lens (2.7–13.5 mm) with Remote Zoom & Focus

• Built-in Smart IR III LEDs – 50M IR Night Vision

• WDR Pro (120 dB) for Enhanced Visibility in High-Contrast Lighting

• AI-Powered Analytics for Human, Vehicle & Attribute Detection

• IP66/67 and IK10+ Rated Enclosure for Harsh Outdoor Environments

• Supports PoE, AC24V, and DC12V (Power Redundancy)

• Advanced Event Triggers & Two-Way Audio Communication

• Smart Stream III + H.265 for 90% Bandwidth Savings

Detailed Specifications:

Camera:

• Sensor: 1/2.8" Progressive CMOS

• Max. Resolution: 2560 × 1920 (5MP)

• Lens: Motorized Vari-focal 2.7–13.5 mm (Short Range)

• Aperture: F1.83 (Wide) to F3.32 (Tele)

• Iris: P-Iris

• IR Range: Up to 50 meters with Smart IR III (4 IR LEDs)

• Min. Illumination:

  • Color: 0.04 lux @ F1.8

  • B/W: <0.005 lux

  • 0 lux with IR On

• Pan/Tilt/Rotate:

  • Pan: ±175°

  • Tilt: 80°

  • Rotation: ±175°

• WDR: Pro (120 dB)

• Shutter Speed: 1/5 to 1/32,000 sec

• ePTZ: 48x Digital Zoom (4x IE, 12x Built-in)

Video & Streaming:

• Compression: H.265, H.264, MJPEG

• Max Frame Rates:

  • 30 fps @ 5MP (WDR On)

  • 60 fps @ 1080p (WDR Off)

• Streams: 3 Video Streams (Up to 8 Profiles)

• S/N Ratio: 70 dB

• Dynamic Range: 120 dB

• Smart Stream III: Yes

Image Enhancements:

• Smart IR III with VCA Integration

• Image Settings: Defog, 3DNR, White Balance, Brightness, Gamma, Sharpness, Contrast, EIS

• Exposure Modes: BLC, HLC, AE Control, Scene Mode, WDR

• Privacy Masking: Yes

• Scheduled Profiles: Yes

• Built-in Installation Tools: Remote Focus, Zoom, Micro USB, Pixel Calculator

Audio:

• Audio: Two-Way Audio (Full Duplex)

• Built-in Mic + External Mic Input + Line Out

• Range: 5 meters

• Compression: G.711, G.726, MPEG-2 AAC-LC

AI Analytics:

• Deep Learning SoC: Built-in AI Accelerator

• Smart Motion Detection: People & Vehicle Detection, 5 Detection Windows

• Smart VCA:

  • Intrusion, Line Crossing, Loitering, Crowd Detection

  • Face Detection, Unattended/Missing Object

• Attribute Extraction: Gender, Clothing Color, Hat, Vehicle Type & Color

• Advanced Analytics (Licensed):

  • Restricted Zone, Running Detection, Parking Violation

• ReSearch Path Extraction: Yes

• Visit VIVOTEK Video Analytics Platform

Storage:

• Edge Storage: MicroSD/SDHC/SDXC (up to 1TB)

• NAS Recording: Supported

Network & Security:

• Ethernet: 10/100 Mbps

• Protocols: RTSP, HTTPS, IPv4/6, TLS 1.3, UPnP, FTP, SNMP, etc.

• ONVIF: Profile G, S, T Compliant

• Security Features:

  • Trend Micro IoT Security

  • Signed Firmware, Secure Boot, User Access Log, Session Timeout, CSRF Protection

Power & Environment:

• Input: IEEE 802.3af PoE, DC 12V, AC 24V

• Power Usage: Max. 12.95W

• Operating Temp:

  • IR Off: -40°C to +60°C

  • IR On: -40°C to +50°C

• Humidity: 98% RH

• Enclosure: IP66/67, IK10+, NEMA Type 4X, IP6K9K

• Certifications:

  • EMC: RCM, CE, FCC, VCCI

  • Safety: UL, CB

  • Environmental: ISO 20653, IEC 60529, IEC 62262

DORI Ranges (Short Range Lens):

• Detect: Wide 64.4 m / Tele 196.6 m

• Observe: Wide 25.7 m / Tele 78.7 m

• Recognize: Wide 12.8 m / Tele 39.3 m

• Identify: Wide 6.4 m / Tele 19.6 m

Warranty Information:

The VIVOTEK FD9387-EHTV-V3 is backed by a 3-Year Manufacturer Warranty, with full support from VIVOTEK-certified distributors in Australia and New Zealand.

Brand Description:

VIVOTEK, a global leader in intelligent surveillance, provides innovative IP camera solutions powered by AI-driven analytics, secure architecture, and smart image processing technologies. Engineered for performance and reliability, VIVOTEK is trusted in critical surveillance applications around the world.

SKU: FD9387-EHTV-V3

Practical Use Scenarios:

• Airports & Transport Hubs: Advanced motion analytics, vandal-proof housing, and wide coverage support high-security operations.

• Shopping Centres & Malls: Human/vehicle detection for people flow analysis and theft deterrence.

• Council Infrastructure: Weather-sealed housing and power redundancy make it ideal for streetscapes and public safety zones.

• Warehouses & Manufacturing Plants: Durable IK10+ construction with smart IR ensures uninterrupted surveillance in high-dust or low-light environments.

• Perimeter Monitoring: Flexible lens range and Smart IR support wide or narrow FOV deployment.

Datasheets or Downloadable Resources:

• VIVOTEK FD9387-EHTV-V3 Product Page


Excellence for the Australian and New Zealand Market:

The FD9387-EHTV-V3 is meticulously designed and certified for the Australian and New Zealand markets, offering:

• RCM certification ensuring compliance with AS/NZS standards

• Weather and impact resistance (IP66/67, IK10+) suited for harsh ANZ climates

• Power redundancy support (AC/DC/PoE) ideal for critical infrastructure

• Locally supported warranty & technical help through authorized VIVOTEK partners

• Advanced cybersecurity features, meeting modern compliance standards

 FAQs – VIVOTEK FD9387-EHTV-V3

Q1: What type of lens is used in the VIVOTEK FD9387-EHTV-V3?
A1: The FD9387-EHTV-V3 features a motorized vari-focal lens (2.7–13.5mm) with remote focus and zoom for flexible installation.

Q2: How far can the IR illuminators reach on the FD9387-EHTV-V3?
A2: This camera uses Smart IR III technology with a range of up to 50 meters, delivering excellent night visibility without overexposure.

Q3: Is the FD9387-EHTV-V3 certified for Australian regulations?
A3: Yes, it is RCM certified and fully compliant with AS/NZS CISPR 32, making it suitable for professional deployment in Australia and New Zealand.

Q4: Does the VIVOTEK FD9387-EHTV-V3 include smart analytics?
A4: Absolutely. It supports AI-powered analytics including people and vehicle detection, face detection, intrusion alerts, and more.

Q5: Can the FD9387-EHTV-V3 operate in extreme temperatures?
A5: Yes, it's designed to operate from -40°C to +60°C, making it reliable in both desert heat and alpine cold typical in ANZ regions.
