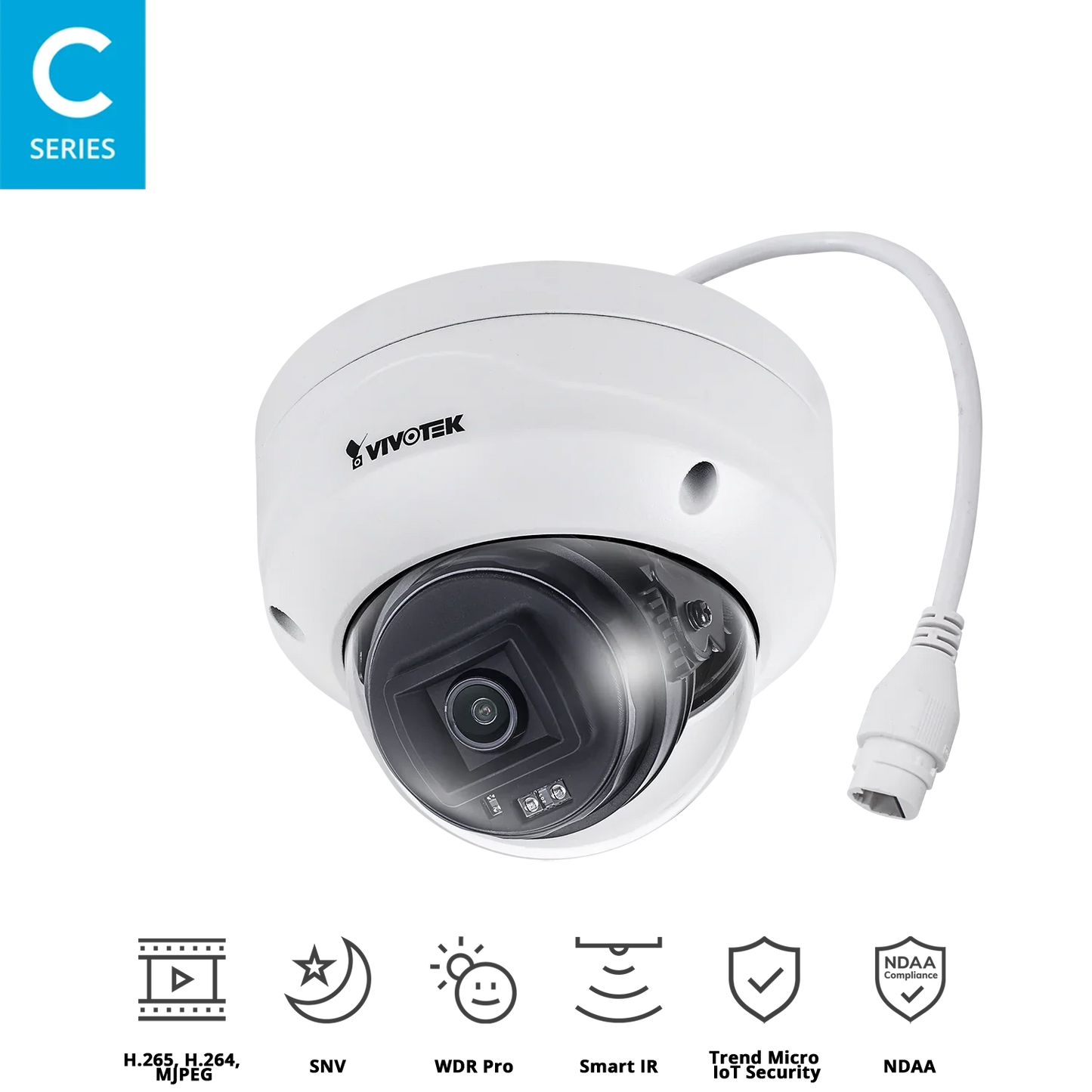

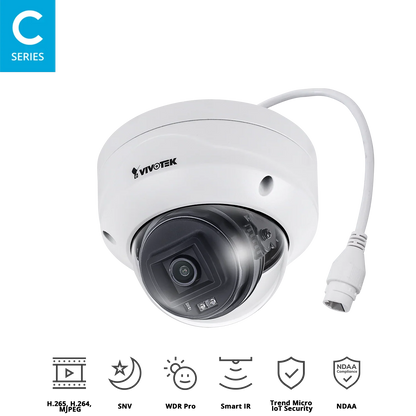

VIVOTEK FD9380-H 5MP Outdoor Fixed Dome IP Camera with Smart IR, WDR Pro, H.265, SNV, IP66/IK10, PoE, 2.8mm or 3.6mm Lens Options

VIVOTEK FD9380-H 5MP Outdoor Fixed Dome IP Camera with Smart IR, WDR Pro, H.265, SNV, IP66/IK10, PoE, 2.8mm or 3.6mm Lens Options

$415.49 AUD
$871.08 AUD $415.49 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The VIVOTEK FD9380-H is a high-performance fixed dome network camera engineered to deliver exceptional video surveillance in both day and night conditions. Featuring 5MP resolution (2560×1920), WDR Pro (120 dB) for handling challenging lighting environments, and Supreme Night Visibility (SNV), it ensures reliable performance across a wide range of applications.

This model offers two lens options: 2.8mm for a wide 134° diagonal view and 3.6mm for a focused 100° diagonal field. It includes Smart IR LEDs with a 30-meter effective range, H.265 compression, and Smart Stream III, which optimizes bandwidth and storage efficiency without compromising image quality.

Durability is key with its IP66-rated weatherproof and IK10-rated vandal-proof housing, making it ideal for exposed outdoor locations. Additionally, the camera integrates Trend Micro IoT Security, ensuring robust protection against cybersecurity threats.

What’s in the Box

  • VIVOTEK FD9380-H Dome Network Camera (choose 2.8mm or 3.6mm model)

  • Quick Installation Guide

  • Alignment Sticker

  • Screw Pack

  • Cable Gland

  • Compatible Mounting Accessories: AM-21A L-shape Bracket, AM-51G Adapting Plate, AM-52E Mounting Adapter, AM-71D Outdoor Conduit Box

Main Features

  • 5MP CMOS sensor with 2560×1920 resolution at 20 fps

  • Available in 2.8mm (134° diagonal) or 3.6mm (100° diagonal) fixed focal lens

  • WDR Pro for excellent visibility in backlit scenes (120 dB)

  • Supreme Night Visibility for improved low-light clarity

  • Built-in IR LEDs with Smart IR up to 30 metres

  • Smart Stream III and H.265/H.264/MJPEG video compression

  • MicroSD/SDHC/SDXC card slot for onboard storage

  • PoE powered (IEEE 802.3af Class 2)

  • IP66-rated weather protection and IK10-rated vandal resistance

  • Trend Micro IoT Security integration

  • ONVIF Profiles G, S, T supported

Detailed Specifications

Specification Details
Model FD9380-H (2.8mm or 3.6mm)
Sensor 1/2.7" Progressive CMOS
Resolution 2560×1920 (5MP)
Lens Options 2.8mm (FOV: H 103°, D 134°, V 76°), 3.6mm (FOV: H 76°, D 100°, V 59°)
Aperture F2.0
WDR WDR Pro (120 dB)
Shutter Speed 1/5 sec – 1/32,000 sec
Minimum Illumination 0.03 lux (Color), <0.005 lux (B/W), 0 lux with IR
IR Range Up to 30m, Smart IR with 2 IR LEDs
Zoom ePTZ, 48× digital (12× built-in)
Compression H.265, H.264, MJPEG
Streams 3 streams, 8 configurable profiles
S/N Ratio 65 dB (2.8mm), 67 dB (3.6mm)
Storage MicroSD/SDHC/SDXC up to 1TB, NAS recording
Security HTTPS, IEEE 802.1x, Digest Auth, Trend Micro IoT Security
Protocols IPv4, IPv6, HTTPS, RTSP/RTP/RTCP, SNMP, TCP/IP, TLS 1.2, etc.
Users Live viewing for up to 10 clients
Operating Temperature -30°C to 60°C
Humidity 90%
Power Input IEEE 802.3af PoE Class 2
Power Consumption Max 6.49W (IR on), 3.69W (IR off)
Housing IP66, IK10 vandal-proof
Dimensions Ø117.2 x 89.6 mm
Weight 540g
Certifications CE, FCC, RCM (AS/NZS), VCCI, UL, CB, IK10, IP66

Warranty Information

Standard manufacturer’s warranty applies. Warranty is managed by VIVOTEK-authorized distributors or directly through VIVOTEK depending on region.

Datasheets

Brand Description

VIVOTEK Inc. is a world-renowned provider of IP surveillance solutions, combining high-definition imaging, cybersecurity integration, and innovative design tailored to security-conscious industries and governments.

Practical Use Scenarios

  • School Campuses & Universities: Enhanced perimeter protection and corridor monitoring

  • Retail Stores & Warehouses: Wide field of view with onboard recording backup

  • Public Transport Stations: Durable and vandal-resistant for high-traffic areas

  • Commercial Premises: Clear nighttime surveillance with Smart IR

  • Carparks & Building Entrances: Flexible lens choice for optimal coverage

Excellence for the Australian and New Zealand Market

  • Fully compliant with RCM (AS/NZS CISPR 32) for electrical safety and emissions

  • Designed for harsh outdoor climates, with operating temperatures from -30°C to 60°C

  • IP66 and IK10 ratings provide excellent durability against environmental and physical damage

  • Sourced exclusively via authorised Australian and New Zealand distributors, ensuring genuine products and full warranty coverage

  • Support and warranty are handled locally through approved VIVOTEK partners for convenience and efficiency

FAQs (Product Code: FD9380-H)

Q1: What lens options are available for the VIVOTEK FD9380-H?
A1: The FD9380-H (product code FD9380-H) is available in two fixed focal lengths—2.8mm for a wide-angle view and 3.6mm for more focused coverage.

Q2: Does the FD9380-H support onboard recording?
A2: Yes, the FD9380-H (product code FD9380-H) includes a MicroSD/SDHC/SDXC card slot that supports up to 1TB of onboard storage.

Q3: What is the IR range of the FD9380-H?
A3: The FD9380-H (product code FD9380-H) features Smart IR LEDs with a night vision range of up to 30 metres.

Q4: Is the FD9380-H weatherproof and vandal-resistant?
A4: Yes, the FD9380-H (product code FD9380-H) is built with an IP66-rated weatherproof and IK10-rated vandal-resistant housing.

Q5: What power source does the FD9380-H use?
A5: The FD9380-H (product code FD9380-H) uses Power over Ethernet (IEEE 802.3af Class 2) and consumes up to 6.49W when IR is active.
