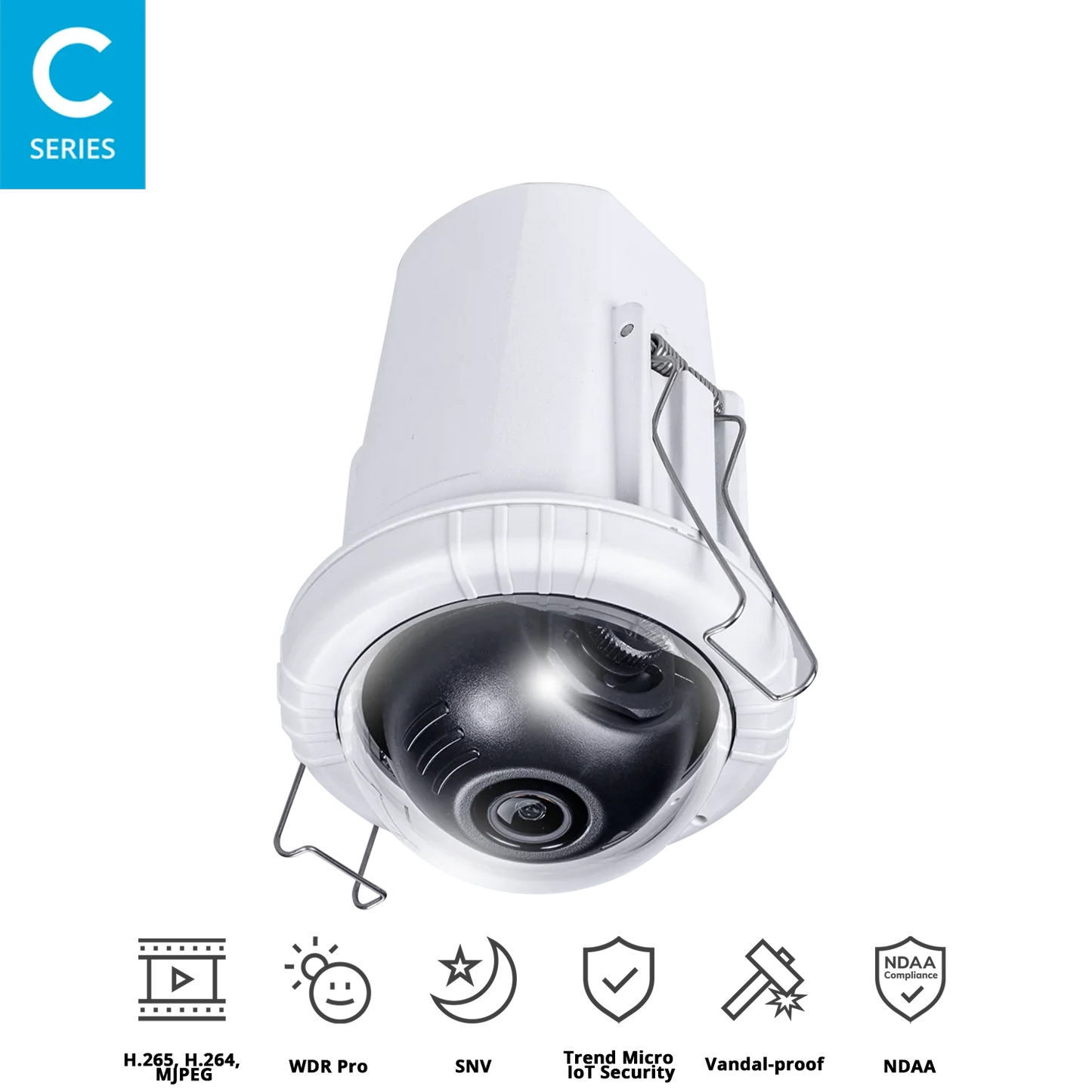

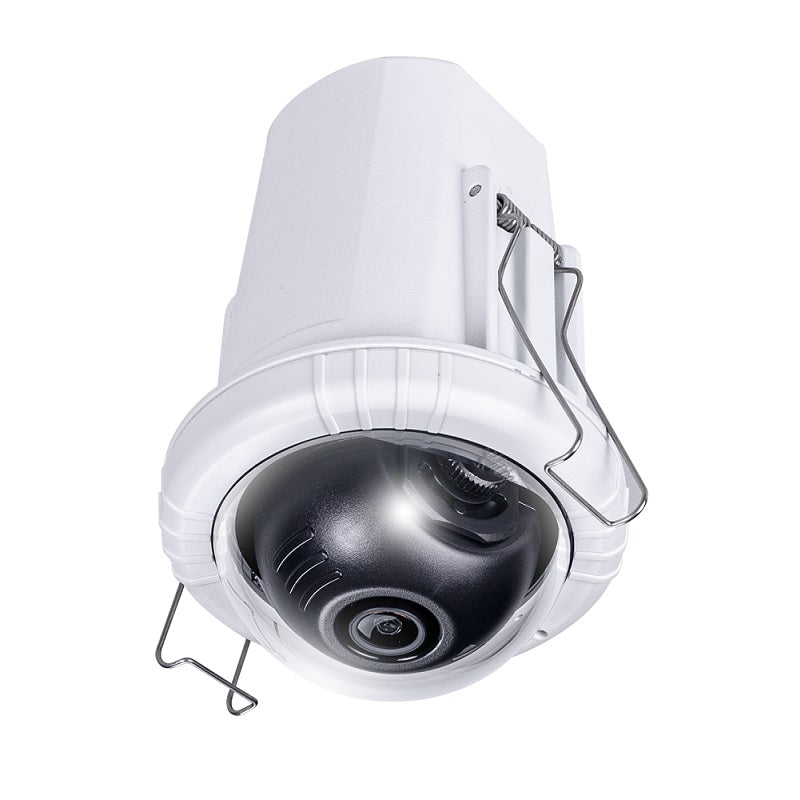

VIVOTEK FD9182-H 5MP Recessed Mount Fixed Dome IP Camera with WDR Pro, SNV, Smart Stream III, Built-in Mic, and PoE Support

VIVOTEK FD9182-H 5MP Recessed Mount Fixed Dome IP Camera with WDR Pro, SNV, Smart Stream III, Built-in Mic, and PoE Support

$717.05 AUD
$1,934.94 AUD $717.05 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The VIVOTEK FD9182-H is a high-performance 5MP fixed dome network camera designed for recessed indoor and semi-outdoor installations where subtle and secure surveillance is required. With a compact form factor and recessed mount design, it blends seamlessly into ceilings while providing robust video coverage with 103° horizontal field of view.

Powered by a 1/2.7" progressive CMOS sensor, the FD9182-H supports 20 fps at full 5MP resolution (2560x1920), enhanced with WDR Pro (120 dB) for excellent visibility in high-contrast environments, and SNV (Supreme Night Visibility) for low-light performance.

This model also includes Smart Stream III technology and H.265 compression, which significantly reduces bandwidth and storage needs. The built-in microphone allows for one-way audio monitoring, and advanced security is provided by Trend Micro IoT Security integration.

What’s in the Box

  • VIVOTEK FD9182-H Fixed Dome Network Camera

  • Quick Installation Guide

Main Features

  • 5MP resolution (2560x1920) at 20 fps

  • 2.8 mm fixed-focal lens with 134° diagonal view

  • WDR Pro for high dynamic range imaging (120 dB)

  • Supreme Night Visibility for enhanced low-light performance

  • Smart Stream III and H.265/H.264/MJPEG compression

  • Built-in Microphone for one-way audio

  • MicroSD/SDHC/SDXC card slot for on-board storage

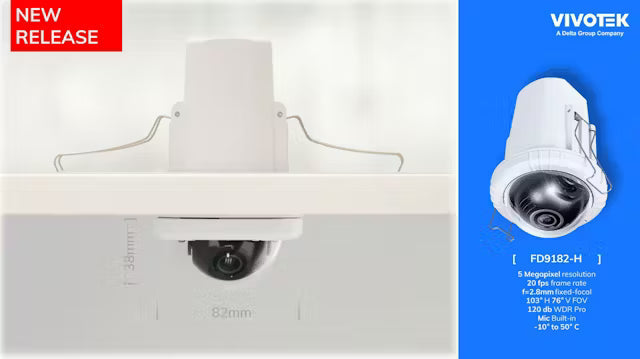

  • Compact recessed mount design for discreet installation

  • PoE powered (IEEE 802.3af Class 2)

  • Trend Micro IoT Security integration

  • ONVIF Profiles G, S, T supported

Detailed Specifications

Specification Details
Model FD9182-H
Sensor 1/2.7″ Progressive CMOS
Resolution 2560×1920 (5MP)
Lens 2.8 mm fixed focal, F2.0
Field of View H: 103°, V: 76°, D: 134°
Shutter Speed 1/5 sec – 1/32,000 sec
Minimum Illumination 0.03 lux (Color), <0.005 lux (B/W), 0 lux with IR
WDR WDR Pro (120 dB)
Zoom ePTZ, 48× digital (12× built-in)
Compression H.265, H.264, MJPEG
Streams 3 streams, up to 8 profiles
S/N Ratio 65 dB
Audio One-way audio, built-in mic, G.711/G.726
Storage MicroSD/SDHC/SDXC (up to 1TB), NAS supported
Security HTTPS, 802.1X, password protection, signed firmware, Trend Micro IoT Security
Power Input IEEE 802.3af PoE Class 2
Power Consumption Max. 3.6 W
Dimensions Ø 82 × 122 mm
Weight 353 g
Certifications CE, FCC, RCM (AS/NZS), VCCI, UL, CB, IK10
Operating Temp. -10°C to 50°C
Humidity 90% RH (non-condensing)

Warranty Information

The FD9182-H is covered by a 36-month manufacturer's warranty, with full support available through authorized VIVOTEK service channels and distributors.

Datasheets

Brand Description

VIVOTEK Inc. is a leading global provider of IP surveillance solutions, offering robust, high-quality, and cyber-secure video technologies. With a focus on innovation, VIVOTEK products are widely used in commercial, industrial, and public sector security applications.

Practical Use Scenarios

  • Retail Ceiling Installations: Discreet coverage with built-in microphone and wide FOV

  • Offices and Corporate Facilities: Compact camera with high-resolution video and recessed mount

  • Education Buildings: Secure ceiling-mount for corridors, entries, and classrooms

  • Hospitals and Clinics: Quiet, unobtrusive design with reliable video clarity

  • Banks and ATMs: High-detail imaging and audio for transaction areas

Excellence for the Australian and New Zealand Market

  • Fully certified for local compliance with RCM (AS/NZS CISPR 32)

  • Reliable operation across -10°C to 50°C temperature range

  • IK10-rated housing for protection against tampering

  • Distributed exclusively through authorized ANZ partners, ensuring authenticity and warranty integrity

  • Warranty and technical support managed locally for Australian and New Zealand customers

FAQs (Product Code: FD9182-H)

Q1: What is the lens specification of the FD9182-H?
A1: The FD9182-H (product code FD9182-H) features a 2.8 mm fixed lens with a 134° diagonal field of view, ideal for wide indoor coverage.

Q2: Does the FD9182-H support on-board recording?
A2: Yes, the FD9182-H (product code FD9182-H) includes a MicroSD/SDHC/SDXC card slot supporting up to 1TB, along with NAS recording capabilities.

Q3: Is the FD9182-H suitable for low-light environments?
A3: Absolutely. The FD9182-H (product code FD9182-H) features SNV (Supreme Night Visibility) and WDR Pro for outstanding performance in challenging lighting.

Q4: What power input does the FD9182-H use?
A4: The FD9182-H (product code FD9182-H) is powered via PoE (IEEE 802.3af Class 2) with a maximum consumption of 3.6 watts.

Q5: Is the FD9182-H certified for Australian and New Zealand use?
A5: Yes, the FD9182-H (product code FD9182-H) is certified under RCM (AS/NZS CISPR 32) and is IK10-rated for impact resistance.
