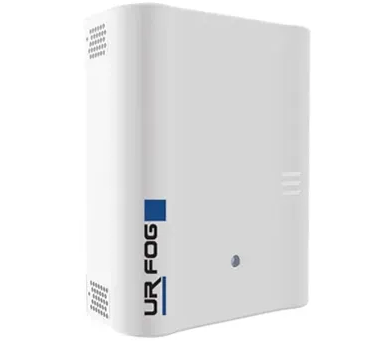

UR FOG Anti-Theft Fogging System MODULAR 400

The UR FOG Anti-Theft Fogging System is an advanced security solution designed to protect your premises by creating a dense, visibility-impairing fog in seconds. This compact yet powerful unit is ideal for a variety of settings, from retail stores to warehouses, providing an effective deterrent against theft and unauthorized access.

Key Features:

• Coverage:

  • Covers up to 1200 m³ in just 46 seconds.
  • Ensures visibility of less than 1 meter within 400 m³.
  • Total discharge capability with a full bag is 1275 m³.

• Power and Backup:

  • Operates on 240V mains power.
  • Equipped with a 2 Ah 12V backup battery (not included) for over 1 hour of operation without mains power.

• Design and Dimensions:

  • Compact cabinet: 300mm (W) x 130mm (D) x 390mm (H).
  • Weight of the unit: 8.5 kg.
  • Overall packaging weight: 9.5 kg.
  • Packaging dimensions: 360mm (L) x 190mm (W) x 450mm (H).
  • Available in white (optional black).

• Mounting Options:

  • Suitable for both vertical and horizontal mounting.

• Connectivity and Monitoring:

  • USB port for computer monitoring (compatible with Windows and Linux).
  • Serial interface RS232 with UR FOG Standard protocol.
  • LAN connection for active cloud monitoring.

• Heating and Emission:

  • Heating time: approximately 2 hours.
  • "Layer" heating system for optimal fog dispersion.
  • Maximum emission time in a single shot: 46 seconds.

• Fluid and Bags:

  • Holds 1 bag with 750 ml of fluid (fluid not included).
  • Programmable shot characteristics.
  • Number of bags included: 1.

• Inputs and Outputs:

  • 2 cabled inputs for arming and shooting.
  • 1 cabled output for fault indications (empty bag, low battery/lack of power supply, system failure).

• Optional Features:

  • Top and side internal risers for optional boards.
  • Front panel made of durable plastic material.

• Power Consumption:

  • Average consumption: 48 W.
  • Heater max power in start: 280 W.

Packaging and Shipping:

• Units per pallet (100×120 cm): 42.

Additional Information:

• Operating Time Without Mains Power: Over 1 hour.
• Heating Time: Around 2 hours.

The UR FOG Anti-Theft Fogging System is the ultimate solution for businesses seeking to enhance their security measures. Its rapid deployment and dense fog ensure intruders are disoriented, providing you with the crucial time needed to respond to threats.

Datasheets

Datasheet

Warranty

3 years warranty
