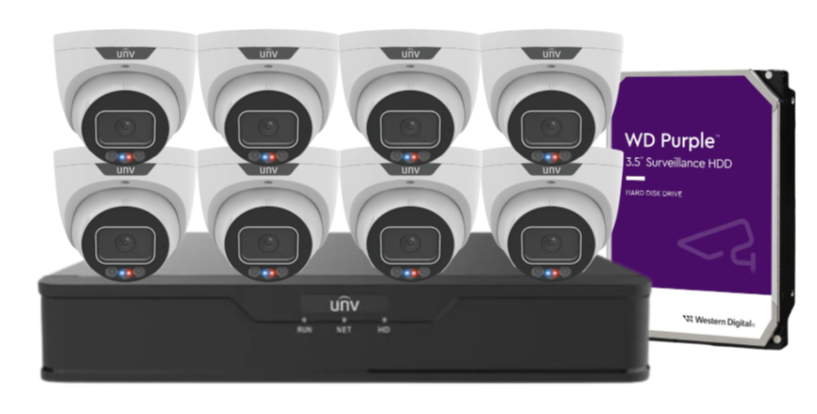

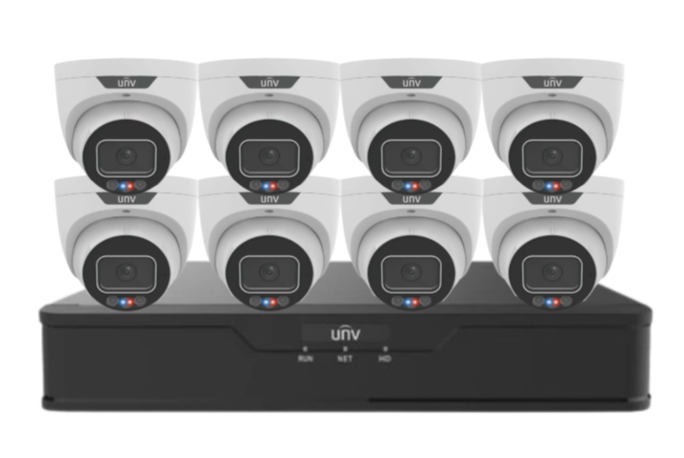

Uniview x8 6MP Triguard CCTV Kit with 8-Channel NVR and HDD IPC3636SS-ADF28KMC-I1

Secure larger premises with ease using the Uniview 8-Camera CCTV Surveillance Kit, featuring eight 6MP Triguard Turret Fixed Cameras and the Uniview NVR301-08B-P8-IQ 8-Channel Network Video Recorder. Designed to deliver top-tier performance, this kit combines AI-powered analytics, Ultra 265 compression, and enhanced durability — all optimized for seamless operation across various commercial, industrial, and residential applications.

With features like smart perimeter protection, two-way audio, night vision, and weatherproofing, this system ensures uncompromised security around the clock. The plug-and-play NVR supports advanced ONVIF protocols and provides simultaneous HDMI/VGA output with support for up to 12MP recording resolution, making it a perfect fit for businesses and property owners who demand reliability and clarity.

What's Included in the Box

• 8 x Uniview 6MP Triguard Turret IP Cameras (Model: IPC3636SS-ADF28KMC-I1)

• 1 x Uniview 8-Channel NVR (Model: NVR301-08B-P8-IQ)

• 1 x Disk Drive (HDD) for video storage (Choose your own HDD below)

• 1 x Power Adapter for NVR

• 1 x USB Mouse

• 1 x Quick Start Guide

• 1 x Warranty Card

Main Features

Cameras – IPC3636SS-ADF28KMC-I1:

• 6MP CMOS sensor for ultra-clear images

• Fixed 2.8mm lens with wide-angle viewing

• Video compression: Ultra 265, H.265, H.264, MJPEG

• Built-in mic & speaker for two-way audio

• Smart IR Night Vision up to 30m (98.4 ft)

• Intelligent analytics: intrusion detection, line crossing, people counting

• IP67 weatherproof casing for outdoor installations

• 130dB True WDR for enhanced lighting balance

• Red & Blue LED deterrent lights

• MicroSD card support up to 256GB

NVR – NVR301-08B-P8-IQ:

• Supports Ultra 265, H.265, and H.264 codecs

• 8 PoE ports for plug-and-play camera connection

• Max recording resolution: 12MP

• Simultaneous HDMI and VGA output (up to 4K)

• Smart detection: face, vehicle, people counting, intrusion

• ANR support: stores footage during network outages

• Remote access via PC, browser, or mobile app

• Concurrent playback up to 16 channels

• Supports up to 10TB HDD storage

Detailed Specifications

Camera – IPC3636SS-ADF28KMC-I:

• Resolution: 6MP (3072×2048)

• WDR: 130dB True WDR

• Lens: 2.8mm Fixed

• IR Range: Up to 30 meters

• Audio: Two-way (mic and speaker built-in)

• Ingress Protection: IP67

• Alarm I/O: 1 input, 1 output

• Power: PoE (802.3af), <7W

NVR – NVR301-08B-P8-IQ:

• Decoding: 2x 12MP@30, 4x 4MP@30, 8x 1080P@30 (Smart Off)

• Output: HDMI 4K/30Hz, VGA 1080p/60Hz

• Network Bandwidth: 80Mbps (In/Out)

• Storage: 1 SATA interface, up to 10TB

• Remote Users: Up to 128

• PoE: 8 x 10/100 Mbps, total budget 75W

• Power Consumption: ≤ 12W (without HDD)

• Size: 260mm × 222mm × 47mm

Warranty Information

• Cameras: 3-Year Manufacturer Warranty

• NVR: 2-Year Manufacturer Warranty

Warranty covers manufacturing defects and hardware faults under standard usage. Support is provided directly via authorized Uniview service centers.

Brand Description

Uniview is a global leader in advanced video surveillance solutions. Known for its high-performance IP products, Uniview merges innovation with reliability to deliver cutting-edge technology trusted by professionals around the world. The brand is committed to quality, with a growing presence in the ANZ region through official distribution channels.

Practical Use Scenarios

• Retail Chains & Malls: Monitor customer traffic and prevent theft with advanced analytics.

• Construction Sites: Secure large outdoor areas with weatherproof, night-capable cameras.

• Warehouses & Factories: Enable asset protection and real-time monitoring.

• Hospitality Venues: Deter unauthorized access with LED alerts and voice communication.

• Educational Institutions: Maintain safety on school grounds with intelligent crowd detection.

Datasheets & Downloadable Resources

• Uniview 6MP Triguard Camera Datasheet – IPC3636SS-ADF28KMC-I1

• Uniview NVR301-08B-P8-IQ Datasheet – NVR301-B-P-IQ Series

Excellence for the Australian and New Zealand Market

• ✅ Australian Standards Compliant: Fully meets all local regulatory and electrical safety requirements.

• ✅ NDSS-Approved: Suitable for inclusion in disability support programs where applicable.

• ✅ Optimized for Local Networks: Seamlessly integrates with common internet providers in Australia and NZ.

• ✅ Authorized Channel Sourcing: All kits sourced via official Uniview distributors.

• ✅ Local Warranty Support: Warranty claims are processed efficiently through ANZ-based service hubs.

FAQs

Q1: What is the max resolution of the IPC3636SS-ADF28KMC-I1SEC camera?
A1: The camera supports up to 6MP (3072×2048) resolution for detailed imaging. (SKU: IPC3636SS-ADF28KMC-I1SEC)

Q2: Can the NVR301-08B-P8-IQ record from all 8 channels simultaneously?
A2: Yes, it supports real-time recording from 8 IP cameras with up to 12MP resolution. (SKU: NVR301-08B-P8-IQ)

Q3: Is the kit suitable for outdoor installations?
A3: Absolutely — the cameras are rated IP67 weatherproof, perfect for harsh weather. (SKU: IPC3636SS-ADF28KMC-I1SEC)

Q4: Does this system support remote viewing?
A4: Yes, remote access is available via mobile apps or browser interfaces for up to 128 users. (SKU: NVR301-08B-P8-IQ)

Q5: What smart analytics are supported?
A5: The system includes Face Detection, Intrusion Detection, Line Crossing, and People Counting. (SKU: NVR301-08B-P8-IQ)

Q6: How is footage stored during network outages?
A6: ANR technology stores footage on the camera's SD card and syncs with the NVR once the connection is restored. (SKU: NVR301-08B-P8-IQ)

Q7: What is the warranty period for this system?
A7: Cameras come with a 3-Year Warranty, and the NVR includes a 2-Year Warranty. (SKU: IPC3636SS-ADF28KMC-I1SEC, NVR301-08B-P8-IQ)

Q8: Does the camera support audio communication?
A8: Yes, it features built-in mic and speaker for two-way audio communication. (SKU: IPC3636SS-ADF28KMC-I1SEC)
