Uniview x4 6MP Triguard Turret Fixed CCTV IP Camera Kit with 4-Channel NVR & HDD IPC3636SS-ADF28KMC-I1

Elevate your surveillance capabilities with the Uniview 6MP Triguard Turret Fixed CCTV IP Camera Kit, a comprehensive solution designed for robust security monitoring. This kit includes up to four 6MP Triguard turret cameras, a 4-channel NVR (NVR301-04B-P4-IQ), and a HDD, ensuring seamless integration and high-quality video recording. Ideal for both residential and commercial applications, this system delivers exceptional image clarity, intelligent analytics, and reliable performance.

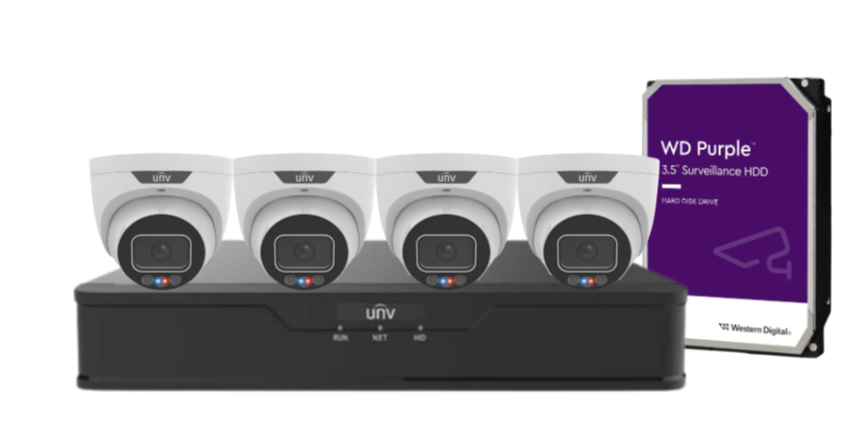

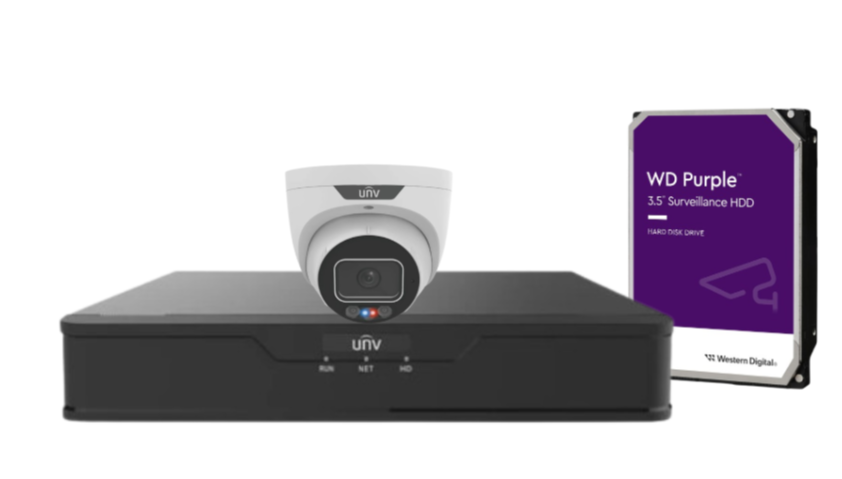

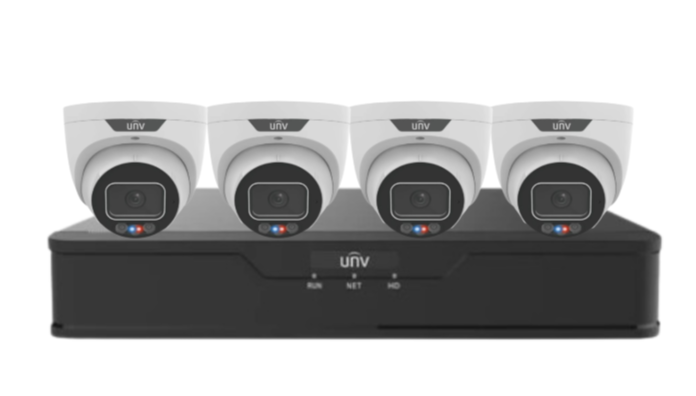

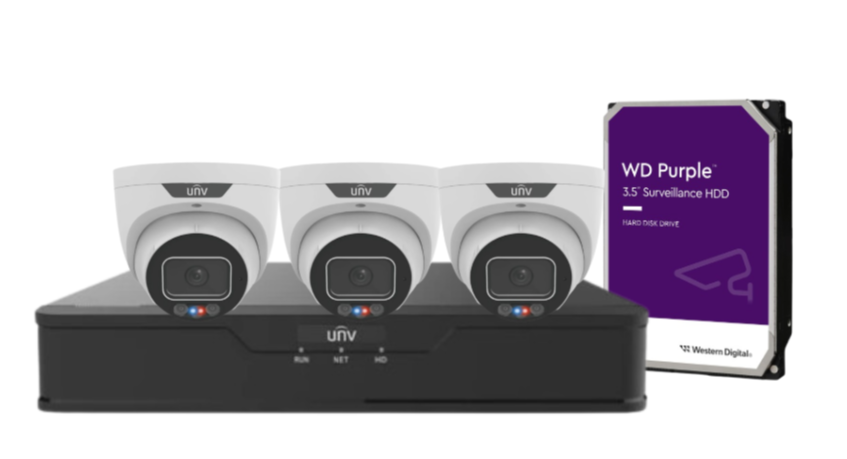

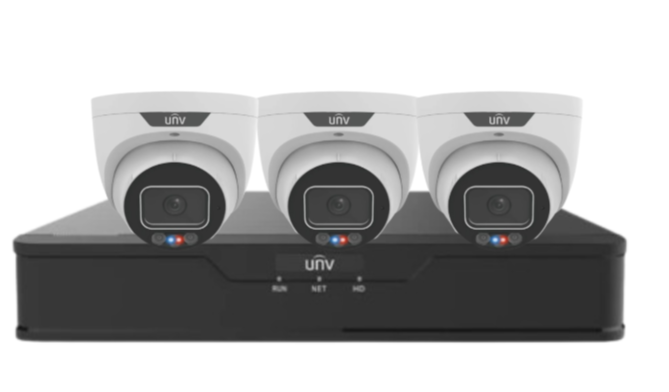

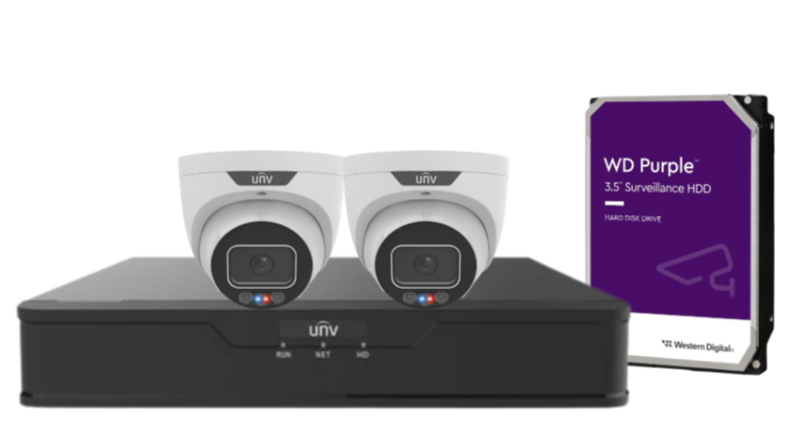

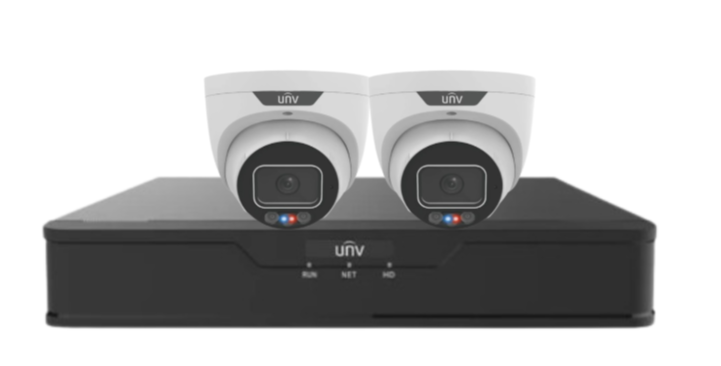

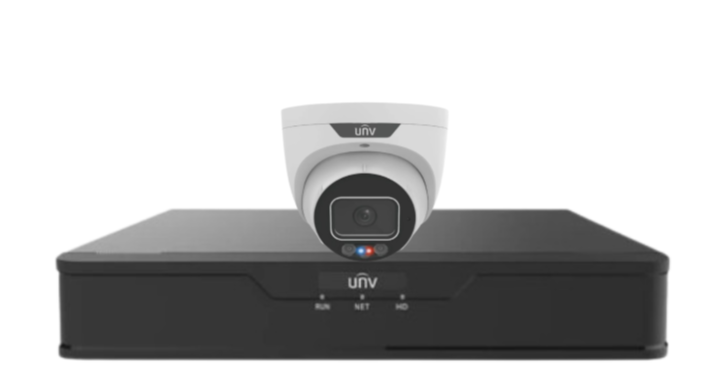

What's Included in the Box

• Up to 4 x Uniview 6MP Triguard Turret Fixed CCTV IP Cameras (Model: IPC3636SS-ADF28KMC-I1)

• 1 x Uniview 4-Channel Network Video Recorder (Model: NVR301-04B-P4-IQ)

• 1 x   HDD (Choose your own HDD below)

• 1 x Power Adapter

• 1 x User Manual

Main Features

• High-Resolution Imaging: 6MP, 1/2.7'' CMOS sensor delivering clear and detailed images at multiple resolutions (6MP, 4MP, 3MP, 2MP).

• Advanced Video Compression: Supports Ultra 265, H.265, H.264, and MJPEG codecs for optimized bandwidth and storage efficiency.

• Intelligent Perimeter Protection: Features cross line, intrusion, enter area, and leave area detection with intelligent target classification to minimize false alarms.

• People Flow Counting & Crowd Density Monitoring: Enhances operational efficiency with intelligent analytics.

• Wide Dynamic Range (WDR): 130dB true WDR technology ensures clear imaging in challenging lighting conditions.

• Active Deterrence: Supports red and blue warning lights to effectively deter intruders.

• Versatile Installation: Supports 9:16 Corridor Mode, ideal for narrow spaces like hallways.

• Audio and Alarm Integration: Built-in microphone and speaker for two-way communication; includes 1 alarm input and 1 alarm output.

• Night Vision: Smart IR technology provides up to 30 meters (98.4 feet) of infrared night vision.

• Weatherproof Design: Rated IP67 for protection against dust and water, suitable for outdoor installations.

Detailed Specifications

Camera (IPC3636SS-ADF28KMC-I1):

• Sensor: 1/2.7'' CMOS

• Resolution: 6MP (3072×2048) @25/20fps; 4MP (2560×1440) @30/25fps; 3MP (2304×1296) @30/25fps; 2MP (1920×1080) @30/25fps

• Lens: 2.8mm fixed lens

• Compression: Ultra 265, H.265, H.264, MJPEG

• WDR: 130dB

• IR Range: Up to 30m (98.4ft)

• Audio: Built-in microphone and speaker

• Alarm I/O: 1 input, 1 output

• Storage: Supports up to 256GB Micro SD card

• Ingress Protection: IP67

Network Video Recorder (NVR301-04B-P4-IQ):

• Video Input: 4 channels

• Decoding Capability: Smart Off: 2 x 12MP@30, 2 x 4K@30, 4 x 4MP@30; Smart On: 2 x 4K@30, 4 x 4MP@30

• Video Output: HDMI (4K@30Hz), VGA (1920×1080@60Hz)

• Compression: Ultra 265, H.265, H.264

• Audio Input/Output: 1 channel RCA input, 1 channel RCA output

• Storage: 1 SATA HDD interface, up to 10TB

• PoE Ports: 4 independent PoE ports (30W per port, 50W total)

• Network Bandwidth: Incoming: 80Mbps; Outgoing: 80Mbps

• Remote Users: Supports up to 128 remote users

• Smart Features: Face Detection, Vehicle Detection, Intrusion Detection, People Counting, Traffic Monitoring

• Dimensions: 260mm × 222mm × 47mm (10.2"×8.7"×1.8")

• Weight: ≤ 2.7Kg (6.0lb

Warranty Information

• Cameras: 3-Year Warranty

• NVR: 2-Year Warranty

Brand Description

Uniview is a leading provider of professional video surveillance products and solutions. With a focus on innovation and quality, Uniview offers a comprehensive range of IP cameras, NVRs, and related accessories designed to meet the diverse needs of security applications worldwide.

Practical Use Scenarios

• Residential Security: Monitor entrances, driveways, and perimeters with high-definition clarity.

• Retail Stores: Enhance loss prevention and customer safety with intelligent analytics.

• Office Buildings: Secure premises with real-time monitoring and smart intrusion detection.

• Warehouses: Ensure asset protection with wide coverage and night vision capabilities.

• Educational Institutions: Maintain campus security with advanced surveillance features.

Datasheets & Downloadable Resources

• Uniview IPC3636SS-ADF28KMC-I1 Datasheet

• Uniview NVR301-04B-P4-IQ Datasheet

Excellence for the Australian and New Zealand Market

• Compliance: Meets Australian quality standards and relevant certifications.

• NDSS Approval: Certified under the National Disability Insurance Scheme (NDSS) for applicable use cases.

• Market Optimization: Tailored for the Australian and New Zealand environments, ensuring optimal performance.

• Authorized Sourcing: Exclusively sourced from authorized Uniview representatives to guarantee authenticity.

• Warranty Handling: Direct communication with Uniview for efficient warranty support and service.

FAQs

Q1: What is the maximum resolution supported by the IPC3636SS-ADF28KMC-I1 camera?
A1: The IPC3636SS-ADF28KMC-I1 camera supports up to 6MP resolution (3072×2048) at 25/20fps, ensuring high-definition video capture

Q2: Does the NVR301-04B-P4-IQ support remote viewing?
A2: Yes, the NVR301-04B-P4-IQ supports remote access for up to 128 users, allowing you to monitor your surveillance system from anywhere.

Q3: Can I use the IPC3636SS-ADF28KMC-I1 camera outdoors?
A3: Absolutely. The camera is rated IP67, providing protection against dust and water, making it suitable for outdoor installations.

Q4: What storage capacity does the NVR301-04B-P4-IQ support?
A4: The NVR supports one SATA HDD interface, accommodating up to 10TB of storage for video recordings.

Q5: Are the cameras equipped with night vision?
A5: Yes, the cameras feature Smart IR technology, offering up to 30 meters (98.4 feet) of infrared night vision for clear visibility in low-light conditions.

Q6: What smart features are included in the NVR301-04B-P4-IQ?
A6: The NVR includes advanced features such as Face Detection, Vehicle Detection, Intrusion Detection, People Counting, and Traffic Monitoring to enhance surveillance capabilities.

Q7: Is there audio support in the IPC3636SS-ADF28KMC-I1 camera?
A7: Yes, the camera has a built-in microphone and speaker, enabling two-way audio communication.

Q8: What is the warranty period for the IPC3636SS-ADF28KMC-I1 camera?
A8: The camera
