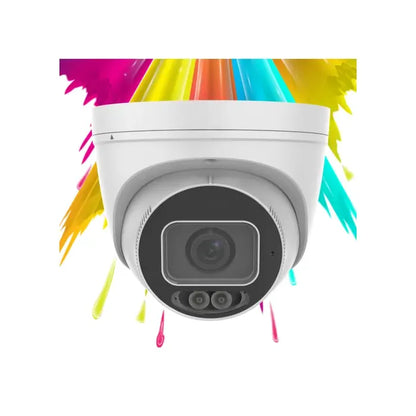

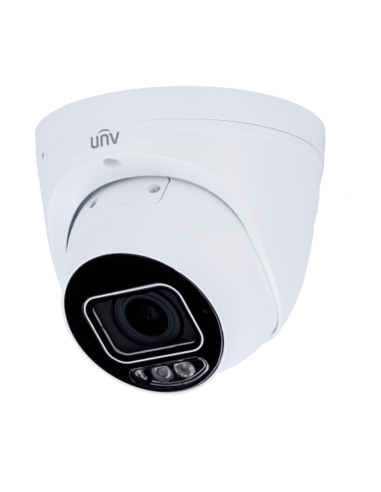

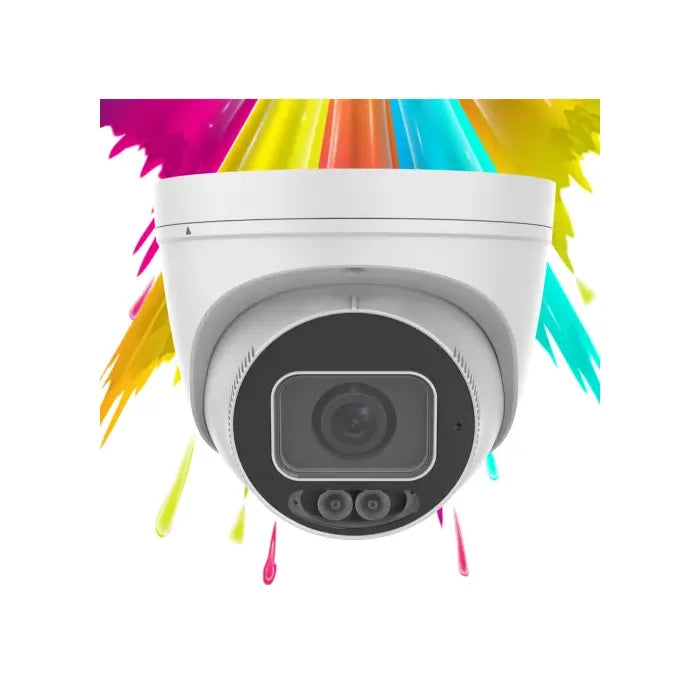

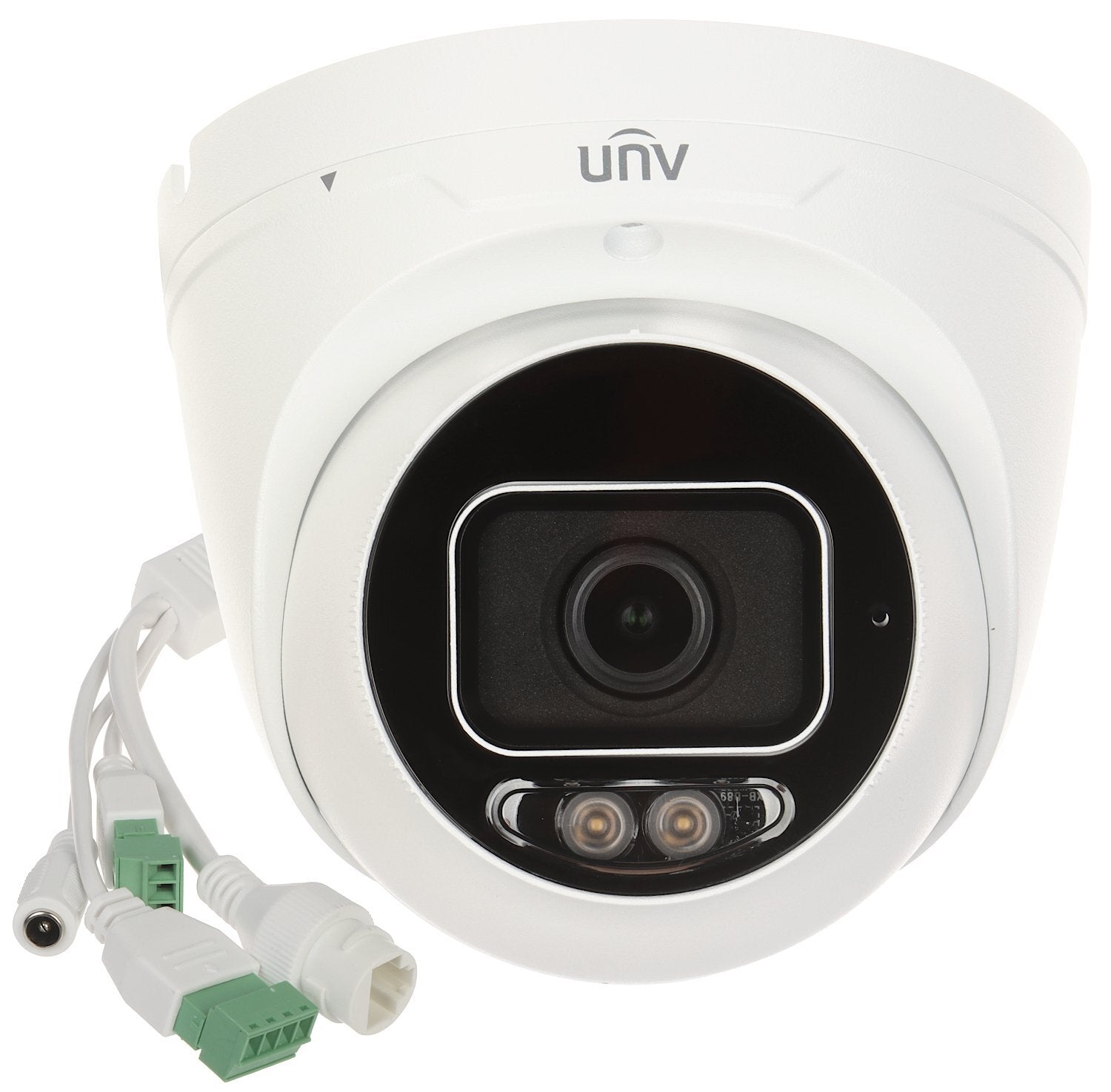

Uniview PRIME-III Series 4MP ColorHunter IPCCTV Camera (IPC3634SE-ADF28K-WL-I0)

The Uniview PRIME-III IPC3634SE-ADF28K-WL-I0 ColorHunter Turret Camera is an advanced surveillance solution designed to provide superior image quality, durability, and functionality. With its 4MP resolution, 24/7 full-color imaging, vandal-resistant construction, and integrated smart features, it’s ideal for residential, commercial, or industrial security applications.

Key Features:

• High-Resolution Imaging:

  • 4MP 1/1.8" CMOS sensor with a resolution of 2688 x 1520 at 30fps.
  • Super F1.0 aperture for exceptional light capture.

• ColorHunter Technology:

  • Delivers full-color video in low-light conditions using white LED illumination with a range of up to 30m (98 ft).

• Robust Construction:

  • IP67-rated for water and dust resistance.
  • IK10-rated vandal-resistant metal housing for durability in harsh environments.

• Smart Features:

  • Built-in microphone for audio recording and two-way audio support.
  • Alarm input/output (1 in/1 out) for integration with external devices.
  • Supports edge storage with MicroSD cards up to 256GB.

• Wide Dynamic Range:

  • 120dB true WDR for clear images in high-contrast lighting scenarios.

• Power and Connectivity:

  • Power over Ethernet (PoE) and 12V DC power options.
  • Supports ONVIF (Profiles S, G, and T) and API integration for compatibility with third-party systems.

Specifications:

Camera:

• Lens: Fixed 2.8mm lens with F1.0 aperture for a wide-angle field of view.
  • Horizontal: 108.6°
  • Vertical: 81.3°
  • Overall: 135.1°
• DORI Distances:
  • Detect: 43.4m
  • Observe: 17.4m
  • Recognize: 8.7m
  • Identify: 4.3m
• Illumination: 0.0005 Lux (Color, F1.0, AGC ON).

Video:

• Main Stream:
  • 4MP, 3MP, 1080P, 720P at up to 30fps.
• Triple Stream Support: Optimizes bandwidth and performance.
• Smart Functions:
  • Privacy masking for up to 4 areas.
  • Region of Interest (ROI) for up to 8 areas.
  • 9:16 corridor mode for narrow spaces.

Audio:

• Two-Way Audio: Input/output supported.
• Compression: G.711 with noise suppression.

Alarms:

• Alarm Input/Output: 1 in/1 out for external device integration.

Network:

• Connectivity: RJ45 Ethernet port supporting 10/100 Mbps.
• Protocols: IPv4, RTSP, HTTPS, QoS, and more.

Power:

• Consumption: Max 9W.
• Options: 12V DC or PoE (IEEE 802.3af).

Durability:

• Operating Conditions: -30°C to 60°C (-22°F to 140°F), ≤95% RH.
• Surge Protection: 4KV.

Certifications:

• EMC: FCC, CE, EN.
• Safety: UL, IEC.

Dimensions and Weight:

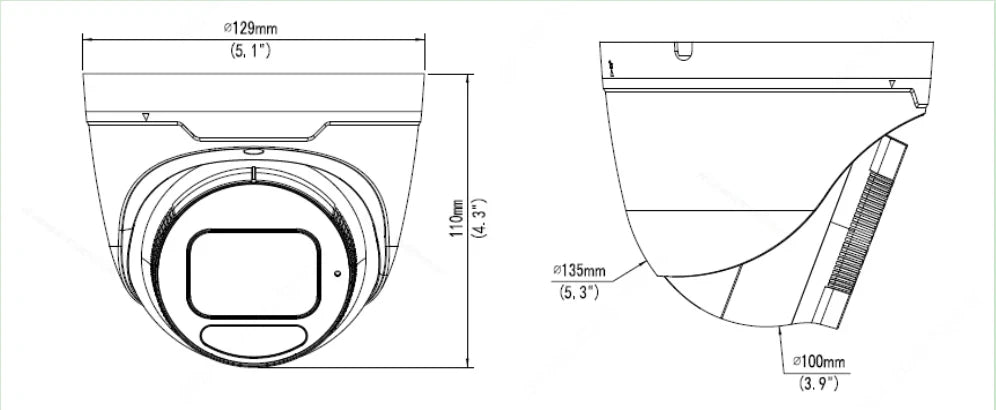

• Dimensions: Φ129 x 110mm (Φ5.1” x 4.3”).
• Weight: 0.69kg (1.52 lb).

Accessories (Sold Separately):

• Compatible mounts and brackets: TR-JB03-H-IN, TR-JB07/WM03-F-IN, TR-WM03-B-IN, and more.

Warranty:

• Backed by a 36-month manufacturer warranty for reliable performance.

The Uniview IPC3634SE-ADF28K-WL-I0 is a top-tier choice for robust, full-color surveillance with AI capabilities, smart features, and industry-leading durability.
