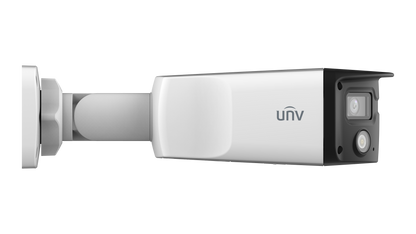

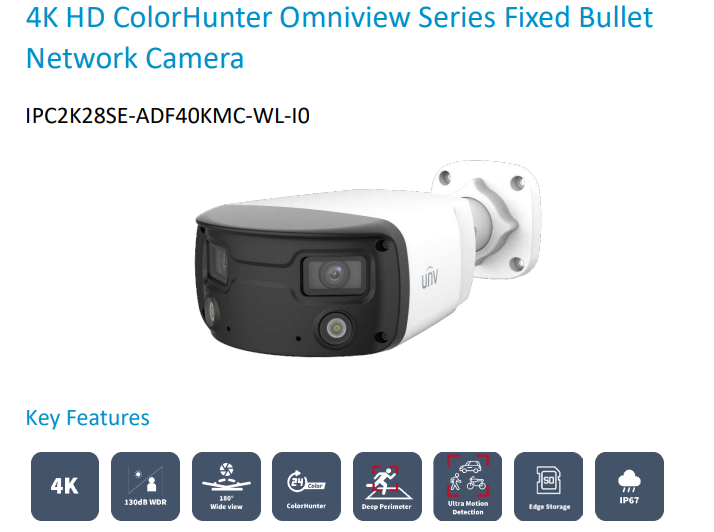

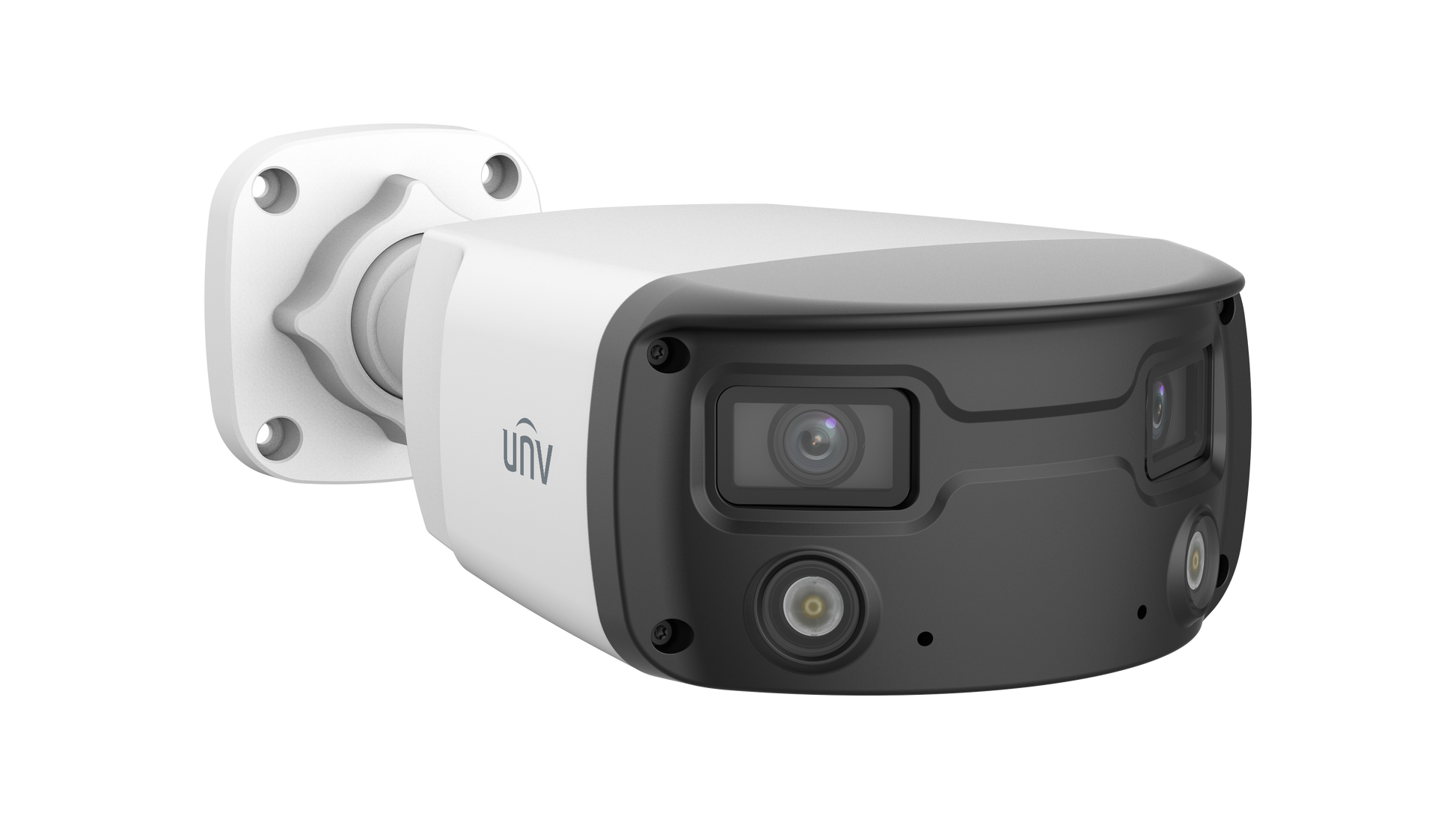

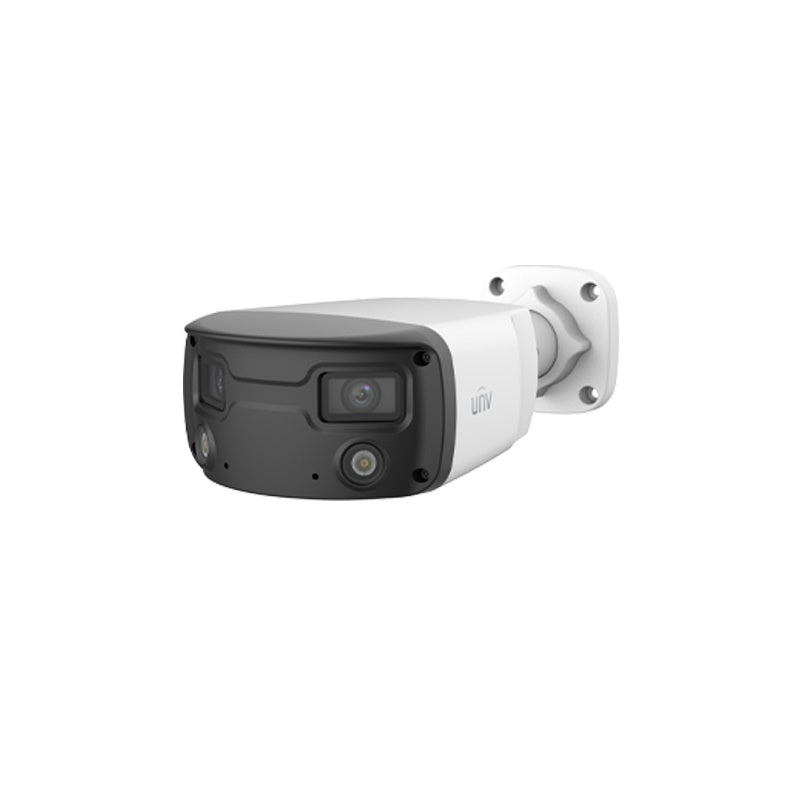

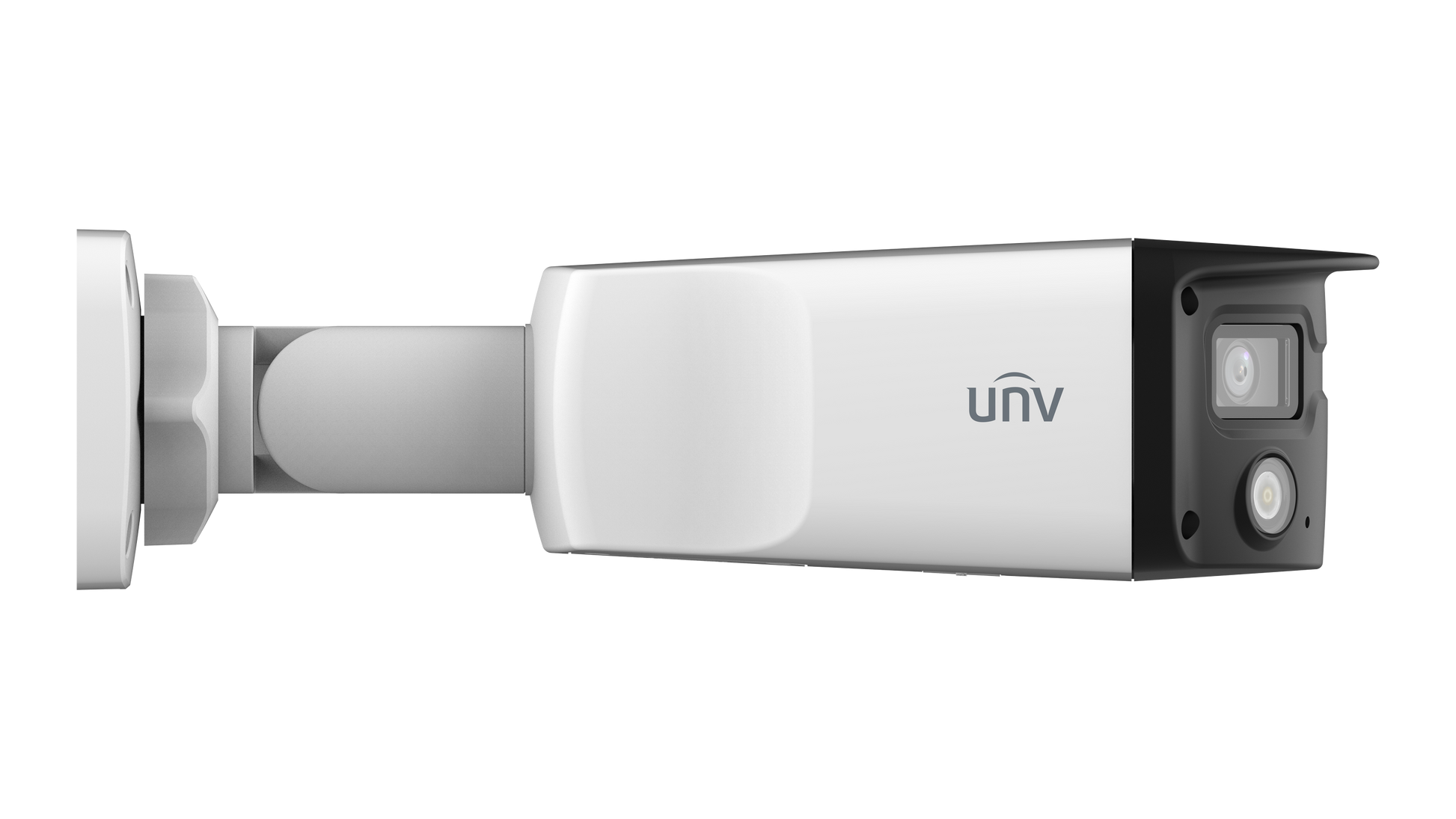

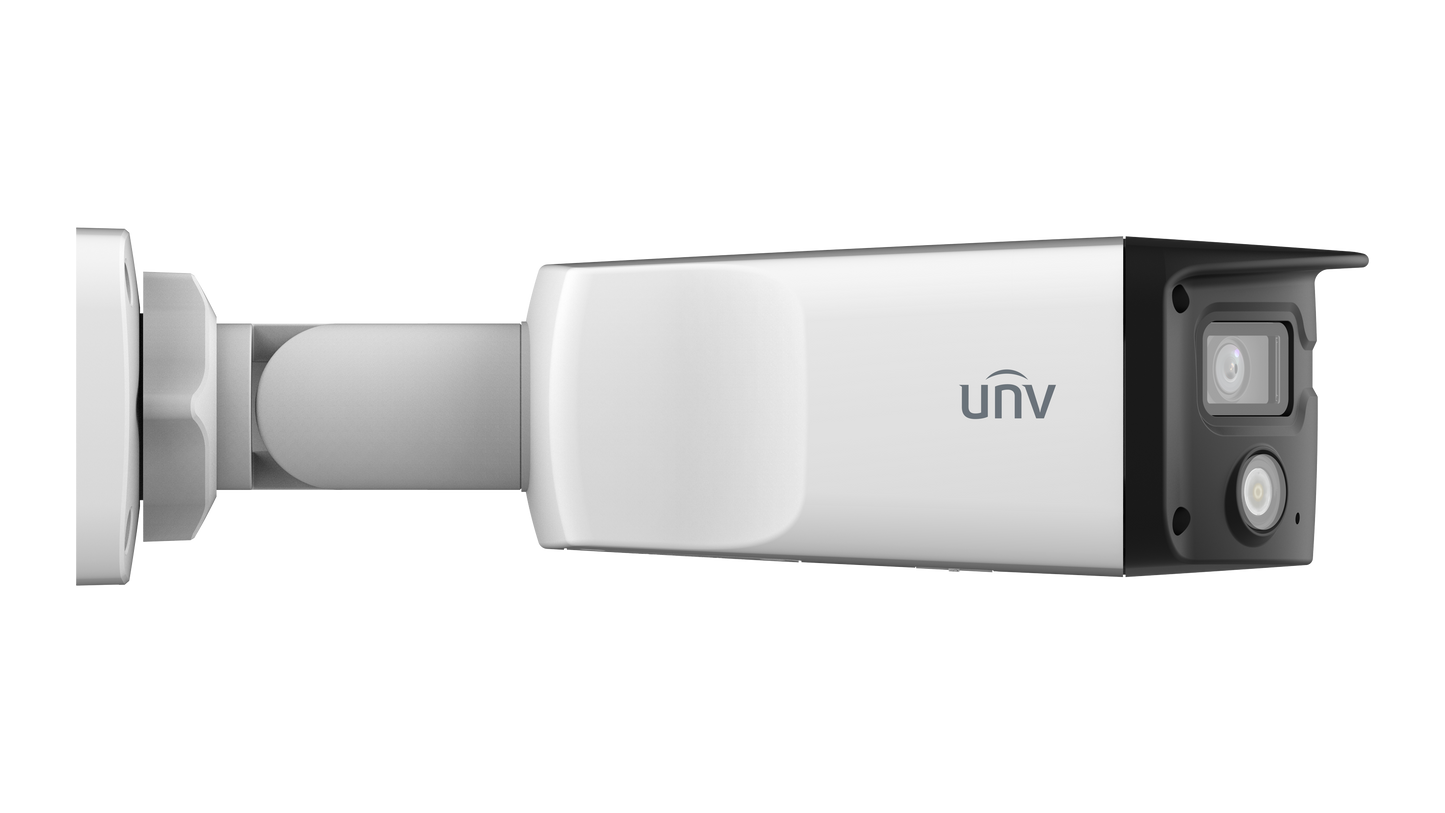

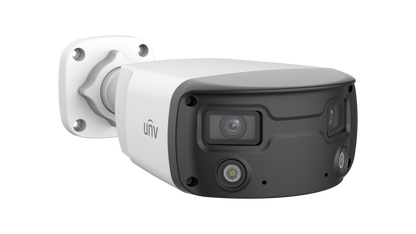

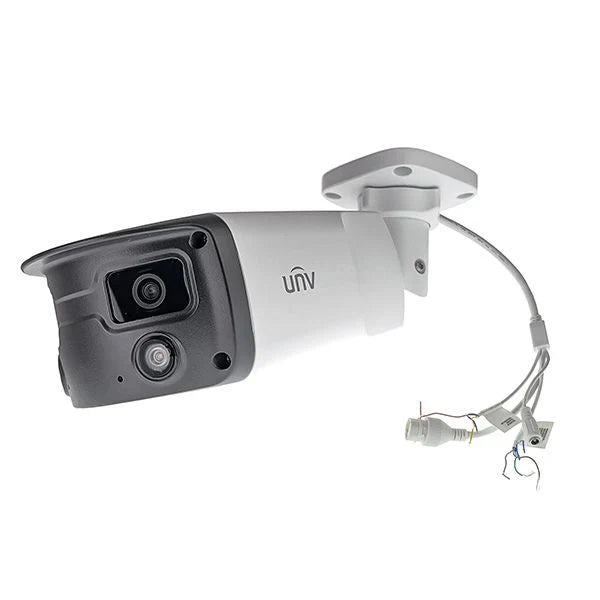

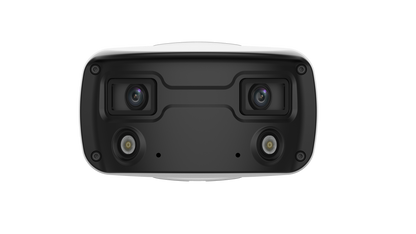

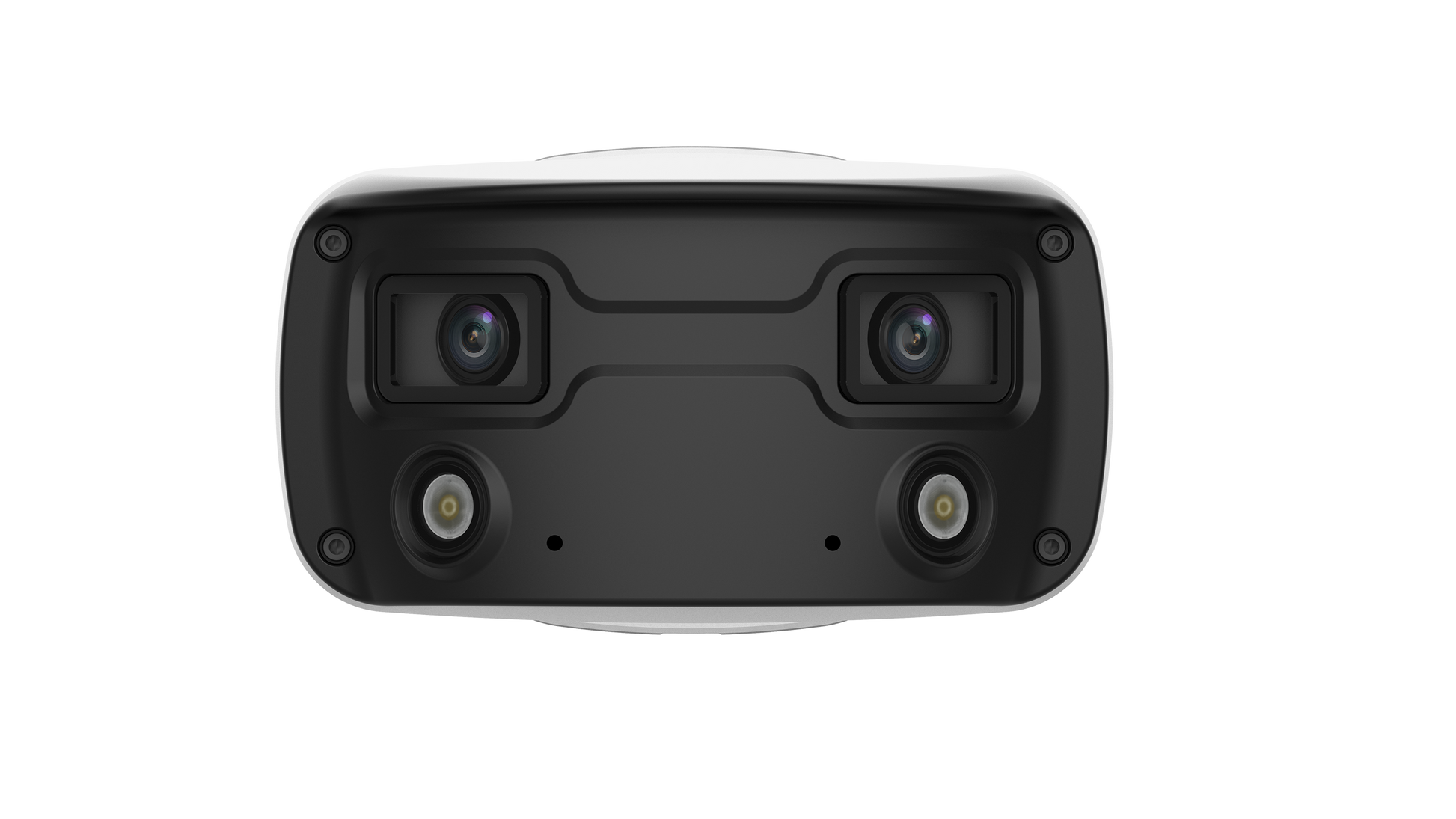

Uniview PRIME-III Series 180° People Count IP Camera with Dual Lenses CCTV – IPC2K28SE-ADF40KMC-WL-I0

The Uniview PRIME-III Series 180° People Count IP Camera is a state-of-the-art surveillance solution ideal for monitoring large areas and tracking people flow. Featuring a dual-lens turret design and ColorHunter technology, this camera provides full-color 24/7 surveillance and accurate crowd density analysis. Equipped with advanced smart intrusion prevention and people counting features, it enhances security in public spaces, retail environments, and transport hubs.

Key Features:

• Dual 4MP Lenses for 180° panoramic coverage, providing a wide, seamless view.
• ColorHunter Technology ensures vivid, full-color images even in low-light conditions.
• 130dB WDR (Wide Dynamic Range) for clear images in challenging lighting environments.
• People Counting and Crowd Density Monitoring for real-time statistical analysis.
• Smart Intrusion Prevention with false alarm filtering for accurate detection of humans and vehicles.
• Built-in Audio: 1-in and 1-out audio support, with a built-in mic for two-way communication.
• Up to 30m White LED Distance for enhanced night-time visibility.
• IP67 weatherproof rating and IK10 vandal-resistant design for outdoor use.
• PoE (Power over Ethernet) and 12V DC power options for easy installation.
• Supports MicroSD card storage (up to 256GB) for local video recording.
• Alarm Inputs and Outputs (1-in, 1-out) for integration with external systems.

Specifications:

• Sensor: 1/2.7" CMOS, 8.0 MP
• Resolution: 8MP (5120x1440) @ 20fps
• Shutter Speed: Auto/Manual, 1 ~ 1/100000s
• Lens: Dual 4.0mm Fixed lenses @ F1.0, Horizontal FOV: 180° ±10°
• DORI:
  • Detect: 90m (259.3ft)
  • Observe: 36m (118.1ft)
  • Recognize: 18m (59.1ft)
  • Identify: 9m (29.5ft)
• Video Compression: Ultra265, H.265, H.264, MJPEG
• Frame Rate: Main Stream 8MP (5120x1440), Max 20fps; Sub Stream 2560x720, Max 20fps
• Audio Compression: G.711, 64Kbps
• Power Supply: DC12V ±25%, PoE (IEEE 802.3af)
• Power Consumption: Max 13W
• Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
• Storage: MicroSD card, up to 256GB

What's in the Box:

• 1 x Uniview 180° People Count IP Camera
• 1 x Mounting Bracket
• 1 x Quick Installation Guide
• 1 x Power Adapter (if not using PoE)
• 1 x Set of Screws for installation

Warranty:

• 36 Months Warranty for reliable performance and support.

Applications:

• Retail: Ideal for monitoring customer flow and optimizing store operations.
• Public Spaces: Perfect for tracking crowd density in airports, malls, and transport hubs.
• Transport: Provides surveillance for wide-angle views of stations and terminals.

The Uniview PRIME-III Series 180° People Count Camera is a robust and intelligent surveillance solution that combines panoramic coverage, exceptional image quality, and powerful analytics to provide enhanced security in a wide range of environments. Whether for people counting, intrusion detection, or monitoring large areas, this camera delivers top-tier performance around the clock.
