Uniview PRIME-III 8MP 180° Dual-Lens AI CCTV Kit – 4 Channel NVR + HDD – ColorHunter, People Counting, 30m IR – IPC3K28SE-ADF28KMC-DL-I0 Triguard

Elevate your surveillance capabilities with the Uniview PRIME-III (IPC3K28SE-ADF28KMC-DL-I0) 8MP AI-Powered Dual-Lens IP Camera bundled with a 4-channel NVR (NVR301-04B-P4-IQ) and HDD. Engineered for premium security, this kit delivers panoramic 180° horizontal coverage, 24/7 full-colour imaging, and smart AI analytics designed for people counting, intrusion detection, and crowd monitoring.

Using dual-lens splicing and ColorHunter technology, the PRIME-III series ensures crystal-clear imaging even in extremely low-light environments. The Wise-ISP engine optimizes image quality, while 30m IR and warm LED lights ensure vibrant detail at night.

The included NVR supports Ultra 265 compression, high-resolution recording up to 12MP, and plug-and-play PoE connectivity for effortless deployment.

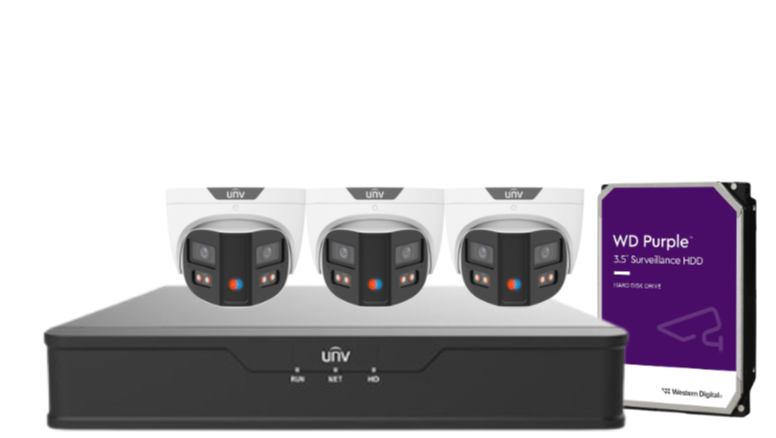

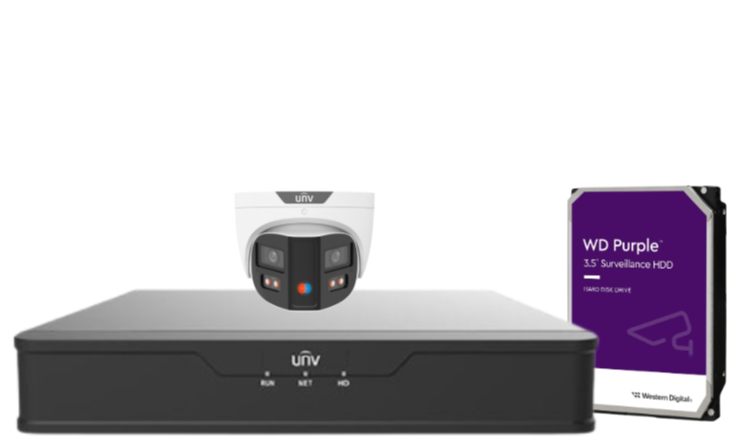

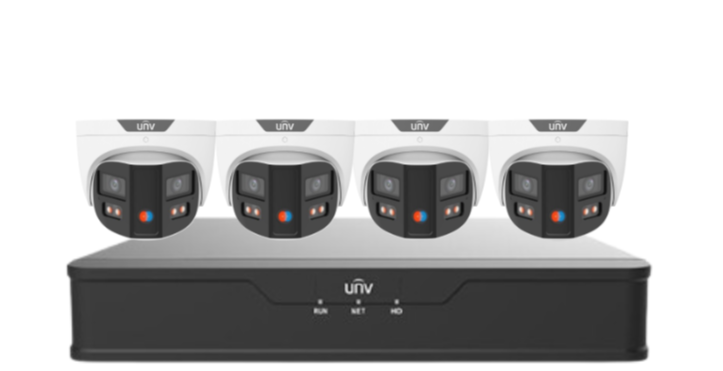

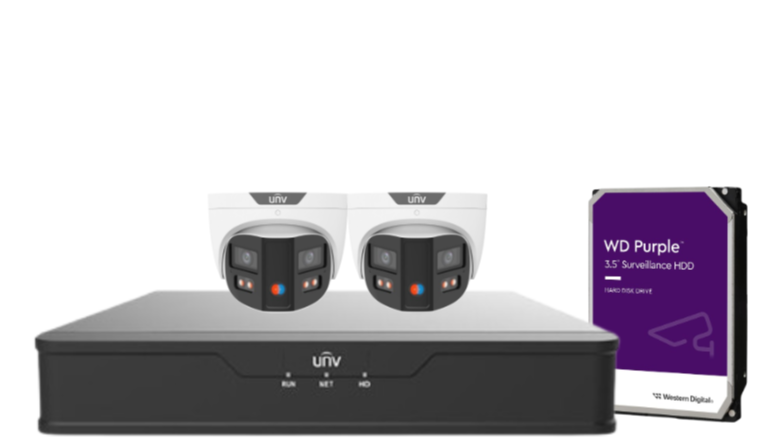

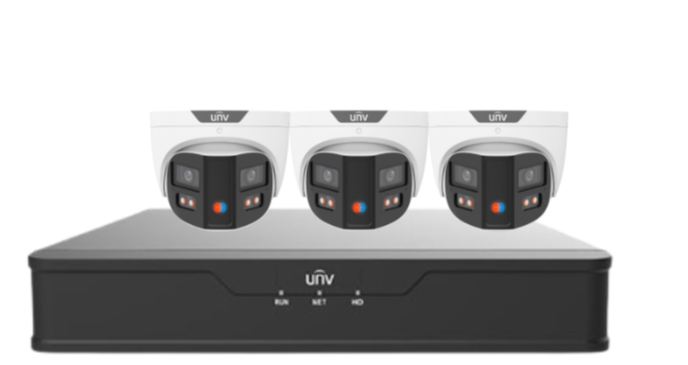

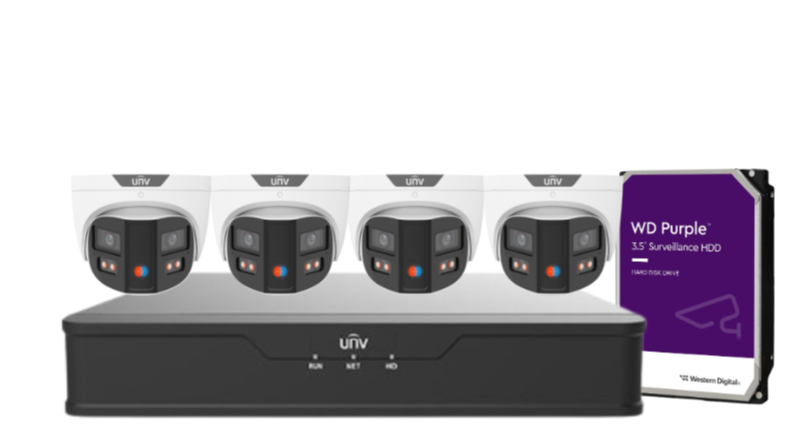

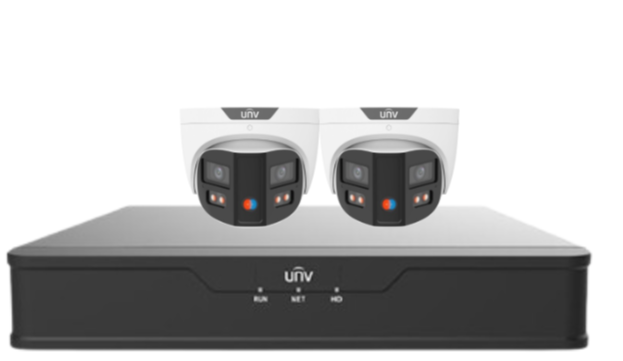

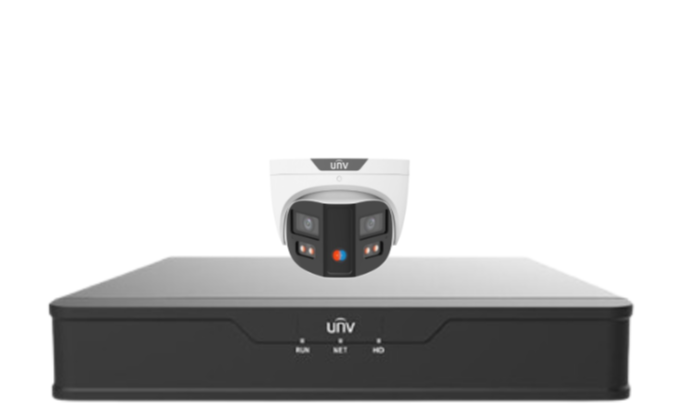

What's Included in the Box

• Up to 4 × Uniview PRIME-III 8MP Dual-Lens IP Cameras (IPC3K28SE-ADF28KMC-DL-I0)

• 1 × Uniview NVR301-04B-P4-IQ 4-Channel PoE Network Video Recorder

• 1 × Surveillance-Grade HDD (Choose your HDD below)

• Mounting Accessories

• Quick Start Guide

• Power Supply & Cabling (NVR)

• USB Mouse

Main Features

• 8MP Dual-Lens Splicing Sensor with 180° seamless panoramic view

• ColorHunter Full-Colour Night Vision with IR + Warm LED (up to 30m)

• AI Analytics: People Counting, Crowd Monitoring, Intrusion Detection

• Built-In Audio: Dual microphones and integrated speaker for two-way communication

• Compression Formats: Ultra 265, H.265, H.264 for efficient storage

• Durability: IP67-rated and IK10 vandal-proof metal housing

• Flexible Storage: Up to 512GB MicroSD card support per camera + NVR HDD

• NVR with 4x PoE ports, ONVIF compatibility, and support for up to 12MP resolution

Detailed Specifications

Camera: IPC3K28SE-ADF28KMC-DL-I0

• Resolution: 8MP (4096 × 1860 @ 20fps)

• Lens: Dual 2.8mm Fixed | F1.0 Aperture

• Field of View: Horizontal 180° | Vertical 65° | Diagonal 180°

• Illumination: 30m IR + Warm LED

• Audio: Built-in Dual Microphones + Speaker | RCA Audio In/Out

• Smart Detection: People Counting, Cross-line, Intrusion, Area Detection

• Storage: Up to 512GB MicroSD

• Protection: IP67 (Weatherproof) | IK10 (Vandal-Resistant)

• Power: PoE (IEEE 802.3af) or 12V DC ±25%

• Operating Temperature: -30°C to 60°C

• Weight: 0.86kg

NVR: NVR301-04B-P4-IQ

• Video Formats: Ultra 265 / H.265 / H.264

• Decoding: Up to 2 × 12MP or 4 × 4MP @ 30fps

• Video Input: 4-channel IP | ONVIF Profiles S, G, T

• PoE Ports: 4 × RJ45 (10/100 Mbps)

• Recording Resolution: Up to 12MP

• Smart Features: Face & Vehicle Detection, Intrusion Detection, People Counting

• Video Outputs: 1 HDMI (4K) + 1 VGA (1080p)

• Remote Access: Up to 128 simultaneous users

• Dimensions: 260mm × 222mm × 47mm

• Weight: ≤ 2.7Kg

Warranty Information

The Uniview PRIME-III 8MP Camera Kit is backed by a generous 60-month manufacturer warranty, with direct access to support and service via authorized Uniview representatives in Australia and New Zealand.

Brand Description

Uniview is a global pioneer in advanced IP surveillance solutions. With a relentless focus on quality and innovation, Uniview delivers AI-enabled, future-ready technologies. The PRIME-III Series offers unmatched clarity, advanced detection, and 24/7 intelligent monitoring capabilities.

SKU

IPC3K28SE-ADF28KMC-DL-I0-SED

Practical Use Scenarios

• Retail Stores: Leverage 180° coverage and people counting to analyze traffic patterns and optimize layout.

• Office Buildings: Ensure safe access control with intrusion alerts and real-time two-way audio.

• Large Residential Estates: Cover driveways, yards, and entrances with full-colour night vision and wide-angle coverage.

• Public Venues: Monitor crowd flow and safety in parks, transit stations, or event spaces.

Excellence for the Australian and New Zealand Market

• Certified for Local Conditions: Meets all environmental and electrical standards applicable in Australia and New Zealand.

• IP67/IK10 Rated Build: Withstands extreme weather and physical tampering in urban or remote outdoor settings.

• Exclusive Regional Distribution: Sourced directly through authorized ANZ distributors to ensure authenticity.

• 5-Year Warranty with Local Support: Backed by Uniview’s extended warranty and dedicated service teams.

• Optimized for Local Infrastructure: Compatible with Australian/NZ broadband networks and smart home systems.

FAQs – Uniview IPC3K28SE-ADF28KMC-DL-I0-SED

Q: Does the IPC3K28SE-ADF28KMC-DL-I0-SED support full-colour night vision?
A: Yes, it features ColorHunter technology and warm LED lighting for vibrant colour imaging even in total darkness.

Q: What AI functions are available with the IPC3K28SE-ADF28KMC-DL-I0-SED kit?
A: This system supports people counting, crowd density analysis, intrusion prevention, and area entry/exit detection using advanced deep-learning algorithms.

Q: Can I store video footage locally with IPC3K28SE-ADF28KMC-DL-I0-SED?
A: Yes, each camera supports up to 512GB MicroSD, and the NVR includes a pre-installed HDD for central recording.

Q: What kind of weather resistance does the IPC3K28SE-ADF28KMC-DL-I0-SED offer?
A: The camera is IP67 weatherproof and IK10 vandal-resistant, ensuring durability in challenging environments.

Q: Is remote access supported for IPC3K28SE-ADF28KMC-DL-I0-SED kits?
A: Absolutely. You can monitor and manage your system remotely via mobile apps or web browsers using Uniview’s software.

Q: What warranty is included with the IPC3K28SE-ADF28KMC-DL-I0-SED surveillance kit?
A: The kit is covered by a comprehensive 60-month warranty, with local support in Australia and New Zealand.
