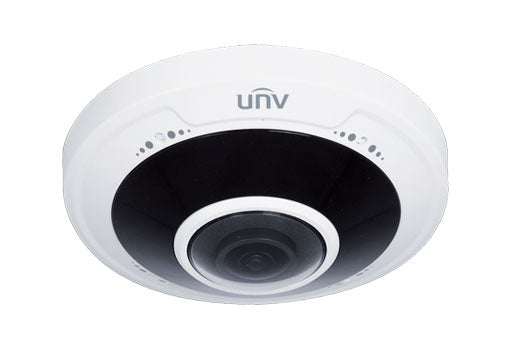

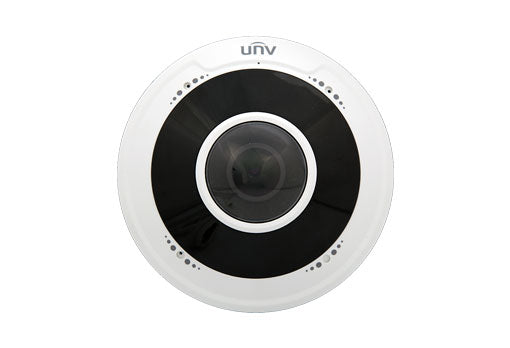

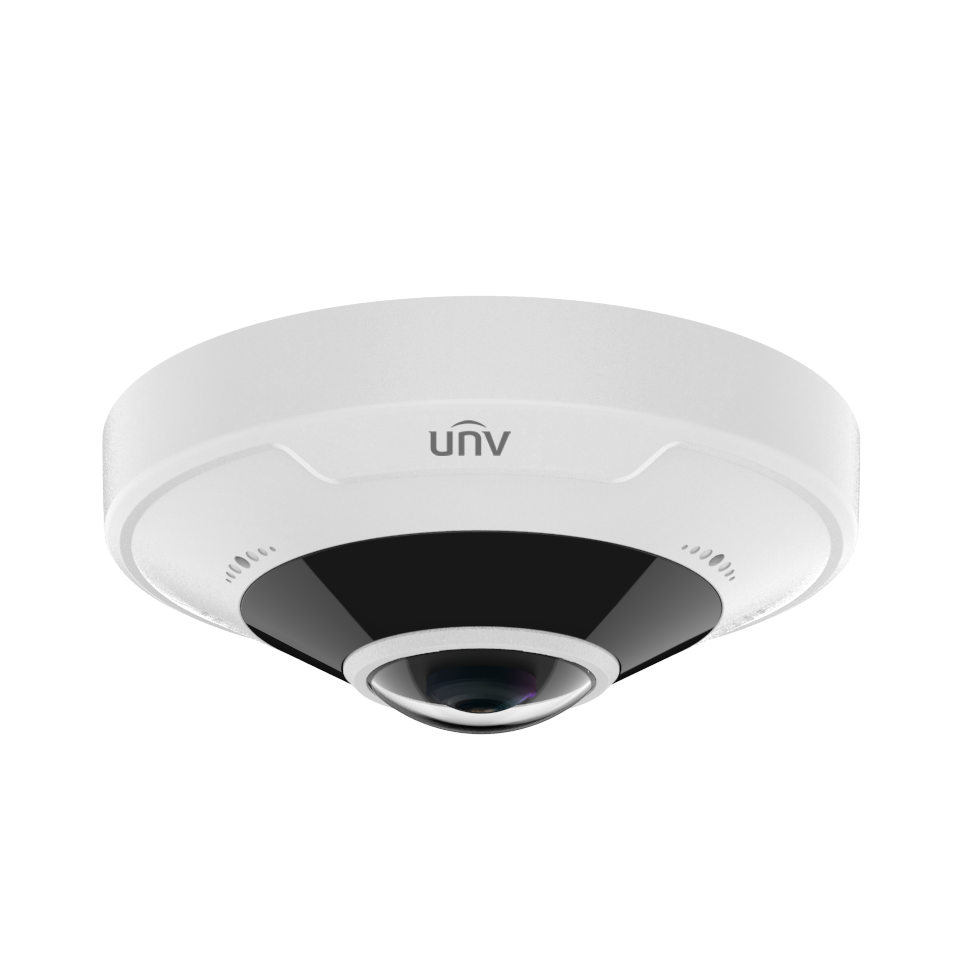

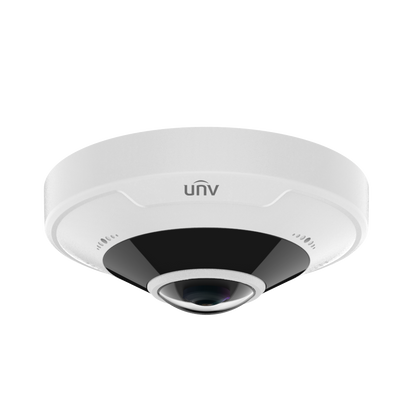

UNIVIEW PRIME-I SERIES IPC815SB-ADF14K-I0 5MP Fisheye IP CCTV Camera

The UNIVIEW PRIME-I IPC815SB-ADF14K-I0 is a high-performance, vandal-resistant 360° panoramic IP camera designed to provide superior surveillance for indoor and outdoor applications. This camera boasts a 5MP resolution with a fisheye lens, delivering exceptional clarity and comprehensive coverage.

Key Features

• Image Quality:

  • 5MP resolution (2592x1944) at 30/25 fps.
  • 1/2.8" CMOS sensor for vibrant, detailed visuals.
  • 120dB Wide Dynamic Range (WDR) for challenging lighting conditions.
  • Smart IR night vision with a range of up to 10 meters (33 feet).

• Lens & Viewing:

  • Ultra-wide 360° panoramic view with a 1.4mm fixed lens (F2.0).
  • Multiple dewarping and display modes for versatile viewing options, including fisheye, panoramic, and PTZ combinations.

• Advanced Compression:

  • Supports Ultra 265, H.265, H.264, and MJPEG codecs.
  • Triple video streams with adjustable bitrates (128 Kbps to 16 Mbps).

• Audio & Alarms:

  • Built-in dual microphones for superior audio capture.
  • Audio input and output for two-way communication.
  • 1 alarm input and 1 alarm output for integration with security systems.

• Durability:

  • IK10 vandal-resistant rating for tough environments.
  • IP66 weatherproof certification for outdoor use.
  • Operates in extreme temperatures: -30°C to 60°C (-22°F to 140°F).

• Storage & Networking:

  • Supports up to 256GB microSD for local storage.
  • Compatible with NAS and ANR (Automatic Network Replenishment) for continuous recording.
  • PoE (IEEE 802.3af) support simplifies installation.

• Security:

  • Features robust encryption, password protection, and compliance with ONVIF profiles (S, G, T) for seamless integration.

Specifications

• Dimensions: Φ125 × 43.7 mm (Φ4.9" × 1.7")
• Weight: 0.36kg (0.79lb)
• Power: DC 12V ±25% or PoE, maximum consumption 8.5W.
• Material: Metal and plastic construction.
• Working Environment: -30°C to 60°C; humidity ≤95% RH (non-condensing).

Applications

This camera is ideal for environments requiring extensive coverage and robust performance, including:

• Retail spaces
• Parking lots
• Warehouses
• Public spaces

What’s in the Box

• UNIVIEW IPC815SB-ADF14K-I0 Camera
• Mounting Accessories (TR-JB03-H-IN, TR-A01-IN, etc.)
• Quick Installation Guide
• Warranty Documentation

Warranty

Enjoy peace of mind with a 36-month warranty provided by UNIVIEW.

For complete specifications, refer to the attached datasheet.

Datasheet
