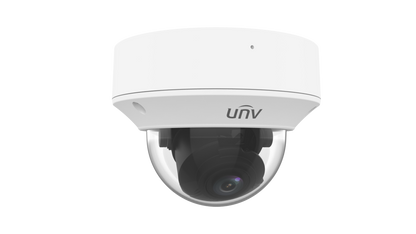

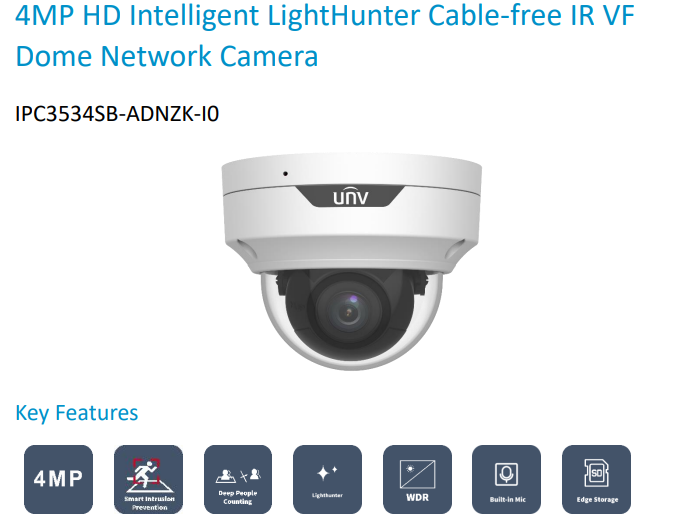

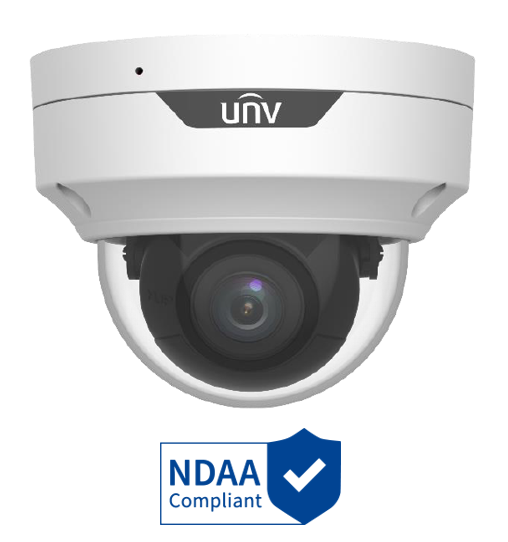

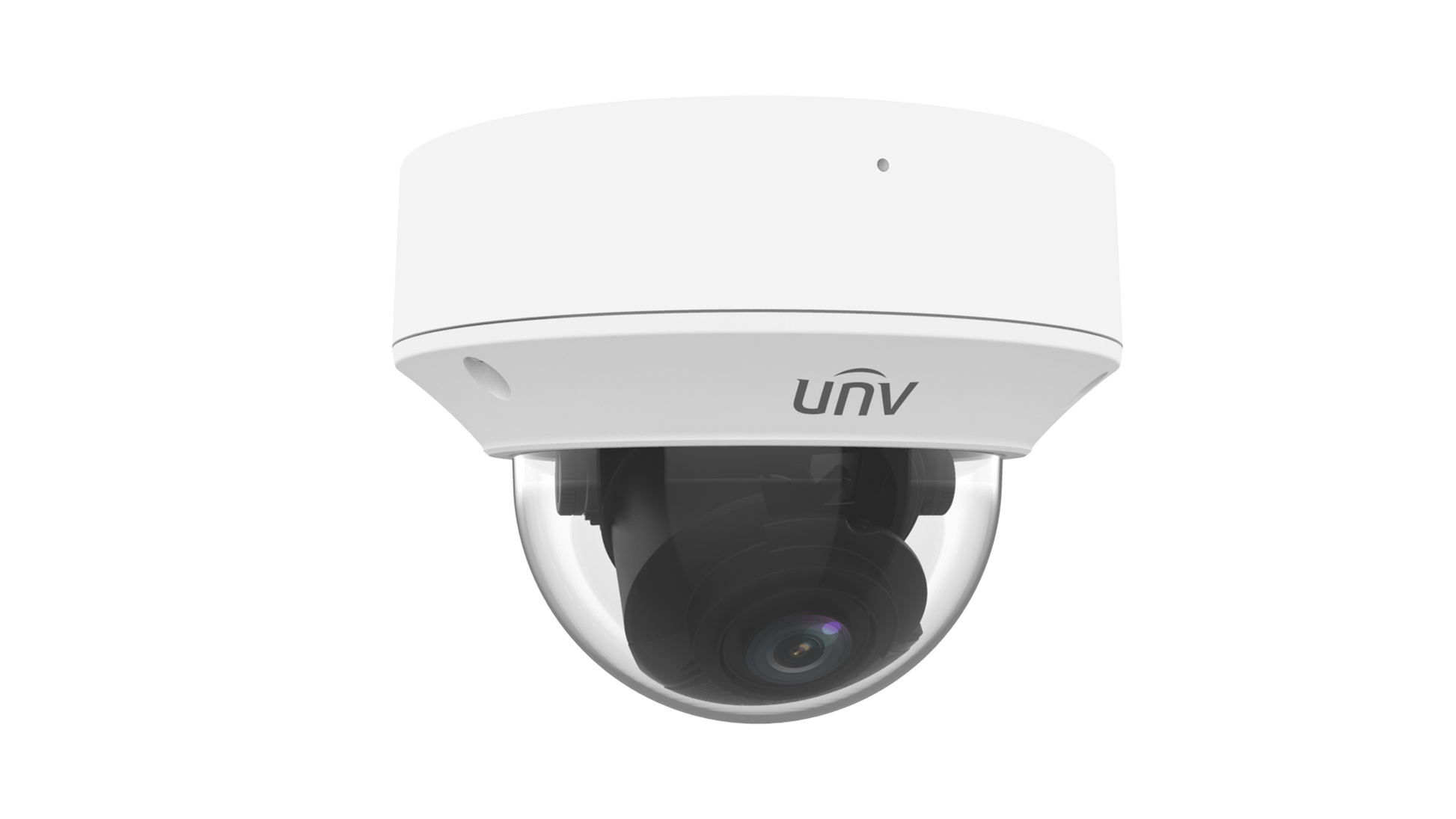

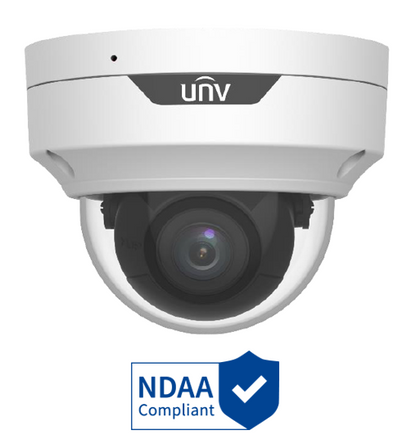

UNIVIEW PRIME-I SERIES IPC3534SB-ADNZK-I0 4MP People Counting Dome IP CCTV Camera

The UNIVIEW PRIME-I IPC3534SB-ADNZK-I0 is a versatile 4MP dome IP camera designed for intelligent surveillance and people counting. With a motorized zoom lens, LightHunter technology, and advanced AI capabilities, this camera delivers exceptional image quality, precise analytics, and reliable performance for indoor and outdoor installations.

Key Features

• High-Resolution Imaging:

  • 4MP resolution (2688x1520) at up to 30fps for sharp and detailed visuals.
  • LightHunter technology ensures excellent low-light performance, with a minimum illumination of 0.002 Lux (color).
  • Smart IR night vision with a range of up to 30 meters (98 feet).

• Intelligent Analytics:

  • AI-powered people counting and crowd density monitoring for traffic analysis and safety management.
  • Smart intrusion detection with false alarm filtering, including cross-line, intrusion, enter/leave area detection.

• Motorized Lens:

  • 2.7-13.5mm motorized lens with auto-focus for flexible viewing options.
  • Wide field of view: Horizontal (103.58° to 31.05°), Vertical (54.37° to 17.55°), Diagonal (134.65° to 36.63°).
  • 5X optical zoom for detailed observation.

• Durability & Build:

  • IK10 vandal resistance for protection against impacts.
  • IP66 weatherproof rating ensures reliable operation in harsh environments.

• Audio & Alarm:

  • Built-in microphone for audio capture.
  • Audio input and output for two-way communication.
  • 1 alarm input and 1 alarm output for integration with external security systems.

• Efficient Storage & Networking:

  • Supports Ultra 265, H.265, H.264, and MJPEG codecs for optimal bandwidth and storage utilization.
  • MicroSD card slot supports up to 256GB of edge storage.
  • PoE (Power over Ethernet) for easy installation and reduced cabling.

Specifications

• Camera Sensor: 1/2.7" CMOS, 4MP progressive scan.
• Video Streams: Triple streams supported, adjustable resolutions.
• Lens: Motorized 2.7-13.5mm with auto-focus.
• Night Vision: Smart IR, range up to 30m (98ft).
• Power Supply: DC 12V ±25% or PoE (IEEE 802.3af); max power consumption 6.5W.
• Material: Durable metal construction.
• Dimensions: Ø128mm x 100mm (Ø 5.04” x 3.94”).
• Weight: 0.59kg (1.31lb).

Applications

This camera is ideal for settings requiring high-resolution monitoring, people flow analytics, and robust security, including:

• Retail spaces for traffic analysis and crowd control.
• Public infrastructure for safety and monitoring.
• Offices and warehouses for secure entry and operational insights.

What’s in the Box

• UNIVIEW IPC3534SB-ADNZK-I0 Camera.
• Mounting accessories (compatible with TR-JB03-H-IN, TR-JB07/WM03-F-IN, etc.).
• Quick Installation Guide.
• Warranty Card.

Warranty

The camera is backed by a 36-month warranty, ensuring dependable operation and comprehensive support.

For further technical details, refer to the attached datasheet.

datasheet.
