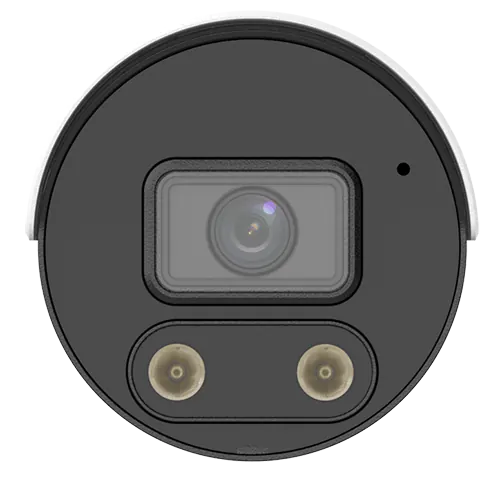

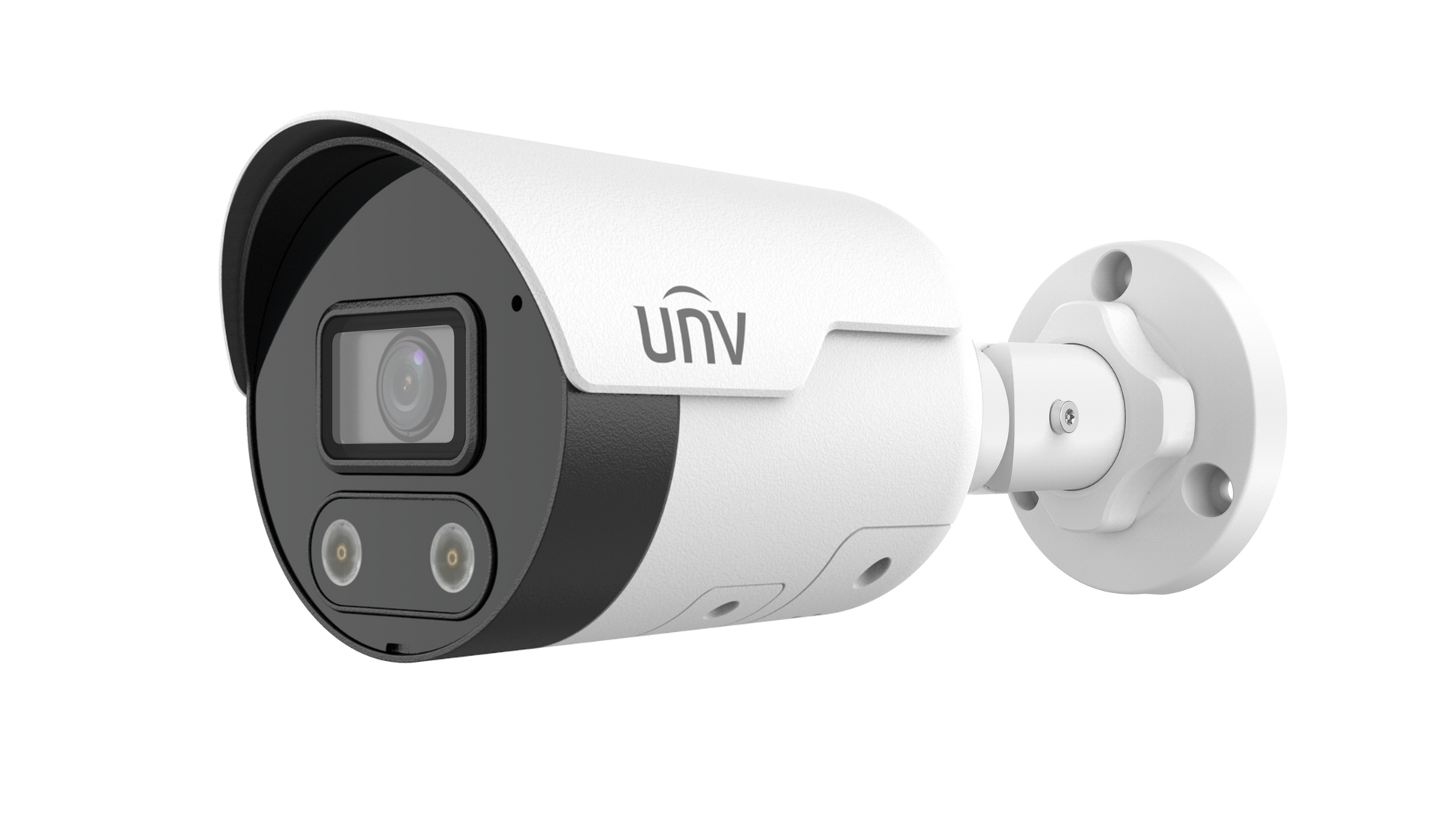

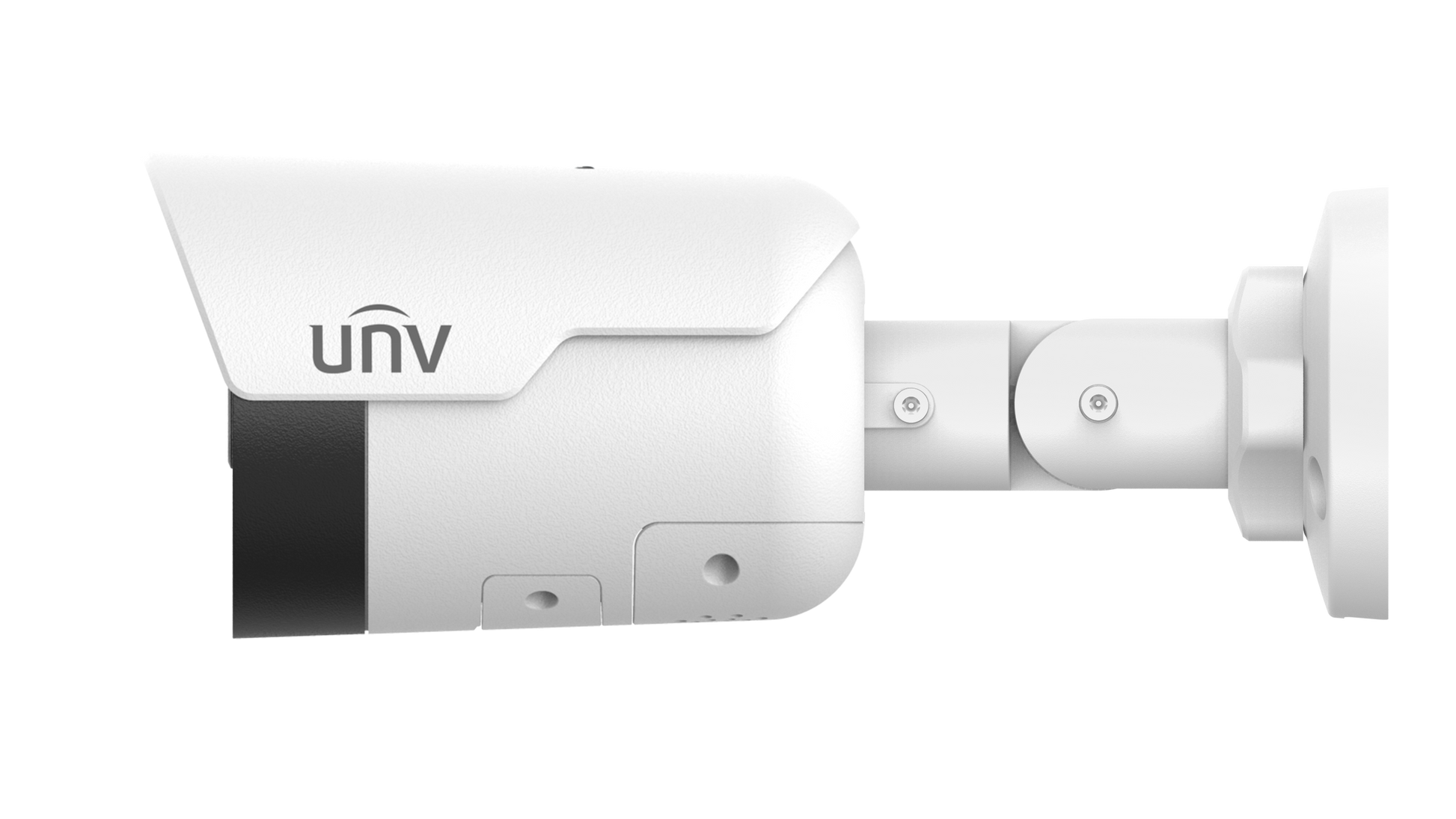

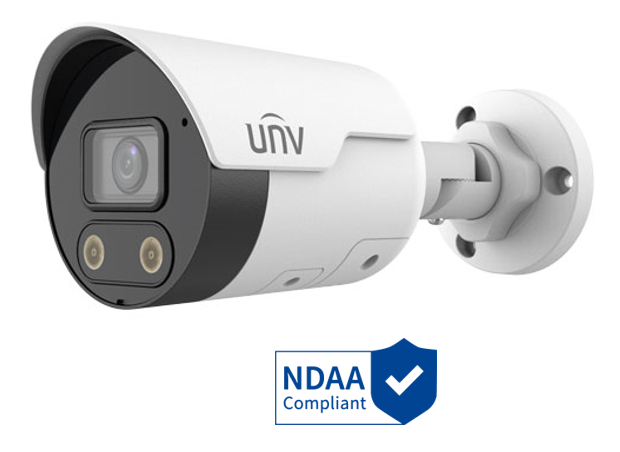

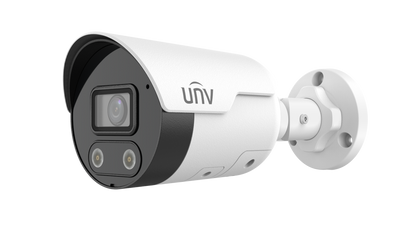

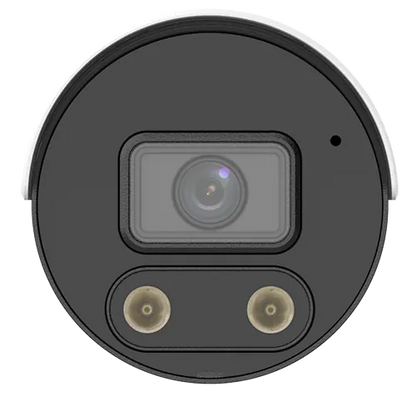

UNIVIEW PRIME-I SERIES IPC2128SB-ADF28KMC-I0 8MP/4K Triguard Bullet IP CCTV Camera

The UNIVIEW PRIME-I IPC2128SB-ADF28KMC-I0 is a state-of-the-art 8MP/4K bullet IP camera featuring Triguard technology, delivering enhanced surveillance with visual, audible, and active deterrence capabilities. Its robust design, advanced night vision, and cutting-edge AI make it ideal for high-security applications.

Key Features

• High-Resolution Imaging:

  • 8MP/4K (3840x2160) resolution for ultra-clear video capture.
  • 1/2.7" CMOS sensor for vibrant image quality.
  • 120dB true Wide Dynamic Range (WDR) ensures balanced visuals in challenging lighting.

• Advanced Night Vision:

  • Equipped with IR and white LED illumination, providing up to 30 meters (98 feet) of coverage.
  • Active deterrence with white LED lights for intruder alert.

• AI-Powered Triguard Technology:

  • Combines AI detection, light deterrence, and audio warnings to actively protect monitored areas.
  • Effectively identifies and responds to potential threats.

• Lens & Viewing:

  • 2.8mm fixed lens with a wide-angle field of view for comprehensive coverage.
  • Corridor mode (9:16) support for efficient monitoring in vertical spaces.

• Compression Efficiency:

  • Supports Ultra 265, H.265, H.264, and MJPEG codecs for optimized storage and bandwidth usage.

• Audio & Alarm Integration:

  • Built-in microphone for audio monitoring.
  • Supports external alarm systems for enhanced security.

• Rugged Build:

  • IP67 weatherproof rating for reliable outdoor performance.
  • Durable metal construction for added resilience against environmental stressors.

Specifications

• Camera:

  • Sensor: 1/2.7" CMOS, 8MP progressive scan.
  • Lens: 2.8mm fixed, FOV: Wide-angle.
  • Minimum Illumination: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR/White LED.

• Night Vision:

  • Range: Up to 30 meters (98 feet).
  • Technology: IR + White LED.

• Video:

  • Frame Rate: 8MP/4K (3840x2160) at 15fps; lower resolutions at higher frame rates.
  • Video Compression: Ultra 265, H.265, H.264, MJPEG.
  • Triple Streams Supported.

• Audio:

  • Compression: G.711.
  • Built-in microphone for two-way audio.

• Storage:

  • Supports microSD cards up to 256GB.

• Power:

  • Power Supply: DC 12V ±25% or PoE (IEEE 802.3af).
  • Power Consumption: Max 8.5W.

• Environmental:

  • Operating Temperature: -30°C to 60°C (-22°F to 140°F).
  • Humidity: ≤95% RH (non-condensing).

• Dimensions & Weight:

  • Dimensions: 155.9 x 63.1 x 62.7mm (6.1" x 2.5" x 2.5").
  • Weight: 0.425kg (0.93lb).

Applications

This camera is suitable for areas requiring active deterrence and high-resolution monitoring, such as:

• Residential properties.
• Commercial premises.
• Warehouses.
• Parking lots.

What’s in the Box

• UNIVIEW IPC2128SB-ADF28KMC-I0 Camera.
• Mounting Accessories.
• Quick Installation Guide.
• Warranty Card.

Warranty

Enjoy a 36-month warranty, ensuring dependable performance and support.

For detailed specifications, refer to the attached datasheet.

datasheet.
