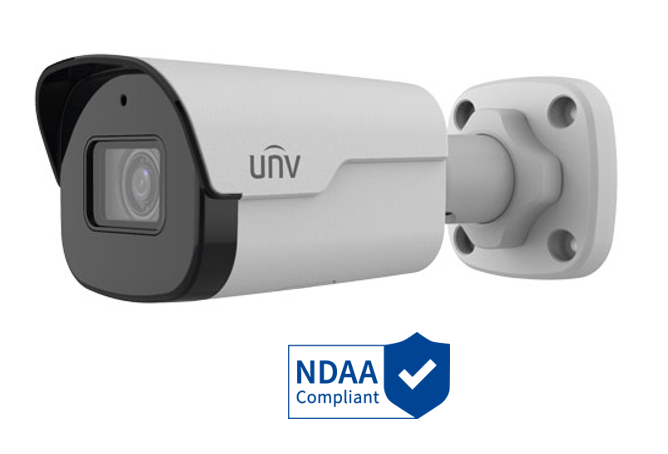

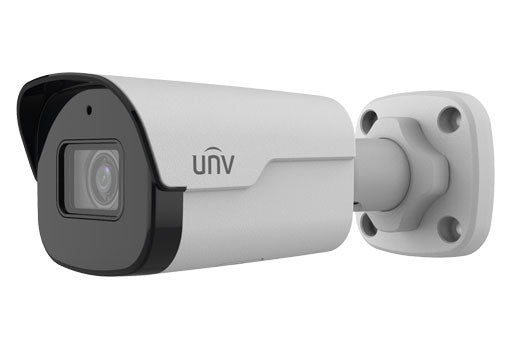

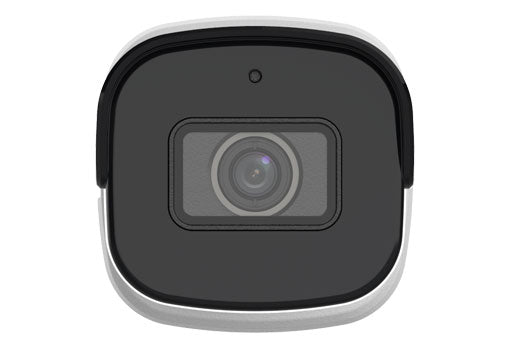

UNIVIEW PRIME-I SERIES IPC2125SB-ADF28KM-I0 5MP Lighthunter Bullet IP CCTV Camera

The UNIVIEW PRIME-I IPC2125SB-ADF28KM-I0 is a robust and versatile 5MP fixed-lens bullet network camera designed for advanced surveillance in diverse environments. Equipped with cutting-edge LightHunter technology and durable construction, it ensures superior image quality in low-light conditions and reliable performance outdoors.

Key Features

• High-Quality Imaging:

  • 5MP resolution (2880x1620) at 25fps, with options for 4MP, 3MP, and Full HD at varying frame rates.
  • LightHunter technology for excellent low-light performance.
  • 120dB true Wide Dynamic Range (WDR) for clarity in challenging lighting.
  • Smart IR night vision with a range of up to 40 meters (131 feet).

• Lens & Field of View:

  • 2.8mm fixed lens with a wide horizontal field of view of 112.7°.
  • Digital Defog technology ensures clear visuals in foggy conditions.

• Compression Technology:

  • Supports Ultra 265, H.265, H.264, and MJPEG for efficient video storage and transmission.
  • Adjustable video bitrates (128 Kbps–16 Mbps) with support for triple video streams.

• Advanced Features:

  • Built-in microphone for audio monitoring.
  • Supports 9:16 corridor mode for optimized vertical monitoring in narrow spaces.
  • Motion detection, privacy masking, and region of interest (ROI) support.

• Durability:

  • IP67 weatherproof rating for outdoor installations.
  • Surge protection up to 2KV and a wide operating temperature range of -30°C to 60°C (-22°F to 140°F).
  • Rugged metal construction for enhanced durability.

• Storage & Networking:

  • Supports up to 256GB microSD card for edge storage.
  • PoE (Power over Ethernet) support for simplified installation and power delivery.
  • Compatible with ONVIF profiles (S, G, T) for seamless integration into existing systems.

Specifications

• Camera Sensor: 1/2.7" CMOS, 5MP progressive scan.
• Night Vision: Smart IR, 850nm wavelength.
• Video Stream: Main, sub, and third streams with adjustable resolutions and frame rates.
• Audio Compression: G.711.
• Power Supply: DC 12V ±25% or PoE (IEEE 802.3af); maximum consumption 5W.
• Material: Metal construction.
• Dimensions: 155.9 × 63.1 × 62.7mm (6.1" × 2.5" × 2.5").
• Weight: 0.425kg (0.93lb).

Applications

Perfect for monitoring outdoor spaces, narrow corridors, and other high-security areas, including:

• Industrial facilities
• Retail stores
• Residential areas
• Public infrastructure

What’s in the Box

• UNIVIEW IPC2125SB-ADF28KM-I0 Camera
• Mounting accessories (compatible mounts include TR-UP06-B-IN, TR-JB05-A-IN, TR-A01-IN).
• Quick Installation Guide
• Warranty Information

Warranty

Backed by a 36-month warranty from UNIVIEW, ensuring reliable performance and customer support.

For further details, refer to the attached datasheet.

datasheet
