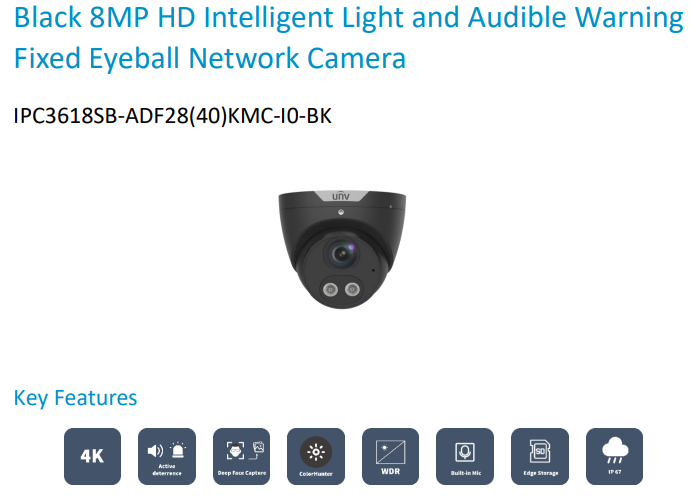

UNIVIEW Prime-I Series 8MP/4K turret IP CCTV Camera Black (IPC3618SB-ADF28KMC-I0-BK)

The UNIVIEW Prime-I Series IP Camera is a high-performance 8MP/4K turret-style security camera with advanced AI capabilities, designed to deliver exceptional image clarity and robust surveillance features for residential, commercial, and industrial use. Encased in a durable metal and plastic hybrid body, this black IP camera offers versatile monitoring solutions with cutting-edge technology.

Key Features

• 8MP Ultra-HD Resolution: Provides crystal-clear video with resolutions up to 4K (3840x2160) at 20fps for detailed surveillance.
• Advanced Image Processing:
  • 120dB True Wide Dynamic Range (WDR) for excellent performance in challenging lighting conditions.
  • LightHunter Technology ensures vibrant color images even in low-light environments.
• AI-Powered Smart Functions:
  • Intelligent intrusion prevention with filters for false alarms (e.g., line crossing, intrusion detection).
  • Face Capture: Automatically detects and selects optimal snapshots for facial recognition.
  • People Counting: Tracks foot traffic and monitors crowd density in specific areas.
• Night Vision:
  • Equipped with IR LEDs and a white light LED providing visibility up to 30 meters (98 feet) in total darkness.
• Built-in Audio: Integrated microphone and speaker enable two-way audio communication.
• Flexible Storage Options: Supports microSD cards up to 256GB, network-attached storage (NAS), and ANR for continuous recording.
• Triple Video Streams: Customize video quality and bitrates for multiple viewing platforms.

Specifications

• Camera Sensor: 1/2.8" CMOS progressive scan with 8MP resolution.
• Lens: 2.8mm fixed lens (F1.6 aperture), offering a 106.7° horizontal field of view.
• Video Compression: Ultra 265, H.265, H.264, and MJPEG for efficient storage and transmission.
• Protection:
  • IP67-rated for complete protection against dust and water ingress.
  • Operates in extreme temperatures (-30°C to 60°C / -22°F to 140°F).
  • Surge protection up to 4kV.
• Power Options: Powered via 12V DC or PoE (IEEE 802.3af) with maximum power consumption of 10.5W.

What's in the Box?

1. UNIVIEW IPC3618SB-ADF28KMC-I0-BK Turret Camera (Black)
2. User Manual
3. Mounting Hardware
4. Waterproof Cable Joint

Certifications

• EMC: FCC, EN 55032, EN 55024
• Safety: IEC 62368-1, UL 62368-1
• Environmental Compliance: CE-ROHS, WEEE, REACH

Applications

Ideal for deployment in:

• Homes and small businesses.
• High-traffic areas such as malls and airports.
• Industrial facilities needing robust and intelligent surveillance.

Warranty

Comes with a 36-month manufacturer's warranty, ensuring reliability and peace of mind.

This versatile and robust camera integrates seamlessly into your existing surveillance system, delivering reliable, high-quality monitoring with intelligent features to elevate your security infrastructure.

Datasheet
