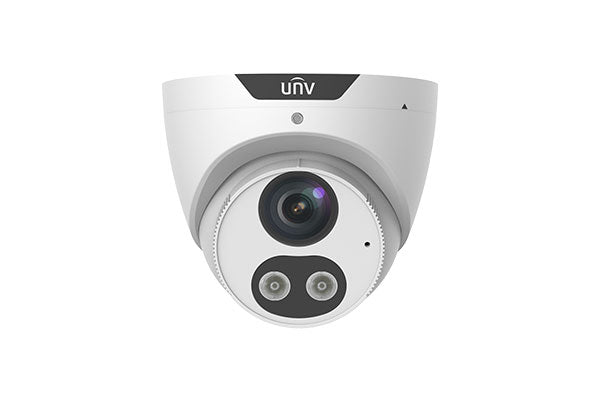

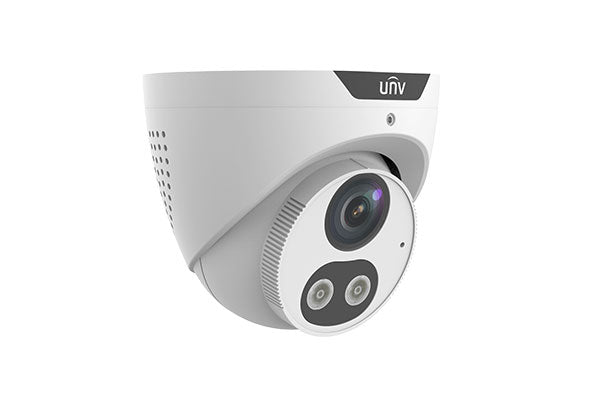

Uniview PRIME-I Series 8MP/4K Triguard IP Camera (IPC3618SB-ADF28KMC-I0)

The Uniview PRIME-I Series IPC3618SB-ADF28KMC-I0 Triguard Turret Camera is a state-of-the-art surveillance solution, combining high-resolution 8MP/4K imaging, advanced analytics, and active deterrence features. Its LightHunter technology ensures excellent low-light performance, while the integrated smart alarms and robust construction make it ideal for high-security applications in residential, commercial, and industrial settings.

Key Features:

• 4K Ultra HD Imaging:

  • 8MP resolution (3840x2160) at 20fps for ultra-clear video.
  • Other resolution options: 5MP (3072x1728), 4MP (2560x1440), 2MP (1920x1080) at up to 30fps.

• LightHunter and Smart IR Technology:

  • Exceptional low-light performance with LightHunter technology.
  • IR and white LED illumination up to 30m (98 ft) for effective night vision.

• Triguard Active Deterrence:

  • Sound and light alarm linkage activates when intrusion detection is triggered.
  • Built-in speaker for audible warnings.

• AI-Driven Intelligence:

  • Smart intrusion prevention with filtering for false alarms.
  • Face capture and detection with auto-selection of the best snapshots.
  • People counting and crowd density monitoring for statistical analysis.

• Durable and Compact Design:

  • IP67-rated for water and dust resistance.
  • IK10-rated vandal-resistant construction.

• Enhanced Features:

  • Built-in microphone and speaker for two-way audio.
  • Edge storage supports up to 256GB MicroSD card.
  • PoE (IEEE 802.3af) and 12V DC power options.

Specifications:

Camera:

• Sensor: 1/2.8" CMOS, 8MP progressive scan.
• Lens: Fixed 2.8mm, F1.6 aperture.
• Field of View:
  • Horizontal: 106.7°.
  • Vertical: 57.1°.
  • Overall: 115.7°.
• DORI Distances:
  • Detect: 86.9m.
  • Observe: 34.8m.
  • Recognize: 17.4m.
  • Identify: 8.7m.

Video:

• Compression: Ultra265, H.265, H.264, MJPEG.
• Frame Rates:
  • Main stream: Up to 8MP @ 20fps.
  • Sub and third streams: Up to 1080P @ 30fps.
• Features:
  • Privacy masking (up to 4 areas).
  • Region of Interest (ROI) for up to 8 areas.

Audio:

• Two-Way Audio: Supported via built-in mic and speaker.
• Audio Compression: G.711.

AI Analytics:

• Smart Intrusion Prevention: Includes cross-line, intrusion, area entry/exit detection.
• Face Capture: Supports masked area detection and optimal snapshot selection.
• People Counting: Suitable for tripwire and area-based counting.

Power and Network:

• Power Consumption: Max 10.5W.
• Power Supply: PoE or 12V DC.
• Network Protocols: Supports IPv4, RTSP, HTTPS, SNMP, and more.

Durability:

• Material: Plastic and metal construction.
• Weatherproof: IP67.
• Vandal Resistance: IK10.
• Operating Conditions:
  • Temperature: -30°C to 60°C (-22°F to 140°F).
  • Humidity: ≤95% RH (non-condensing).

Physical Details:

• Dimensions: Φ111 x 95mm (Φ4.4” x 3.7”).
• Weight: 0.48kg (1.058 lb).

Accessories (Sold Separately):

• Mounting Options:
  • Junction Box: TR-JB03-G-IN.
  • Wall Mount: TR-WM03-D-IN.
  • Ceiling Mount: TR-UM06-E-IN.

Certifications:

• EMC: FCC, CE.
• Safety: UL, IEC.

Warranty:

• 36-month manufacturer warranty for reliable performance.

The Uniview IPC3618SB-ADF28KMC-I0 Triguard Camera delivers superior 8MP imaging, proactive security features, and advanced analytics, making it a top choice for professional surveillance applications.

Datasheet
