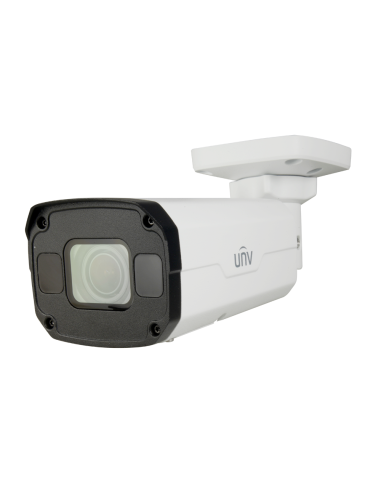

Uniview PRIME-I Series 8MP/4K LightHunter IR VF Bullet Camera (IPC2328SB-DZK-I0)

The Uniview PRIME-I IPC2328SB-DZK-I0 is a high-resolution bullet network camera featuring 8MP/4K imaging, motorized zoom, and advanced AI capabilities. Its rugged design, LightHunter technology, and long-range IR illumination make it ideal for demanding surveillance environments such as large outdoor areas and high-traffic zones.

Key Features:

• 4K Ultra HD Imaging:

  • 8MP resolution (3840x2160) at 20fps, delivering sharp, detailed video.
  • Alternative resolutions: 5MP, 4MP, and 1080P at up to 30fps.

• Motorized Zoom Lens:

  • 2.8–12mm motorized lens with autofocus and 4X optical zoom.
  • Horizontal Field of View: 107.4° to 29.2°.

• Exceptional Low-Light Performance:

  • LightHunter technology for vivid color images in low-light conditions.
  • Smart IR illumination with a range of up to 50m (164 ft).

• AI-Driven Analytics:

  • Smart intrusion prevention, including cross-line detection and area entry/exit alerts.
  • Advanced people counting and crowd density monitoring.

• Built-In Alarm and Audio Integration:

  • 1 alarm input and 1 alarm output for external device control.
  • 1 audio input and 1 audio output for two-way communication.

• Durable Design:

  • IP67-rated for weatherproofing and IK10-rated for vandal resistance.
  • Metal housing ensures durability in harsh environments.

Specifications:

Camera:

• Sensor: 1/2.8" CMOS, 8MP progressive scan.
• Lens: Motorized 2.8–12mm with autofocus.
• DORI Distances:
  • Detect: 86.9–372.4m.
  • Observe: 34.8–149.0m.
  • Recognize: 17.4–74.5m.
  • Identify: 8.7–37.2m.

Video:

• Compression: Ultra265, H.265, H.264, MJPEG.
• Frame Rates:
  • Main Stream: Up to 8MP @ 20fps.
  • Sub and Third Streams: Up to 1080P @ 30fps.
• Features:
  • Triple streaming.
  • Privacy masking for up to 4 areas.
  • Region of Interest (ROI) for up to 8 areas.

Audio:

• Input/Output:
  • Input: 1 channel (35kΩ).
  • Output: 1 channel (600Ω).

Power and Connectivity:

• Power Options: PoE (IEEE 802.3af) or 12V DC.
• Power Consumption: Max 10.5W.
• Network Protocols: IPv4/IPv6, RTSP, HTTPS, SNMP, and more.

Durability:

• Ingress Protection: IP67-rated for water and dust resistance.
• Vandal Resistance: IK10-rated for tamper-proof performance.
• Operating Temperature: -30°C to 60°C (-22°F to 140°F).
• Surge Protection: 6KV.

Physical Details:

• Dimensions: 245 × 86 × 72mm (9.6” × 3.4” × 2.8”).
• Weight: 0.92kg (2.03 lb).

Accessories (Sold Separately):

• Mounting Options:
  • Junction Box: TR-JB07-D-IN, TR-JB06-A-IN.
  • Pole Mount: TR-UP06-B-IN, TR-UP06-C-IN.
  • Waterproof Joint: TR-A01-IN.

Certifications:

• EMC: CE, FCC.
• Safety: UL, IEC.
• Environmental: RoHS, WEEE.

Warranty:

• 36-month manufacturer warranty for long-term reliability.

The Uniview IPC2328SB-DZK-I0 provides high-performance surveillance with advanced AI analytics, motorized zoom, and robust construction, making it an excellent choice for professional-grade security solutions.
