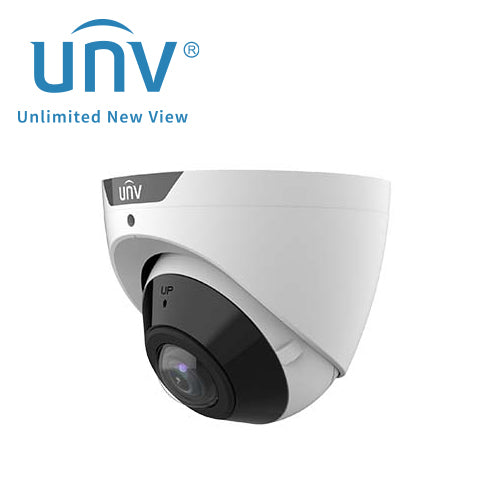

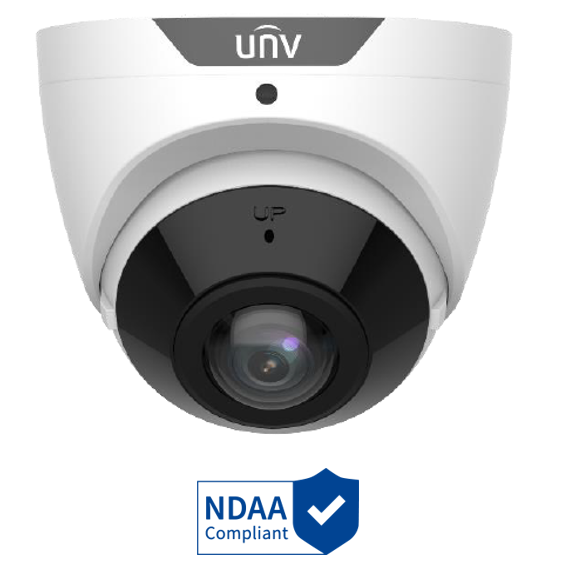

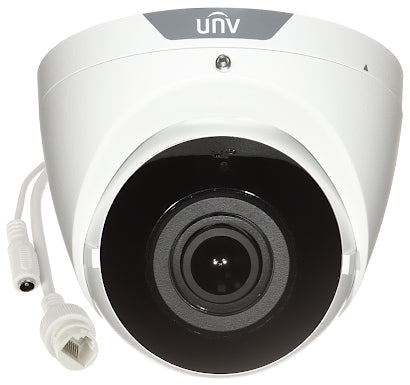

Uniview PRIME-I Series 5MP Panoramic IP Camera (IPC3605SB-ADF16KM-I0)

The Uniview PRIME-I Series IPC3605SB-ADF16KM-I0 is a cutting-edge panoramic surveillance camera designed for wide-area monitoring. Featuring a 180° field of view, 5MP resolution, intelligent IR night vision, and advanced analytics, this camera is ideal for securing large spaces with minimal blind spots. Its rugged construction ensures reliable performance in demanding environments.

Key Features:

• Panoramic Viewing:

  • 180° horizontal and overall field of view with 1.68mm fixed lens.
  • Dewarping technology adjustable across 1-9 levels for distortion-free images.

• High-Resolution Imaging:

  • 5MP 1/2.7" CMOS sensor with resolutions up to 2880 x 1620 at 30fps.
  • 120dB true WDR for clarity in high-contrast lighting scenarios.

• Intelligent IR Night Vision:

  • Smart IR technology with a range of up to 20m (66ft).
  • Automatic or manual IR control for precise illumination.

• Advanced Analytics:

  • Smart intrusion prevention, including cross-line, intrusion, enter/leave area detection.
  • AI filtering reduces false alarms caused by environmental factors like leaves, birds, and lights.

• Durable Design:

  • IP67-rated for water and dust resistance.
  • IK10-rated for vandal resistance, making it suitable for high-risk areas.

• Audio Support:

  • Built-in microphone for audio monitoring and recording.

• Storage Options:

  • Supports edge storage with up to 256GB MicroSD cards.

• Power Options:

  • Compatible with PoE (IEEE 802.3af) or 12V DC power supply.

Specifications:

Camera:

• Lens: 1.68mm fixed lens, F2.0 aperture.
• Field of View:
  • Horizontal: 180°.
  • Vertical: 100°.
  • Overall: 180°.
• DORI Distances:
  • Detect: 37.8m.
  • Observe: 15.1m.
  • Recognize: 7.6m.
  • Identify: 3.8m.

Video:

• Compression: Ultra265, H.265, H.264, MJPEG.
• Streams: Triple streaming supported.
• Frame Rates: Up to 30fps for 5MP, 4MP, 1080P, and lower resolutions.
• Smart Features:
  • Privacy masking for up to 4 areas.
  • Region of Interest (ROI) for up to 8 areas.

Audio:

• Compression: G.711U, G.711A with noise suppression.
• Bitrate: 64 Kbps.

Network:

• Protocols: IPv4/IPv6, IGMP, ARP, TCP, UDP, DHCP, RTSP, HTTP/HTTPS, SNMP, and more.
• Compatibility: ONVIF (Profiles S, G, and T), API, SDK.
• Users: Up to 32 users with 3 user levels (administrator, operator, common user).

Durability:

• Protection Ratings: IP67 and IK10.
• Operating Conditions:
  • Temperature: -30°C to 60°C (-22°F to 140°F).
  • Humidity: ≤95% RH (non-condensing).

Power:

• Consumption: Max 5.5W.
• Options: PoE or 12V DC.

Physical:

• Dimensions: Φ111 x 93mm (Φ4.4” x 3.7”).
• Weight: 0.48kg (1.06 lb).
• Material: Metal housing for enhanced durability.

Accessories (Sold Separately):

• Mounting Options:
  • TR-JB03-G-IN (Junction Box).
  • TR-WM03-D-IN (Wall Mount).
  • TR-UP06-IN (Ceiling Mount).

Certifications:

• EMC: CE, FCC.
• Safety: UL, IEC.
• Environmental: CE-RoHS, WEEE.

Warranty:

• 36-month manufacturer warranty for reliable performance and support.

The Uniview PRIME-I Series IPC3605SB-ADF16KM-I0 offers unparalleled panoramic coverage, robust design, and intelligent monitoring features, making it an ideal choice for large areas such as parking lots, open-plan offices, or public spaces.

Datasheet
