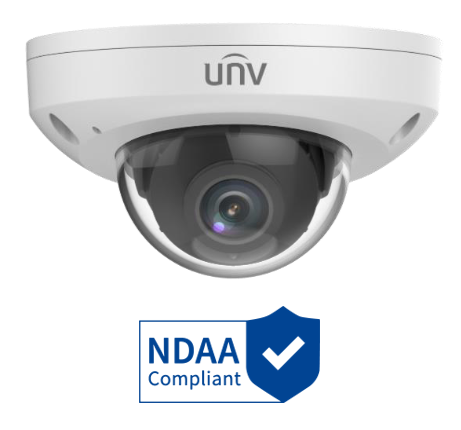

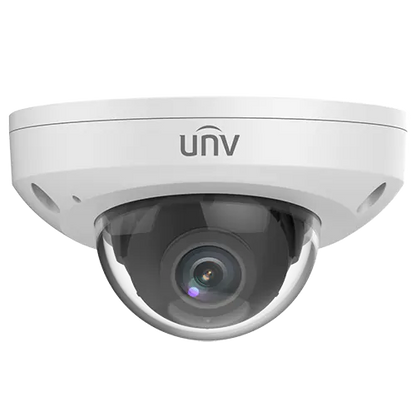

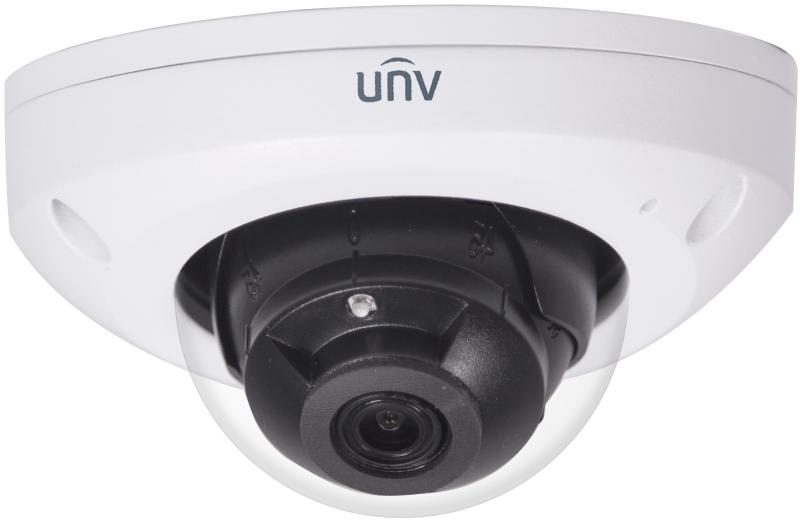

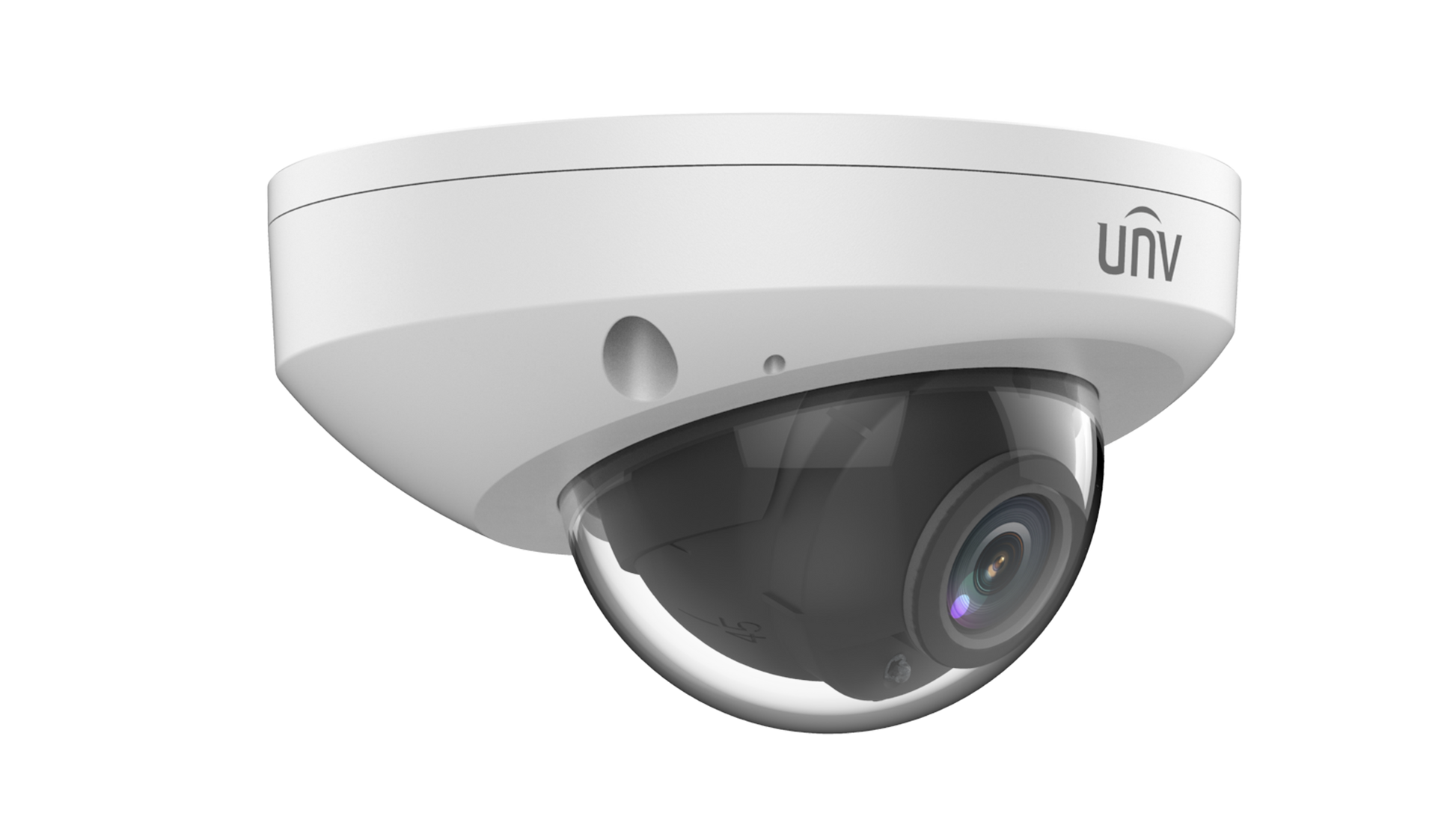

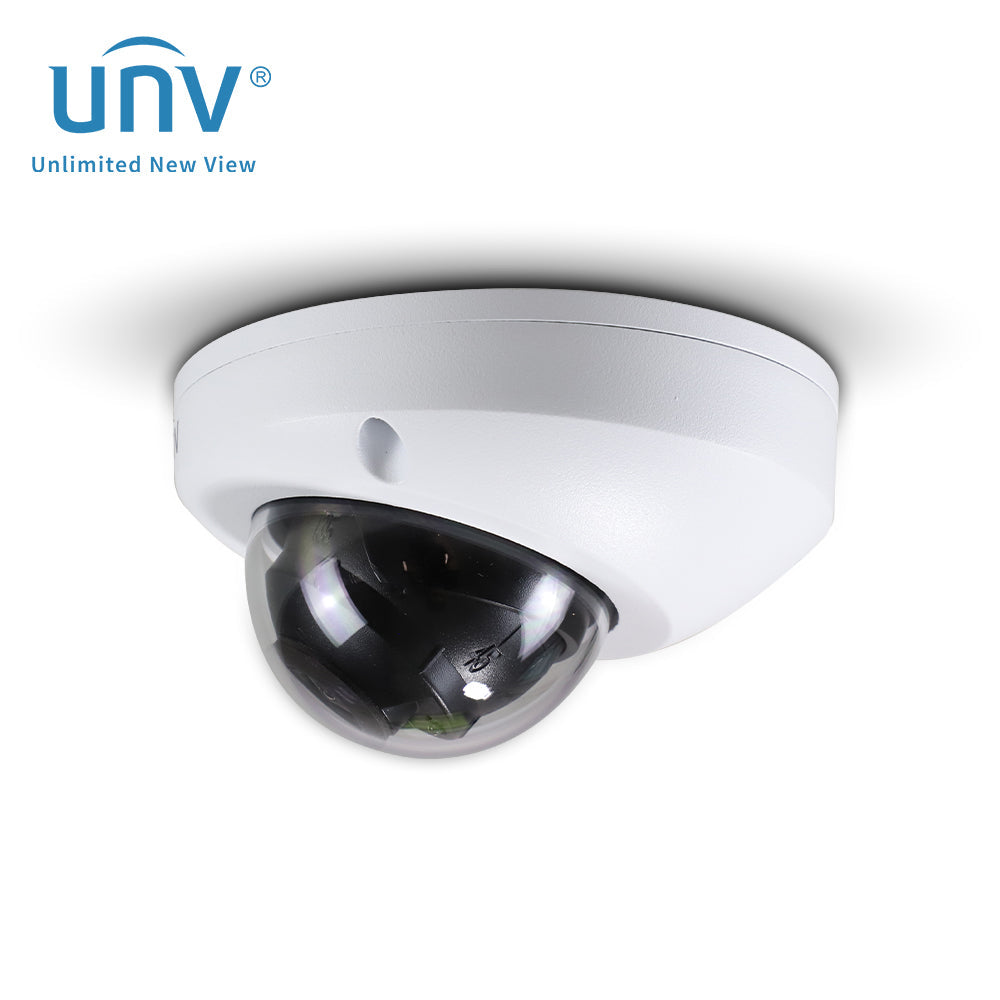

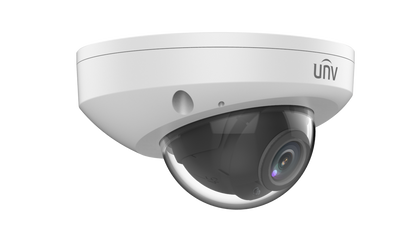

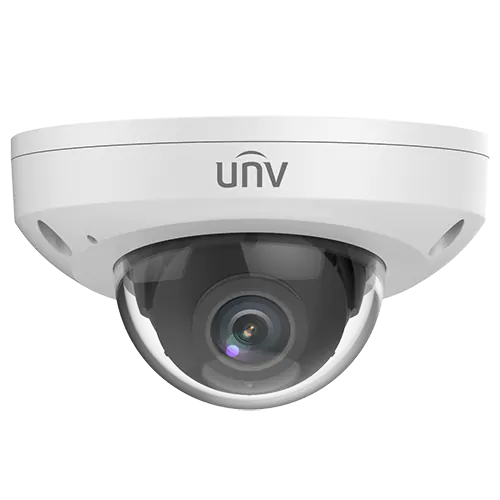

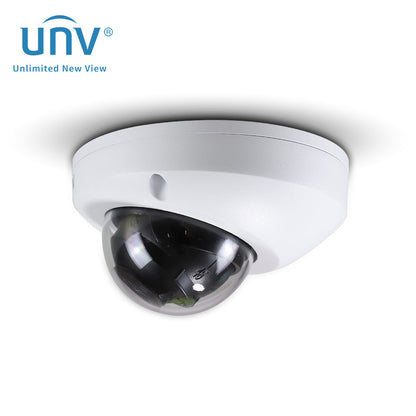

Uniview PRIME-I Series 4MP LightHunter IR Fixed Mini Dome Camera (IPC314SB-ADF28K-I0)

The Uniview PRIME-I IPC314SB-ADF28K-I0 LightHunter Mini Dome Camera combines high-resolution imaging, intelligent analytics, and robust durability. Its compact design, advanced night vision, and AI-powered intrusion prevention make it ideal for discreet yet powerful surveillance in commercial, residential, or industrial environments.

Key Features:

• Superior Imaging:

  • 4MP resolution (2688x1520) at up to 25fps.
  • LightHunter technology for exceptional low-light performance.
  • True 120dB WDR for clear images in high-contrast lighting.

• Night Vision:

  • Smart IR illumination with a range of up to 30m (98ft).
  • IR wavelength: 850nm.

• Advanced Analytics:

  • AI-driven perimeter protection for detecting cross line, intrusion, and area entry/exit.
  • Smart intrusion prevention to reduce false alarms from environmental triggers.

• Compact and Durable Design:

  • Mini dome "UFO" design with IK10 vandal resistance.
  • IP67-rated for protection against water and dust.

• Audio Capabilities:

  • Built-in microphone for audio monitoring.
  • 1 input/1 output for two-way audio capabilities.

• Flexible Storage and Integration:

  • Supports edge storage with MicroSD cards up to 256GB.
  • Compatible with ONVIF (Profiles S, G, T) and third-party integrations.

Specifications:

Camera:

• Sensor: 1/3", 4MP CMOS, progressive scan.
• Lens: Fixed 2.8mm lens, F1.6 aperture.
• Field of View:
  • Horizontal: 101.1°.
  • Vertical: 55.3°.
  • Overall: 111.1°.
• DORI Distances:
  • Detect: 63m.
  • Observe: 25.2m.
  • Recognize: 12.6m.
  • Identify: 6.3m.
• Day/Night: IR-cut filter with automatic switching.

Video:

• Compression: Ultra 265, H.265, H.264, MJPEG.
• Frame Rates:
  • Main stream: Up to 4MP @ 25fps.
  • Sub and third streams: Up to 720P @ 30fps.
• Smart Features:
  • Privacy masking: Up to 4 areas.
  • Region of Interest (ROI): Up to 8 areas.

Audio:

• Built-in Mic: Yes.
• Audio I/O: 1 input/1 output.

Power:

• Power Supply: PoE (IEEE 802.3af) or 12V DC.
• Power Consumption: Max 6W.

Durability:

• Material: Metal and plastic construction.
• Protection Ratings:
  • IP67 (dust and water-resistant).
  • IK10 (vandal-resistant).
• Operating Conditions: -30°C to 60°C (-22°F to 140°F), ≤95% RH.

Network and Storage:

• Edge Storage: MicroSD slot supporting up to 256GB.
• Network Protocols: IPv4, RTP, RTSP, HTTPS, SNMP, and more.

Physical Details:

• Dimensions: Φ110 x 61mm (Φ4.3” x 2.4”).
• Weight: 0.37kg (0.82 lb).

Accessories (Sold Separately):

• Mounting Options:
  • Junction Box: TR-JB03-G-IN.
  • Wall Mount: TR-WM03-D-IN.
  • Ceiling Mount: TR-UM06-E-IN.

Certifications:

• Safety: UL 60950-1, CE.
• Environmental: RoHS, WEEE.

Warranty:

• 36-month manufacturer warranty for reliable performance and peace of mind.

The Uniview PRIME-I IPC314SB-ADF28K-I0 offers high-quality imaging, AI-driven intelligence, and a durable design, making it an excellent choice for secure and efficient surveillance applications.

Datasheet
