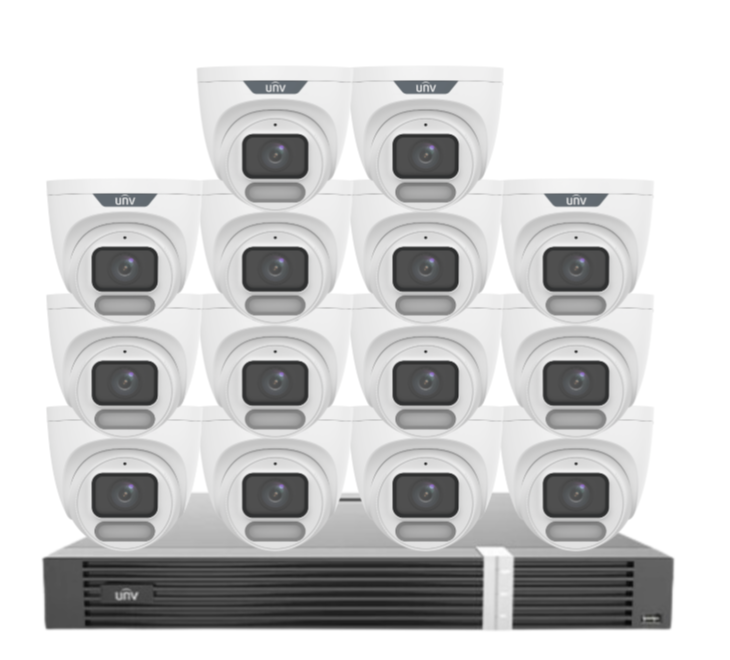

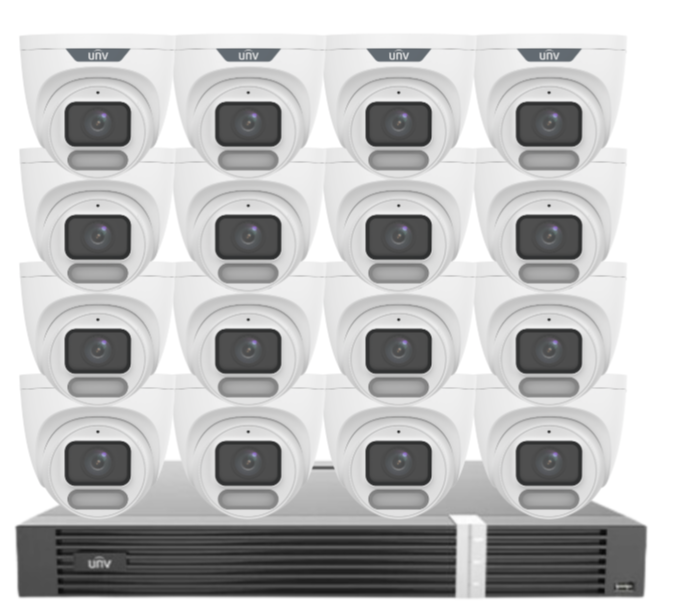

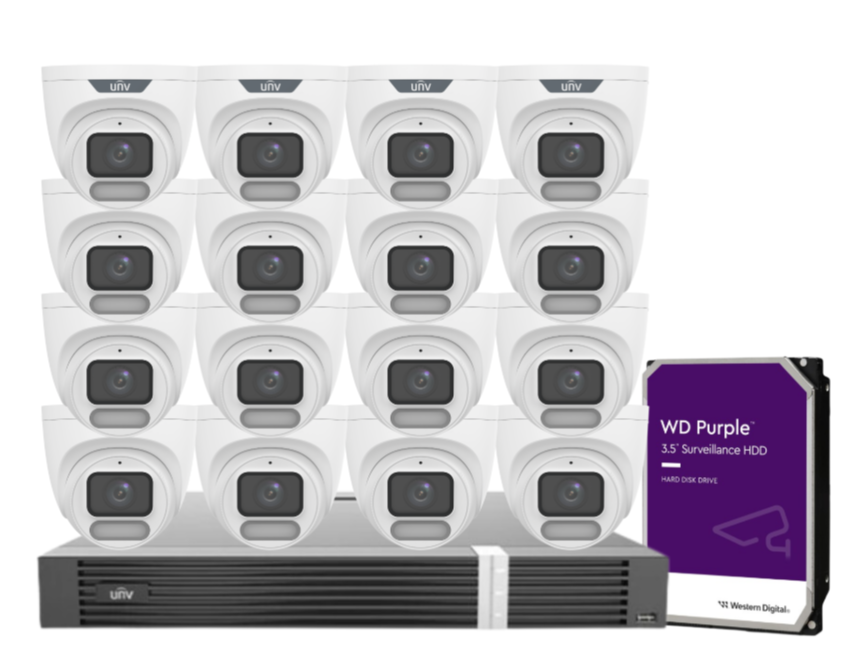

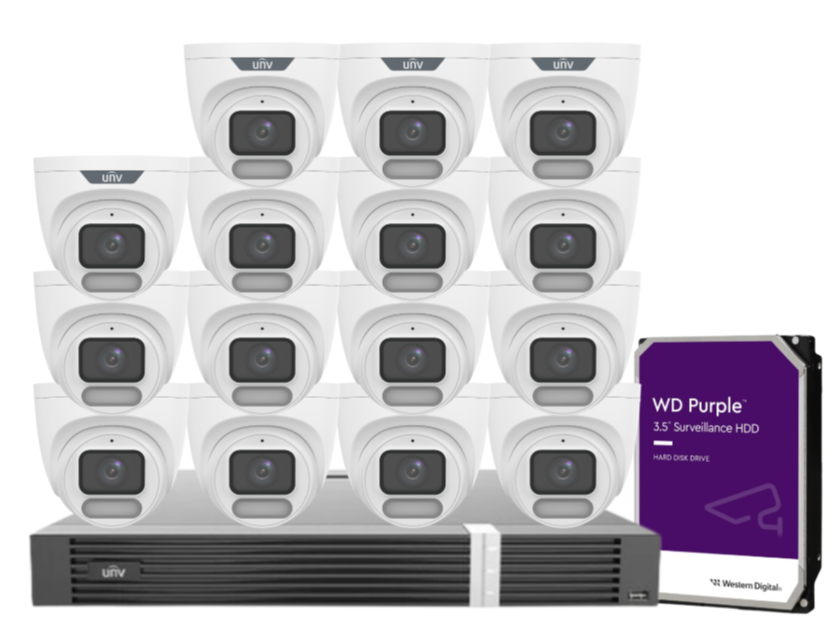

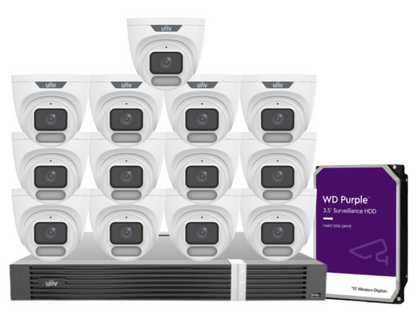

Uniview OWLVIEW 8MP 4K Surveillance Kit – 16x Full-Color Turret Cameras + 16-Channel AI NVR with HDD| IPC3628LE-ADF28K-WP + NVR302-16E2-P16-IQ 0235C6QW | ColorHunter | PoE | Ultra 265

Elevate your enterprise-grade surveillance with the Uniview OWLVIEW 16-Camera CCTV Kit, expertly combining sixteen 8MP full-color IPC3628LE-ADF28K-WP turret cameras and the powerful NVR302-16E2-P16-IQ 0235C6QW 16-channel AI NVR. Ideal for large commercial properties, public infrastructure, schools, hospitals, or high-security environments, this solution delivers unmatched clarity, scalability, and reliability.

The cameras feature ColorHunter technology, an ultra-fast F1.0 lens, and Wise-ISP processing, enabling continuous full-color video even in ultra-low light conditions (down to 0.0003 lux). Each turret camera includes smart analytics like motion detection, tamper alerts, and intrusion detection, making it highly effective for proactive security monitoring.

The AI-enabled NVR302-16E2-P16-IQ is equipped with 16 PoE ports, dual SATA interfaces supporting up to 20TB of storage, and real-time 4K HDMI output. It supports advanced AI functions, Ultra 265/H.265 compression, and ANR (Automatic Network Replenishment) to prevent footage loss during disconnections.

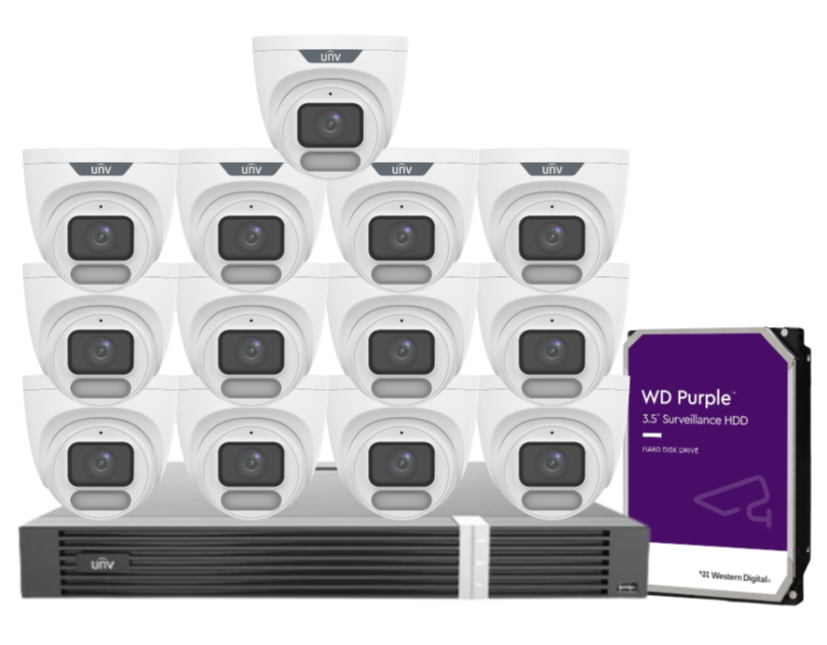

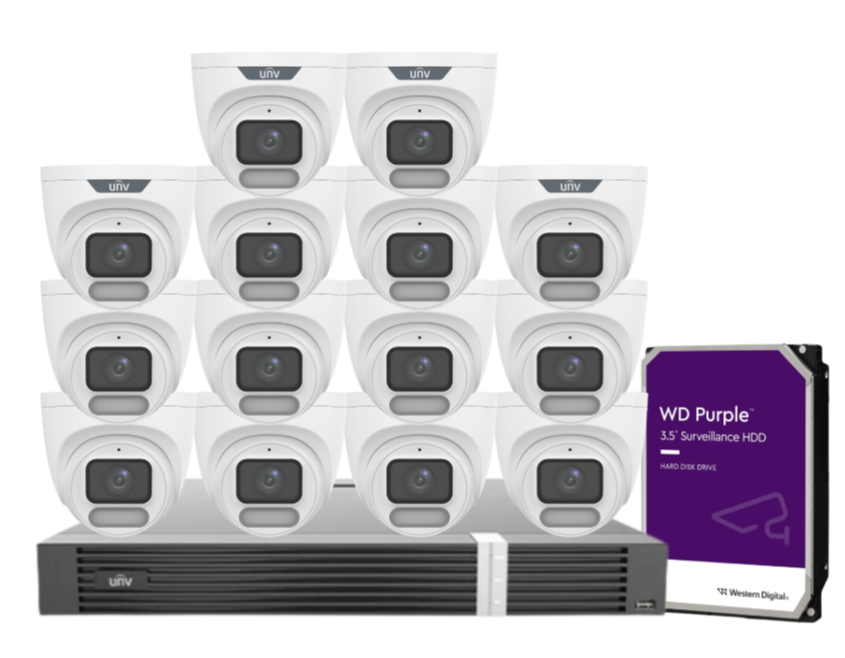

What's Included in the Box

• 16x Uniview IPC3628LE-ADF28K-WP 8MP OWLVIEW Turret Cameras (2.8mm Fixed Lens)

• 1x Uniview NVR302-16E2-P16-IQ 0235C6QW 16-Channel AI Network Video Recorder

• 1x Surveillance-Grade HDD (Choose your HDD below)

• Installation Manuals and Quick Start Guides

• 1x Warranty Card

Main Features

IPC3628LE-ADF28K-WP Turret Cameras:

• 8MP (4K) resolution with 1/1.8" CMOS sensor

• F1.0 ultra-large aperture for ultra-low light performance

• Full-color night imaging with ColorHunter & Wise-ISP

• Built-in warm white light up to 30 meters

• True WDR (120dB) for high-contrast scenes

• PoE support and up to 512GB microSD local recording

• Audio monitoring via built-in microphone

• Intelligent detection: motion, tampering, intrusion, crossline

• IP67-rated for outdoor use

• Ultra 265/H.265/H.264/MJPEG compression

NVR302-16E2-P16-IQ 0235C6QW 16-Channel AI NVR:

• 16 PoE camera inputs with plug-and-play functionality

• 2 SATA HDD bays supporting up to 10TB each

• Supports Ultra 265, H.265, H.264 formats

• 12MP max recording resolution

• 4K HDMI and 1080p VGA simultaneous output

• AI capabilities: face, vehicle detection, people counting

• ANR for data continuity during network outages

• Cloud firmware upgrade support

• Remote access for up to 128 users

• Synchronous playback for up to 16 channels

Detailed Specifications

Camera – IPC3628LE-ADF28K-WP

• Sensor: 1/1.8” CMOS

• Resolution: 8MP (3840x2160) @ 20fps

• Lens: 2.8mm, F1.0

• View Angle: 111° (H) × 63° (V)

• Minimum Illumination: 0.0003 lux (Color)

• Night Vision: 30m warm white LED

• Storage: Up to 512GB microSD, NAS, ANR

• Audio: Built-in mic

• Ingress Protection: IP67

• Power: PoE (IEEE 802.3af) or 12V DC

• Dimensions: Ø118 × 106 mm

• Weight: 0.48 kg

NVR – NVR302-16E2-P16-IQ 0235C6QW

• Video Input: 16 IP channels

• PoE Ports: 16 (30W/port)

• Recording Resolution: Up to 12MP

• AI Bandwidth (Input/Output): 160Mbps

• Playback: Up to 16 channels

• Video Outputs: HDMI (4K), VGA (1080p)

• HDD: 2x SATA interfaces (10TB each)

• Audio In/Out: 1-ch RCA input/output

• Browser Support: IE10+, Chrome, Firefox, Edge

• Protocols: ONVIF (S/G/T), RTSP, HTTPS, P2P, SNMP

Warranty Information

• Cameras: 1-Year Manufacturer Warranty

• NVR: 3-Year Manufacturer Warranty
  Service is processed via authorized Uniview channels, ensuring genuine parts and quick support.

Brand Description
Uniview is a global leader in smart video surveillance, offering highly scalable and reliable solutions across various industries. The OWLVIEW series represents Uniview's commitment to high-performance, AI-powered security, combining advanced optics, intelligent processing, and durable builds.

SKU

• Cameras: IPC3628LE-ADF28K-WP-SEC

• Recorder: NVR302-16E2-P16-IQ 0235C6QW

Practical Use Scenarios

• Government buildings and transport depots

• Multi-level commercial properties

• Large school campuses and universities

• Secure warehouse or distribution hubs

• Healthcare facilities and hospital grounds

• High-end residential estate perimeter coverage

Datasheets & Downloads

• Camera Datasheet – IPC3628LE-ADF28K-WP

• NVR Datasheet – NVR302-16E2-P16-IQ

Excellence for the Australian and New Zealand Market
This kit is fully compliant with Australian and New Zealand regulatory standards, offering NDSS certification and an IP67 rating for reliable outdoor performance. Specifically optimized for local network conditions, this system ensures seamless connectivity and integration with regional ISPs and NBN infrastructure.

All components are exclusively sourced from authorized Uniview representatives, with full manufacturer warranty and support handled locally in AU/NZ. Designed to meet professional installer expectations, this kit supports regulation-aligned deployment in any commercial, government, or enterprise setting.

Frequently Asked Questions (FAQs)

Q1: Does the IPC3628LE-ADF28K-WP-SEC camera support full-color night vision?
A: Yes, the IPC3628LE-ADF28K-WP-SEC features ColorHunter and built-in warm LED lighting to capture full-color video even in ultra-low light.

Q2: How many PoE cameras can be connected to the NVR302-16E2-P16-IQ 0235C6QW?
A: The NVR302-16E2-P16-IQ 0235C6QW supports up to 16 cameras via its 16 PoE ports.

Q3: What is the total supported storage of the NVR302-16E2-P16-IQ 0235C6QW?
A: The NVR features 2 SATA interfaces, each supporting up to 10TB, for a total of 20TB capacity.

Q4: Is remote viewing supported?
A: Yes, the NVR302-16E2-P16-IQ 0235C6QW allows up to 128 simultaneous remote users via browser or mobile apps.

Q5: Are the cameras weatherproof for outdoor use?
A: Absolutely. The IPC3628LE-ADF28K-WP-SEC is IP67-rated, ideal for all-weather installations.

Q6: What video resolutions does the NVR support?
A: It supports resolutions up to 12MP for recording and 4K HDMI output for display.

Q7: Does the NVR support AI features?
A: Yes, the NVR302-16E2-P16-IQ 0235C6QW includes AI functions such as face detection, vehicle recognition, and people counting.

Q8: What is the warranty period for the NVR302-16E2-P16-IQ 0235C6QW?
A: This model is backed by a 36-month (3-year) manufacturer warranty.
