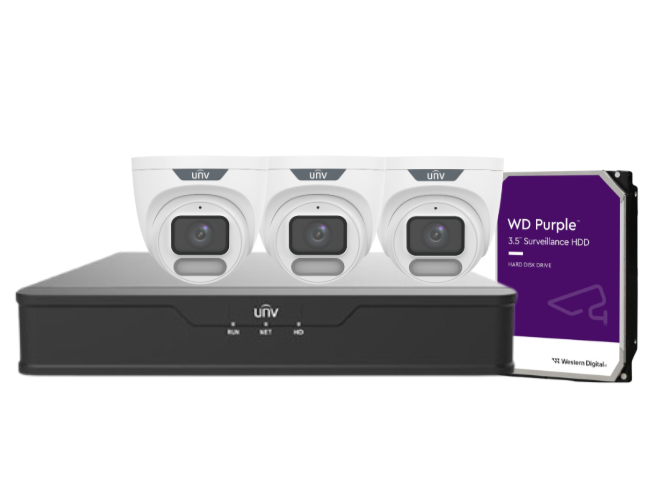

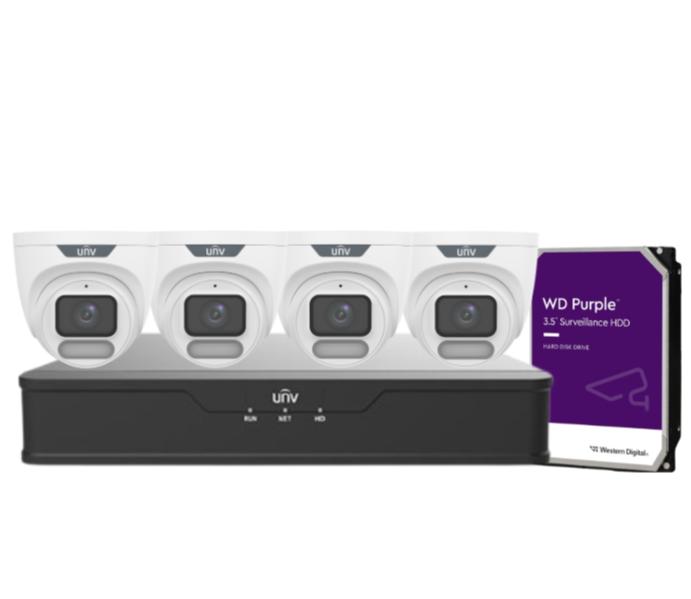

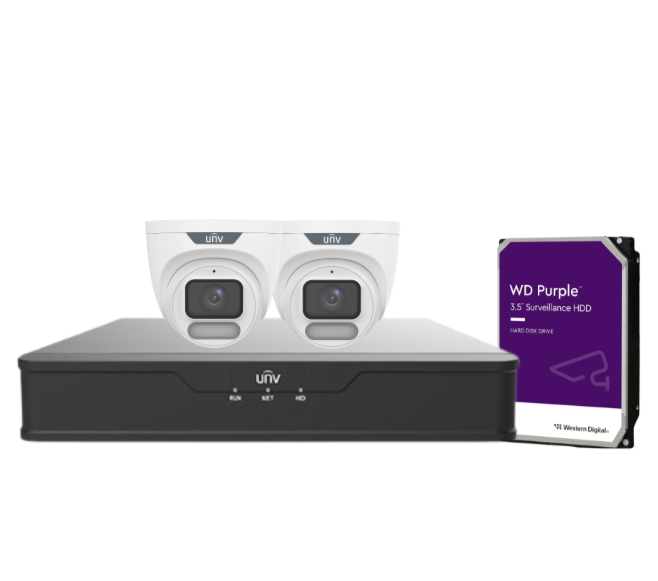

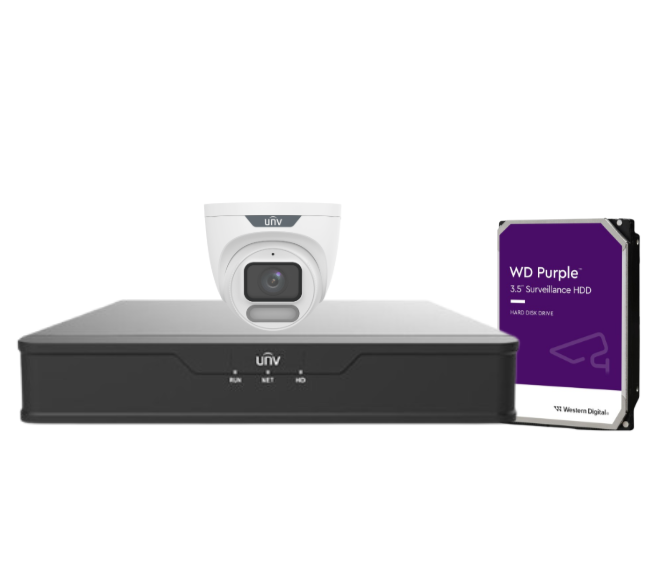

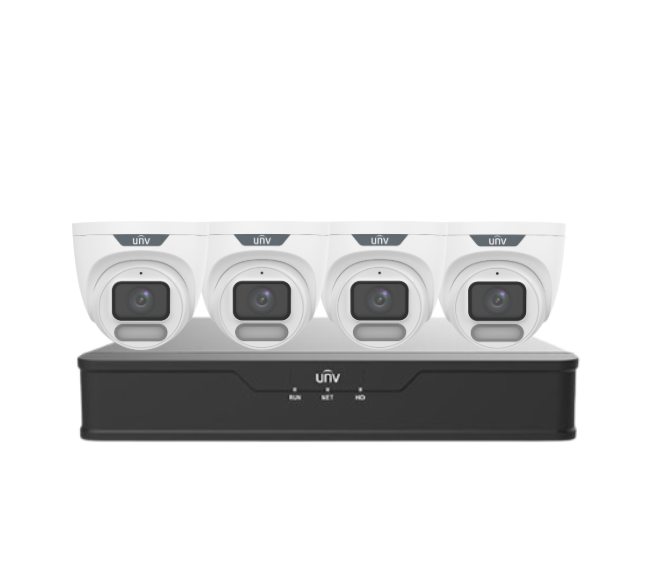

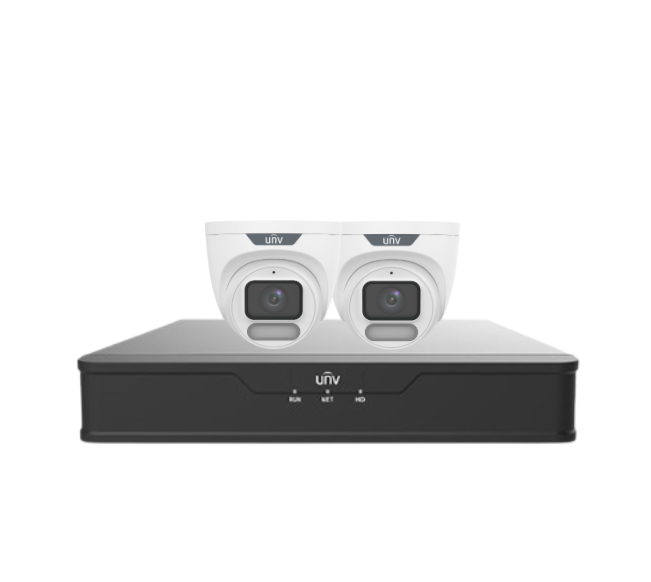

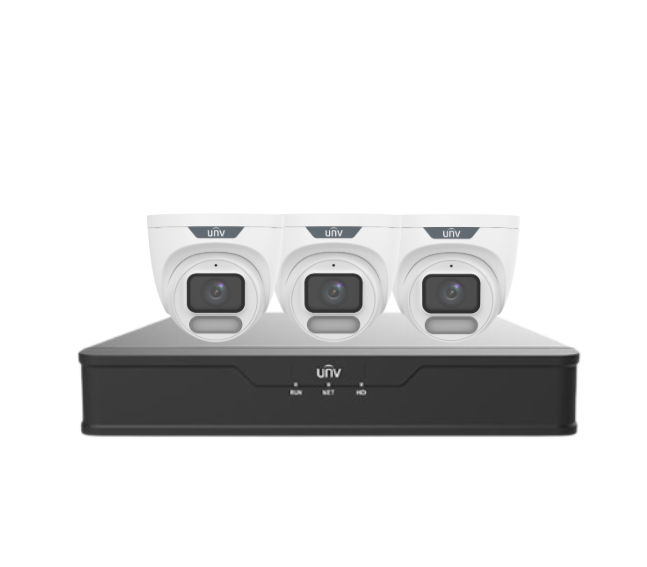

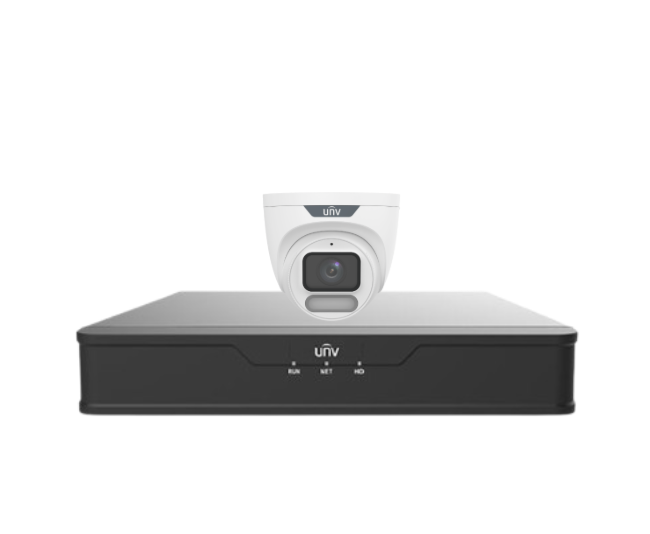

Uniview OWLVIEW 8MP 4K CCTV Kit with 4x Turret Cameras & 4-Channel PoE NVR – ColorHunter, Wise-ISP, HDD Included | IPC3628LE-ADF28K-WP + NVR301-04B-P4-IQ

Secure your property with the Uniview OWLVIEW 4-Camera CCTV Kit, featuring four powerful 8MP turret cameras and a robust 4-channel PoE NVR. Designed for uncompromising clarity and reliability, each IPC3628LE-ADF28K-WP camera captures vivid 4K ultra-HD footage in full color—even in low light—thanks to ColorHunter and Wise-ISP technologies.

Paired with the Uniview NVR301-04B-P4-IQ, this surveillance system supports high-efficiency video encoding (Ultra 265/H.265) for maximum storage and smooth remote playback. With PoE plug-and-play connectivity, on-board microSD support up to 512GB per camera, and ONVIF compliance, the kit is ideal for fast deployment in residential, commercial, and public environments.

Perfect for new installations or system upgrades, this complete solution offers powerful security features including smart detection, IP67-rated durability, and built-in microphones for audio capture.

What’s Included in the Box

• upto 4x Uniview IPC3628LE-ADF28K-WP 8MP OWLVIEW Turret Cameras (2.8mm lens)

• 1x Uniview NVR301-04B-P4-IQ 4-Channel PoE Network Video Recorder

• 1x Surveillance-grade HDD (Choose your HDD below)

• User Manuals & Quick Installation Guides

• 1x Warranty Card

Main Features
Cameras (IPC3628LE-ADF28K-WP):

• 8MP 4K resolution (3840x2160) with 1/1.8” CMOS sensor

• Full-color 24/7 imaging using F1.0 lens, ColorHunter & Wise-ISP

• 120dB True WDR for high-contrast lighting environments

• Built-in 30m warm white illuminator

• IP67-rated for outdoor durability

• MicroSD storage up to 512GB

• PoE for easy power and data transmission

• Built-in microphone for real-time audio monitoring

• Intelligent detection: motion, tampering, intrusion, crossline

NVR (NVR301-04B-P4-IQ):

• Supports up to 4 IP cameras

• Ultra 265, H.265, H.264 compression

• 4 independent PoE ports for plug-and-play camera setup

• HDMI & VGA output up to 4K@30Hz

• Up to 12MP recording resolution

• ANR technology for continuous recording during network outages

• Cloud upgrade and remote access support

Detailed Specifications

Camera – IPC3628LE-ADF28K-WP

• Sensor: 1/1.8” CMOS

• Max Resolution: 8MP (3840x2160) @ 20fps

• Lens: 2.8mm fixed, F1.0 aperture

• View Angle: 111° (H) x 63° (V)

• Min Illumination: 0.0003 lux (Color)

• Night Vision: Warm white light, 30m

• Storage: Up to 512GB microSD, NAS

• Power: DC 12V ±25%, PoE (IEEE 802.3af)

• Protection: IP67

• Dimensions: Ø118 x 106 mm

• Weight: 0.48 kg

NVR – NVR301-04B-P4-IQ

• Channels: 4

• Video Input: 4 IP cameras

• Decoding: Up to 12MP

• PoE Ports: 4x RJ45, max 30W/port

• Video Output: HDMI (4K), VGA (1080p)

• Recording Resolution: 12MP to CIF

• Remote Users: Up to 128

• Smart Features: Face, vehicle, intrusion detection, people counting

• Dimensions: 260 x 222 x 47mm

• Weight: ≤ 2.7 kg

• Power Consumption: ≤ 12W (without HDD)

Warranty Information

• Cameras: 12-month warranty

• NVR: 2-year warranty
  Both handled through authorized Uniview service channels to ensure reliable and prompt support.

Brand Description
Uniview, a leading global innovator in video surveillance technology, offers advanced solutions trusted by professionals worldwide. The OWLVIEW line integrates cutting-edge optics and intelligent analytics to deliver high-performance security, built to withstand real-world conditions.

SKU

• Cameras: IPC3628LE-ADF28K-WP-SEC

• Recorder: NVR301-04B-P4-IQ-SED

Practical Use Scenarios

• Home perimeter & driveway surveillance

• Office & business entry points

• Retail store monitoring with audio

• Warehouse & logistics yard security

• Parking lot surveillance with smart detection

• Public and council-managed infrastructure

Datasheets & Downloads

• Camera Datasheet

• NVR Datasheet

Excellence for the Australian and New Zealand Market
This Uniview CCTV system is engineered to meet the rigorous standards of the Australian and New Zealand markets, offering NDSS compliance and tested durability under harsh weather conditions. The IP67 rating ensures long-lasting outdoor reliability, while local certification guarantees integration with regional compliance guidelines.

All components are sourced exclusively through authorized distribution partners, ensuring warranty coverage and service are handled directly by Uniview for maximum peace of mind. Tailored to meet the expectations of ANZ installers and end-users, this system ensures secure, stable, and regulation-compliant deployment.

Frequently Asked Questions (FAQs)

Q1: Does the IPC3628LE-ADF28K-WP-SEC support night vision in full color?
A: Yes, the IPC3628LE-ADF28K-WP-SEC features full-color night vision using a built-in 30m warm white LED and ColorHunter technology.

Q2: Is PoE supported on both camera and NVR in this kit?
A: Absolutely. The IPC3628LE-ADF28K-WP-SEC supports PoE, and the NVR301-04B-P4-IQ-SED includes 4 independent PoE ports for easy setup.

Q3: How much local storage can each camera handle?
A: Each IPC3628LE-ADF28K-WP-SEC supports up to 512GB microSD cards for onboard recording.

Q4: What makes this kit suitable for outdoor use?
A: The IPC3628LE-ADF28K-WP-SEC is IP67 rated, providing full dust and water resistance for all-weather outdoor installations.

Q5: What smart analytics are available in this surveillance system?
A: The IPC3628LE-ADF28K-WP-SEC includes motion, tampering, intrusion, and crossline detection, while the NVR301-04B-P4-IQ-SED supports face and vehicle detection, people counting, and more.

Q6: Can the NVR301-04B-P4-IQ-SED record in ultra-high definition?
A: Yes, the NVR301-04B-P4-IQ-SED supports recording resolutions up to 12MP, offering ultra-clear footage.

Q7: Is remote access possible with the NVR301-04B-P4-IQ-SED?
A: Yes, it supports up to 128 remote users and includes cloud upgrade and mobile viewing functionality.

Q8: How is the warranty handled for this kit?
A: The IPC3628LE-ADF28K-WP-SEC has a 1-year warranty, while the NVR301-04B-P4-IQ-SED includes a 2-year warranty, both serviced via authorized Uniview support.
