Uniview OWLVIEW 8MP 4K CCTV Kit – 8x Turret Cameras + 8-Channel PoE NVR with HDD | IPC3628LE-ADF28K-WP + NVR301-08B-P8-IQ

Secure large-scale properties and installations with the Uniview OWLVIEW 8-Camera Surveillance Kit, equipped with eight high-definition IPC3628LE-ADF28K-WP turret cameras and a feature-rich NVR301-08B-P8-IQ 8-channel network video recorder. Designed for 24/7 full-color imaging and seamless PoE setup, this kit delivers ultra-clear 4K (8MP) video recording powered by advanced technologies like ColorHunter and Wise-ISP.

Each OWLVIEW turret camera is equipped with a large F1.0 aperture and 1/1.8” CMOS sensor, enabling vivid full-color night vision even in light levels as low as 0.0003 lux. The cameras support intelligent features including motion detection, intrusion alarms, and crossline detection, while boasting an IP67 rating for weatherproof performance in any environment.

The included Uniview NVR301-08B-P8-IQ is a robust 8-channel NVR supporting Ultra 265 video compression and 12MP recording capability. With 8 independent PoE ports, plug-and-play setup is fast and convenient. Cloud upgrades, ANR (Automatic Network Replenishment), and ONVIF compliance make this NVR ideal for future-proof security infrastructure.

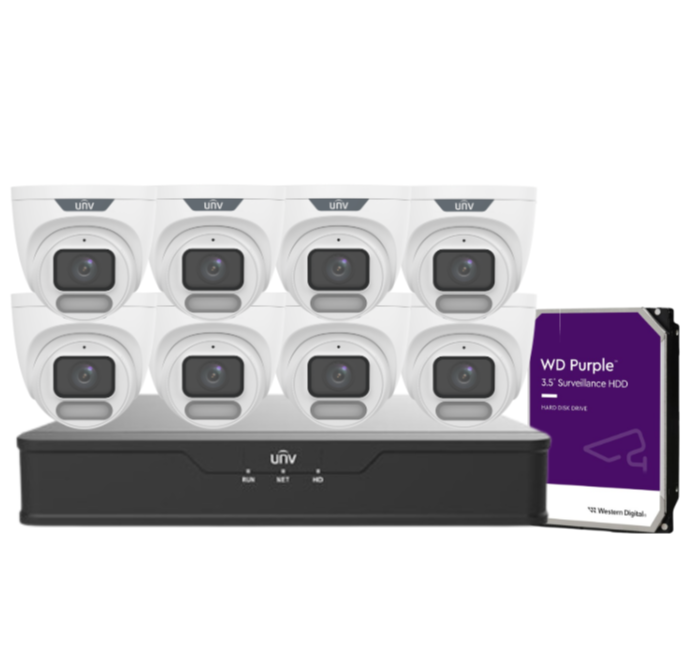

What’s Included in the Box

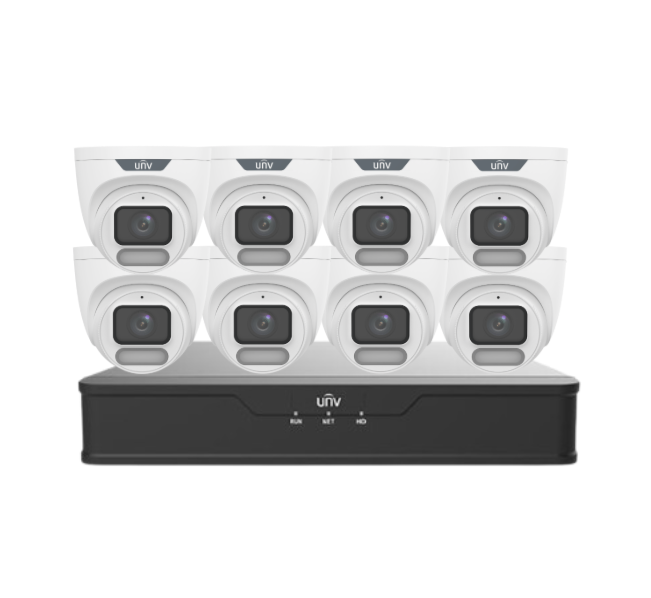

• 8x Uniview IPC3628LE-ADF28K-WP 8MP OWLVIEW Turret Cameras (2.8mm lens)

• 1x Uniview NVR301-08B-P8-IQ 8-Channel PoE Network Video Recorder

• 1x Surveillance-grade Hard Disk Drive (Choose your HDD below)

• User Manuals & Quick Start Guides

• 1x Warranty Card

Main Features

Cameras (IPC3628LE-ADF28K-WP):

• 8MP 4K ultra-HD video resolution (3840x2160 @ 20fps)

• Large 1/1.8” CMOS sensor with F1.0 aperture for superior low-light performance

• ColorHunter + Wise-ISP: Full-color imaging even in 0.0003 lux conditions

• 120dB True WDR to manage backlight and high-contrast scenes

• Built-in 30m warm white LED for night illumination

• Supports up to 512GB microSD card for local edge recording

• ONVIF Profile S/G/T compliant for universal compatibility

• Audio-enabled with integrated microphone

• IP67 weatherproof casing for all-weather installation

• Smart analytics: motion detection, tampering, intrusion, crossline detection

NVR (NVR301-08B-P8-IQ):

• 8 PoE ports for plug-and-play camera setup

• Supports recording up to 12MP resolution

• Ultra 265/H.265/H.264 encoding for storage optimization

• Simultaneous HDMI and VGA output (up to 4K@30Hz)

• 128 remote user access with secure streaming protocols

• Built-in ANR to prevent footage loss during disconnection

• Smart features: face detection, vehicle detection, people counting, traffic monitoring

• Browser compatibility: IE10+, Chrome, Firefox, Edge

Detailed Specifications

Camera – IPC3628LE-ADF28K-WP

• Sensor: 1/1.8” CMOS

• Resolution: 8MP (3840x2160) @ 20fps

• Lens: 2.8mm fixed lens, F1.0

• Field of View: 111° (H) × 63° (V)

• Minimum Illumination: 0.0003 lux

• Night Vision: Up to 30m with built-in warm white light

• Audio: Built-in microphone

• Storage: microSD up to 512GB, NAS, NVR

• Power: PoE (IEEE 802.3af) or 12V DC

• Ingress Protection: IP67

• Dimensions: Ø118 × 106 mm

• Weight: 0.48 kg

NVR – NVR301-08B-P8-IQ

• IP Camera Inputs: 8

• Decoding: Smart Off: 2x 12MP, 2x 4K, 4x 4MP @ 30fps

• PoE Ports: 8x RJ45 10/100Mbps, up to 30W/port

• Storage: 1 SATA HDD up to 10TB

• Video Output: HDMI (4K), VGA (1080p)

• Audio Input/Output: 1 RCA in/out, two-way audio supported

• Remote Users: 128 simultaneous connections

• Smart Features: Face/Vehicle Detection, People Counting, Traffic Monitoring

• Power Consumption: ≤ 12W (without HDD)

• Dimensions: 260 × 222 × 47mm

• Weight: ≤ 2.7Kg

Warranty Information

• Cameras: 1-Year Manufacturer Warranty

• NVR: 2-Year Manufacturer Warranty
  Warranty claims are processed through authorized Uniview service centers, ensuring fast and professional support.

Brand Description
Uniview (UNV) is a global pioneer in professional video surveillance technologies. Their OWLVIEW series blends advanced imaging innovations like Wise-ISP and ColorHunter with rugged, weather-resistant hardware, tailored for reliability and performance across all sectors of the security market.

SKU

• Cameras: IPC3628LE-ADF28K-WP-SEC

• Recorder: NVR301-08B-P8-IQ-SED

Practical Use Scenarios

• Large-scale residential properties with perimeter coverage

• Retail stores and franchise outlets requiring multiple viewpoints

• Commercial office buildings with public and restricted access zones

• Educational campuses and public institutions

• Logistics yards, warehouses, and distribution centers

• Government infrastructure and public space surveillance

Datasheets & Downloads

• IPC3628LE-ADF28K-WP Camera Datasheet

• NVR301-08B-P8-IQ Datasheet

Excellence for the Australian and New Zealand Market
The Uniview OWLVIEW surveillance kit is fully compliant with Australian and New Zealand standards, including NDSS certification and IP67 environmental protection, ensuring robust performance in the region’s variable weather conditions. Each product is exclusively sourced via authorized Uniview distributors, ensuring local warranty support, genuine components, and professional-grade installation.

Optimized for local networks and infrastructure, the NVR and cameras integrate seamlessly with ANZ ISP configurations and are fully compatible with industry-standard video management systems and cloud platforms.

Frequently Asked Questions (FAQs)

Q1: Does the IPC3628LE-ADF28K-WP-SEC provide full-color night vision?
A: Yes, the IPC3628LE-ADF28K-WP-SEC features ColorHunter and a 30m warm white light for full-color imaging even at night.

Q2: Is the NVR301-08B-P8-IQ-SED compatible with third-party IP cameras?
A: Yes, the NVR301-08B-P8-IQ-SED supports ONVIF protocols (Profiles S/G/T), ensuring broad compatibility.

Q3: How many cameras can be connected to this kit?
A: This kit supports up to 8 IP cameras via the NVR301-08B-P8-IQ-SED’s 8 PoE ports.

Q4: What storage options are available with the IPC3628LE-ADF28K-WP-SEC?
A: Each camera supports up to 512GB microSD cards and can also store video via NAS or the NVR.

Q5: Does the NVR301-08B-P8-IQ-SED support AI-based features?
A: Yes, it includes AI functionality like face detection, vehicle classification, and people counting.

Q6: What resolution does the NVR301-08B-P8-IQ-SED support?
A: The NVR can record up to 12MP resolution, ensuring ultra-HD video footage.

Q7: Can I access the surveillance feed remotely?
A: Absolutely. The NVR301-08B-P8-IQ-SED supports remote monitoring via mobile apps and web browsers.

Q8: What is the warranty duration for the cameras and the NVR?
A: The IPC3628LE-ADF28K-WP-SEC has a 1-year warranty, and the NVR301-08B-P8-IQ-SED includes a 2-year warranty, both handled via authorized Uniview partners in Australia and New Zealand.
