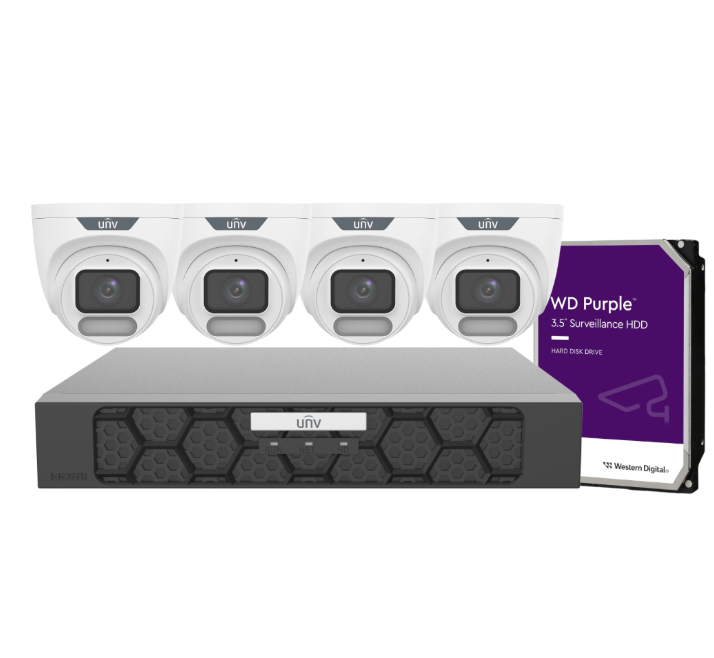

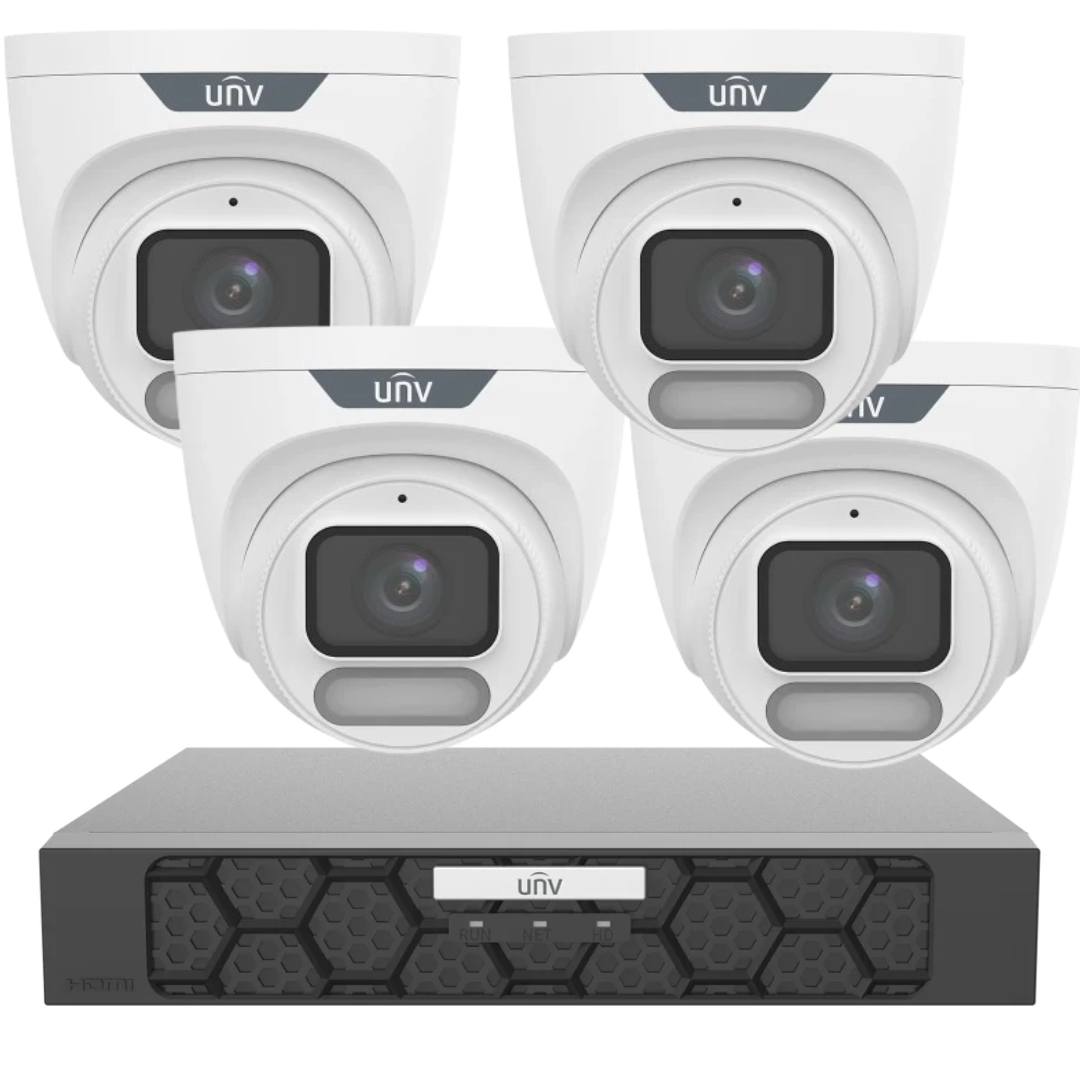

Uniview OWLVIEW 6MP Turret CCTV Kit w/ 4× IPC3626LE‑ADF28K‑WP + 4‑Ch PoE NVR501‑04B‑P4‑IQ + HDD

Upgrade your security with this Uniview 4-camera 6MP ColorHunter CCTV system, combining four IPC3626LE-ADF28K-WP 6MP OwlView ColorHunter turret cameras with the NVR501-04B-P4-IQ 4-channel PoE Network Video Recorder. Featuring Wise-ISP low-light imaging, F1.0 large-aperture lenses, up to 30m warm-light illumination, built-in microphones, 120dB WDR, Ultra 265 compression and 4K NVR display output, this kit is designed for high-quality residential and small-business IP surveillance.

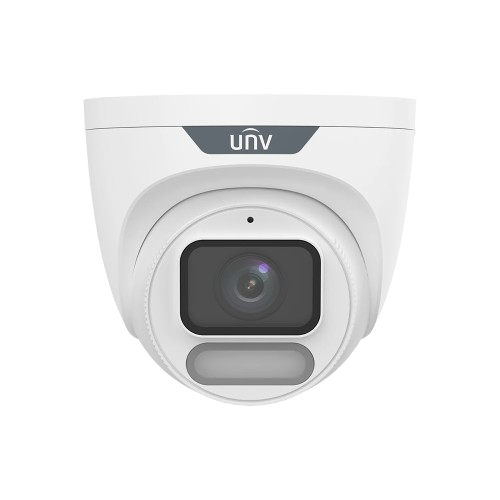

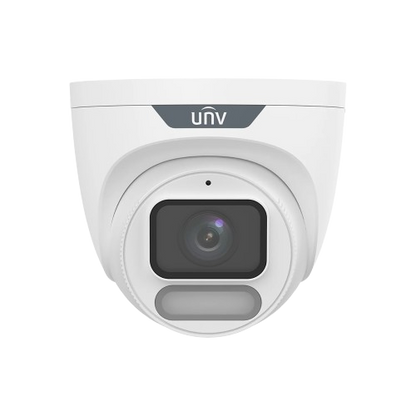

Each IPC3626LE-ADF28K-WP camera uses a 1/1.8" CMOS sensor and fixed 2.8mm F1.0 lens, delivering up to 3072 × 2048 6MP video. Uniview's ColorHunter with Wise-ISP technology is designed to improve colour, detail and image clarity in extremely low-light scenes, while the integrated warm light provides illumination at distances of up to 30 metres.

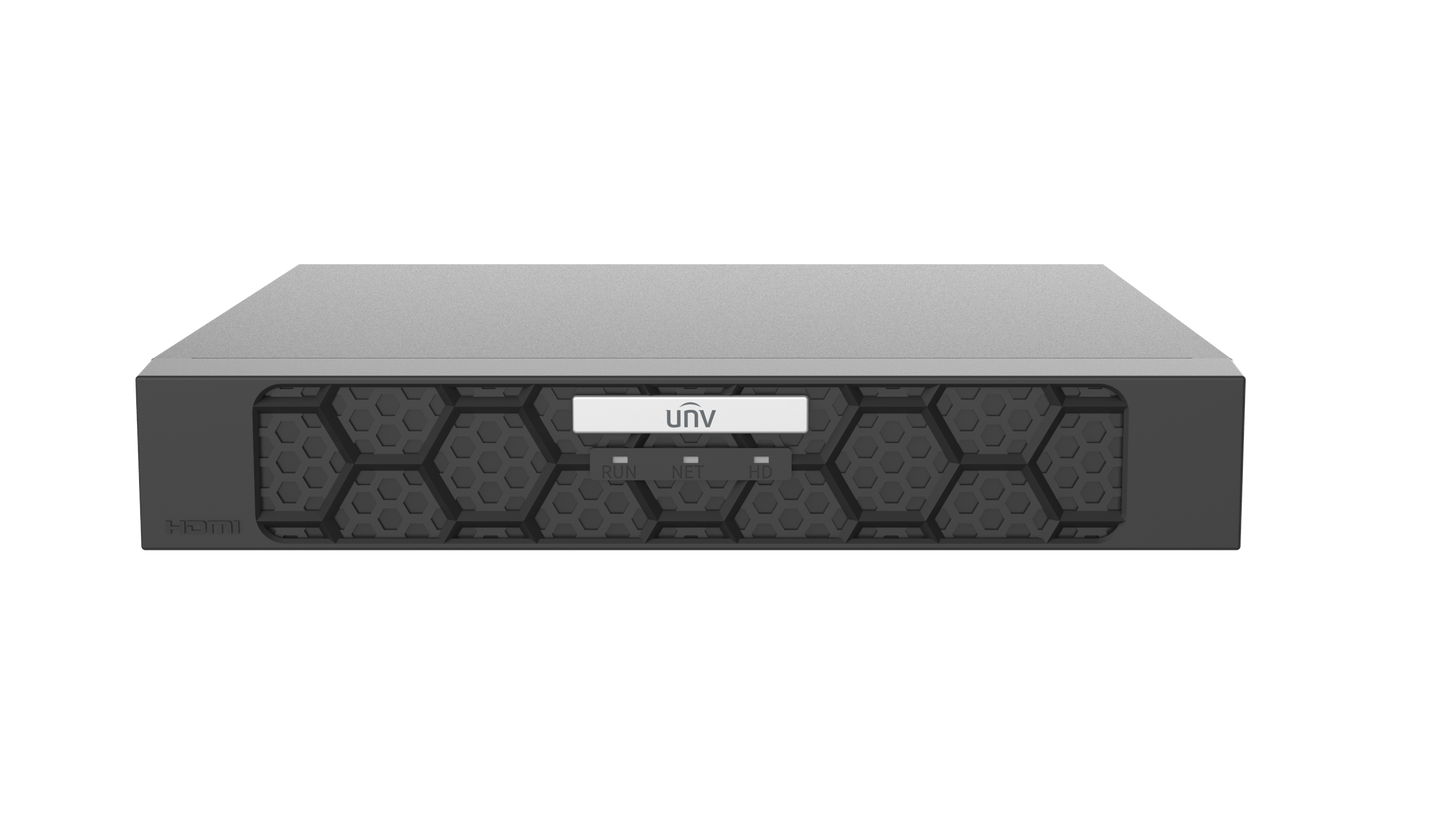

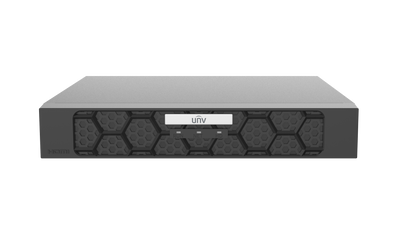

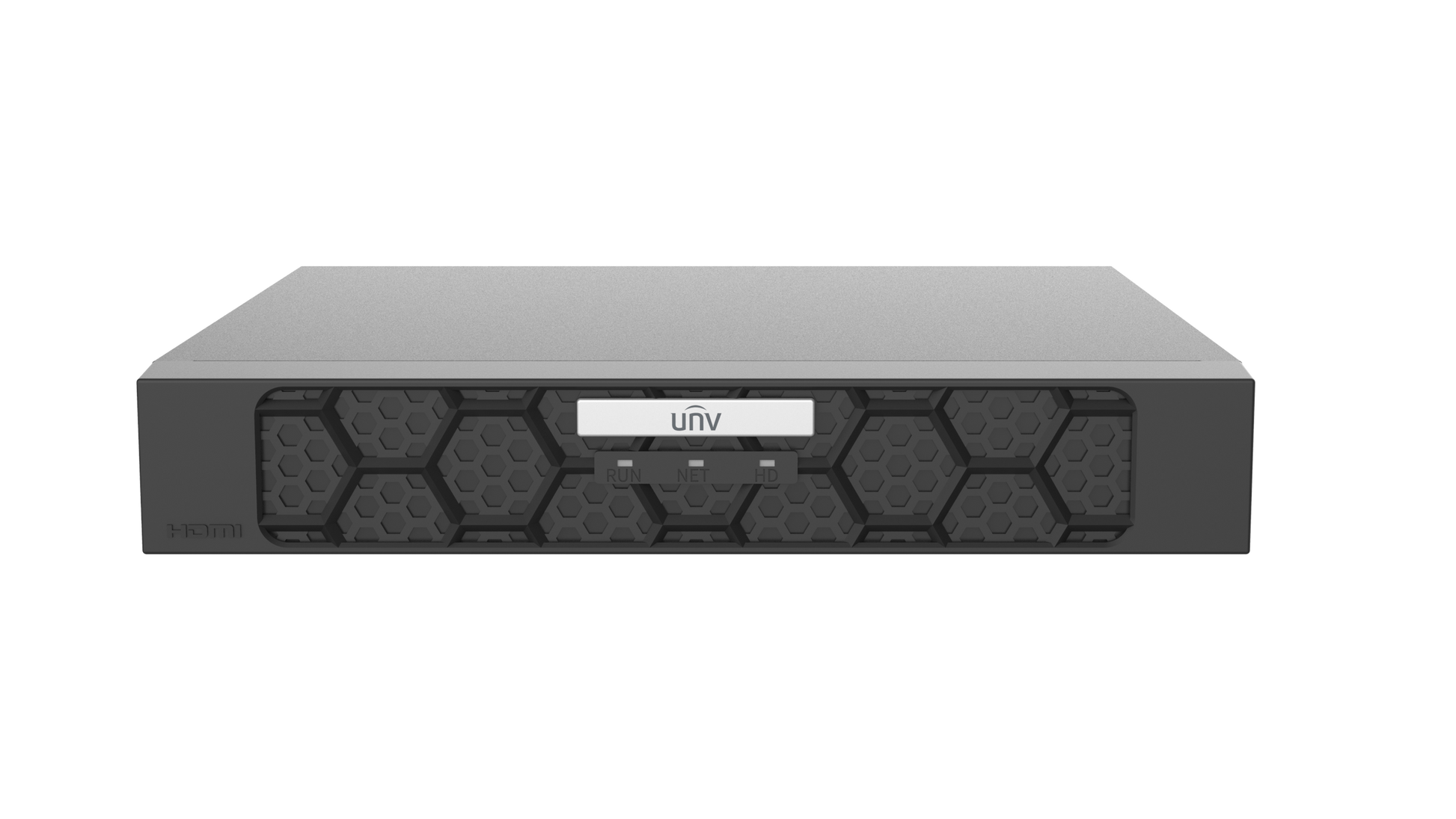

The NVR501-04B-P4-IQ provides four independent PoE interfaces for direct plug-and-play camera connection. It supports Ultra 265, H.265 and H.264 recording formats, up to 16MP recording resolution, HDMI output up to 4K, ANR recording-reliability technology and a range of intelligent functions depending on the connected cameras and configuration.

Select your preferred surveillance HDD capacity from the available options to tailor recording retention to your installation.

SKU / Product Codes

• Camera Product Code: IPC3626LE-ADF28K-WP
• NVR Product Code: NVR501-04B-P4-IQ
• Kit Configuration: up to 4 × IPC3626LE-ADF28K-WP + 1 × NVR501-04B-P4-IQ

📦 What’s Included

• choose upto 4 × Uniview IPC3626LE-ADF28K-WP-SEC 6MP ColorHunter / Wise-ISP turret network cameras
• 1 × Uniview NVR501-04B-P4-IQ-SEC 4-channel PoE Network Video Recorder
• NVR DC 48V power adapter
• NVR installation screws
• NVR quick-start documentation
• Camera installation hardware, screws, and supplied documentation
• Choose your HDD below (HDD not included with the kit)
• 3-year Uniview manufacturer warranty as supplied for this kit

🔍 Main Features

IPC3626LE-ADF28K-WP 6MP ColorHunter Cameras

• 6MP maximum resolution up to 3072 × 2048
• 1/1.8" CMOS sensor
• 2.8mm fixed F1.0 large-aperture lens
• 110.4° horizontal field of view
• ColorHunter with Wise-ISP for enhanced colour and detail in extremely low-light scenes
• 30m warm-light illumination for colour-focused night surveillance
• 120dB True WDR for scenes containing bright and dark areas
• Ultra 265, H.265, H.264 and MJPEG video compression
• Built-in microphone for synchronized audio capture
• MicroSD edge storage up to 512GB
• Ultra Motion Detection
• Motion detection and tampering detection
• Human-body-based cross-line detection
• Human-body-based intrusion detection
• Privacy masking and ROI configuration
• Digital defog, BLC and HLC
• IP67 environmental protection
• PoE IEEE 802.3af or 12V DC power
• Operating temperature from -30°C to 60°C
• 3-axis adjustment for flexible positioning

NVR501-04B-P4-IQ 4-Channel PoE NVR

• 4-channel IP video input
• 4 independent PoE ports
• IEEE 802.3af / 802.3at PoE support
• Up to 30W per PoE port, with up to 50W total PoE budget for the 4-port model
• Ultra 265, H.265 and H.264 decoding
• Recording resolution support up to 16MP
• HDMI output up to 4K 3840 × 2160
• HDMI and VGA simultaneous output
• 80Mbps incoming / 80Mbps outgoing bandwidth
• Up to 128 remote users
• ANR technology to improve recording reliability during temporary network interruption
• Smart features including Face Detection, Smart Intrusion Prevention and Ultra Motion Detection, subject to camera compatibility and selected operating mode
• VCA search functions can include human, vehicle, people-counting and other supported search categories depending on the connected cameras
• ONVIF integration support and RTSP connectivity
• IPv4, IPv6, HTTPS, P2P, NTP, DHCP, SNMP and other network protocols
• 1 × SATA HDD interface
• Front USB 2.0 and rear USB 3.0
• Compact 1U chassis
• Operating temperature from -10°C to 50°C
• NVR power consumption ≤8W without HDD

✅ Detailed Technical Specifications

Camera – IPC3626LE-ADF28K-WP-SEC

Camera specifications are taken from the supplied Uniview product datasheet.

DORI Distance – 2.8mm Lens

NVR – NVR501-04B-P4-IQ-SEC

Uniview's current product page confirms the 4-channel model, four PoE interfaces, 16MP recording support, 4K HDMI, ANR and current NVR specifications.

HDD note: Uniview documentation has changed over time regarding maximum supported HDD capacity. Rather than stating a fixed maximum, select a compatible surveillance HDD from the options offered with this kit. Current supported capacity may depend on HDD model and operating conditions.

🛠️ Warranty & Support

• 3-Year Limited Uniview Manufacturer Warranty as specified for this package
• Warranty applies to the supplied cameras and NVR under applicable warranty terms and conditions
• Technical support is available through the supplying channel and authorised Uniview distribution network
• Warranty claims are subject to product condition, installation, usage and manufacturer warranty requirements

🏢 About Uniview

Uniview (UNV) is a manufacturer of professional IP video-surveillance equipment and solutions, including network cameras, NVRs, storage products and intelligent video-security technologies. Its surveillance platform supports technologies including Ultra 265 compression, IP networking, smart analytics and integrated video-management solutions.

🔧 Practical Use Scenarios

📄 Datasheets & Downloadable Resources

• IPC3626LE‑ADF28K‑WP datasheet & user manual included

• NVR501‑04B‑P4‑IQ datasheet & quick-start guide included


🌏 Excellence for the Australian and New Zealand Market

This Uniview security kit combines an IP67-rated outdoor camera design, wide operating-temperature range, PoE connectivity and professional IP surveillance features suitable for many Australian and New Zealand residential and commercial installations. The camera is specified for operation from -30°C to 60°C, while the NVR is rated from -10°C to 50°C.

The supplied manufacturer documentation lists certifications and compliance references including CE, FCC, UL/cUL, RoHS and WEEE, with IP67 protection to IEC 60529 specified for the camera. These certifications should not be represented as Australian or New Zealand certification in themselves; any project requiring RCM, AS/NZS or other jurisdiction-specific compliance documentation should be checked against the exact supplied hardware and installation requirements before purchase.

Products in this listing are stated as being sourced through authorised Uniview distribution channels, helping maintain access to genuine equipment, manufacturer-backed documentation and the stated warranty process.

NDSS approval is not claimed for this product, as no relevant surveillance-system NDSS certification has been supplied or verified. This avoids presenting an unrelated or unsupported compliance designation as a product certification.

❓Frequently Asked Questions

1. Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4-IQ CCTV kit include four 6MP security cameras?

Yes. The package contains four IPC3626LE-ADF28K-WP-SEC 6MP ColorHunter turret cameras and one NVR501-04B-P4-IQ-SEC 4-channel PoE NVR.

2. What resolution does the IPC3626LE-ADF28K-WP-SEC Uniview security camera record at?

The IPC3626LE-ADF28K-WP-SEC supports a maximum resolution of 6MP, 3072 × 2048, providing detailed video for residential and commercial surveillance.

3. Does the IPC3626LE-ADF28K-WP-SEC provide full-colour night surveillance?

The IPC3626LE-ADF28K-WP-SEC uses ColorHunter with Wise-ISP, an F1.0 lens and warm-light illumination reaching up to 30 metres to support detailed colour imaging in low-light scenes.

4. Does the IPC3626LE-ADF28K-WP-SEC include a built-in microphone?

Yes. The IPC3626LE-ADF28K-WP-SEC has an integrated microphone and supports G.711U/G.711A audio compression for synchronized audio recording.

5. Is the IPC3626LE-ADF28K-WP-SEC suitable for outdoor installation?

Yes. The IPC3626LE-ADF28K-WP-SEC is rated IP67 and has a specified working-temperature range of -30°C to 60°C, making it suitable for many protected and exposed surveillance installations when installed correctly.

6. Does the NVR501-04B-P4-IQ-SEC power all four cameras through PoE?

Yes. The NVR501-04B-P4-IQ-SEC provides four independent PoE network interfaces supporting IEEE 802.3af/at, allowing the four cameras to receive network connectivity and power through compatible Ethernet cabling.

7. Does the NVR501-04B-P4-IQ-SEC support 4K monitor output?

Yes. The NVR501-04B-P4-IQ-SEC supports HDMI output up to 3840 × 2160, as well as VGA output and simultaneous HDMI/VGA operation.

8. What smart surveillance functions are available with the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC system?

The IPC3626LE-ADF28K-WP-SEC supports events including Ultra Motion Detection, intrusion and cross-line detection based on human-body detection. The NVR501-04B-P4-IQ-SEC additionally supports compatible NVR and IPC smart functions such as Face Detection, SIP, UMD and supported VCA searches. Availability depends on camera compatibility and NVR configuration.

9. Is an HDD included with the NVR501-04B-P4-IQ-SEC CCTV kit?

The NVR501-04B-P4-IQ-SEC package is offered with a selectable HDD option – choose your HDD below. The selected drive is installed/configured according to the kit option purchased.

10. Does the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC kit support Ultra 265 video compression?

Yes. Both the IPC3626LE-ADF28K-WP-SEC camera and NVR501-04B-P4-IQ-SEC recorder support Uniview Ultra 265, alongside H.265 and H.264 formats.

11. Can the IPC3626LE-ADF28K-WP-SEC record to a microSD card as well as the NVR?

Yes. The IPC3626LE-ADF28K-WP-SEC supports local microSD edge storage of up to 512GB, providing an additional storage option alongside centralized recording to the NVR.

12. What warranty is supplied with the IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC CCTV kit?

The IPC3626LE-ADF28K-WP-SEC + NVR501-04B-P4-IQ-SEC package is supplied with the stated 3-year Uniview manufacturer warranty, subject to the applicable manufacturer and seller warranty terms.
