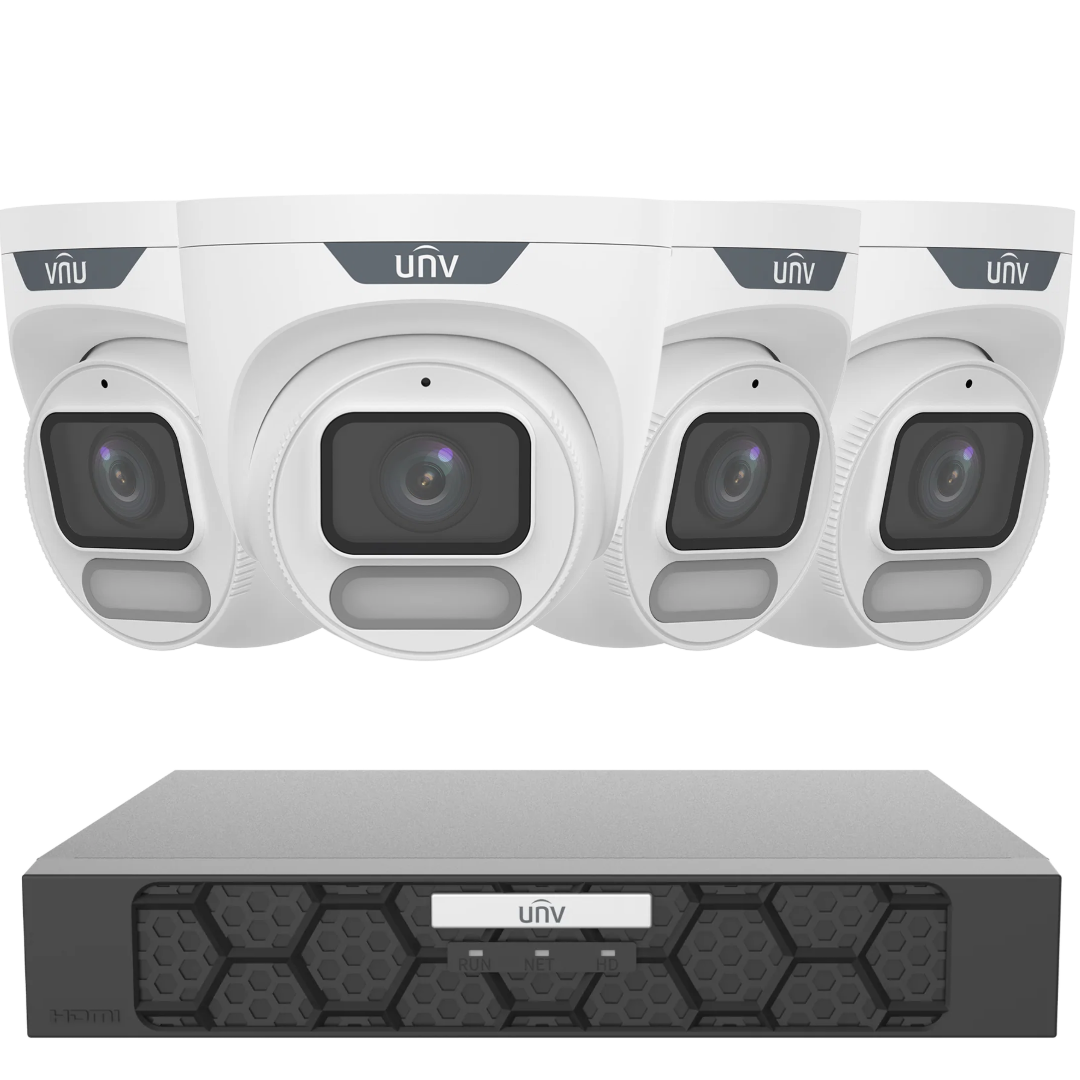

UNIVIEW OwlView 6MP 4-Camera CCTV Surveillance Kit – 4x ColorHunter Turret Cameras + 4CH PoE NVR | IPC3626LE-ADF28K-WP + NVR501-04B-P4

Protect homes, offices and small businesses with the UNIVIEW OwlView 6MP 4CH CCTV Kit, combining four 6MP ColorHunter turret cameras, full-colour low-light surveillance, built-in audio and a 4-channel PoE NVR for reliable 24/7 IP security.

The UNIVIEW OwlView 6MP 4-Channel Surveillance Kit combines four IPC3626LE-ADF28K-WP 6MP ColorHunter with Wise-ISP fixed turret/eyeball network cameras with one NVR501-04B-P4 4-channel PoE network video recorder. Designed for detailed indoor and outdoor surveillance, the system delivers high-resolution video, excellent low-light colour reproduction, integrated microphones and convenient Power over Ethernet connectivity.

Each IPC3626LE-ADF28K-WP uses a 1/1.8-inch CMOS sensor, F1.0 aperture and 2.8mm fixed lens, producing up to 3072 × 2048 6MP video. ColorHunter with Wise-ISP is designed to optimise colour, detail and motion rendering in extremely low-light scenes, while integrated warm-light illumination reaches up to 30 metres.

The NVR501-04B-P4 provides four IP video channels and four independent PoE ports, allowing compatible cameras to receive network connectivity and power over a single Ethernet cable. HDMI and VGA outputs support convenient local monitoring, while Ultra 265, H.265 and H.264 compression help manage network bandwidth and recording storage efficiently.

Product Code

Kit Component Code: 4 × IPC3626LE-ADF28K-WP + 1 × NVR501-04B-P4
Brand: UNIVIEW / UNV
Series: OwlView / ColorHunter
Default Storage Configuration: No HDD included

Main Features

• Four 6MP ColorHunter cameras delivering up to 3072 × 2048 resolution.
• ColorHunter with Wise-ISP technology for enhanced colour and image detail in very low-light environments.
• F1.0 large-aperture lens to maximise available light.
• 30m warm-light illumination for full-colour night monitoring.
• 120dB True WDR for improved visibility where bright and dark areas appear within the same scene.
• Built-in microphone on every camera for synchronised audio capture.
• Ultra Motion Detection, cross-line and intrusion detection supported by the cameras.
• IP67 weather-resistant camera construction for indoor and outdoor deployment.
• PoE camera power and data transmission for simplified cabling.
• Up to 512GB MicroSD edge storage per camera.
• Ultra 265, H.265, H.264 and MJPEG camera compression.
• 4-channel NVR with four integrated PoE network interfaces.
• HDMI and VGA local display outputs.
• ONVIF compatibility for supported interoperable IP surveillance equipment.
• Remote monitoring through supported UNV software platforms, including UNV-Link, UNV-Link Pro and EZStation.

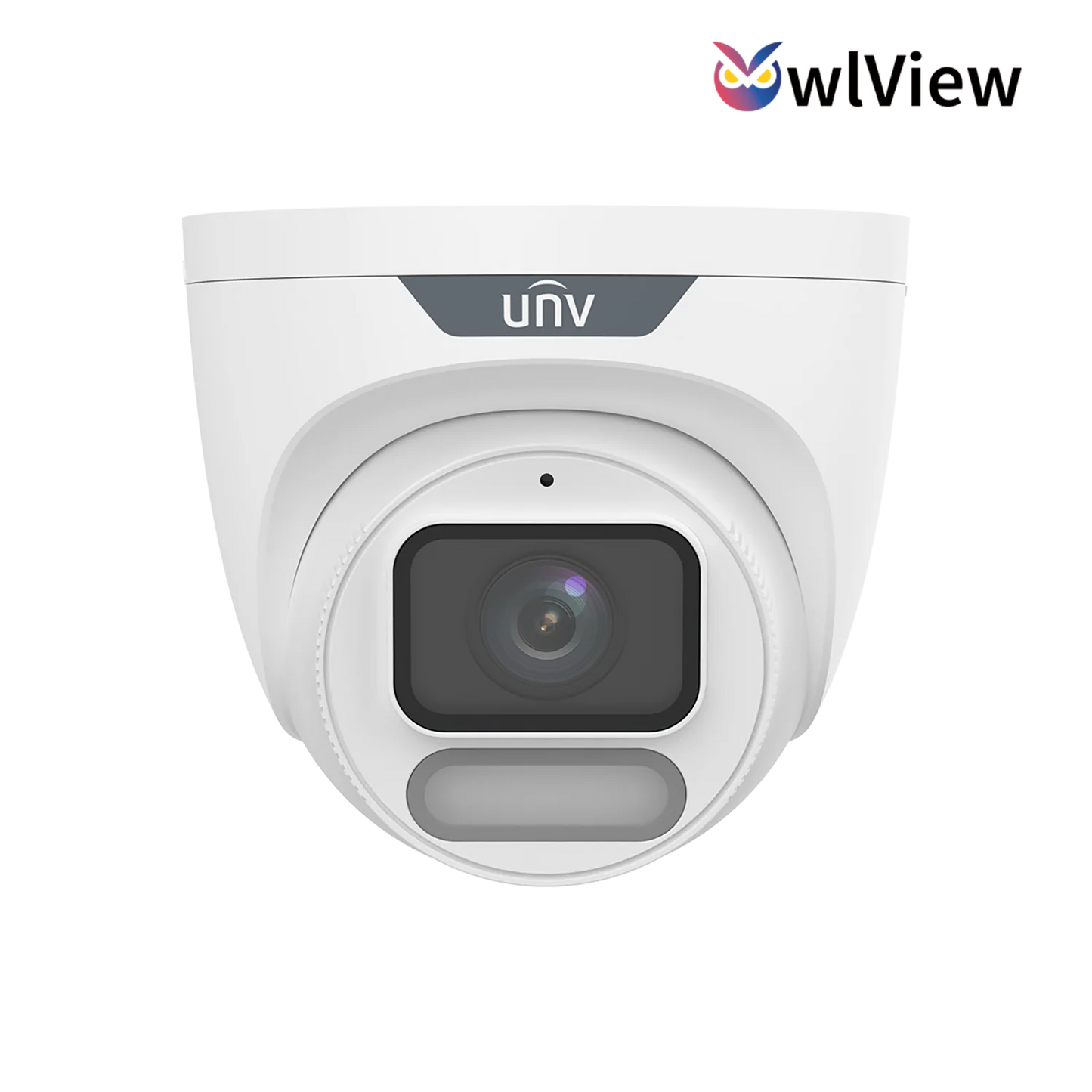

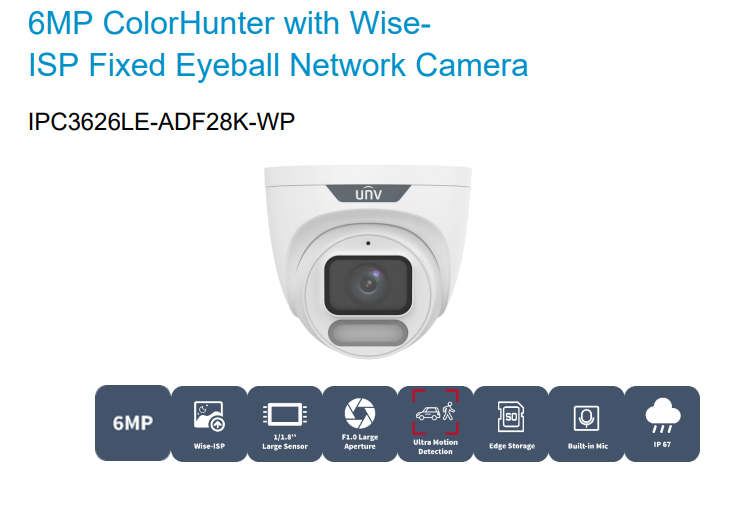

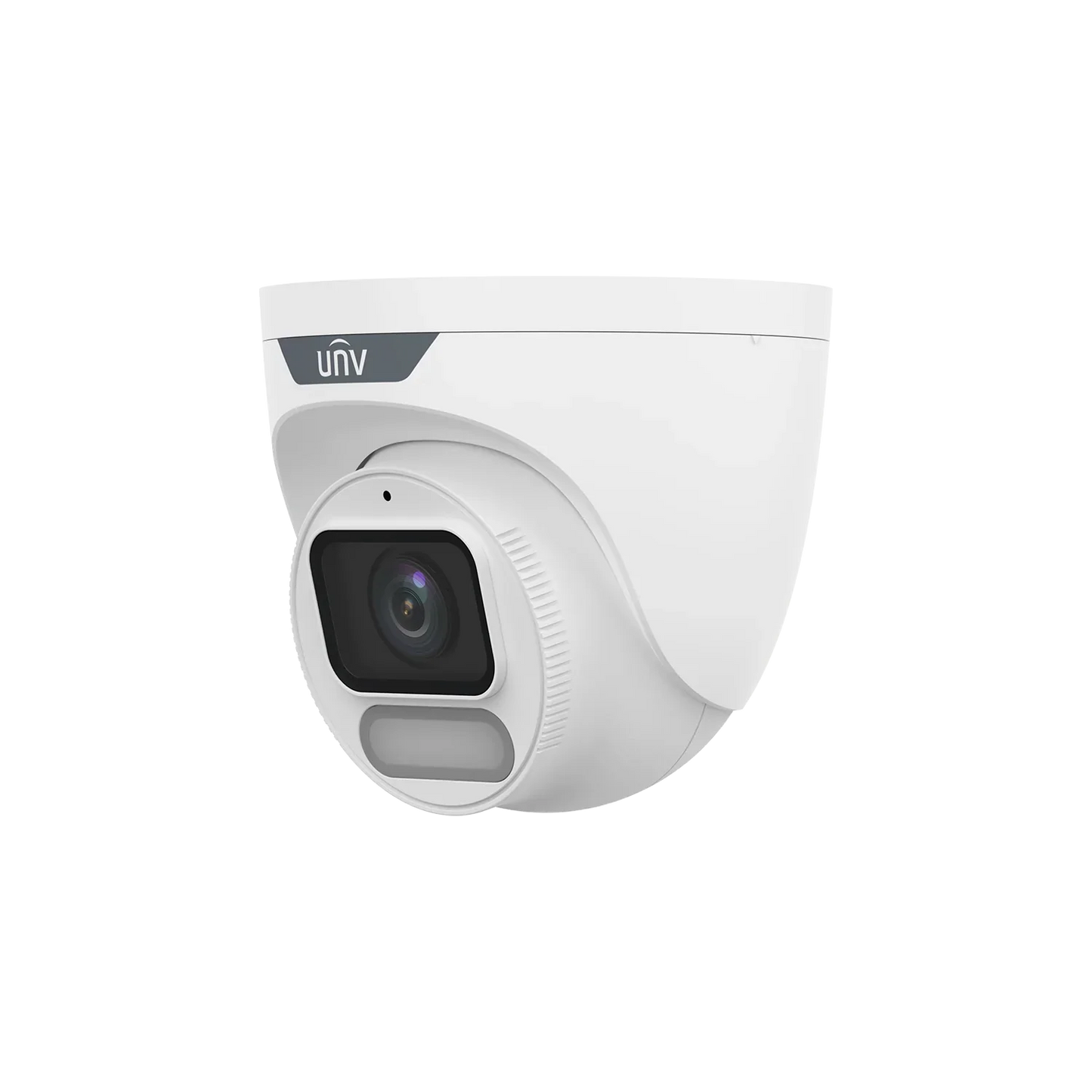

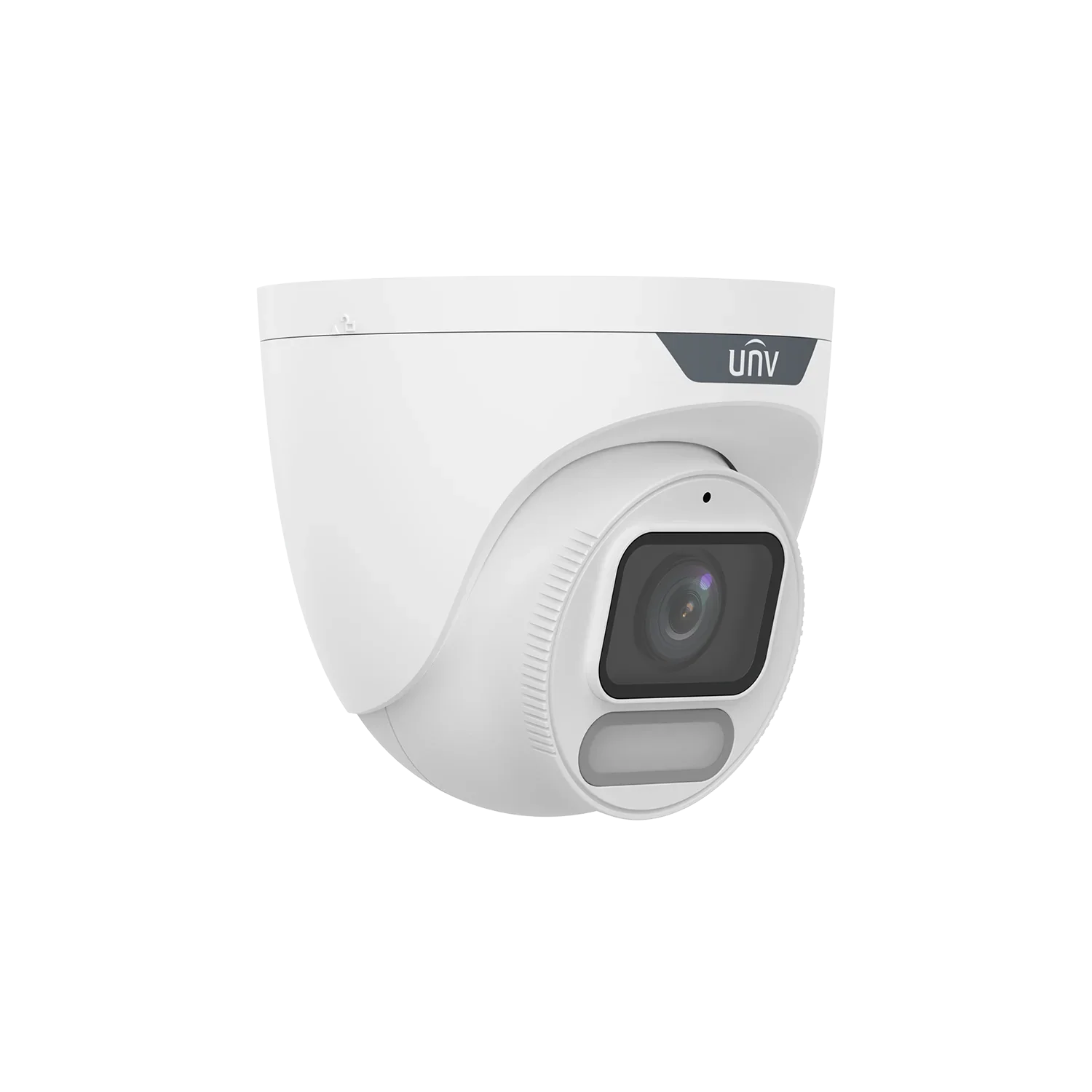

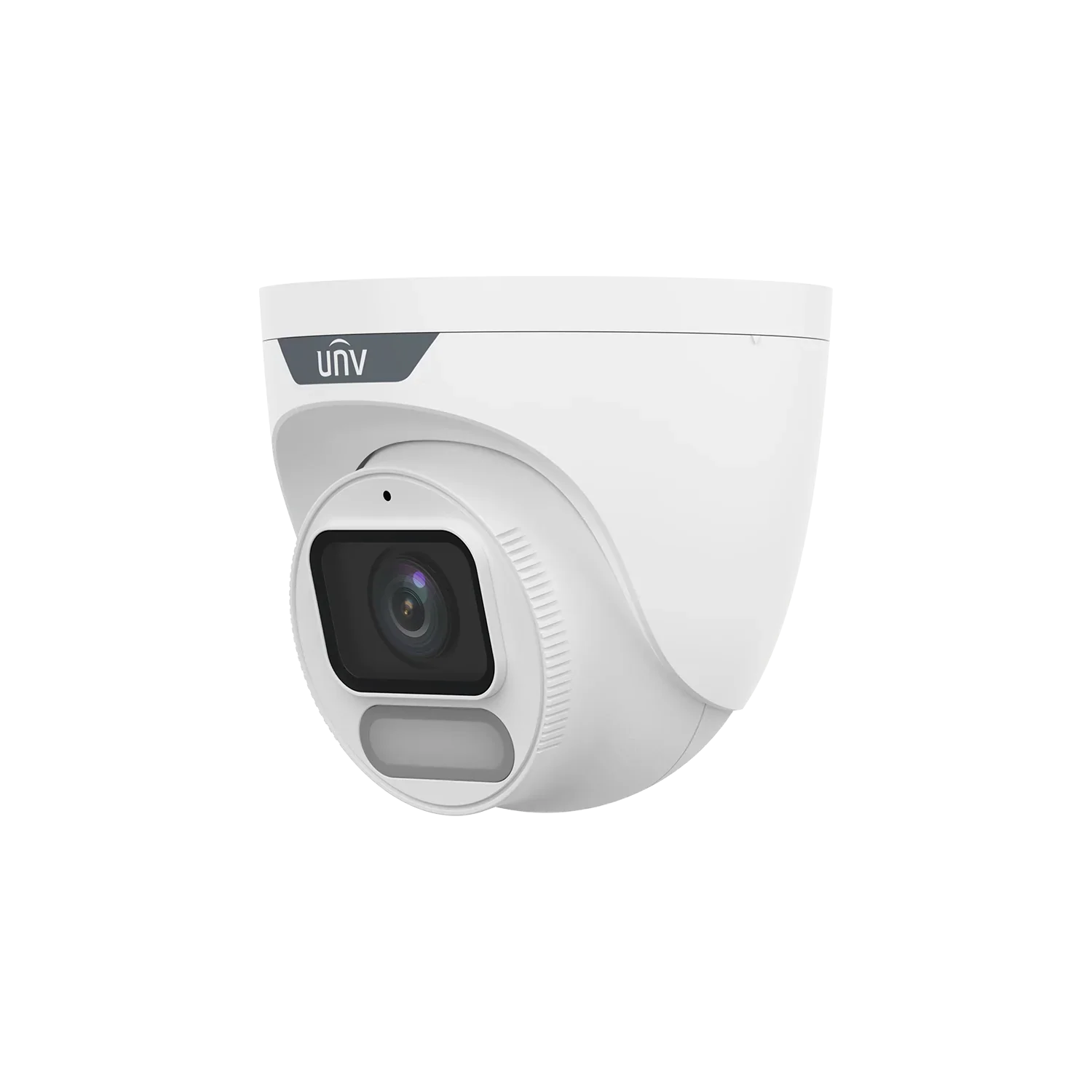

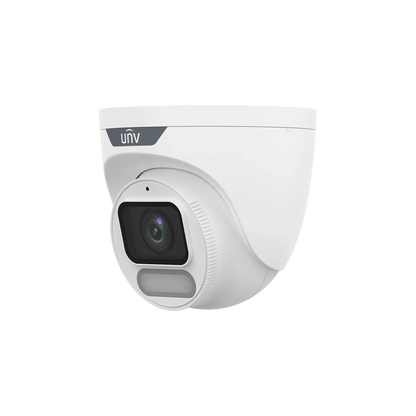

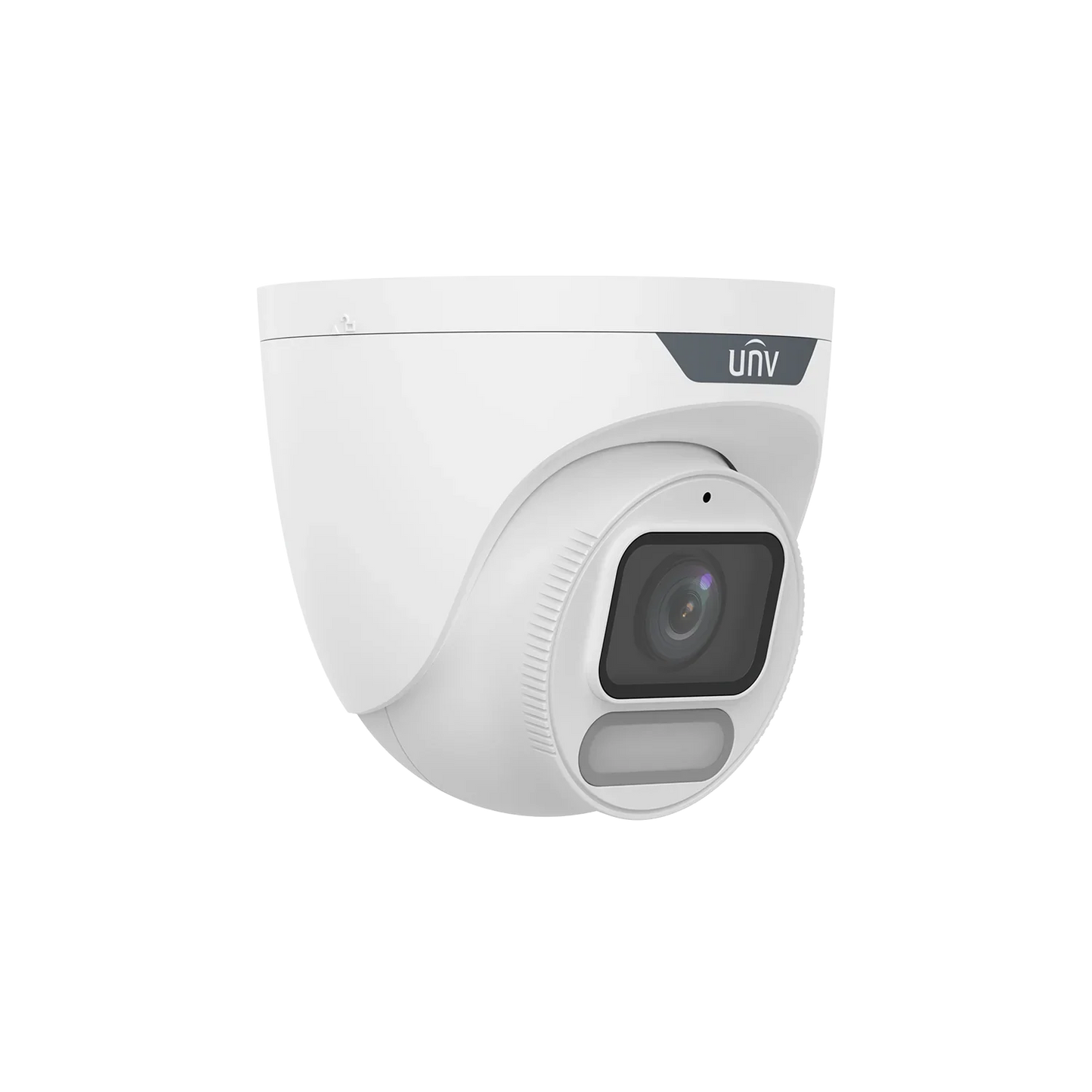

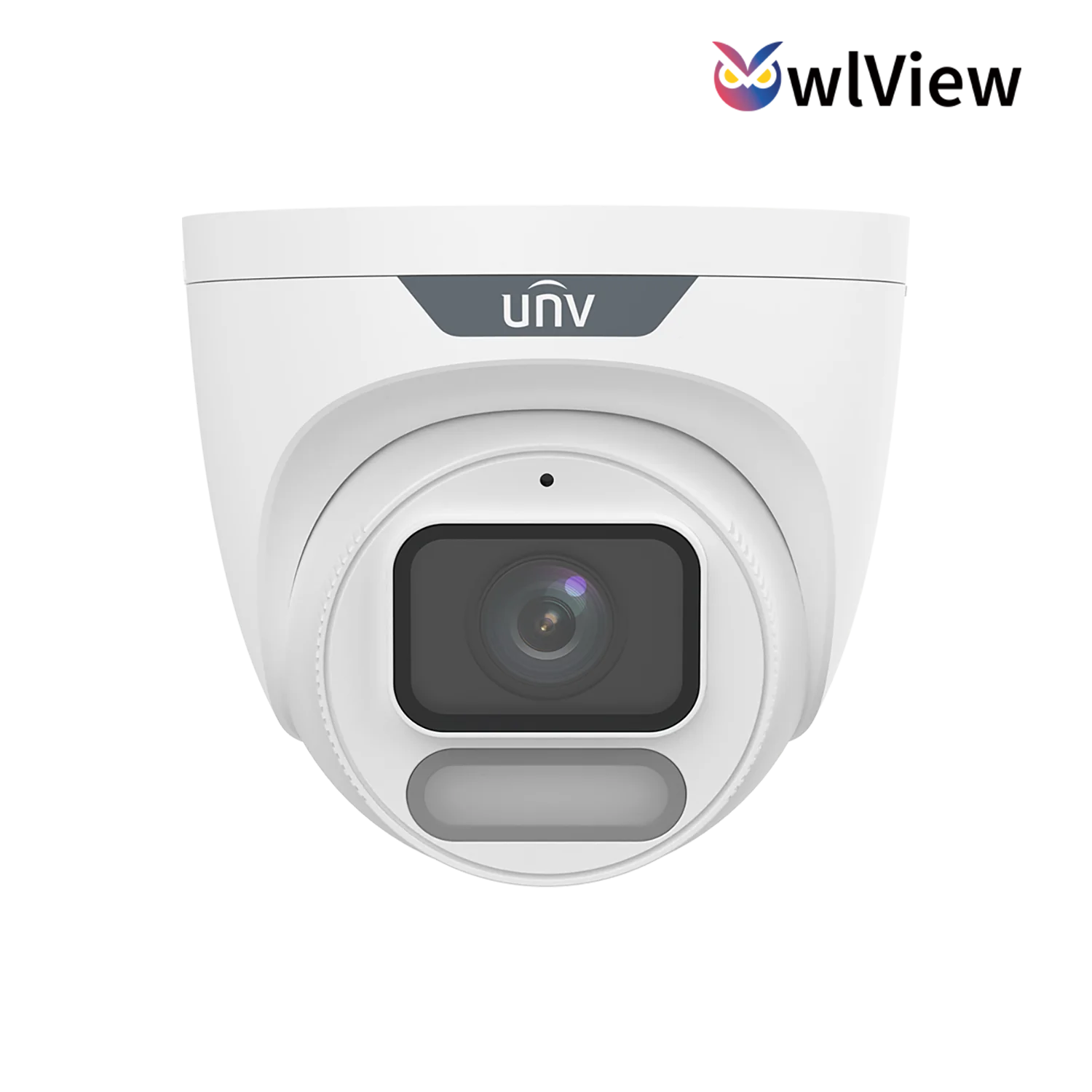

4 × IPC3626LE-ADF28K-WP 6MP ColorHunter Turret Cameras

The IPC3626LE-ADF28K-WP combines high-resolution video with low-light optimisation for monitoring entrances, driveways, retail areas, offices, warehouses and property perimeters.

Camera Specifications

Specification	Details
Model	IPC3626LE-ADF28K-WP
Camera Type	Fixed turret / eyeball IP network camera
Maximum Resolution	6MP
Maximum 6MP Resolution	3072 × 2048
Sensor	1/1.8" CMOS
Lens	2.8mm fixed
Aperture	F1.0
Horizontal Field of View	110.4°
Vertical Field of View	60.5°
Diagonal Field of View	115.2°
Minimum Colour Illumination	0.0003 lux at F1.0, AGC ON
WDR	120dB True WDR
Supplemental Illumination	Warm light
Illumination Distance	Up to 30m
Microphone	Built-in
Edge Storage	MicroSD up to 512GB
Video Compression	Ultra 265 / H.265 / H.264 / MJPEG
Network	1 × RJ45 10/100M Ethernet
PoE	IEEE 802.3af
Protection	IP67
Housing	Metal + plastic
Operating Temperature	-30°C to +60°C
Dimensions	Ø118 × 106mm
Weight	Approx. 0.48kg

Manufacturer specifications confirm the 2.8mm F1.0 lens, wide field of view, 120dB WDR, MicroSD storage, IP67 protection and -30°C to +60°C operating range.



1 × NVR501-04B-P4 4-Channel PoE Network Video Recorder

The NVR501-04B-P4 forms the central recording and management platform for the four cameras. Its four dedicated PoE ports simplify installation by allowing compatible cameras to connect directly to the recorder.

NVR Specifications

Specification	Details
Model	NVR501-04B-P4
IP Camera Inputs	4 channels
Integrated PoE Ports	4
PoE Standard	IEEE 802.3af / 802.3at
Incoming Bandwidth	80Mbps
Outgoing Bandwidth	64Mbps
Video Compression	Ultra 265 / H.265 / H.264
Video Outputs	HDMI + VGA
HDMI Output	Up to 4K 3840 × 2160 at 30Hz
Audio Input	1 × RCA
Audio Output	1 × RCA
HDD Interface	1 × SATA
Network Interface	RJ45 Ethernet
Remote Users	Up to 128
USB	USB interfaces provided
Default HDD	No HDD included

UNIVIEW lists four IP inputs, four PoE interfaces, HDMI/VGA output, 80Mbps incoming bandwidth and a single SATA storage interface for the NVR501-04B-P4.

ColorHunter with Wise-ISP Low-Light Surveillance

Traditional CCTV cameras can lose colour information when ambient illumination drops. The IPC3626LE-ADF28K-WP combines its large 1/1.8-inch sensor and F1.0 aperture with ColorHunter and Wise-ISP image processing to improve colour, detail and motion appearance in extremely low-light environments.

Integrated warm lighting can illuminate subjects at distances of up to 30 metres, providing an additional source of light when required.

120dB True WDR

High-contrast environments such as doorways, shopfronts, loading areas and entrances can contain both strong backlighting and deep shadows. The cameras support 120dB True Wide Dynamic Range, helping maintain useful detail across these challenging lighting conditions.

Smart Detection

The IPC3626LE-ADF28K-WP supports surveillance events including:

• Motion Detection
• Ultra Motion Detection
• Tampering Alarm
• Audio Detection
• Cross-Line Detection based on human body detection
• Intrusion Detection based on human body detection

These features can help focus monitoring on meaningful activity rather than relying exclusively on continuous manual observation.

Built-In Audio

Each camera includes an integrated microphone, allowing supported recordings to include ambient audio alongside video. This is useful for entrances, service counters, office environments and other monitored areas where audio provides additional context.

Important: Audio recording laws vary by jurisdiction and application. Ensure installation and use comply with applicable privacy and surveillance requirements.

Efficient PoE Installation

The NVR501-04B-P4 includes four independent PoE ports, while the IPC3626LE-ADF28K-WP supports IEEE 802.3af PoE. This allows each camera to receive network data and operating power through compatible Ethernet cabling, reducing the need for separate camera power outlets.

Storage Options

NVR Storage

The default kit configuration is supplied without an HDD, allowing recording storage to be selected according to required retention time, activity level and recording settings.

The NVR provides one SATA HDD interface.

Camera Edge Storage

Each IPC3626LE-ADF28K-WP supports a MicroSD card up to 512GB, providing an additional edge-recording option.

MicroSD cards are not stated as included.

What's Included in the Box

Based on the supplied kit information:

• 4 × UNIVIEW IPC3626LE-ADF28K-WP 6MP ColorHunter turret cameras
• 1 × UNIVIEW NVR501-04B-P4 4-channel PoE NVR
• Ethernet cables for the cameras
• Power supply
• Camera mounting accessories
• User / installation documentation
• HDD: Not included by default

Storage clarification: “Default No HDD”

Optional Camera Mounting Accessories

• TR-JB03-I-IN – Junction box
• TR-WM03-D-IN – Wall mount
• TR-JB07/WM03-G-IN – Combination wall-mount / junction-box solution

Compatibility and required mounting hardware should be confirmed for the installation surface and camera position before purchase.

Practical Use Scenarios

Residential Security

Position the four cameras around entrances, driveways, side access points and rear outdoor areas to provide broad coverage of a home or residential property.

Small Business CCTV

Suitable for shopfronts, reception areas, stockrooms, rear entrances and customer-access areas where detailed 6MP surveillance and low-light visibility are required.

Office Surveillance

Monitor reception areas, access points, hallways, parking areas and shared spaces from one four-channel recording platform.

Warehouse and Workshop Monitoring

The combination of high-resolution imaging, wide-angle 2.8mm lenses and IP67-rated camera housings can suit loading areas, storage zones and building perimeters.

Low-Light Property Monitoring

ColorHunter with Wise-ISP and 30m warm-light illumination make the cameras particularly suitable for areas where maintaining useful colour information after dark is important.

Warranty

3-Year Limited Warranty on the cameras and NVR, as specified in the supplied product information.

Warranty eligibility, commencement date and claim procedures may depend on seller and distribution-channel terms. UNIVIEW also maintains official warranty inquiry and repair-request services.

About UNIVIEW

UNIVIEW (UNV) develops professional video-surveillance products and solutions, including IP network cameras, network video recorders and associated security-management technologies. The brand maintains dedicated product, technical-support, warranty and partner resources across international markets, including Oceania.

Datasheets & Downloadable Resources

• Datasheet
  User Manual
• NVR
• Datasheet

  User Manual

  Quick Guide



Excellence for the Australian and New Zealand Market

UNIVIEW maintains an established Oceania partner network, with its official partner directory identifying master-distribution representation in both Australia and New Zealand. Purchasing through recognised UNIVIEW distribution channels can provide clearer access to local product support and warranty pathways.

For Australian and New Zealand installations, applicable electrical, EMC, privacy and surveillance requirements should always be confirmed for the specific project. In Australia, the Regulatory Compliance Mark (RCM) is used within applicable electrical-safety and ACMA regulatory arrangements. The manufacturer documents reviewed for the IPC3626LE-ADF28K-WP list certifications including CE, FCC, UL/CUL, RoHS/WEEE and IP67-related compliance, but do not explicitly state RCM certification for this exact camera model; therefore RCM approval is not claimed in this listing.

No NDSS approval is claimed for this CCTV kit because no such certification is stated in the product documentation reviewed.

For warranty support, UNIVIEW provides direct warranty-inquiry and repair-request channels, while the exact claim process may also involve the authorised reseller or distributor from which the equipment was purchased.

Frequently Asked Questions

Does the UNIVIEW IPC3626LE-ADF28K-WP + NVR501-04B-P4 CCTV kit include four cameras?

Yes. The kit consists of four IPC3626LE-ADF28K-WP 6MP ColorHunter cameras and one NVR501-04B-P4 four-channel PoE NVR.

What resolution does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 surveillance kit record?

Each IPC3626LE-ADF28K-WP camera supports up to 6MP 3072 × 2048 resolution, and the NVR supports the cameras' 6MP recording resolution.

Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 kit provide full-colour night surveillance?

The cameras use ColorHunter with Wise-ISP together with an F1.0 aperture and warm-light illumination up to 30 metres to improve colour surveillance in low-light environments.

Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 kit include built-in microphones?

Yes. Each IPC3626LE-ADF28K-WP camera has an integrated microphone for supported audio recording.

Is an HDD included with the IPC3626LE-ADF28K-WP + NVR501-04B-P4 CCTV kit?

No HDD is included by default. The supplied information contained a conflicting 2TB reference, so this listing uses the explicitly stated default No-HDD configuration.

Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 system support PoE?

Yes. The cameras support PoE and the NVR501-04B-P4 provides four dedicated PoE network ports, simplifying power and data cabling.

Can the IPC3626LE-ADF28K-WP + NVR501-04B-P4 cameras be installed outdoors?

Yes. The IPC3626LE-ADF28K-WP cameras are IP67 rated and have a specified working-temperature range of -30°C to +60°C, making them suitable for appropriately installed outdoor surveillance applications.

Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 kit support MicroSD recording?

Yes. Each camera supports a MicroSD card up to 512GB for edge storage. MicroSD cards are not stated as included.

Can I connect a monitor directly to the IPC3626LE-ADF28K-WP + NVR501-04B-P4 NVR?

Yes. The NVR501-04B-P4 provides HDMI and VGA outputs, with HDMI supporting resolutions up to 4K for compatible displays.

Can the IPC3626LE-ADF28K-WP + NVR501-04B-P4 system be viewed remotely?

The cameras support UNIVIEW client platforms including UNV-Link, UNV-Link Pro and EZStation, allowing supported network and remote-management configurations.

What lens is used in the IPC3626LE-ADF28K-WP + NVR501-04B-P4 camera kit?

Each camera uses a 2.8mm fixed F1.0 lens with an approximately 110.4° horizontal field of view, making it suitable for broad general-surveillance coverage.

Does the IPC3626LE-ADF28K-WP + NVR501-04B-P4 kit support ONVIF?

Yes. The camera documentation lists ONVIF Profiles S, G and T, while the NVR platform also supports compatible IP surveillance integration.

What warranty applies to the IPC3626LE-ADF28K-WP + NVR501-04B-P4 kit?

The supplied product information specifies a 3-year limited warranty for the cameras and NVR. Warranty eligibility and claim procedures should be confirmed against the seller or authorised distribution channel at the time of purchase.
