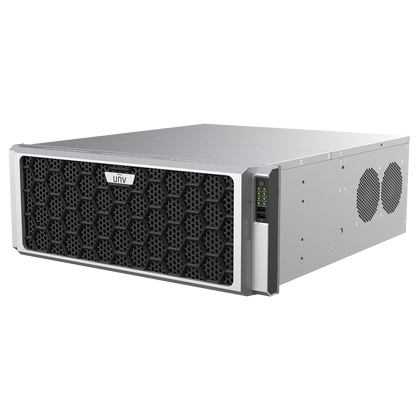

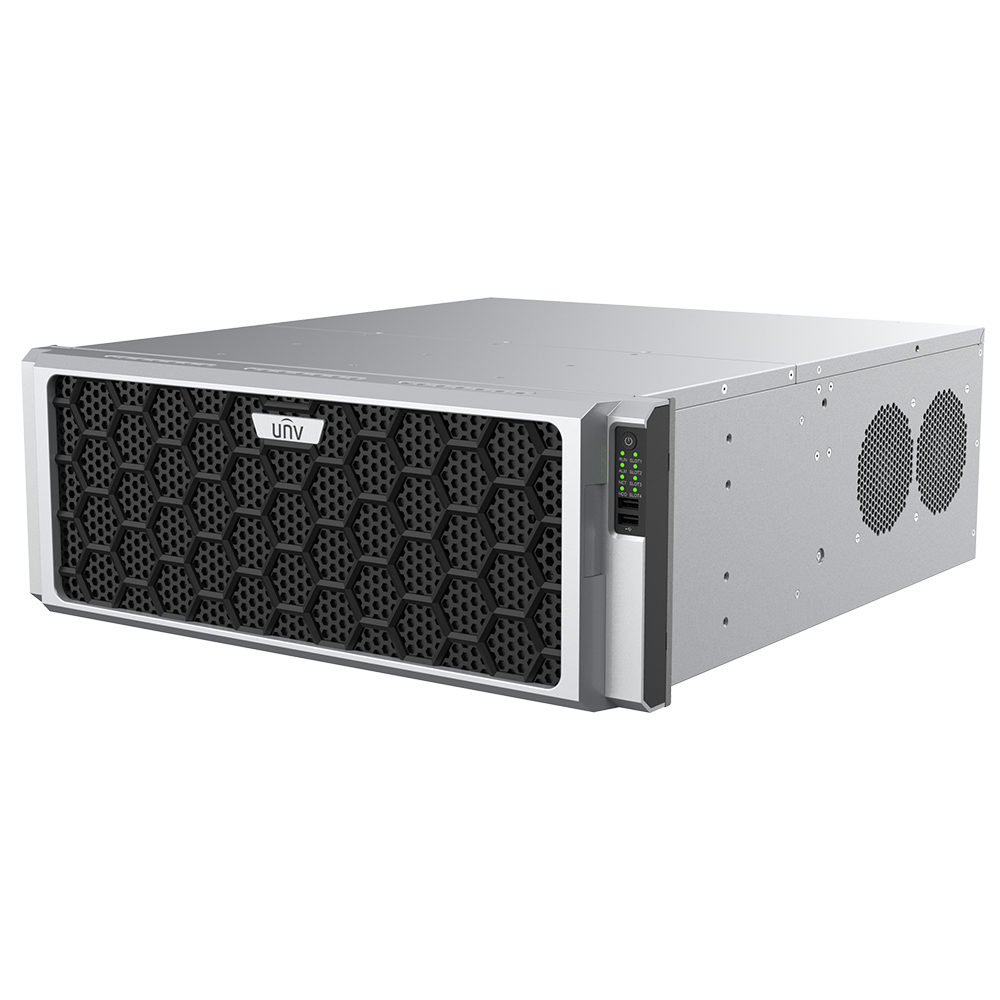

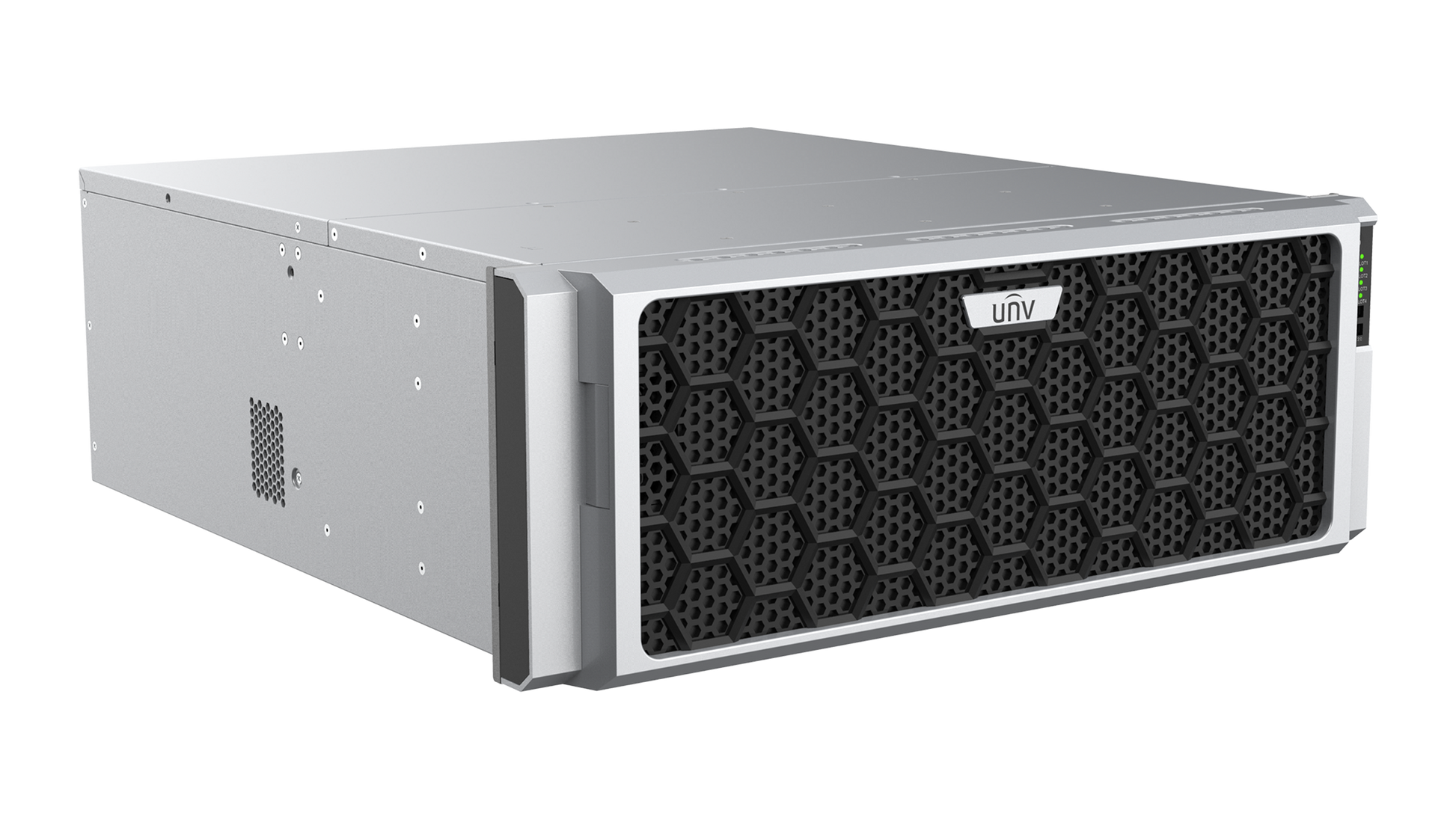

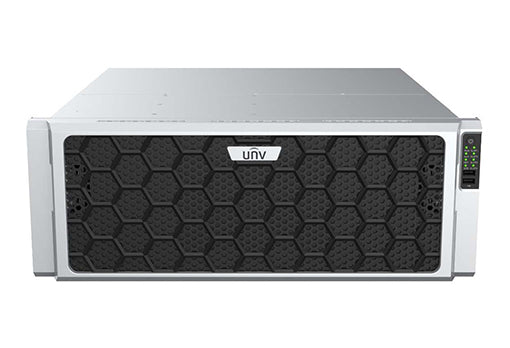

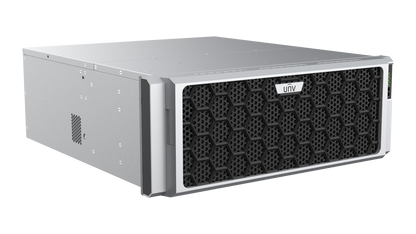

UNIVIEW NVR824-256R PRO 256 Channel 24 HDDs RAID NVR (NDAA Compliant)

The UNIVIEW NVR824-256R is a high-performance, professional-grade network video recorder (NVR) designed to manage large-scale surveillance systems. With support for up to 256 IP cameras and advanced features like Ultra 265 compression, RAID configurations, and 24 SATA HDD slots supporting up to 10TB each, this recorder is ideal for enterprise, industrial, or high-security environments.

Key Features

Video and Decoding Capabilities

• 256-Channel Input: Supports up to 256 IP cameras for extensive coverage.
• Recording Resolution: Up to 12MP for ultra-clear video.
• Compression Formats: Ultra 265, H.265, and H.264 for efficient storage management.
• Playback Options: Up to 16 simultaneous channels and resolutions up to 4K for detailed reviews.
• High Decoding Capacity: Handles 5x 4K@30 fps, 20x 1080P@30 fps, or 96x D1 streams.

Storage and RAID Configuration

• 24 SATA HDD Ports: Each supports up to 10TB, allowing for 240TB total capacity.
• Hot-Swap and RAID: Supports RAID 0, 1, 5, 6, 10, 50, and 60 for flexible and reliable storage configurations.
• ANR Technology: Enhances storage reliability during network disconnections.

Output and Display

• Multiple Video Outputs:
  • 2x HDMI (up to 4K resolution).
  • 1x VGA for additional display flexibility.
• Independent Outputs: HDMI1, HDMI2, and VGA can display separate streams for multi-tasking.

Network and Connectivity

• 4x Gigabit Ethernet Ports: For high-speed data transfer and stable multi-device connections.
• Third-Party Compatibility: ONVIF profiles (S, G, C, Q, A, T) supported for seamless integration with various camera brands.

Intelligent Features

• Cloud Upgrade: Simplified updates and maintenance.
• N+1 Hot Spare: Ensures system reliability by providing backup in case of hardware failure.
• Alarm Integration: 24 alarm inputs and 8 alarm outputs for advanced event detection and notifications.

Build and Power

• Redundant Power Supply (Optional): Ensures continuous operation during power failures.
• Power Consumption: ≤ 70W (without HDD).
• Rugged Design: Operates in temperatures from -10°C to +50°C and up to 90% relative humidity.

Specifications

Video/Audio Input

• Input Channels: 256 channels.
• Two-Way Audio: 1 RCA input.

Recording and Decoding

• Recording Formats: Ultra 265, H.265, H.264.
• Playback Resolution: Supports resolutions up to 12MP.

Storage and Expandability

• Hard Disk Bays: 24 SATA HDDs.
• Maximum HDD Capacity: 10TB per drive (total 240TB).
• External Storage: Supports 2 miniSAS ports and 1 eSATA.

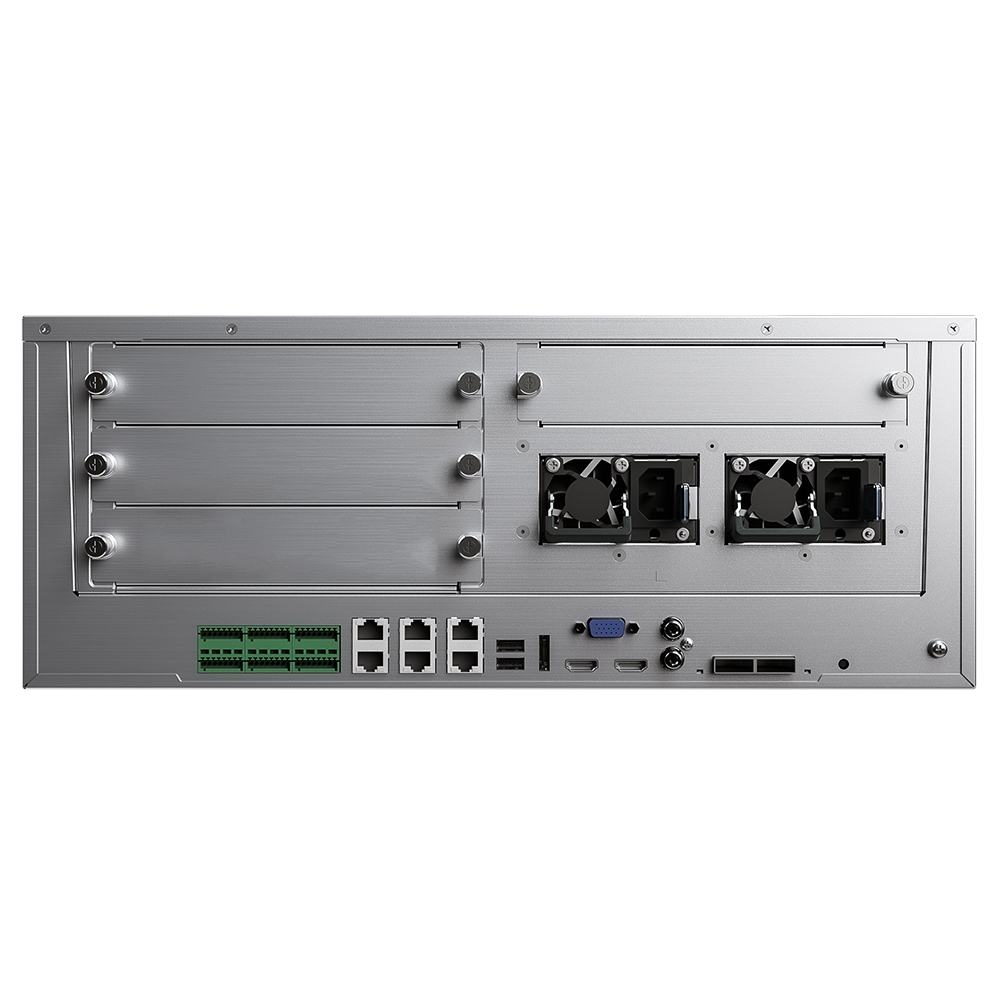

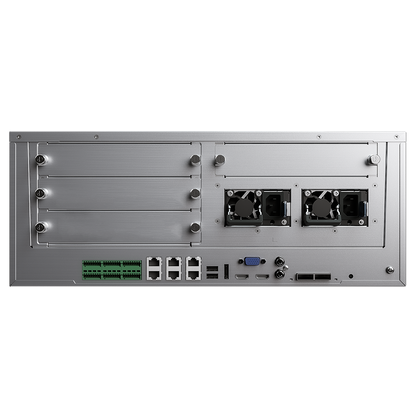

Interfaces

• USB Ports: 2x USB 2.0 (front), 2x USB 3.0 (rear).
• Alarm I/O: 24 inputs, 8 outputs.
• Network Ports: 4x 10M/100M/1000M adaptive Ethernet interfaces.

General

• Dimensions: 533mm x 484.6mm x 175.5mm (21.0" x 19.1" x 6.9").
• Weight: ≤ 12.5kg (without HDD).
• Power Supply: 100–240V AC.

Ideal Applications

• Enterprise Surveillance: Large office complexes, data centers, and campuses.
• Industrial Monitoring: Factories, logistics hubs, and utility facilities.
• Public Safety: City surveillance, airports, and transport hubs.

Box Contents

• 1x UNIVIEW NVR824-256R Network Video Recorder.
• Installation accessories and screws.
• Power cable and user manual.

Warranty

• Covered by a 60-Month Manufacturer Warranty for peace of mind.

The UNIVIEW NVR824-256R is the ultimate solution for large-scale surveillance needs, offering unmatched performance, extensive storage capabilities, and robust reliability. Perfect for environments where security and scalability are paramount.
