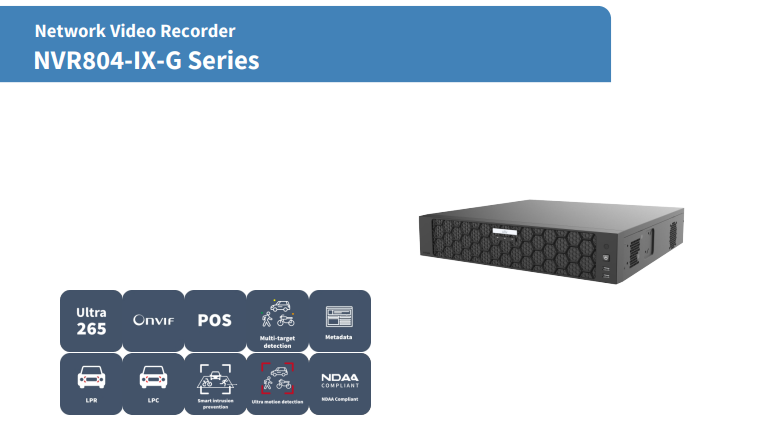

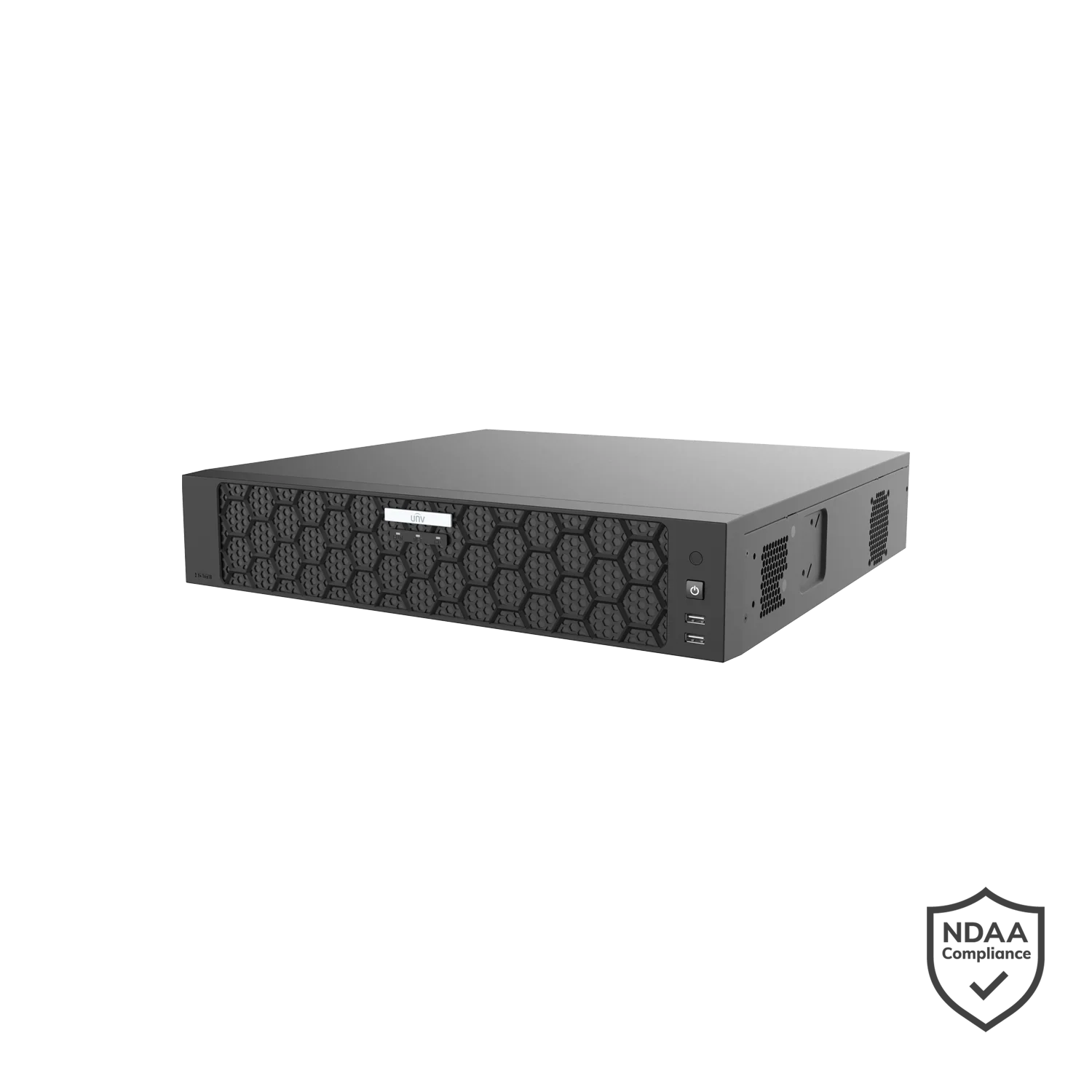

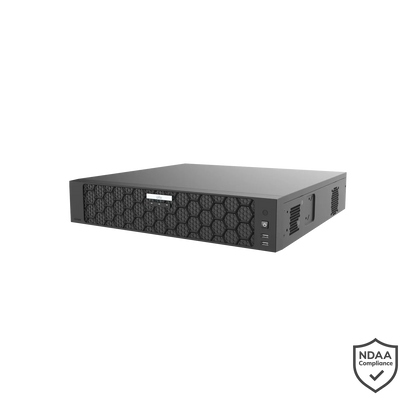

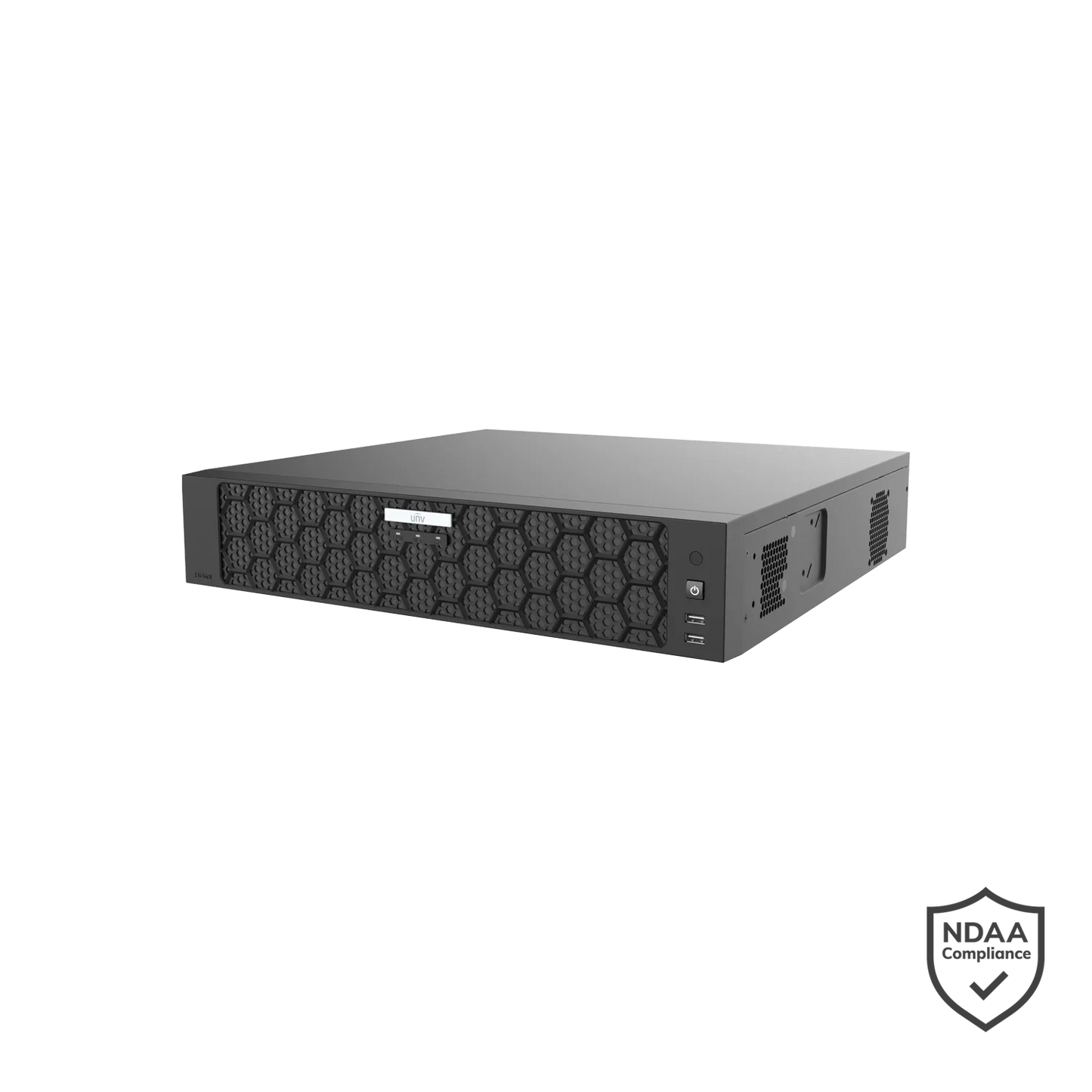

Uniview NVR804-64-IX-G 64 Channel IX Series SeekFree Network Video Recorder

Uniview NVR804-64-IX-G 64 Channel IX Series SeekFree Network Video Recorder

$2,344.98 AUD
$2,527.56 AUD $2,344.98 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

The Uniview NVR804-64-IX-G is a professional 64 channel IX Series SeekFree network video recorder designed for advanced IP surveillance systems, featuring Ultra H.265 compression, up to 4K recording, AI-powered analytics, 384 Mbps bandwidth, and triple HDMI outputs for large-scale commercial and enterprise security installations.

Product Description

The Uniview NVR804-64-IX-G is a high-capacity 64-channel network video recorder engineered for large surveillance deployments requiring strong decoding performance, advanced analytics, and reliable recording. As part of Uniview’s IX Series, it supports intelligent video management tools designed for complex professional security environments.

The recorder supports Ultra 265, H.265, and H.264 video compression, helping reduce bandwidth and storage requirements while maintaining high image quality. It supports up to 64 IP camera inputs and recording resolutions up to 4K, delivering detailed monitoring for high-security sites.

The SeekFree technology enables quick and intelligent video searches across compatible cameras, while advanced analytics such as face detection, plate comparison, people counting, smart intrusion prevention, video metadata analysis, and behavior analysis help users quickly locate important events in recorded footage.

With three HDMI outputs and one VGA output, the system supports flexible monitoring layouts including simultaneous and independent displays. Combined with 384 Mbps incoming bandwidth, ANR recording protection, and support for up to four hard drives, the NVR804-64-IX-G is designed for professional surveillance installations in commercial, industrial, and large facility environments.

What’s Included in the Box

  • 1 × Uniview NVR804-64-IX-G Network Video Recorder

  • 1 × Power cable

  • 1 × Mouse

  • 1 × Quick installation guide

  • Mounting accessories

  • Hard drives not included

Main Features

  • Supports 64 IP camera channels

  • Ultra 265 / H.265 / H.264 video compression

  • 4K recording and HDMI output

  • SeekFree intelligent video search

  • 384 Mbps incoming and outgoing bandwidth

  • 3 HDMI outputs and 1 VGA output

  • HDMI1 and VGA simultaneous display

  • HDMI1/VGA, HDMI2, and HDMI3 independent output

  • ANR (Automatic Network Replenishment) for recording continuity

  • Advanced AI video analytics

  • Face detection and face comparison

  • People counting and crowd density monitoring

  • Video metadata analytics

  • Smart intrusion prevention (SIP)

  • Plate comparison and vehicle detection

  • AcuSearch and AcuTrack smart search

  • Supports external USB keyboard

  • Cloud upgrade support

  • NDAA compliant

Detailed Specifications

General

Brand: Uniview
Model: NVR804-64-IX-G
Series: NVR804-IX-G Series
Product Type: Network Video Recorder
SKU: NVR804-64-IX-G

Video and Decoding

Decoding Format: Ultra 265, H.265, H.264

Recording Resolution:
32MP / 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P / D1 / 2CIF / CIF

Decoding Capability (Smart Off / Smart On):

H.265

  • 6 × 4K @30fps

  • 8 × 6MP @30fps

  • 10 × 5MP @30fps

  • 12 × 4MP @30fps

  • 16 × 3MP @30fps

  • 25 × 1080P @30fps

  • 32 × 720P @30fps

  • 64 × D1 @30fps

H.264

  • 6 × 4K @30fps

  • 8 × 6MP @30fps

  • 10 × 5MP @30fps

  • 12 × 4MP @30fps

  • 16 × 3MP @30fps

  • 25 × 1080P @30fps

  • 32 × 720P @30fps

  • 64 × D1 @30fps

Maximum Resolution Limit per Channel:
8192 pixels in width or height

Audio Compression:
G.711A, G.711U

Network

  • Incoming Bandwidth: 384 Mbps

  • Outgoing Bandwidth: 384 Mbps

  • Max Users Added: 32

  • Remote Users: 128

Supported Protocols:
TCP/IP, P2P, SMTP, RTSP, UPnP, NTP, DHCP, PPPoE, HTTP, DNS, DDNS, IPv4, IPv6, HTTPS, SNMP

Browser Compatibility:
IE10, IE11, Chrome, Edge, Firefox, Safari

Video and Audio Input

  • IP Camera Input: 64 Channels

  • RCA Audio Input: 1 Channel

  • IP Speaker: 16 Channels

  • POS Integration: Supported on all channels

Video and Audio Output

  • Video Outputs: 3 × HDMI, 1 × VGA

  • HDMI Resolution:

    • 3840 × 2160 (4K) @60Hz

    • 3840 × 2160 @30Hz

    • 1920 × 1080 @60Hz

    • 1280 × 720 @60Hz

  • VGA Resolution:

    • 1920 × 1080 @60Hz

    • 1280 × 720 @60Hz

  • Audio Output: 3 × RCA

  • Two-Way Audio: 1 × RCA

Live View and Playback

Live View Layout:
1 / 4 / 6 / 8 / 9 / 16 / 25 / 36 / 64

Default Live Screens:

  • HDMI1 + VGA: 64

  • HDMI2: 36

  • HDMI3: 36

Playback Screens:
1 / 4 / 9 / 16

Concurrent Playback:
32 channels

Local Synchronous Playback:
16 channels

Smart AI Functions

Smart by IPC

  • Face Detection

  • Face Comparison

  • Vehicle Detection (LPR)

  • Temperature Detection

  • Smart Intrusion Prevention

  • Ultra Motion Detection

  • Video Metadata

  • Traffic Monitoring

  • People Counting

Smart by NVR

  • Face Detection

  • Face Comparison

  • Smart Intrusion Prevention

  • Video Metadata

  • Plate Comparison

  • Illegally Parked Vehicle Detection

  • Ultra Motion Detection

  • Behavior Analysis

  • Elevator Entrance Detection

  • Evacuation Route Obstruction Detection

AI Search Functions

  • AcuSearch

  • AcuTrack

  • Face Snapshot Search

  • Motor Vehicle Search

  • Human Body Search

  • Behavior Search

  • Heat Map

  • SmartSearch+

Snapshot Capacity

  • 2 million SIP records

  • 2 million vehicle snapshots

  • 3 million face snapshots

Storage

  • HDD Bays: 4 × SATA

  • Maximum HDD Capacity: 24TB per drive

  • Disk Group Support: Yes

  • Redundant Storage: Supported

External Interfaces

  • Network Ports: 2 × RJ45 Gigabit Ethernet

  • USB Ports:

    • Front: 2 × USB 2.0

    • Rear: 2 × USB 3.0

  • RS485: 1

  • RS232: 1

  • Alarm Input: 16 Channels

  • Alarm Output: 10 Channels

  • eSATA: 1

  • Power Output: 12V

Power and Environment

  • Power Supply: AC 220V

  • Power Consumption (Without HDD): ≤50W

  • Operating Temperature: -10°C to 55°C

  • Operating Humidity: ≤90% (Non-condensing)

  • Cooling System: Fan and radiator

Certifications

  • CE

  • FCC

  • UL

  • RoHS

  • WEEE

  • NDAA Compliant

Warranty Information

This product includes a 3-Year Manufacturer Warranty, ensuring dependable performance and professional technical support through authorized distribution partners.

Brand Information – Uniview

Uniview (UNV) is a globally recognized manufacturer of professional video surveillance equipment and AI-powered security technologies. Known for innovation in IP video surveillance, smart analytics, and enterprise-grade security solutions, Uniview products are widely deployed across commercial, industrial, government, and infrastructure security environments worldwide.

Practical Use Scenarios

  • Large commercial surveillance systems

  • Industrial facilities and manufacturing plants

  • Universities and school campuses

  • Warehouses and logistics centres

  • Shopping centres and retail chains

  • Hospitals and healthcare facilities

  • Government buildings and infrastructure

  • Multi-site enterprise security deployments

Datasheets / Downloadable Resources

Excellence for the Australian and New Zealand Market

The Uniview NVR804-64-IX-G is supplied through authorized distribution channels and is optimized for professional security installations across Australia and New Zealand. The system complies with international standards including CE, FCC, UL, RoHS, WEEE, and NDAA compliance, ensuring reliability and regulatory compatibility.

Products are sourced directly from official brand representatives to guarantee authentic hardware, verified firmware, and full warranty support. This ensures installers and end users across the Australian and New Zealand market receive dependable security solutions backed by professional service and support.

FAQs – Uniview NVR804-64-IX-G

What is the Uniview NVR804-64-IX-G used for?

The Uniview NVR804-64-IX-G is used to record and manage up to 64 IP surveillance cameras in large commercial and enterprise security systems.

Does the NVR804-64-IX-G come with a hard drive?

No, the NVR804-64-IX-G is supplied without HDD, allowing installers to choose storage capacity according to project requirements.

How many cameras can the NVR804-64-IX-G support?

The NVR804-64-IX-G supports 64 IP camera channels.

Does the NVR804-64-IX-G support 4K recording?

Yes, the NVR804-64-IX-G supports recording and display up to 4K resolution.

What compression formats does the NVR804-64-IX-G support?

The NVR804-64-IX-G supports Ultra 265, H.265, and H.264 video compression.

How many hard drives can be installed in the NVR804-64-IX-G?

The NVR804-64-IX-G supports 4 SATA hard drives, each with a maximum capacity of 24TB.

Does the NVR804-64-IX-G support AI analytics?

Yes, the NVR804-64-IX-G supports AI features including face detection, people counting, video metadata, behaviour analysis, plate comparison, and intrusion detection.

How many remote users can access the NVR804-64-IX-G?

The NVR804-64-IX-G supports up to 128 remote users.
