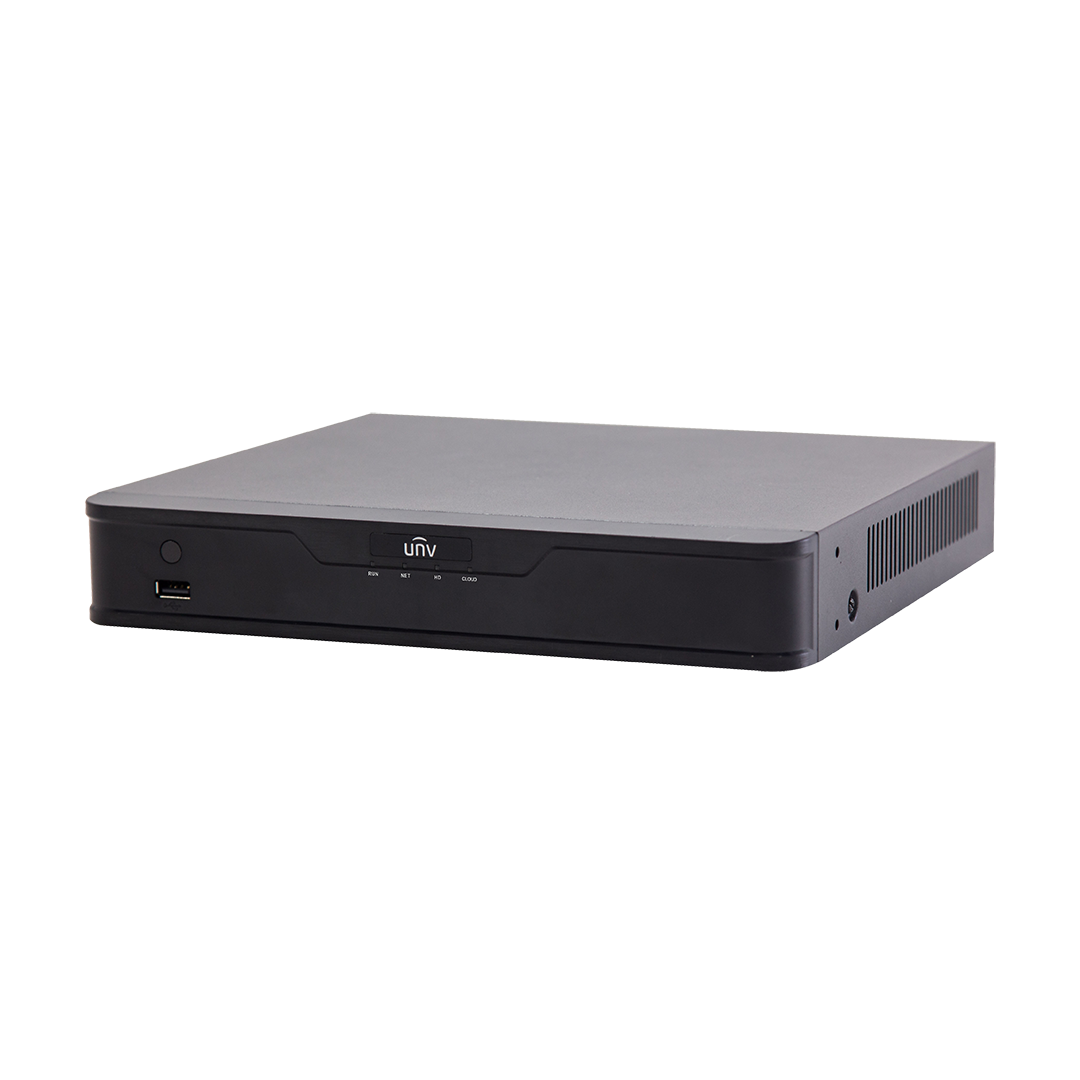

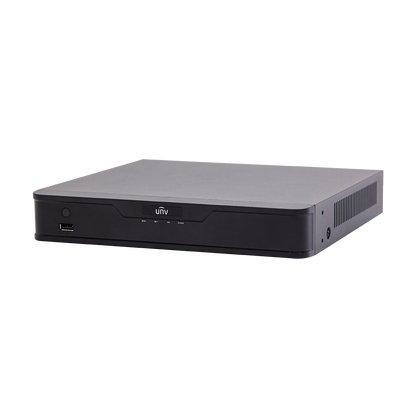

Uniview NVR301-08X-P8 4K 8 Channel up to 8 TB HDD NVR (Replaced by *NEW NVR301-08B-P8-IQ)
Uniview NVR301-08X-P8 4K 8 Channel up to 8 TB HDD NVR (Replaced by *NEW NVR301-08B-P8-IQ)
Regular price
$259.08 AUD
Regular price
$289.68 AUD
Sale price
$259.08 AUD
Duties and taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The Uniview NVR301-08X-P8 is a high-performance 8-channel network video recorder designed for seamless integration into modern surveillance systems. It supports Ultra 265, H.265, and H.264 video formats, offering excellent video quality while optimizing bandwidth and storage. With advanced features such as 4K HDMI output, up to 8TB storage capacity, and intelligent analytics, this NVR is ideal for residential, retail, and commercial applications.
Key Features
Input & Video Capabilities
- 8-Channel Input: Connect up to eight IP cameras for comprehensive surveillance coverage.
- Ultra 265 Technology: Reduces bandwidth and storage use significantly without compromising video quality.
- High-Resolution Support: Records up to 8MP resolution, ensuring detailed and sharp video footage.
- ONVIF Compatibility: Supports Profile S, G, and T for easy integration with third-party cameras.
Output & Viewing
- 4K HDMI Output: Delivers ultra-high-definition video at resolutions up to 3840x2160 @ 30Hz for crisp image clarity.
- Dual Outputs: Simultaneous video playback via HDMI and VGA outputs.
- Synchronous Playback: 8-channel playback for reviewing multiple camera feeds simultaneously.
Storage & Network
- 1 SATA HDD Slot: Supports up to 8TB for extensive video storage.
- (Choose your own HDD below)
- Network Bandwidth: Handles 80Mbps incoming and 64Mbps outgoing for reliable data transfer.
- Remote Access: Supports up to 128 remote users with protocols like TCP/IP, HTTP, HTTPS, and P2P for versatile network connectivity.
Advanced Analytics
- Smart VCA by Camera: Enables advanced features such as intrusion detection, line crossing detection, and people counting.
- Event Alerts: Notifies of motion, tampering, video loss, and system errors for enhanced situational awareness.
- Behavior Search: Efficiently searches for specific incidents or patterns in recorded footage.
Power Over Ethernet (PoE)
- 8 PoE Ports: Simplifies installation by powering cameras directly through Ethernet cables.
- Max Power Per Port: Up to 30W, with a total budget of 75W across all ports.
Specifications
Video/Audio
- Recording Resolutions: 4K, 5MP, 4MP, 1080p, and more.
- Audio Support: Two-way RCA input and one-channel RCA output with G.711 audio compression.
Hardware
- USB Ports: 1 x USB 2.0 and 1 x USB 3.0 for quick data backup and connectivity.
- Power Supply: 52V DC with ≤8W consumption (excluding HDD).
- Compact Dimensions: 260mm × 240mm × 47mm; weight ≤1kg (without HDD).
Environment & Certifications
- Operating Temperature: -10°C to +55°C (14°F to 131°F).
- Certifications: CE, FCC, UL, RoHS, and WEEE compliant.
What’s in the Box
- Uniview NVR301-08X-P8 8-Channel PoE NVR
- Power Adapter
- User Manual
- Screws for HDD Installation
Applications
- Home Security: Monitor and record with 4K clarity, ensuring peace of mind.
- Retail and Office: Enhance workplace safety and loss prevention.
- Commercial Spaces: Manage surveillance for warehouses, parking lots, and more.
Warranty
Uniview offers a 3-year warranty for the NVR, providing long-term reliability and peace of mind.
The Uniview NVR301-08X-P8 combines performance, convenience, and cutting-edge features to meet the demands of any surveillance setup.
| Model | NVR301-08X-P8 |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Browser | IE(IE10/11) for Windows Firefox (version 52.0 and above) for Windows Chrome(version 45 and above) for Windows Edge(version 79 and above) for Windows |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Liveview display | 1/4/6/8/9 |
| Corridor Mode Screen | 3/4/5/7/9 |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 4-ch snapshot, up to D1 resolution |
| Decoding | |
| Decoding format | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30 |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 8TB for each disk (The maximum HDD capacity varies with environment temperature) |
| Smart | |
| VCA Detection by Camera | Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Ultra Motion Detection(UMD) |
| VCA Search | Behavior Search |
| People counting | People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP), UMD by Camera | Total 8-ch |
| General Alarm | |
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |

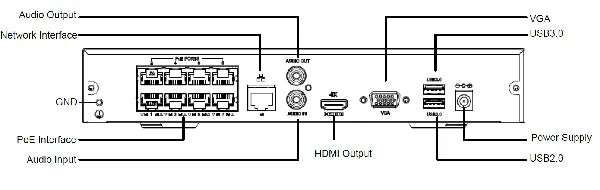

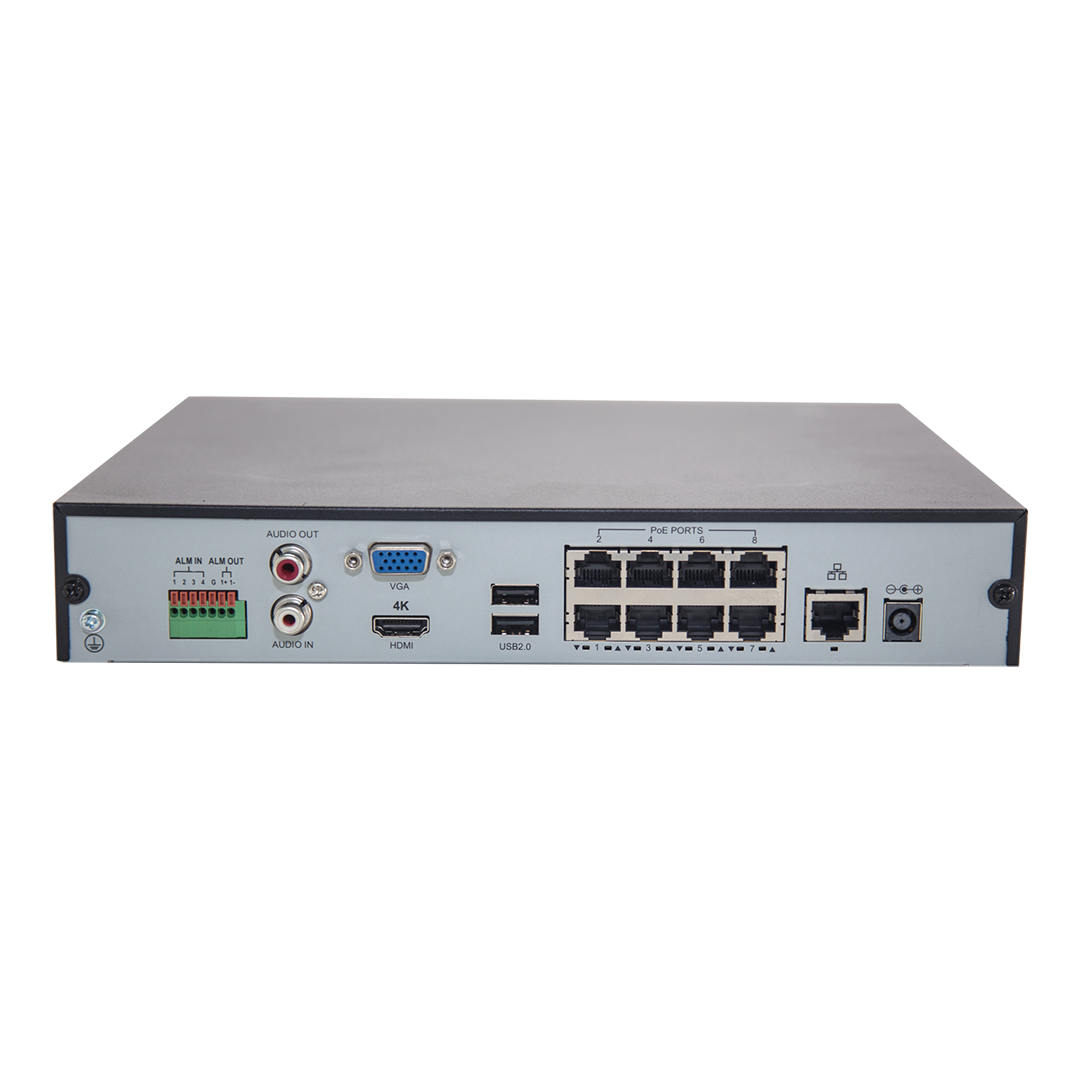

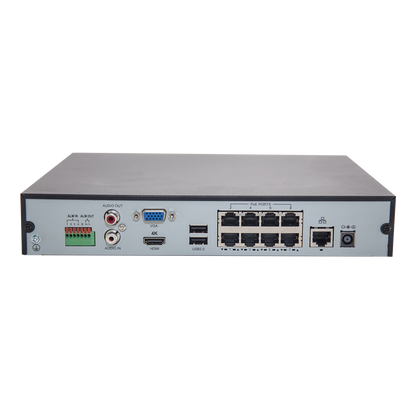

| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC Power Consumption: ≤8 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
| Weight (without HDD) | ≤1kg (2.20 lb) |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC | Part15 Subpart B, ANSI C63.4 |
