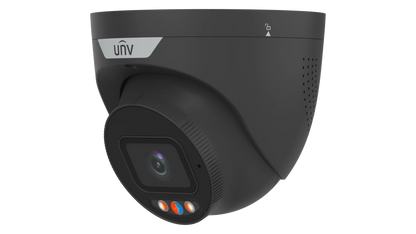

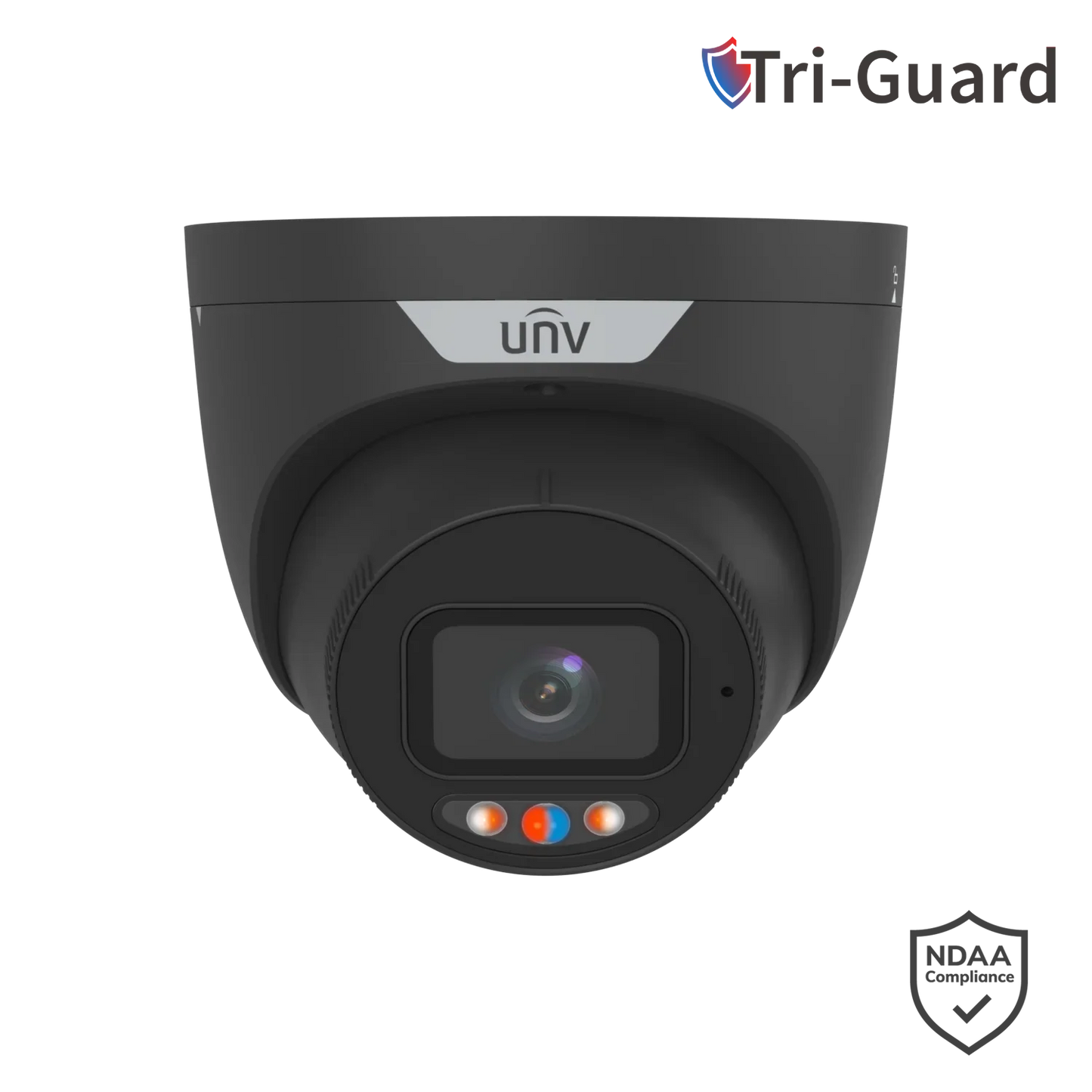

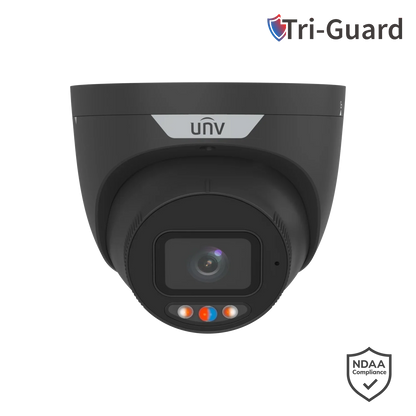

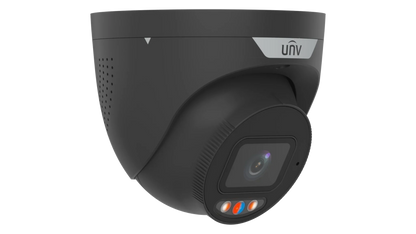

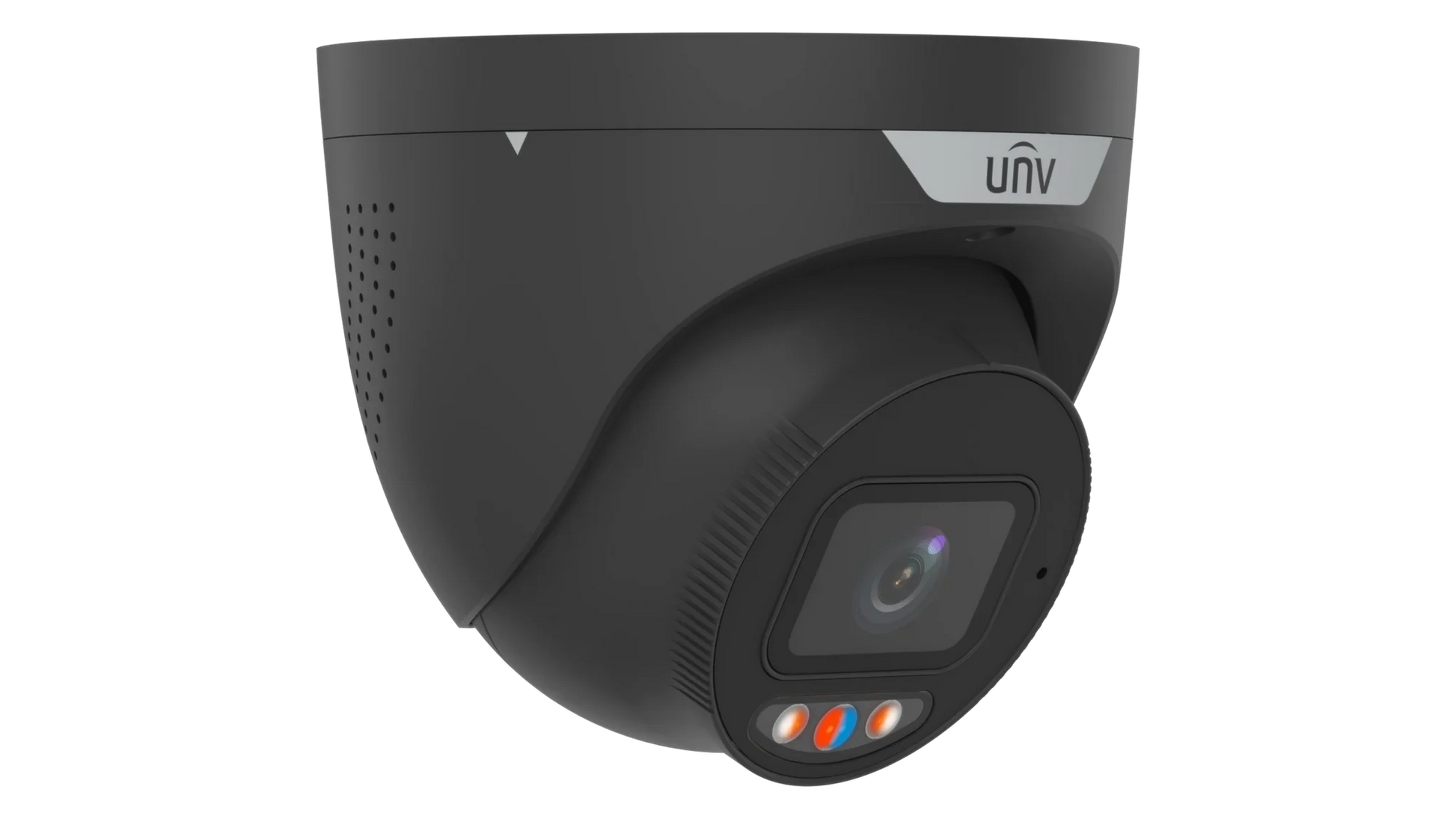

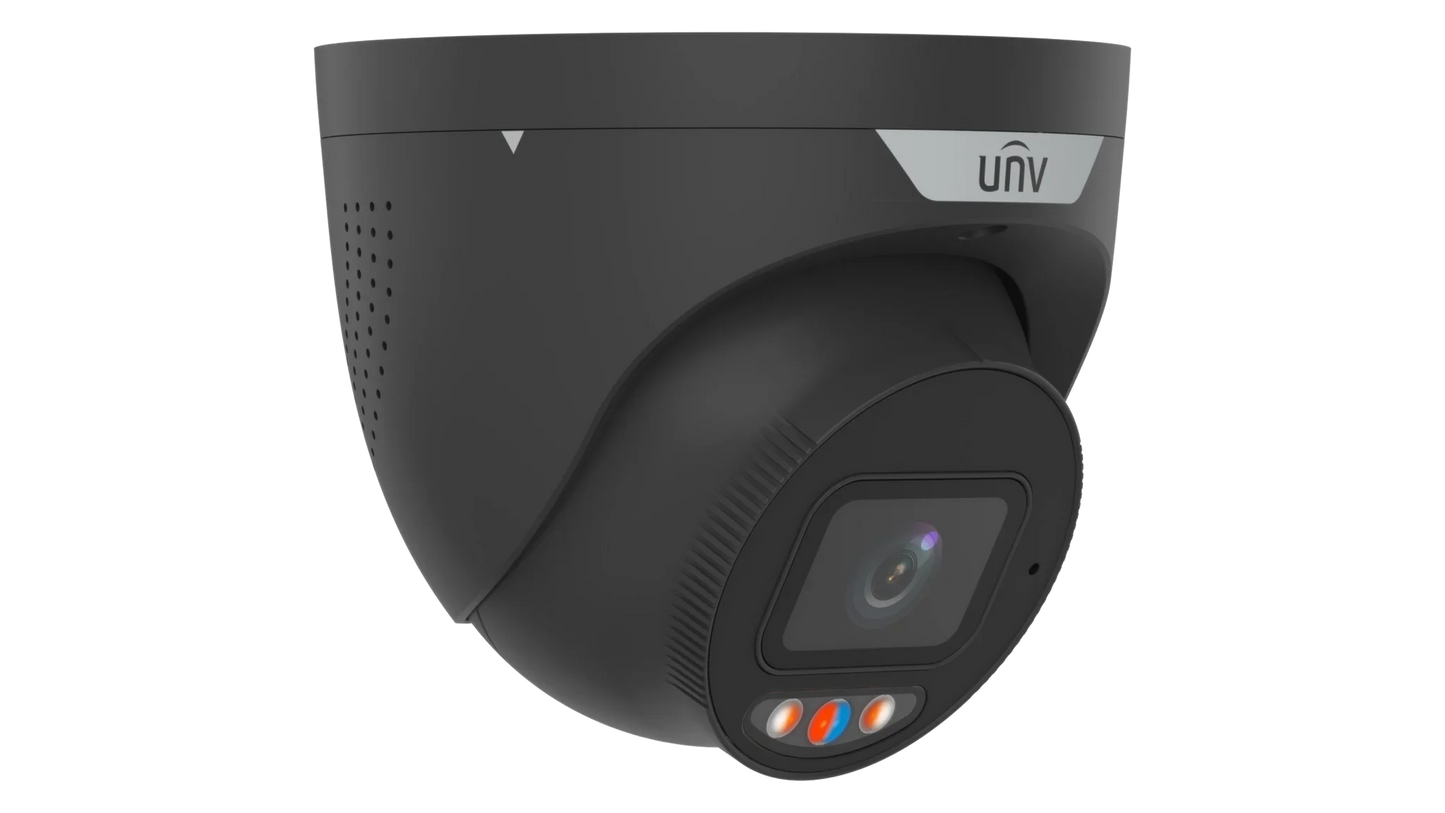

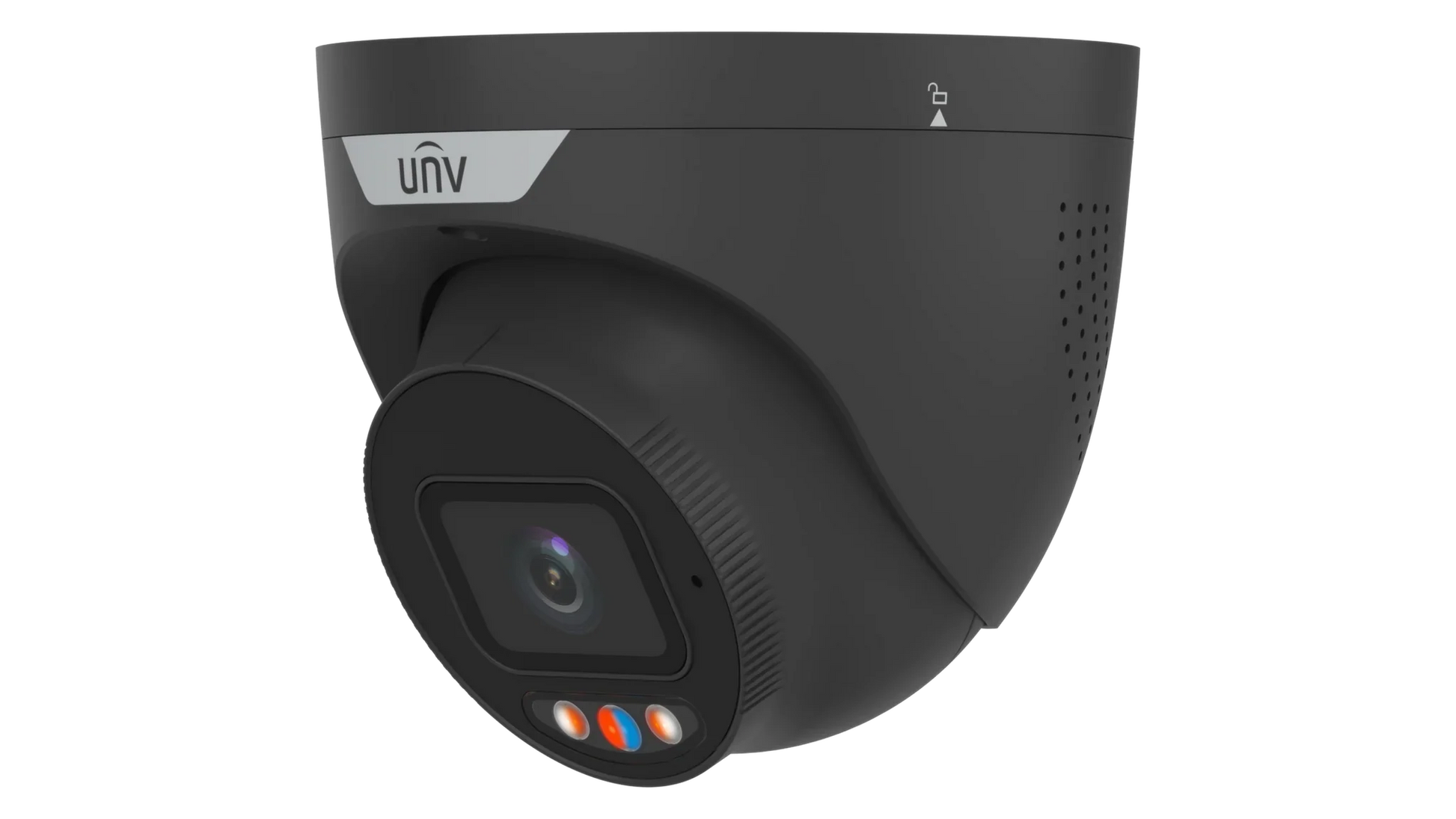

Uniview IPC3636SS-ADF28KMC-I1-BK 6MP Triguard Smart Eyeball Dome Camera with Audible and Visual Warning – Black, IP67, PoE

Uniview IPC3636SS-ADF28KMC-I1-BK 6MP Triguard Smart Eyeball Dome Camera with Audible and Visual Warning – Black, IP67, PoE

$345.78 AUD
$419.22 AUD $345.78 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.

Secure your premises with crystal-clear 6MP resolution and intelligent perimeter protection using the Uniview IPC3636SS-ADF28KMC-I1-BK. This sleek black dome camera combines high-definition imaging, red and blue deterrent lights, built-in microphone and speaker, and smart analytics to deliver reliable and proactive surveillance for commercial and residential environments.

Product Description

The Uniview IPC3636SS-ADF28KMC-I1-BK is a high-performance 6MP eyeball network camera designed to deliver smart security with precision. Equipped with a 1/2.7" progressive scan CMOS sensor, it delivers video at resolutions up to 3072×2048 at 30fps, ensuring detailed coverage in high-traffic or high-risk zones.

This dome camera excels in intelligent intrusion detection with advanced human, motor vehicle, and non-motor vehicle classification, dramatically reducing false alerts. It also features Smart IR with 30m night vision, Auto Scene Match (ASM) for real-time image optimization in WDR mode, and people counting with crowd density monitoring, ideal for retail, education, and public safety applications.

Its robust IP67 weather-resistant build, integrated red/blue warning lights, and two-way audio capability make it a standout choice for modern, AI-driven surveillance systems—especially where discretion and performance are equally important.

What's in the Box

  • 1 × Uniview IPC3636SS-ADF28KMC-I1-BK Eyeball Dome Camera

  • 1 × Mounting bracket or compatible junction box

  • 1 × Waterproof cable gland

  • 1 × Mounting kit with screws and anchors

  • 1 × Quick installation guide

  • 1 × Reset pin tool

Main Features

  • 6MP (3072×2048) ultra HD video at 30 fps

  • Smart intrusion detection with human and vehicle classification

  • Built-in red and blue warning lights with speaker

  • Smart IR and warm light up to 30m for night-time clarity

  • Integrated microphone and speaker for full duplex two-way audio

  • Supports 9:16 corridor mode for hallways and vertical scenes

  • Onboard microSD card support up to 256 GB

  • IP67-rated weatherproof and robust black metal housing

  • Triple stream video (Ultra 265, H.265, H.264, MJPEG)

  • 130 dB True WDR and 2D/3D DNR for optimal image quality

  • ONVIF Profiles S/G/T compatibility for VMS integration

Detailed Specifications

Feature Specification
Model IPC3636SS-ADF28KMC-I1-BK
Resolution 6MP (3072×2048), 5MP, 4MP, 3MP, 1080P
Sensor 1/2.7" CMOS, progressive scan
Lens 2.8 mm @ F1.0 (107.2° HFOV)
Illumination Smart IR and warm light up to 30m
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Max 30fps (main, sub, and third streams)
Audio Built-in mic and speaker; 1/1 audio I/O
Alarm I/O 1 input / 1 output
WDR 130 dB True WDR
Storage microSD slot up to 256 GB
Protection Rating IP67
Power Supply 12V DC ±25%, PoE (IEEE 802.3af)
Power Consumption Max 10W
Dimensions Ø129 × 118 mm
Weight 0.69 kg
Smart Features Intrusion detection, people counting, audio detection, motion detection

Warranty Information

The Uniview IPC3636SS-ADF28KMC-I1-BK is covered under Uniview’s standard manufacturer warranty. For exact warranty duration and service procedures, please refer to your local authorized distributor.

About Uniview

Uniview leads innovation in IP surveillance, focusing on reliable and intelligent video solutions for a safer world. From retail to public infrastructure, their technology powers scalable, secure, and smart monitoring across the globe.

Product Code / SKU

IPC3636SS-ADF28KMC-I1-BK

Use Case Scenarios

  • Office Buildings & Lobbies: Eye-level installation with built-in speaker for real-time visitor management.

  • Educational Facilities: Monitor hallways or entry points with people counting and smart detection alerts.

  • Retail Spaces: Use visual/audio warnings to deter shoplifting and analyze crowd density for staff optimization.

  • Residential Complexes: Ideal for discreet yet proactive entrance monitoring with 2-way talk and IR coverage.

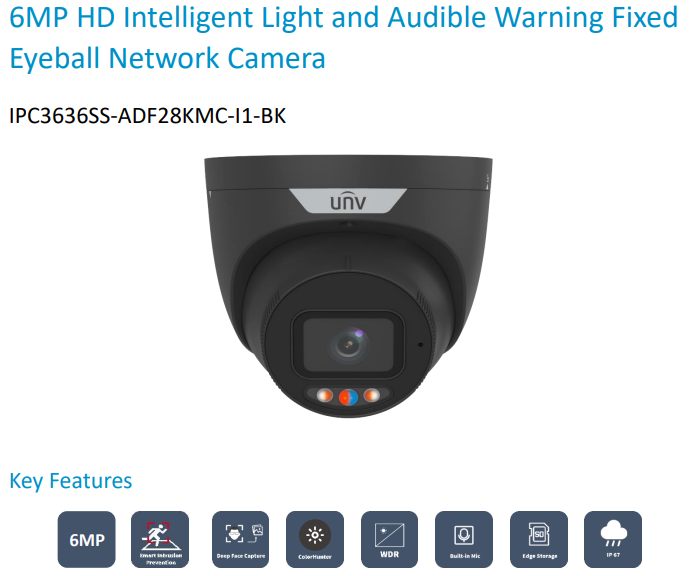

Datasheets and Downloadable Resources

Excellence for the Australian and New Zealand Market

The IPC3636SS-ADF28KMC-I1-BK is fully optimized for Australian and New Zealand conditions, featuring IP67 protection, wide voltage tolerance, and certified compliance with NDSS standards. It’s distributed through authorized ANZ partners, ensuring reliable access to firmware updates, accessories, and brand-backed warranty support. Its 6MP clarity, real-time alerts, and weather durability make it a standout choice for ANZ integrators demanding long-term reliability and regulatory compliance.

FAQs – IPC3636SS-ADF28KMC-I1-BK

Q1: What resolution does IPC3636SS-ADF28KMC-I1-BK support?
It supports 6MP (3072×2048) at up to 30fps, along with options for 5MP, 4MP, 3MP, and 1080P.

Q2: Can IPC3636SS-ADF28KMC-I1-BK deter intruders actively?
Yes, it features red and blue warning lights and a built-in speaker to emit audible alerts on detection.

Q3: Does IPC3636SS-ADF28KMC-I1-BK support audio?
Yes, it offers two-way audio with a built-in mic and speaker, plus one audio input and output.

Q4: Is IPC3636SS-ADF28KMC-I1-BK weatherproof for outdoor use?
Absolutely. It is IP67-rated, making it suitable for harsh outdoor conditions in Australia and New Zealand.

Q5: How far does the IR and warm light reach on IPC3636SS-ADF28KMC-I1-BK?
Both the IR and warm lights can illuminate up to 30 meters (98.4 ft).

Q6: Can IPC3636SS-ADF28KMC-I1-BK be integrated with existing systems?
Yes, it supports ONVIF Profiles S, G, T and is compatible with major VMS platforms.

Q7: What storage options are available on IPC3636SS-ADF28KMC-I1-BK?
The camera supports microSD cards up to 256 GB and can also be configured with NAS (NFS) or ANR for redundancy.
