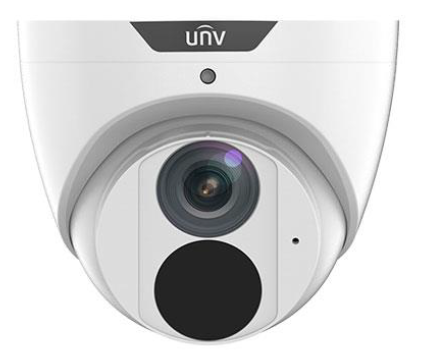

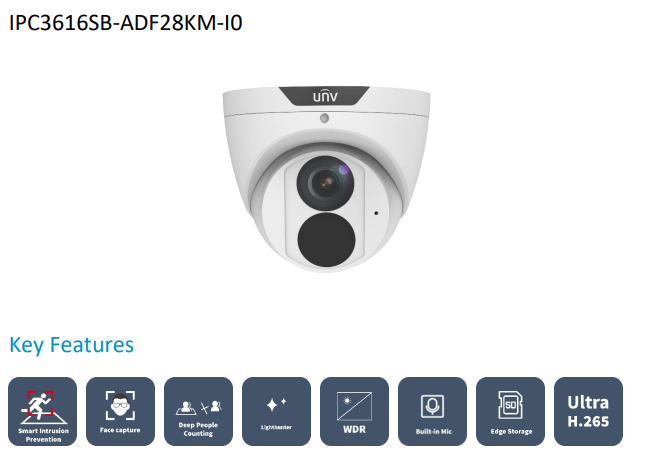

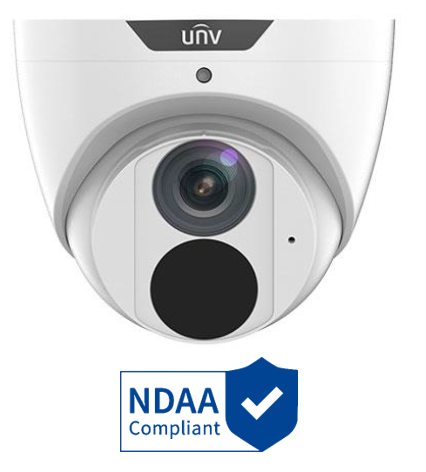

Uniview IPC3616SB-ADF28KM-I0 6MP LightHunter IR Fixed Eyeball Network Camera with Intelligent Analytics, Built-in Microphone, PoE & IP67 Protection

The Uniview IPC3616SB-ADF28KM-I0 is a professional-grade 6MP IP surveillance camera engineered to deliver exceptional image clarity, intelligent analytics, and superior low-light performance. Featuring Uniview's advanced LightHunter technology, a 1/2.7" progressive CMOS sensor, intelligent intrusion prevention, face capture, people counting, built-in microphone, and IP67-rated weatherproof construction, this camera is ideal for commercial, industrial, retail, educational, and residential security deployments throughout Australia and New Zealand.

Designed for demanding surveillance environments, the IPC3616SB-ADF28KM-I0 captures highly detailed 6MP video while maintaining outstanding performance in challenging lighting conditions. Advanced AI-powered analytics help reduce false alarms while providing actionable security intelligence for enhanced situational awareness.

What's Included in the Box

• 1 × Uniview IPC3616SB-ADF28KM-I0 Network Camera
• 1 × Mounting Kit
• 1 × Installation Guide
• 1 × Waterproof Connector Kit

Main Features

6MP Ultra-HD Video Surveillance

• 6MP resolution (3072 × 2048)
• Captures highly detailed images for improved identification and monitoring
• Supports multiple resolutions including 4MP, 3MP, and Full HD

LightHunter Ultra-Low Light Technology

• Exceptional colour imaging in low-light environments
• Minimum illumination:
  • Colour: 0.0025 Lux
  • 0 Lux with IR enabled
• Delivers superior nighttime surveillance performance

Intelligent Intrusion Prevention

Advanced AI analytics with false alarm filtering:

• Cross Line Detection
• Intrusion Detection
• Enter Area Detection
• Leave Area Detection

Reduces nuisance alarms caused by:

• Leaves
• Rain
• Shadows
• Environmental movement

Face Capture Technology

• Automatic face detection
• Intelligent face snapshot selection
• Supports masked area face detection

People Counting Analytics

• People flow statistics
• Occupancy monitoring
• Crowd density monitoring
• Ideal for retail stores, public venues, schools, and commercial facilities

120dB True Optical WDR

• Maintains image quality in high-contrast scenes
• Handles strong backlight conditions effectively
• Ideal for entrances, loading docks, and windows

Built-in Audio Recording

• Integrated microphone
• Captures synchronized video and audio evidence
• No external microphone required

Triple Video Streams

Supports simultaneous streaming for:

• Live monitoring
• Recording
• Mobile viewing

Flexible Storage Options

• Supports MicroSD cards up to 256GB
• ANR support
• NAS storage compatibility

Rugged Outdoor Design

• IP67 weatherproof protection
• Metal housing construction
• 4KV surge protection
• Suitable for harsh outdoor environments

Easy Network Integration

• ONVIF Profile S, G and T compliant
• API and SDK support
• Compatible with Uniview VMS platforms and many third-party systems

Detailed Specifications

Camera

Specification	Details
Model	IPC3616SB-ADF28KM-I0
Image Sensor	1/2.7" Progressive Scan CMOS
Resolution	6MP
Maximum Resolution	3072 × 2048
Day/Night	IR-Cut Filter with Auto Switch
WDR	120dB Optical WDR
S/N Ratio	>52dB
Shutter Speed	1~1/100000s

Lens

Specification	Details
Lens Type	Fixed
Focal Length	2.8mm
Aperture	F1.6
Horizontal FOV	101.34°
Vertical FOV	54.46°
Diagonal FOV	119.72°

DORI Distances

Function	Distance
Detect	63m
Observe	25.2m
Recognize	12.6m
Identify	6.3m

Infrared Illumination

Specification	Details
IR Distance	Up to 30m
Wavelength	850nm
IR Control	Auto / Manual

Video Compression

• Ultra 265
• H.265
• H.264
• MJPEG

Intelligent Functions

• Smart Intrusion Prevention
• False Alarm Filtering
• Face Capture
• People Counting
• Crowd Density Monitoring
• Motion Detection
• Ultra Motion Detection
• Audio Detection
• Tampering Alarm

Audio

Specification	Details
Built-in Microphone	Yes
Compression	G.711A / G.711U
Audio Bit Rate	64 Kbps
Sampling Rate	8KHz

Storage

Specification	Details
MicroSD Support	Up to 256GB
Network Storage	NAS (NFS), ANR

Network

• IPv4 / IPv6
• HTTP / HTTPS
• RTSP / RTP / RTCP
• DHCP
• DNS
• DDNS
• FTP
• NTP
• SMTP
• SNMP
• SSH
• QoS
• 802.1X

Security Features

• HTTPS Encryption
• TLS 1.2
• RTSP Authentication
• ONVIF Authentication
• Strong Password Enforcement
• Access Policies
• IP Address Filtering
• ARP Protection

Physical Specifications

Specification	Details
Housing Material	Metal
Protection Rating	IP67
Power Supply	DC 12V ±25% / PoE IEEE 802.3af
Maximum Power Consumption	5W

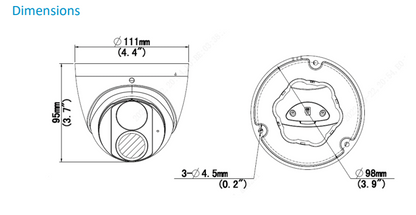

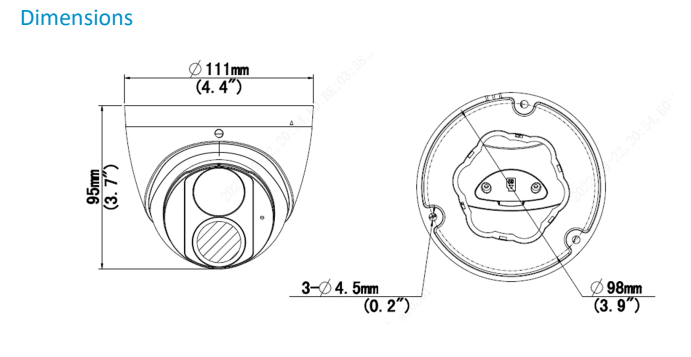

Dimensions	Ø111 × 95mm
Weight	0.45kg
Operating Temperature	-30°C to +60°C
Surge Protection	4KV

Warranty Information

• 3 year Manufacturer Warranty Supported
• Warranty handled directly according to Uniview warranty policies
• Genuine Australian supplied product

Brand Information

Uniview

Uniview is a globally recognised manufacturer of professional IP video surveillance solutions. Known for innovation in network video technology, AI-powered analytics, and advanced imaging systems, Uniview products are trusted by businesses, government agencies, educational institutions, and security professionals worldwide.

SKU

IPC3616SB-ADF28KM-I0

Practical Use Scenarios

Retail Stores

Monitor entrances, aisles, checkout areas, and customer traffic with advanced people counting and face capture capabilities.

Commercial Buildings

Protect office buildings, reception areas, corridors, and external access points with intelligent intrusion detection.

Educational Facilities

Monitor school grounds, entrances, walkways, and common areas while reducing false alarms.

Warehouses & Logistics

Track vehicle movements, loading bays, and perimeter activity with AI-powered analytics.

Residential Security

Provide high-resolution surveillance for homes, driveways, garages, and outdoor areas.

Hospitality & Public Venues

Support occupancy monitoring, crowd density analysis, and visitor management.

Datasheets & Downloadable Resources

• Uniview IPC3616SB-ADF28KM-I0 Datasheet

Excellence for the Australian and New Zealand Market

The Uniview IPC3616SB-ADF28KM-I0 has been selected to meet the demanding requirements of professional security installations throughout Australia and New Zealand.

Key benefits include:

• Designed for continuous operation in harsh Australian weather conditions
• IP67-rated protection for outdoor deployments
• Supports Australian commercial and residential surveillance requirements
• Genuine products sourced through authorised distribution channels
• Full manufacturer-backed warranty support
• ONVIF-compliant for easy integration into existing security systems
• Advanced cybersecurity features including TLS 1.2 encryption and authentication controls
• Suitable for schools, healthcare facilities, retail environments, warehouses, offices, and critical infrastructure projects

Frequently Asked Questions (FAQs)

Does the IPC3616SB-ADF28KM-I0 support PoE power?

Yes. The IPC3616SB-ADF28KM-I0 supports IEEE 802.3af PoE as well as 12V DC power input.

What resolution does the IPC3616SB-ADF28KM-I0 record at?

The IPC3616SB-ADF28KM-I0 records at up to 6MP resolution (3072 × 2048).

Does the IPC3616SB-ADF28KM-I0 have a built-in microphone?

Yes. The IPC3616SB-ADF28KM-I0 includes an integrated microphone for synchronized audio recording.

Is the IPC3616SB-ADF28KM-I0 suitable for outdoor installation?

Yes. The IPC3616SB-ADF28KM-I0 features an IP67-rated weatherproof metal housing designed for outdoor environments.

How far can the IPC3616SB-ADF28KM-I0 see at night?

The IPC3616SB-ADF28KM-I0 provides infrared illumination up to 30 metres.

Does the IPC3616SB-ADF28KM-I0 support intelligent analytics?

Yes. The IPC3616SB-ADF28KM-I0 supports intelligent intrusion prevention, face capture, people counting, crowd density monitoring, and false alarm filtering.

What storage options are available on the IPC3616SB-ADF28KM-I0?

The IPC3616SB-ADF28KM-I0 supports MicroSD cards up to 256GB as well as NAS network storage solutions.

Is the IPC3616SB-ADF28KM-I0 ONVIF compatible?

Yes. The IPC3616SB-ADF28KM-I0 supports ONVIF Profile S, Profile G, and Profile T for broad system compatibility.

What low-light technology is used in the IPC3616SB-ADF28KM-I0?

The IPC3616SB-ADF28KM-I0 uses Uniview's advanced LightHunter technology to provide exceptional image quality in low-light environments.

What industries commonly use the IPC3616SB-ADF28KM-I0?

The IPC3616SB-ADF28KM-I0 is commonly deployed in retail, education, commercial offices, warehouses, logistics facilities, hospitality venues, healthcare facilities, and residential security applications.
