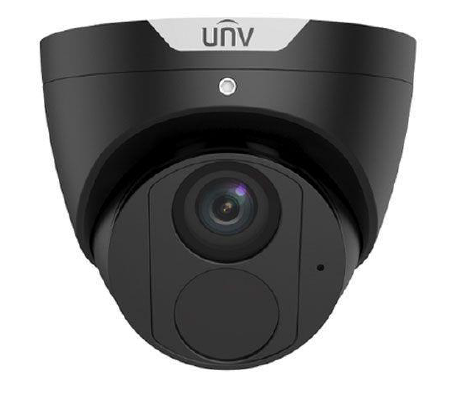

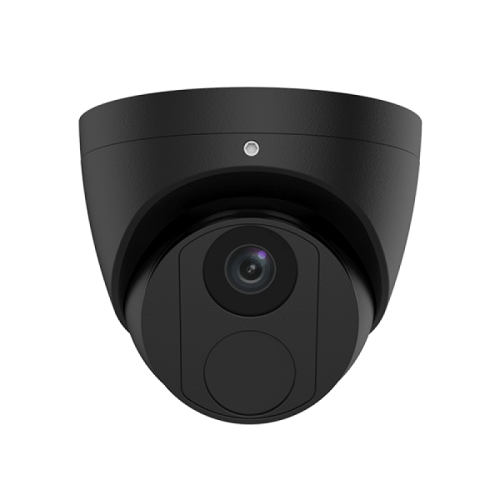

Uniview IPC3616LE-ADF28KM-G-BK 6MP easy series ip camera black AI 2.8MM fixed lens easystar ir 30m poe ip67 built-in mic

Uniview IPC3616LE-ADF28KM-G-BK 6MP easy series ip camera black AI 2.8MM fixed lens easystar ir 30m poe ip67 built-in mic

$137.60 AUD
$234.60 AUD $137.60 AUD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Color

Introducing the Easy Series IP Camera in sleek black – your gateway to advanced surveillance. With a potent 6MP AI-powered sensor, this turret-style camera redefines clarity and intelligence in monitoring.

Experience superior image quality under varying lighting conditions, thanks to the 120dB Wide Dynamic Range (WDR) and the innovative EasyStar IR technology providing a remarkable 30 meters of night vision.

Crafted with durability in mind, the metal construction ensures reliability, and the IP67 rating guarantees protection against dust and water, making it suitable for diverse environments. Power over Ethernet (PoE) support streamlines installation for your convenience.

This feature-packed camera goes beyond standard surveillance. Equipped with a 2.8mm fixed lens, it provides a wide field of view, while the built-in microphone adds an extra layer of functionality, capturing audio alongside video.

Store and manage your footage effortlessly with support for up to 256GB SD cards. Whether it's for home or business security, the Easy Series IP Camera delivers peace of mind, combining advanced technology with user-friendly features. Elevate your surveillance experience – order now!



Specifications Details
Vendor UNV Digital Technologies
Brand Uniview
Series Easy
HDCVI / IP IP Camera
Color Black
Application 0
Megapixels 6MP
Camera Style Turret
Lens Size 2.8mm
Lens Type Fixed
Night Vision EasyStar, IR
IR / White LED Distance 30m
Features Built-in Mic, IP67
Warranty 24 Months



Datasheet

 Datasheet



Key Features:

  • High-Quality Image: Achieve exceptional image quality with a 6MP, 1/2.7" CMOS sensor.

  • Versatile Resolution: Capture detailed footage with various resolution options:

    • 6MP (3072*2048)@25fps
    • 5.3M (3072*1728)@30/25fps
    • 5MP (2880*1620)@25/20fps
    • 4MP (2560*1440)@25/20fps
    • 3MP (2304*1296) @30/25fps
    • 2MP (1920*1080) @30/25fps.

  • Advanced Compression: Utilize Ultra 265, H.265, H.264, and MJPEG compression technologies for efficient data storage.

  • Easystar Technology: Ensure superior image quality even in low-illumination environments with Easystar technology.

  • True WDR Technology: Experience clear images in strong light scenes with 120dB true WDR technology.

  • Corridor Mode: Support 9:16 Corridor Mode for optimized vertical video display.

  • Built-in Mic: Seamlessly capture audio alongside video with the built-in microphone.

  • Smart IR: Benefit from Smart IR technology, providing up to 30m (98ft) IR distance for enhanced night vision.

  • Expandable Storage: Support a 256 G Micro SD card for flexible and convenient storage options.

  • Robust Protection: Ensure durability with IP67 protection against dust and water.

  • Power Options: Support PoE power supply for simplified installation.

  • Flexible Adjustment: Enjoy versatile positioning with the 3-Axis design for easy and precise adjustments

Specifications IPC3616LE-ADF28KM-G-BK IPC3616LE-ADF40KM-G-BK
Camera
Sensor 1/2.7", 6.0 MP, progressive scan, CMOS 1/2.7", 6.0 MP, progressive scan, CMOS
Lens 2.8mm@F1.6 4.0mm@F1.6
DORI Distance
Lens (mm) Detect (m) Observe (m)
2.8 63.0 25.2
4.0 112.9° 59.1°
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Support Easystar: Color: 0.003Lux ( F1.6, AGC ON) Color: 0.003Lux ( F1.6, AGC ON)
0Lux with IR 0Lux with IR
Day/Night IR-cut filter with auto switch (ICR) IR-cut filter with auto switch (ICR)
Digital Noise Reduction 2D/3D DNR 2D/3D DNR
Smart IR Supported Supported
IR Range Up to 30m (98ft) IR range Up to 30m (98ft) IR range
Wavelength 850nm 850nm
IR On/Off Control Auto/Manual Auto/Manual
Defog Digital Defog Digital Defog
WDR 120dB 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 6MP(30722048), Max 25fps; 5.3M (30721728), Max 30fps; 5MP (28801620), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps; Main Stream: 6MP(30722048), Max 25fps; 5.3M (30721728), Max 30fps; 5MP (28801620), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps 128 Kbps~16 Mbps
9:16 Corridor Mode Supported Supported
OSD Up to 4 OSDs Up to 4 OSDs
Privacy Mask Up to 4 areas Up to 4 areas
