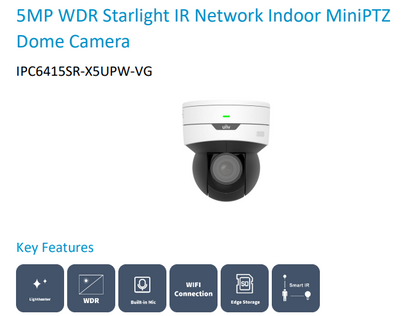

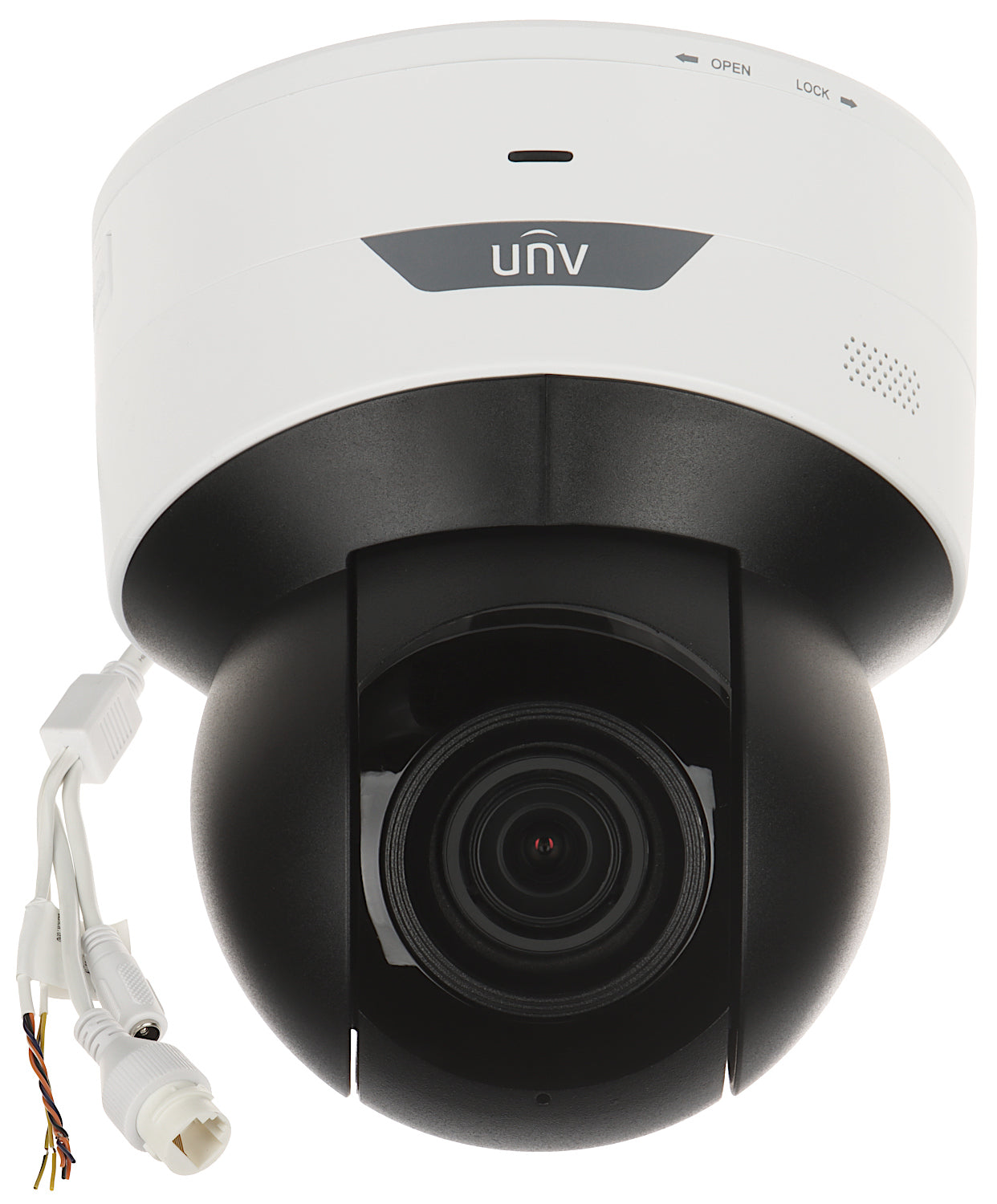

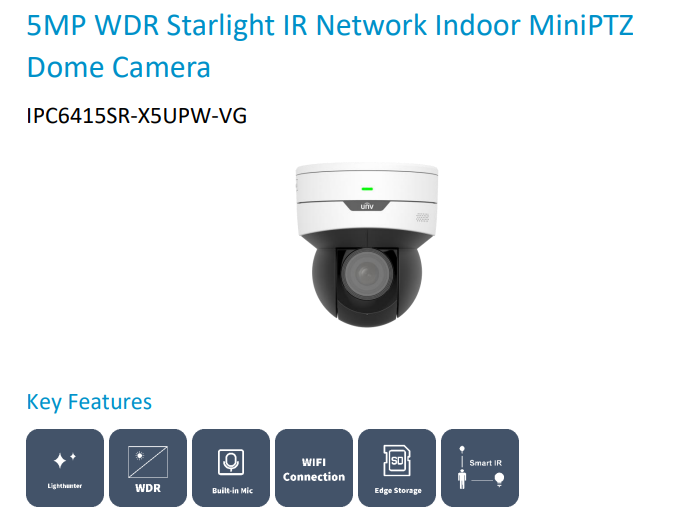

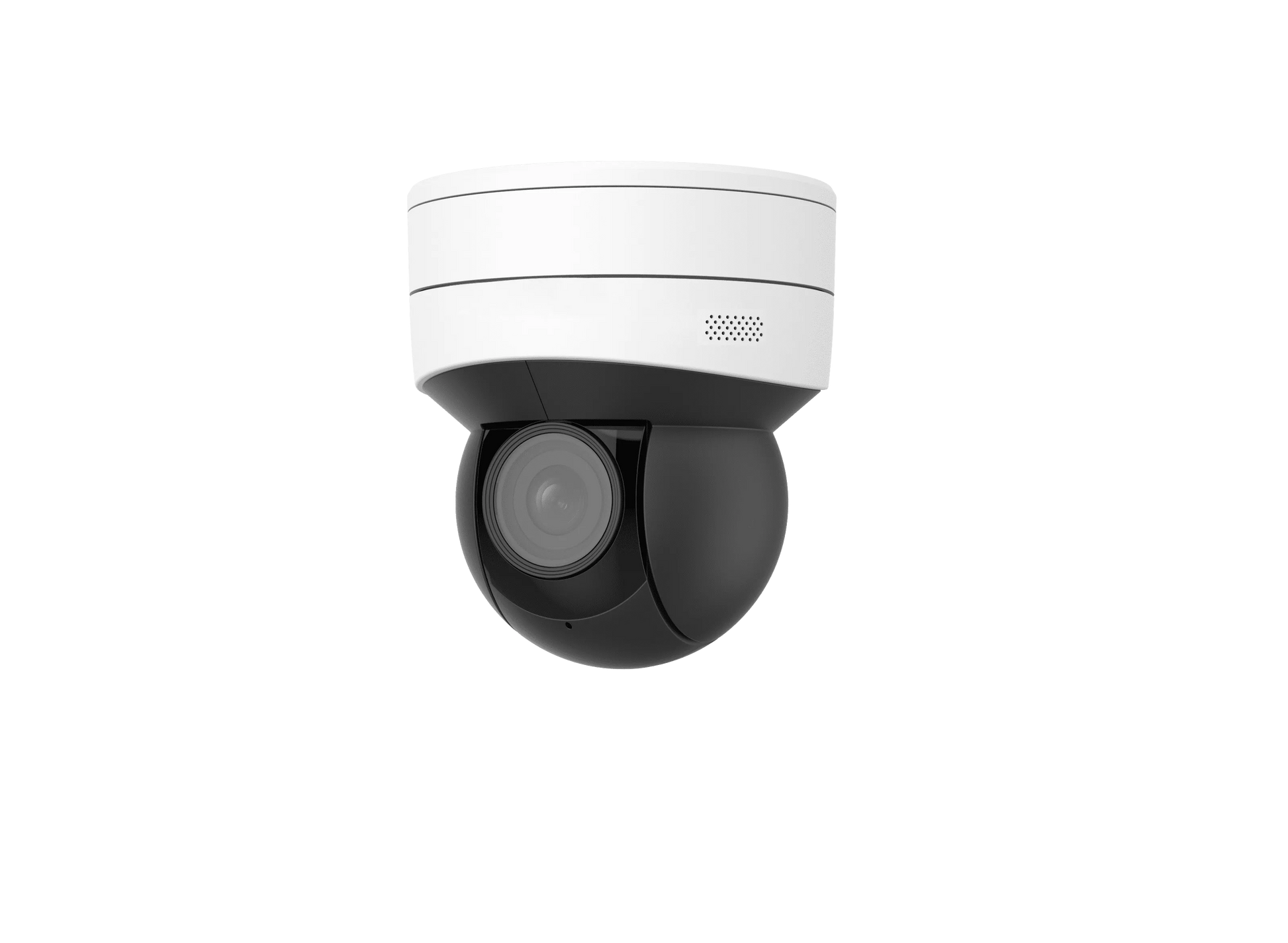

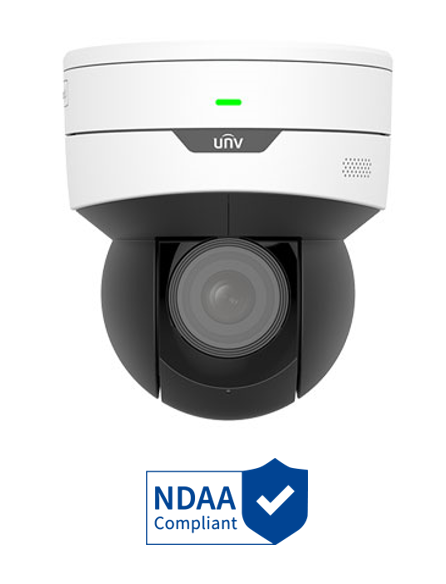

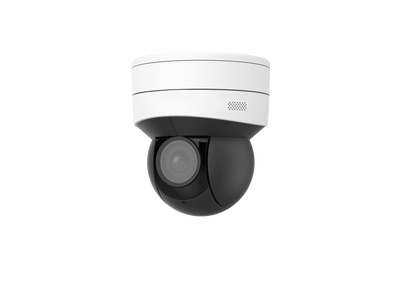

Uniview Easy Series 5MP Mini PTZ IP Camera (Model: IPC6415SR-X5UPW-VG)

The Uniview Easy Series IPC6415SR-X5UPW-VG is a high-quality 5MP Mini PTZ (Pan-Tilt-Zoom) IP camera designed for versatile surveillance in both residential and commercial settings. Featuring a motorized 5x optical zoom lens with a 2.7mm to 13.5mm range, this camera offers flexible monitoring with exceptional image clarity. Its LightHunter technology ensures superior low-light performance, while the 120dB WDR (Wide Dynamic Range) allows for enhanced image quality in high-contrast lighting conditions. With PoE+ support and easy installation, this camera is a cost-effective and reliable solution for any surveillance system.

Key Features:

• 5MP High Definition: Provides clear and detailed 2880x1620 resolution video at 30fps for accurate surveillance.
• Motorized 5x Optical Zoom: Adjustable zoom from 2.7mm to 13.5mm, allowing for flexible coverage and the ability to focus on specific areas of interest.
• LightHunter Technology: Ensures vibrant, high-quality images even in low-light environments, perfect for 24/7 surveillance.
• 120dB Wide Dynamic Range (WDR): Improves image clarity in challenging lighting conditions (e.g., bright lights or backlighting).
• Smart IR Technology: Provides up to 30m (98ft) of infrared illumination for clear night vision.
• Built-in Microphone & Speaker: Supports two-way audio for clear communication.
• Alarm Inputs/Outputs: Includes 1 alarm input and 1 alarm output for enhanced security system integration.

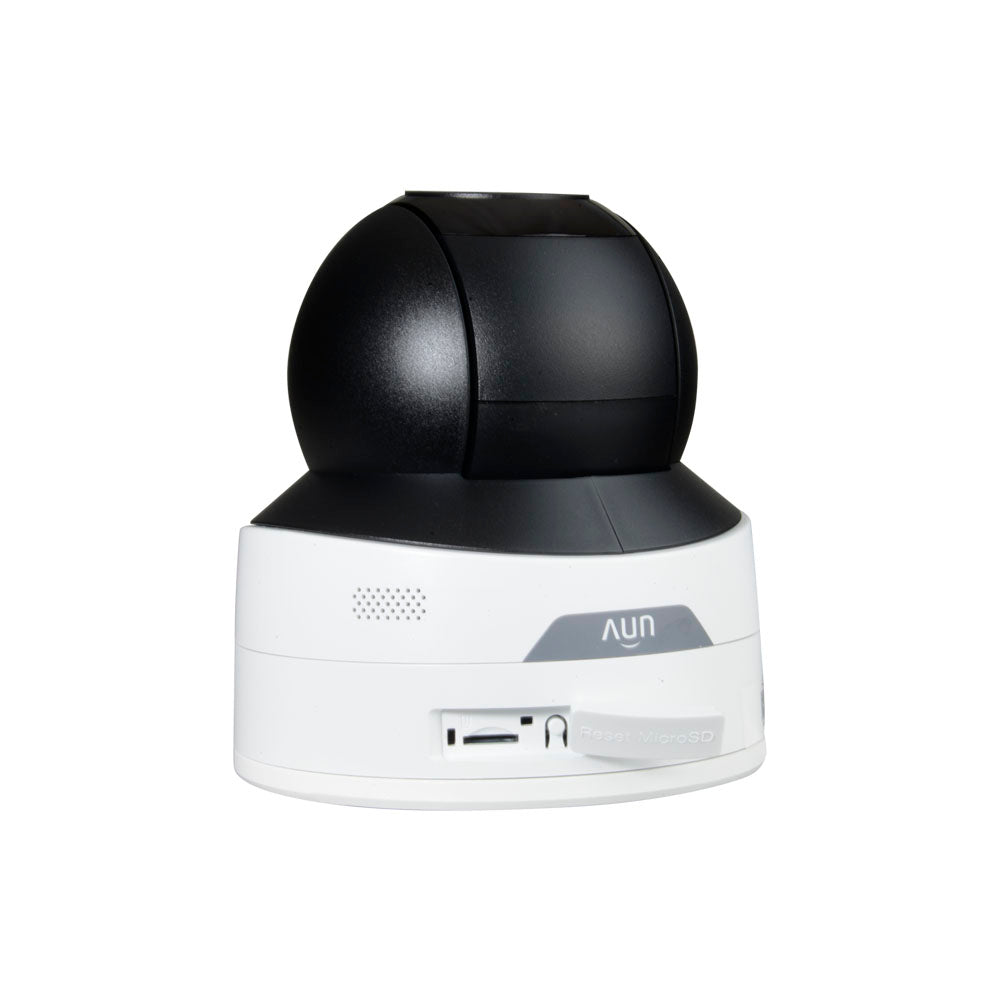

• Edge Storage: Supports micro SD cards up to 256GB for local video storage.
• PoE+: Simplifies installation with Power over Ethernet (IEEE 802.3at), reducing the need for separate power cables.
• Remote Viewing: Compatible with multiple clients, including EZStation, EZLive, Ezview, and web browsers (requires plug-in).

Specifications:

• Sensor: 1/2.7" 5MP progressive scan CMOS
• Lens: 2.7mm ~ 13.5mm motorized zoom, F1.2, AF automatic focusing
• Shutter Speed: Auto/manual, 1 ~ 1/100000s
• Minimum Illumination: Color: 0.003 lux (F1.2, AGC ON), 0 lux with IR
• IR Range: Up to 30m (98ft) with 850nm wavelength
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Video Resolution: Main Stream: 5MP @ 30fps; Sub Stream: 720P @ 30fps; Third Stream: D1 @ 30fps
• Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, DNS, DDNS, NTP, SMTP, FTP, SNMP, and more
• Power Supply: DC 12V (±25%), PoE+ (IEEE 802.3at), Max 13W
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Dimensions: Ø129 x 143.6mm (Φ5.1’’ x 5.7’’)
• Weight: 0.75kg (1.65lb)

What's in the Box:

• 1 x Uniview Easy Series 5MP Mini PTZ IP Camera (IPC6415SR-X5UPW-VG)
• 1 x Mounting Bracket
• 1 x Power Adapter (if not using PoE)
• 1 x User Manual

Warranty:

• 24 Months Warranty for peace of mind and reliable product performance.

This camera is a robust and feature-packed solution for anyone looking to monitor larger areas with precise control and excellent image quality. Whether it's for home, office, or commercial premises, the Uniview Easy Series Mini PTZ IP Camera offers flexibility and top-tier performance in an easy-to-install package.

Datasheet
